Nichiyu Forklift FB-60 Series SICOS 60 FB10-30P Service Manual PDF
$18.95
Nichiyu Forklift FB-60 Series SICOS 60 FB10-30P Service Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Nichiyu Forklift FB-60 Series SICOS 60 FB10-30P Service Manual – PDF DOWNLOAD
FILE DETAILS:
Nichiyu Forklift FB-60 Series SICOS 60 FB10-30P Service Manual – PDF DOWNLOAD
Language : English
Pages : 75
Downloadable : Yes
File Type : PDF

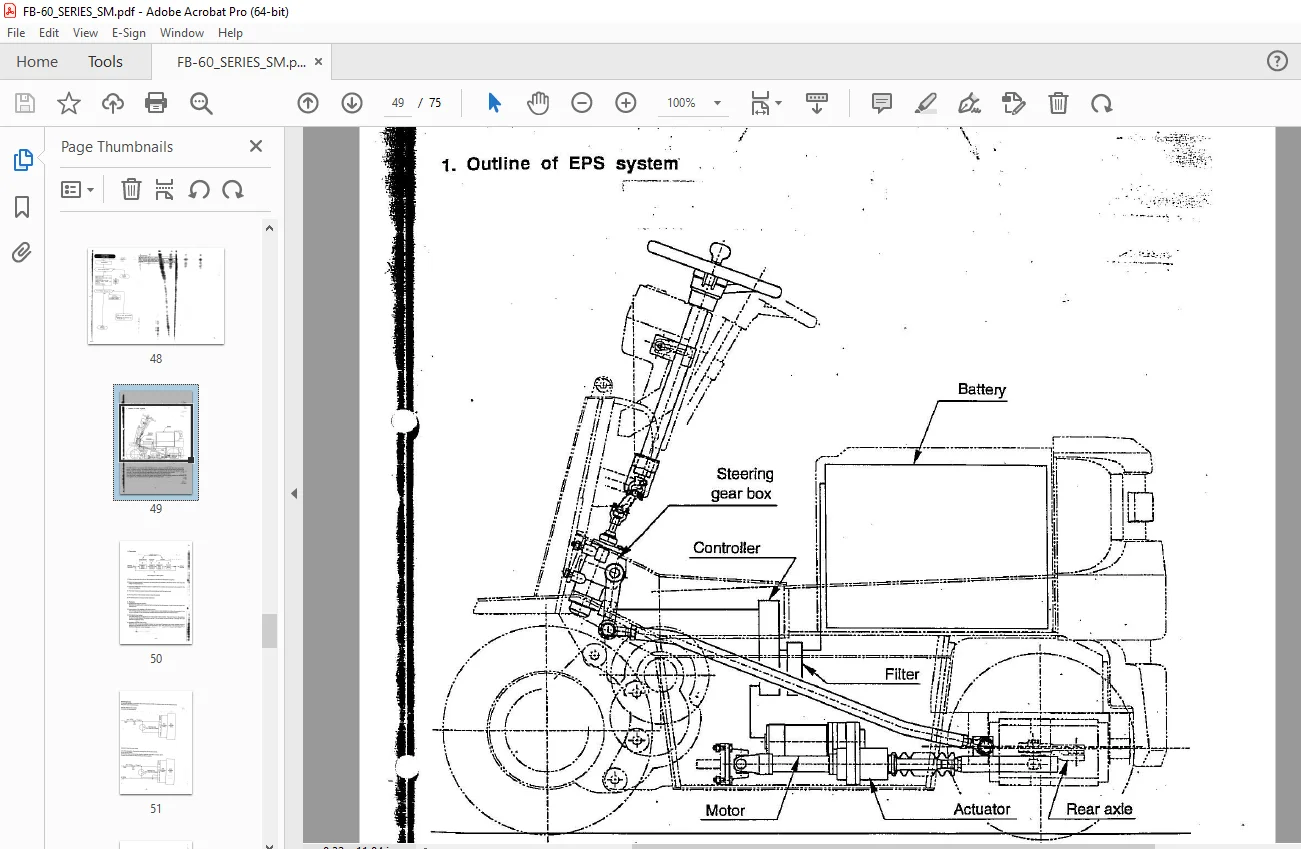

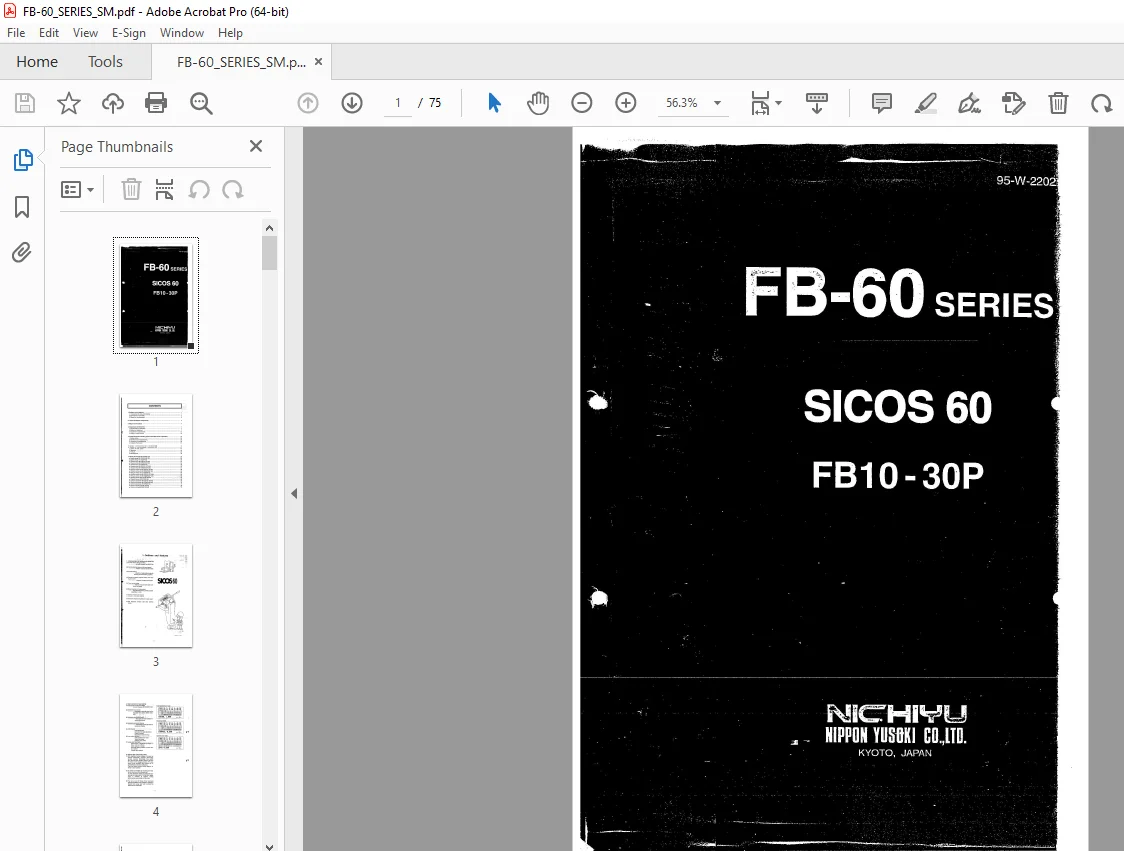

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Nichiyu Forklift FB-60 Series SICOS 60 FB10-30P Service Manual – PDF DOWNLOAD
1. Outlines and Features
Improvement of Safety and Reliability
Improvement of Operability
Others (for Microcomputer)
2. Layout of Electric Components
Major New Functions
3. Adjustments and Verification
Adjustment of SICOS 60
Setting and Adjustment
Adjustment of Potentiometer
Setting of Rotary Switches
4. Practical Troubleshooting (How to Find the Cause of Problem)
Before Starting
Attention for Troubleshooting
Procedure of Troubleshooting
Analysis of Fault Cause
5. Outline of Microcomputer Controlled EPS
Outline of EPS System
Operation
Features
Self-Diagnosis
6. Wiring and Layout of Control Unit
System Wiring 48V (FB10P-25P-60)
System Wiring 72V (FB30P-60)
Chassis Wiring 48V (FB10P-18P-60)
Chassis Wiring 48V (FB20P/25P-60)
Chassis Wiring 72V (FB30P-60)
Chassis Wiring 48V (FB10P-18P-U60)
Chassis Wiring 48V (FB20P/25P-U60)
Wiring in Control Unit 48V (FB10P-18P-60)
Wiring in Control Unit 48V (FB20P/25P-60)
Wiring in Control Unit 72V (FB30P-60)
Wiring in Control Unit 48V (FB10P-18P-U60)
Wiring in Control Unit 48V (FB20P/25P-U60)
Chassis Harness 48V (FB10P-25P-60)
Chassis Harness 72V (FB30P-60)
Control Unit Harness 48V (FB10P-18P-60)
Control Unit Harness 48V (FB20P/25P-60)
Control Unit Harness 72V (FB30P-60)
Control Unit Ass’y (FB10P-18P-60)
Control Unit Ass’y (FB20P-30P-60)
S.V 06/24
