Nichiyu Forklift FBR (А) 20-30 FBR (А) 25-30 FBR (А) 30-30 Parts Manual PDF

Description

Nichiyu Forklift FBR (А) 20-30 FBR (А) 25-30 FBR (А) 30-30 Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Nichiyu Forklift FBR (А) 20-30 FBR (А) 25-30 FBR (А) 30-30 Parts Manual – PDF DOWNLOAD

Language : English
Pages : 172
Downloadable : Yes
File Type : PDF

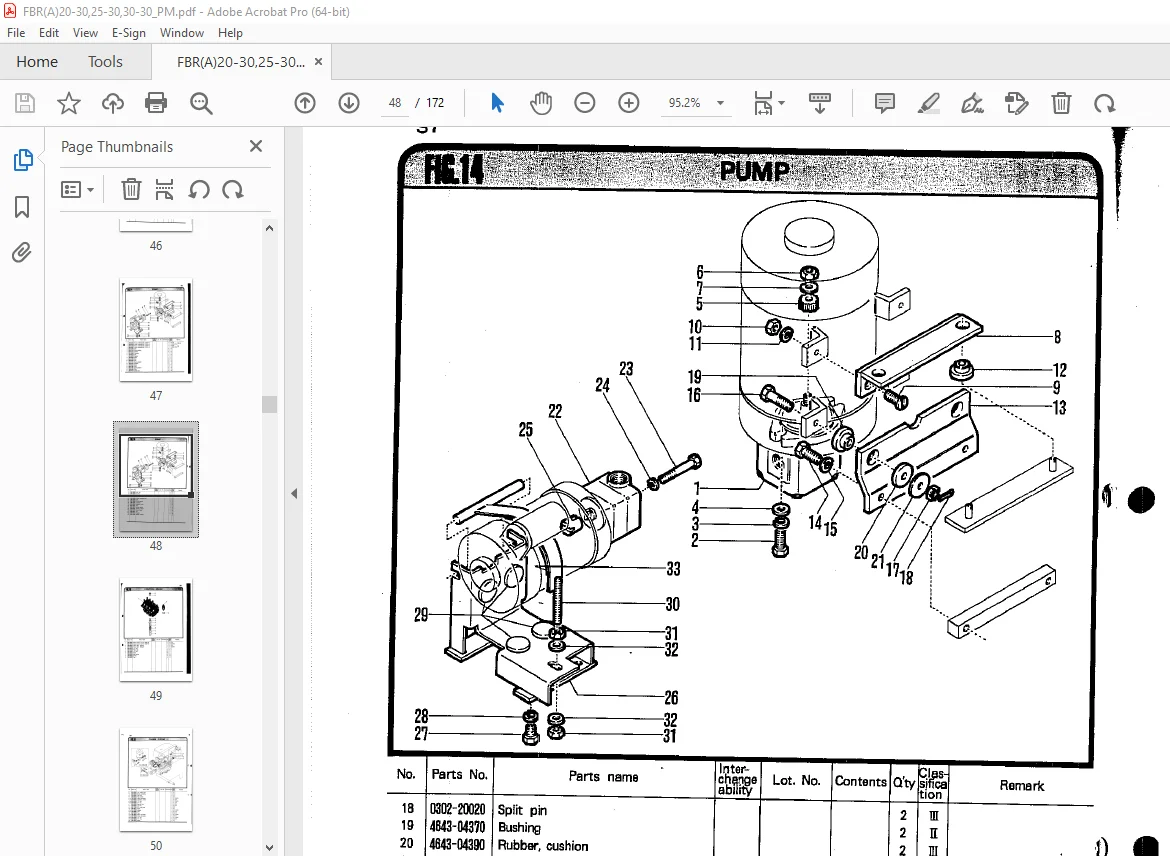

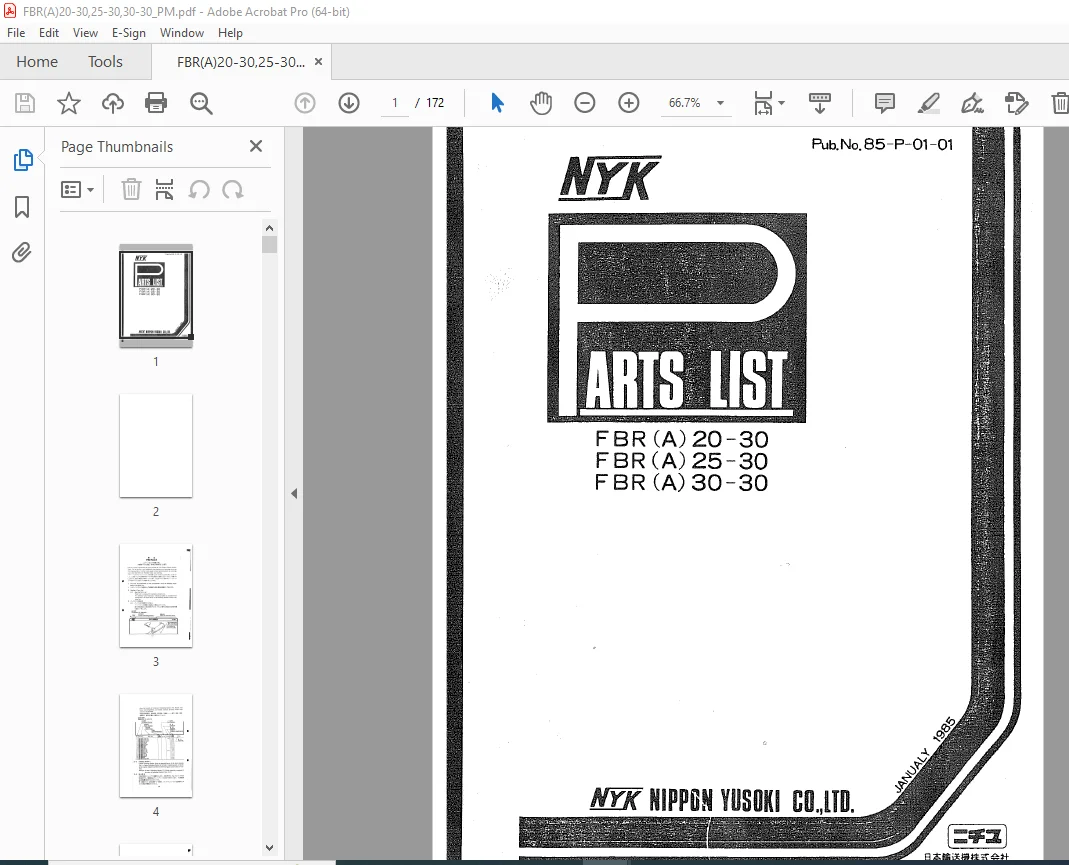

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Nichiyu Forklift FBR (А) 20-30 FBR (А) 25-30 FBR (А) 30-30 Parts Manual – PDF DOWNLOAD

Frame (1) 1 – 5
Frame (2) 6 – 8
Drive (1) 9 – 12
Drive (2) 13 – 14
Control linkage (1) 15 – 16
Control linkage (2) 17 – 18
Control linkage (3) (lubrication piping) 19
Load wheel 20
Steering (M.S.) 21 – 23
Steering (P.S.) 24 – 26
Brake linkage (1) 27 – 29
Brake linkage (2) (disk brake) 30 – 31
Valve linkage 32 – 33
Tank 34 – 35
Pump 36 – 37
Control valve 38
Frame piping (1) 39 – 40
Frame piping (2) 41
Frame piping (3) 42
Frame piping (4) 43 – 44
Mast piping (S-m) 45 – 48
Mast piping (P-m) 49 – 52
Lift cylinder (S-m) 53 – 57
Lift cylinder (P-m) 58 – 61
Tilt cylinder 62 – 63
Reach cylinder 64 – 66
Mast (S-m) 67 – 73
Mast (P-m) 74 – 81
Chain wheel (S-m) 82 – 88
Chain wheel (P-m) 89 – 94
Lift bracket 95 – 99
Drive motor (20/25) 100 – 101
Drive motor (30) 102 – 103
Hydraulic motor (Lift) 104 – 105
Hydraulic motor (P.S.) 106
Contactor (1) 107 – 108
Contactor (2) 109 – 110
Contactor (3) 111 – 112
Contactor (4) 113 – 115
SCR unit (1) 116 – 118
SCR unit (2) 119 – 120
SCR unit (3) (CS, FCS) 121
Accelerator 122 – 124
Charger (1) (BC) 125 – 126
Charger (SC) 127 – 132
Charger (2) (Transformer) (BC) 133
Panel (Indicator) 134
Panel (Control) 135
Key switch (CS, FCS) 136
Electric parts (1) 137 – 139
Electric parts (2) (Accessory) 140 – 142
Name plate 143 – 144
