Nilfisk Advance Retriever 4000B Instructions for use & parts Manual – PDF DOWNLOAD

Description

Nilfisk Advance Retriever 4000B Instructions for use & parts Manual – PDF DOWNLOAD

FILE DETAILS:

Nilfisk Advance Retriever 4000B Instructions for use & parts Manual – PDF DOWNLOAD

Language : English
Pages : 90
Downloadable : Yes
File Type : PDF

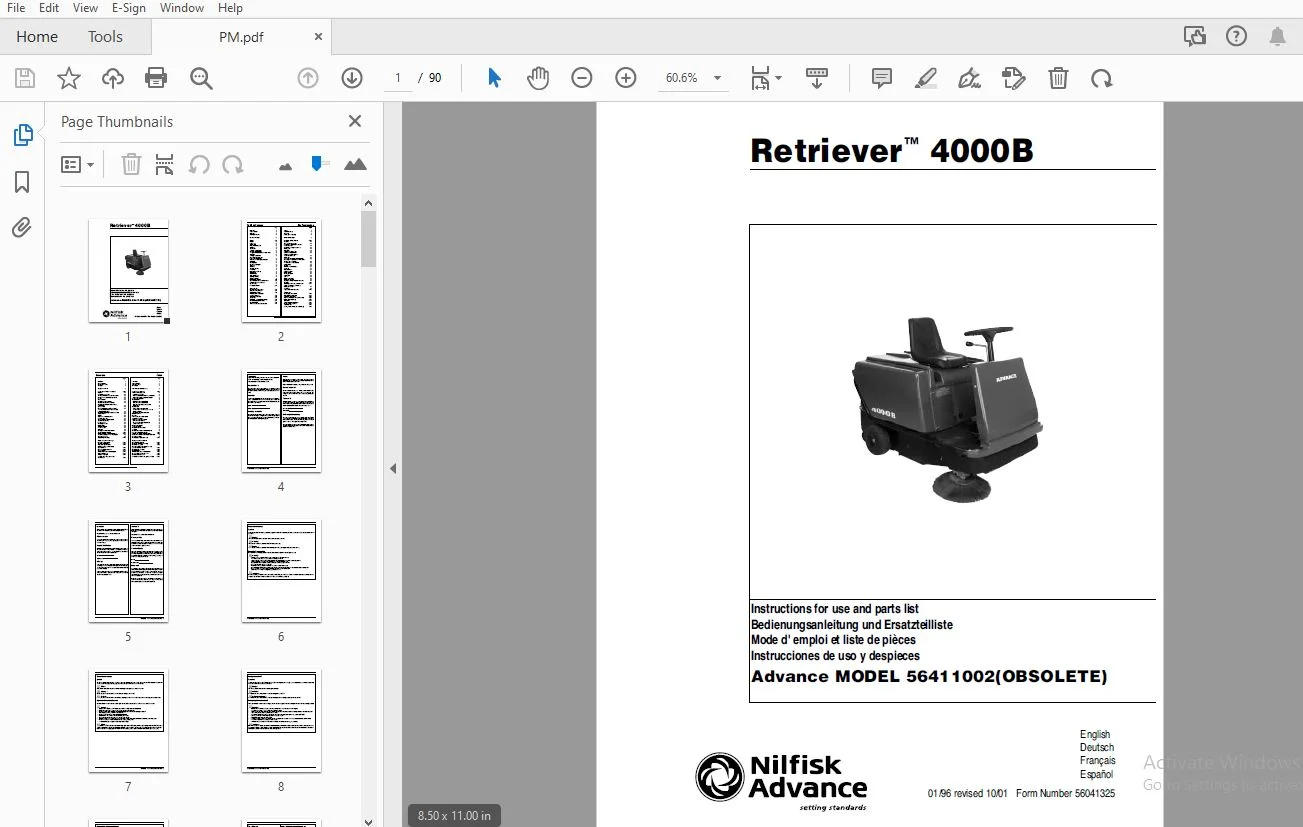

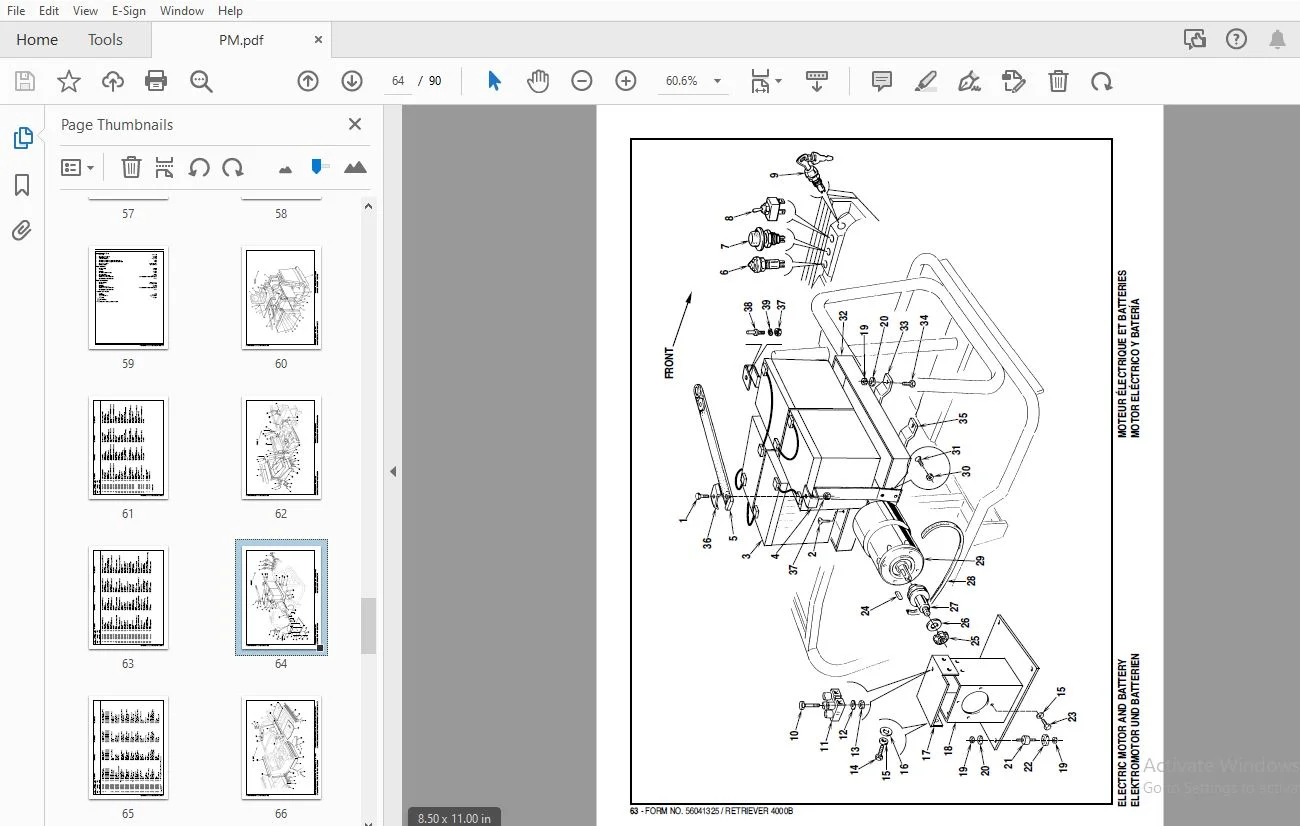

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Nilfisk Advance Retriever 4000B Instructions for use & parts Manual – PDF DOWNLOAD

Introduction 3
Parts and Service 3
Nameplate 3
Uncrating the Machine 3
Cautions and Warnings 5
Controls 9-18
Operation 19
Precautions 19
Starting Work 19
Using the Rider Sweeper 19
Maintenance 21
Side Brooms 21
Adjusting the Side Brooms 21
Replacing the Side Brooms 21
Fitting the RH Side Broom Secondary Drive Belt 23
Main Broom 25
Adjusting the Main Broom 25
Checking and Replacing the
Primary Broom Drive Belt 25
Removing and Replacing the Main Broom 27
Drive System 29
Steering System 29
Service and Parking Brake 31
Suction Fan 32
Dust Flaps 33
Replacing the Flaps 33
Panel Filter 33
Cleaning the Panel Filter 33
Debris Hopper 35
Electrical System 37
Battery Maintenance 39
Operating (run) Time 39
Fitting New Batteries 39
Electrical Wiring Diagram 41-42
Fuses, Remote Switches and Microswitches 43-44
Periodic Maintenance and Checks 45
Troubleshooting 47
Technical Specifications 51-52
Spare Parts List
Chassis, Body Panels and Seat 59-60
Bodywork and Debris Hopper 61-62
Electric Motor and Battery 63-64
Dust Protection Rubber Sections
and Flap Lifting Pedal 65-66
Main Broom and Controls 67-70
Side Brooms 71-74
Drive System and Electronic Control Unit 75-78
Wheels, Steering System and Brake 79-82
Wheel Drive Motor 83-84
Suction Fan, Filter, Shaker and Controls 85-88
