Nipro Surdial Dialysis Machine Service Manual PDF DOWNLOAD

Description

Nipro Surdial Dialysis Machine Service Manual PDF DOWNLOAD

Description

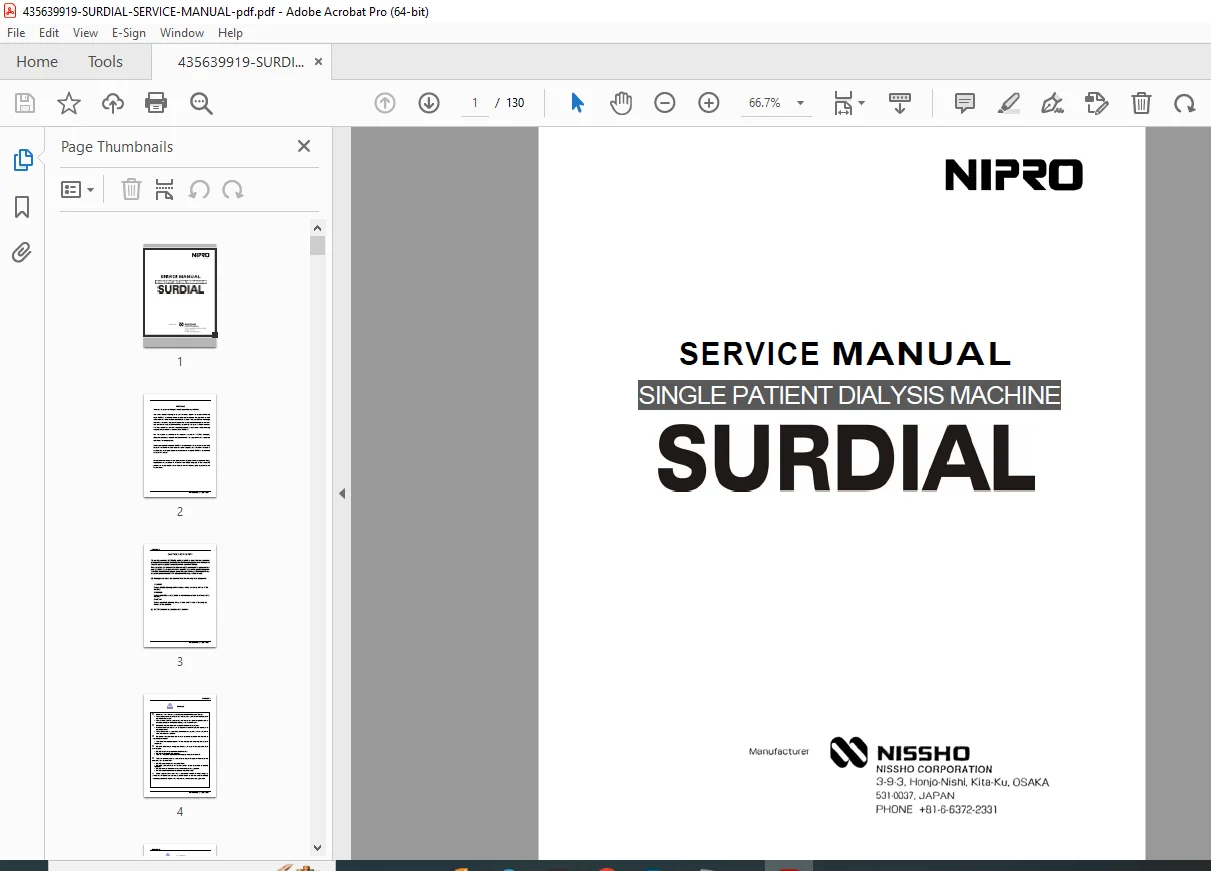

This is the official Nipro Surdial Service Manual (ver. OR2102-9902) for the Single Patient Dialysis Machine Surdial, manufactured by Nissho Corporation (Nipro). Intended strictly for qualified service engineers and biomedical technicians, this 130-page manual provides comprehensive guidance on safe maintenance, component replacement, electrical adjustments, calibrations, and system settings for this hemodialysis system.

Essential for proper servicing, including nipro surdial conductivity calibration manual details, surdial blood pump adjustment pdf procedures, and surdial venous clamp replacement download instructions.

Table of Contents – Fully Organized

• Preface
• Cautions for Safety (Danger, Warning, Caution classifications)

1. Application 2. Contraindication (implied from structure) 3. Cautions 4. Symbol for Safety

5. Flow Chart

• 5.1 Fluid and blood line flow chart, input/output/other components lists

6. Disassembling and Replacement

• 6.1 Input components (conductivity cell, dialysate pressure sensor, blood leak sensor, pressure SW)
• 6.2 Output components (electromagnetic valves, bellowphragm pumps, blood pump assy, micro gear pumps, venous clamp assy)
• 6.3 Other components (deaeration baths, buffer tanks, check valves, supply water filter, flow meters, reducing/relief valves, sampling port, chambers, concentrate connectors)

7. Construction of Electrical Part

• 7.1 Components placement (upper/lower electrical parts, power box)

8. Connection, Replacement and Adjustment

• 8.1–8.10 Various boards (operation panel, LCD, sensors, main board, DSUB, buzzer, sub-board)

9. Maintenance Modes

• 9.1 Display overview
• 9.2–9.13 Detailed maintenance mode screens (1–10) for data monitoring, alarm settings/release, component function testing, concentration settings, calendar/clock, system options, service frequency, air purge, alarm history

10. Adjustment

• 10.1 Chamber capacity/silicone volume
• 10.2–10.3 Venous/arterial/dialysate pressure sensors
• 10.4 Temperature sensor
• 10.5 Pressure SW
• 10.6 Blood leak sensor
• 10.7 Reducing valve
• 10.8–10.11 Priming/bypass flow rates
• 10.12–10.13 Blood pump gaps/flow rate (including small rolling tube)
• 10.14 Clamp leak/gap
• 10.15 Bubble sensor
• 10.16 Conductivity/concentration calibration
• 10.17 Contrast adjustment

11. DIP Switches (DIP SW’s)

• 11.1 Operation
• 11.2 Functions

12. Various Data

• 12.1 Loaded CPU/ROM
• 12.2 Wiring in power box

File Details

• Manual Name: Nipro Surdial Single Patient Dialysis Machine Service Manual (ver. OR2102-9902)
• Models Covered: Surdial (Nissho/Nipro hemodialysis system)
• Year: Factory original (professional medical equipment era)

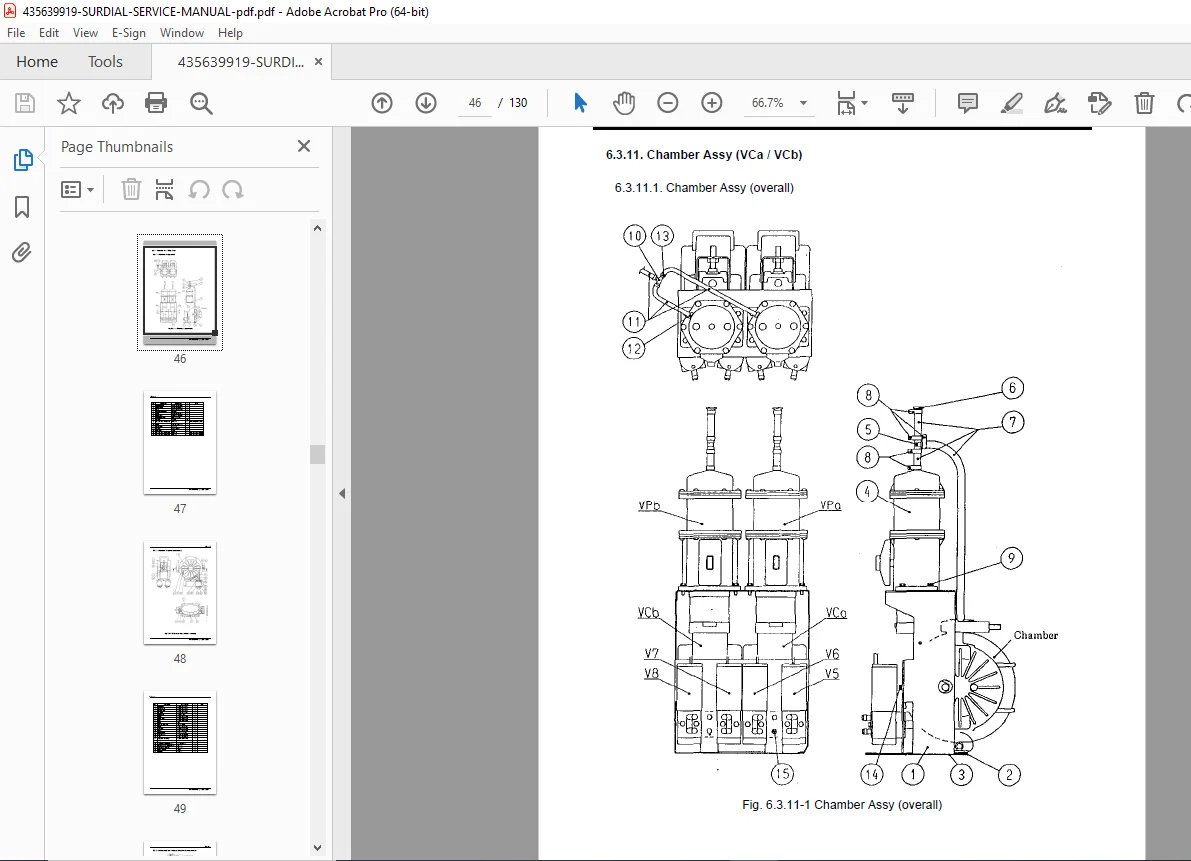

• PDF Quality: High-resolution scanned pages with clear text, diagrams, and tables
• Number of Pages: 130

Secure the definitive factory resource for nipro surdial service manual pdf needs – critical for accurate repair, calibration, and maintenance of your Surdial dialysis machine. Instant digital download lets qualified technicians start servicing with precision today
