NISSAN FORKLIFT PLL APX Series Low-Lift Walkie Pallet Truck Advanced AC SERVICE MANUAL SMPLL-MAINT PDF DOWNLOAD

Description

NISSAN FORKLIFT PLL APX Series Low-Lift Walkie Pallet Truck Advanced AC SERVICE MANUAL SMPLL-MAINT PDF DOWNLOAD

FILE DETAILS:

NISSAN FORKLIFT PLL APX Series Low-Lift Walkie Pallet Truck Advanced AC SERVICE MANUAL SMPLL-MAINT PDF DOWNLOAD

Language :English
Pages :179
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

NISSAN FORKLIFT PLL APX Series Low-Lift Walkie Pallet Truck Advanced AC SERVICE MANUAL SMPLL-MAINT PDF DOWNLOAD

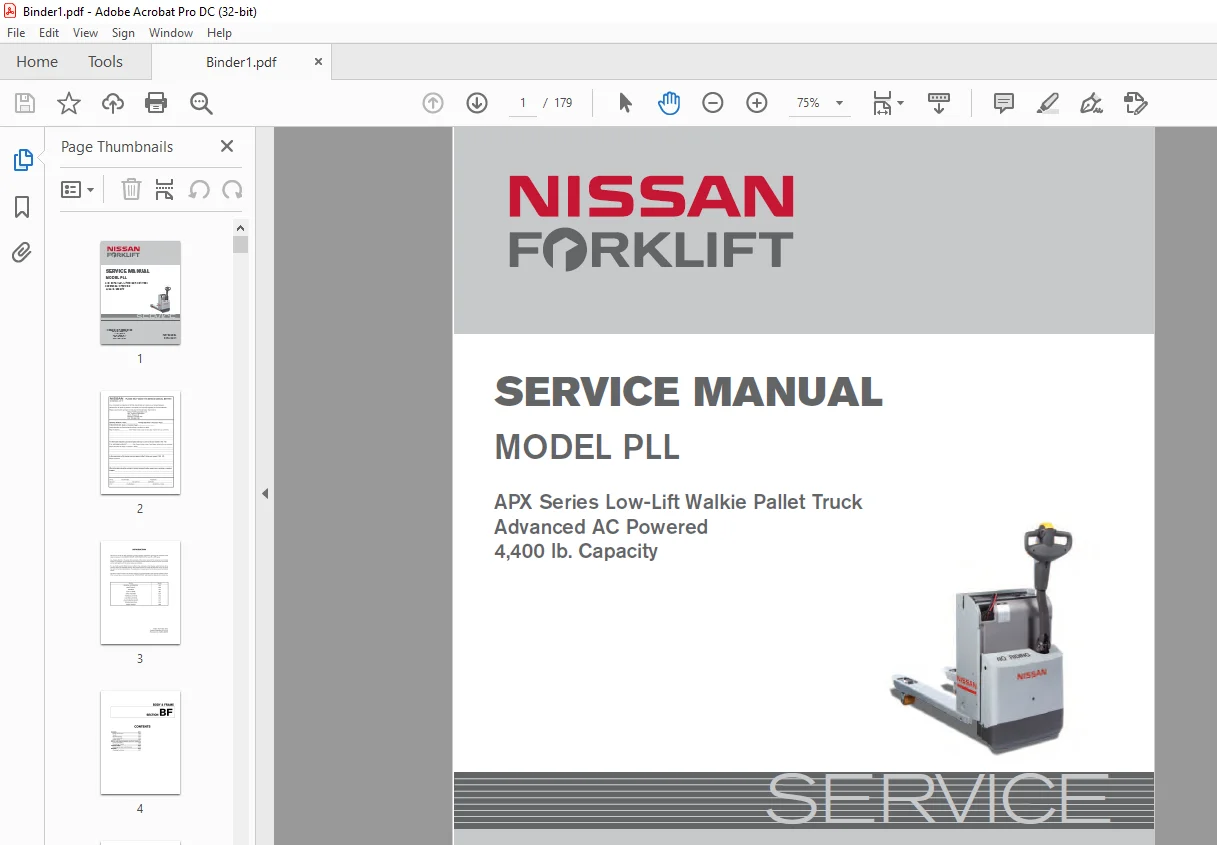

SERVICE MANUAL
MODEL PLL
APX Series Low-Lift Walkie Pallet Truck
Advanced AC Powered
4,400 lb. Capacity

PLL Service Manual_Cover_Comment Page_EN..........  1
	Cover
........................................  1
	Comment Page..................................  2
PLL Service Manual_Introduction_EN................  3
	Introduction..................................  3
LPG00015-00 2D....................................  4

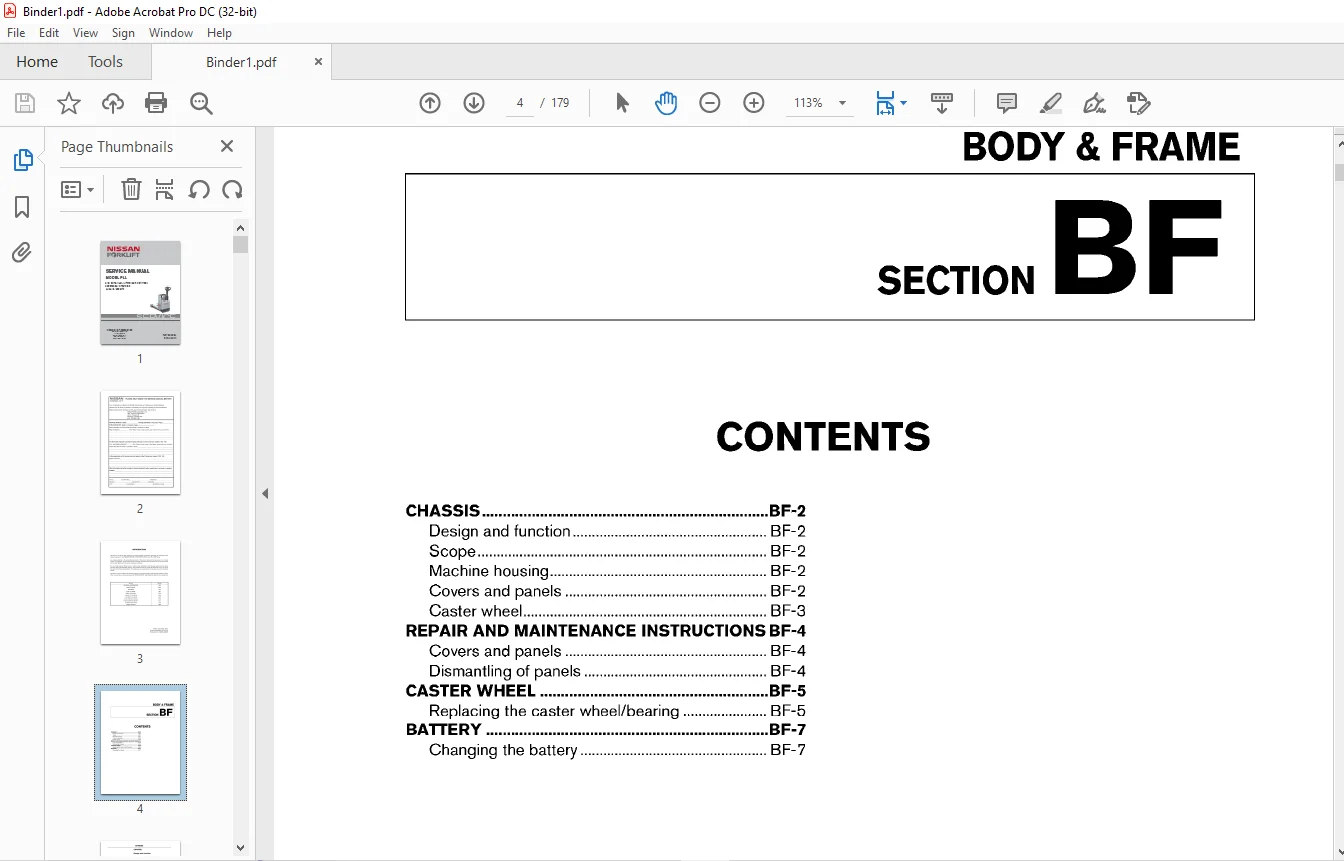

	Body & Frame..................................  4
PLL Service Manual_BR_Brake System_EN............. 14
	Brake System.................................. 14
PLL Service Manual_DA_Drive Assembly_EN........... 18
	Drive Assembly (Transmission)................. 18
PLL Service Manual_ES_Electrical Components_EN.... 28
	Electrical Components......................... 28
PLL Service Manual_Foreword_EN.................... 76
	Foreword...................................... 76
PLL Service Manual_GI_General Information_EN...... 77
	General Information........................... 77
PLL Service Manual_HD_Hydraulic Components_EN.....107
	Hydraulic Components..........................107
PLL Service Manual_LC_Load Carrying Device_EN.....119
	Load Carrying Device..........................119
PLL Service Manual_MA_Maintenance_EN..............123
	Maintenance...................................123
PLL Service Manual_Schematics_EN..................137
	Wiring Schematics.............................137
		Control Wiring............................137
		Steerhead Wiring..........................138
		Power Wiring..............................139
PLL Service Manual_ST_Steer Assembly_EN...........140
	Steer Assembly................................140
PLL Service Manual_TS_Troubleshooting_EN..........148
	Troubleshooting...............................148

VIDEO PRVIEW:

https://vimeo.com/859311102?share=copy

DESCRIPTION:

NISSAN FORKLIFT PLL APX Series Low-Lift Walkie Pallet Truck Advanced AC SERVICE MANUAL SMPLL-MAINT PDF DOWNLOAD

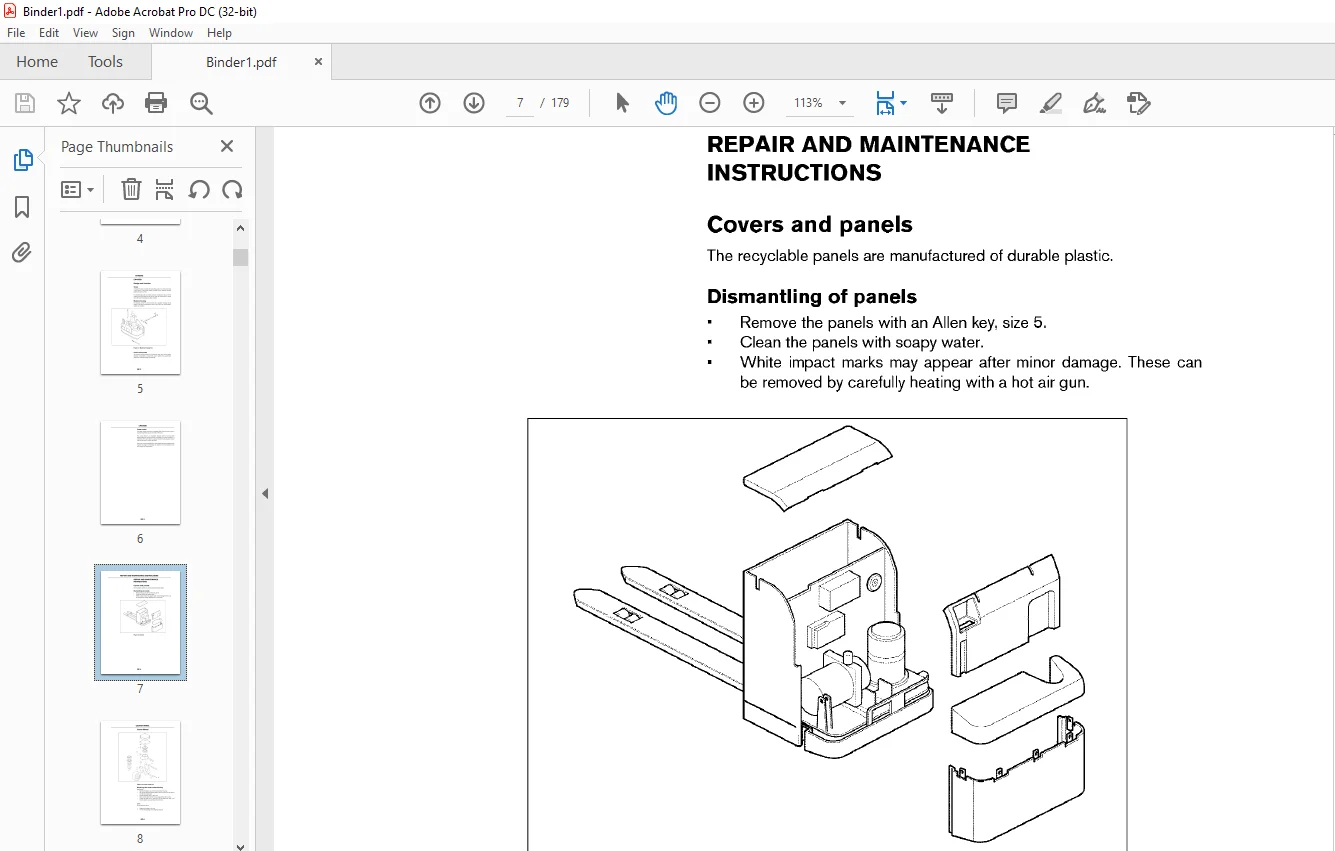

REPAIR AND MAINTENANCE INSTRUCTIONS

General

Safety procedures

• Extreme importance must be placed on precautionary measures to avoid accidents during all work on the vehicle.
• The drive wheel should always be lifted up free from the floor during service work to prevent the vehicle from moving.
• The battery plug should be pulled out before working on the electrical system. The battery plug may only be connected while trouble shooting, and when the greatest of care is exercised (with the truck raised).
• No other persons should be in the vicinity of the truck when it is test run in conjunction with repair work, in view of the risk of accidents or near-accidents from the truck making an unexpected manoeuvre.
• All metal objects such as watches, chains, spectacles, and rings should be removed when working on the electrical system or in its immediate vicinity. A short-circuit from such objects can result in serious burn injuries.
• Working with electrical vehicles can result in personal injury. All testing, trouble shooting, and adjusting must be carried out by authorized personnel. The drive wheel should run free of the floor and be able to rotate freely during work.

Electronic controllers

• All the electronic controllers in the truck have multiple safety systems.
• When replacing or repairing the electronic controllers or removing cables, the battery should always be disconnected.
• After the power has been disconnected to the controller and work or trouble shooting is to be conducted, there can be residual voltage in the capacitors for a few minutes. For this reason, observe care when working with current-carrying tools during this period

PLEASE NOTE:
