O and K WHEEL LOADER MODEL 5500Z-TB125 PARTS MANUAL – PDF DOWNLOAD
Original price was: $52.95.$21.95Current price is: $21.95.
O and K WHEEL LOADER MODEL 5500Z-TB125 PARTS MANUAL – PDF DOWNLOAD
MODEL 5500 Z / L55
MANUAL TB 125
MANUAL PART NO. 4609268
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
O and K WHEEL LOADER MODEL 5500Z-TB125 PARTS MANUAL – PDF DOWNLOAD
FILE DETAILS:
O and K WHEEL LOADER MODEL 5500Z-TB125 PARTS MANUAL – PDF DOWNLOAD
Size: 7.46 MB
Pages : 356
Format: PDF
Language: English
Format: PDF
Language: English
DESCRIPTION:
O and K WHEEL LOADER MODEL 5500Z-TB125 PARTS MANUAL – PDF DOWNLOAD
MODEL 5500 Z / L55
MANUAL TB 125
MANUAL PART NO. 4609268
INTRODUCTION:
- This manual illustrates and identifies maintenance parts for the Model 5500 Z loader, to enable you to determine the part number and name assigned to the part you wish to order. Ordering by proper part number and name will help ensure the receipt of the proper part for the first time without time-consuming exchanges of correspondence or other annoying delays.
- An index is provided in the front of this manual to help you determine which illustration contains the part you want to order. Determine the basic system or assembly in which the part is used, and find this system or assembly in the Index. It will reference the pages which illustrate and list the part.
- This manual contains the latest information available at the time of printing. However, at the discretion of O & K Trojan Industries. its contents are subject’ to change .without notice. This reservation is in keeping with the Company’s policy of constant progressive improvement and refinement of all of our products. As a result of such policy, certain changes may be made from time to time which will not be covered in this manual.
- This manual has been indexed by group numbers, which identifies the « area of the machine that requires servicing. The first two digits in the group numbers indicates the area of the machine.
Example: Group 32 05 01
32 – Indicates – Hydraulic System
05 – Indicates — Hydraulic Tank Assembly
01 – Indicates – Hydraulic Filter
These group numbers are for easy reference only.
The group numbers are provided for easy access to the area in which the part is used. Find the basic group number, turn to the illustration and find the part (item number) you want to order.
Because we are constantly upgrading our equipment, it is necessary“ that the SERIAL NUMBER of your machine accompany every repair parts order. To assure the receipt of the proper part, it is essential that the following information be included with your parts order:
MACHINE MODEL NUMBER
MACHINE SERIAL NUMBER
PART NUMBER OF THE DESIRED PART
QUANTITY OF ITEMS WANTED
NAME AND ADDRESS TO WHICH PART SHOULD BE SENT
USE ONLY PARTS WHICH ARE AUTHORIZED.BY O a K TROJAN INDUSTRIES TO ENSURE THAT’ ORIGINAL“ DEPENDABILITY AND, PERFORMANCE WILL BE MAINTAINED.

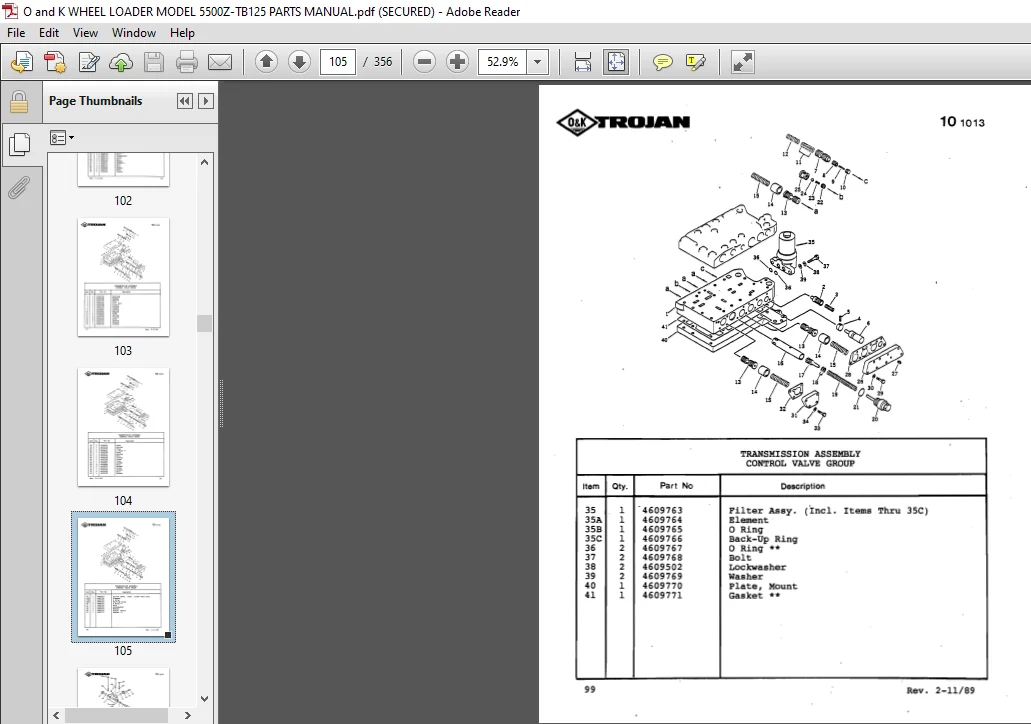

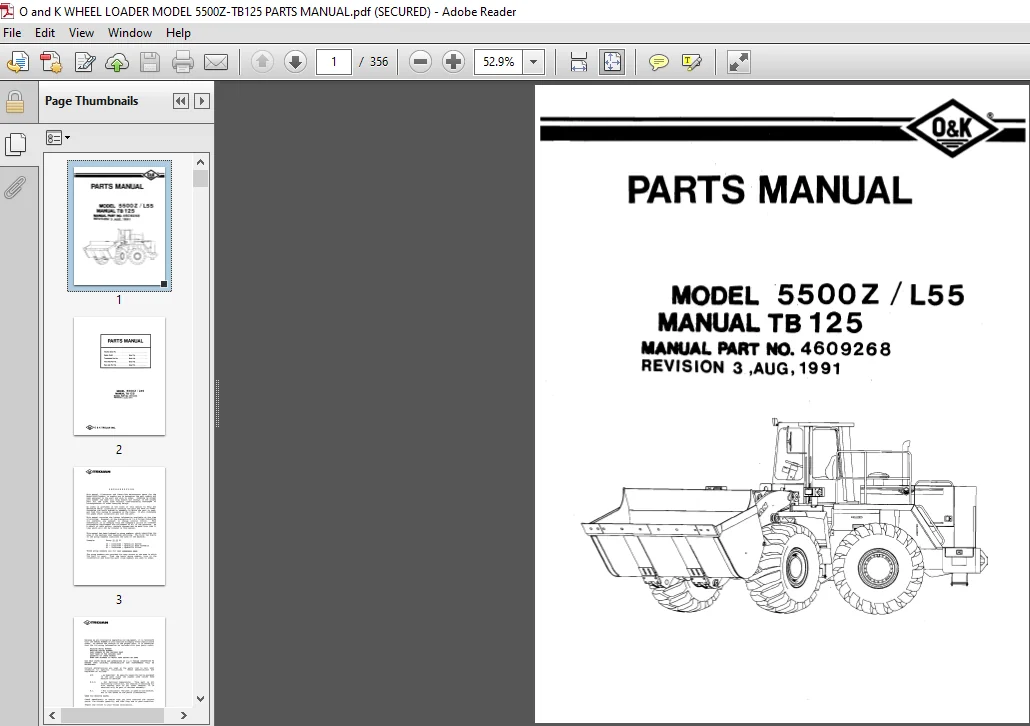

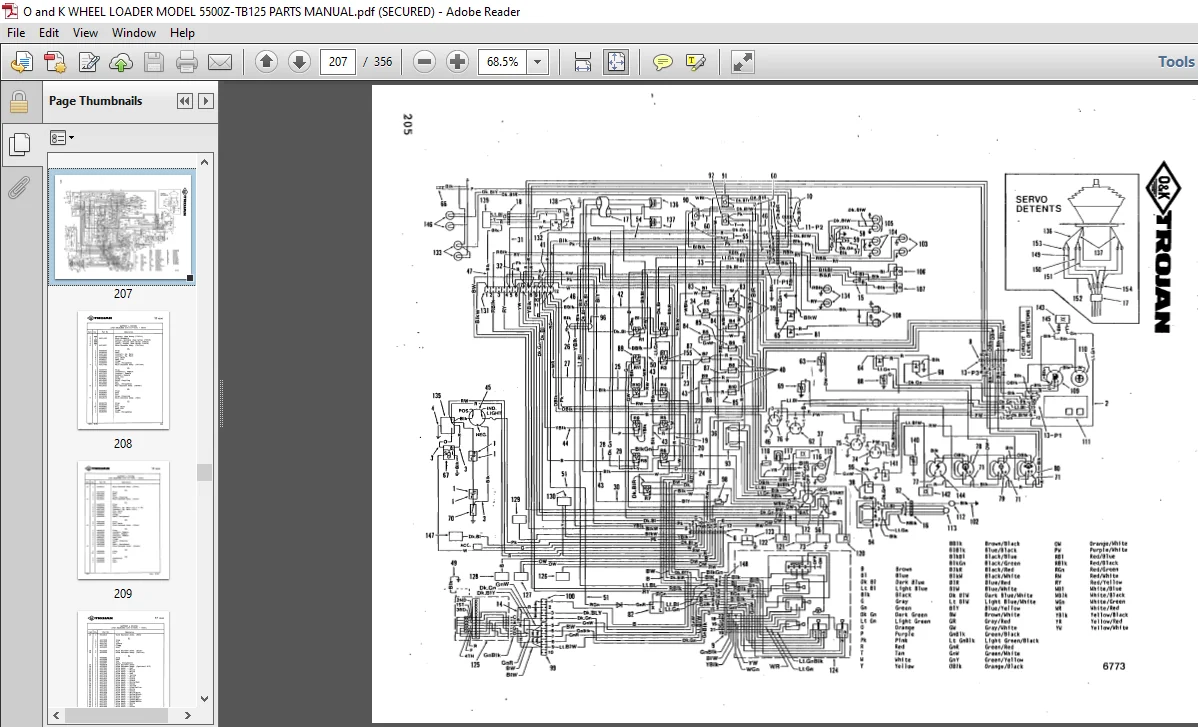

IMAGES PREVIEW OF THE MANUAL:
