OEC 7600 Mobile C-Arm (Compact & Series) Service Manual & Calibration Guide PDF
Original price was: $130.00.$39.95Current price is: $39.95.
Official OEC 7600 Service Manual covering both Compact and Series configurations. This 110+ page technical resource provides detailed OEC 7600 calibration procedures, theory of operation, and component replacement guides. Essential for biomedical engineers needing to perform beam alignment, troubleshoot BMS-500 frame store errors, and maintain image quality on Digital Mobile C-Arms.
Description

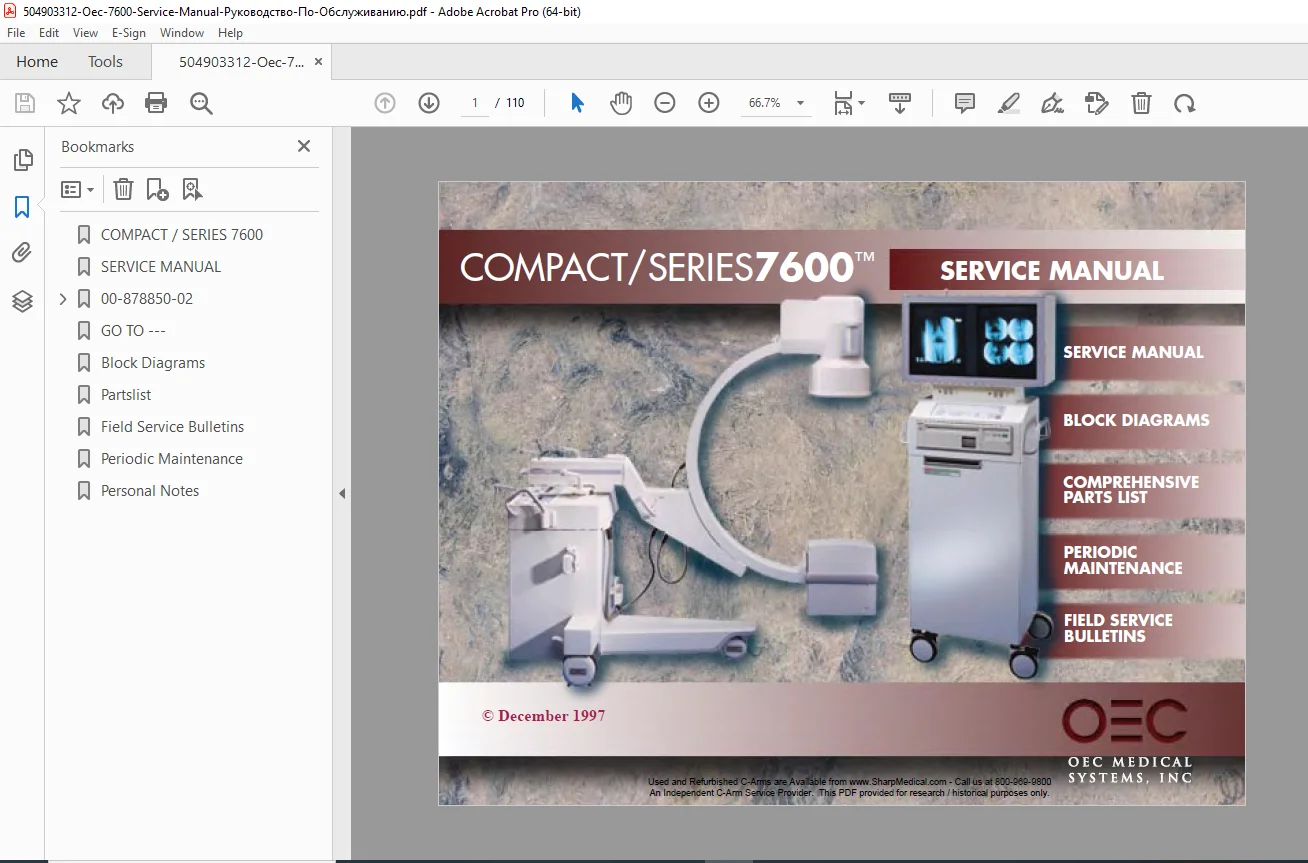

OEC 7600 Mobile C-Arm (Compact & Series) Service Manual & Calibration Guide – PDF DOWNLOAD
DESCRIPTION
Maximize the lifespan and imaging precision of your mobile fluoroscopy units with this complete OEC 7600 Service Manual. This document is the definitive guide for trained service personnel to isolate failures, initiate repairs, and perform critical safety checks on the 7600 Digital Mobile C-Arm system.
Whether you are troubleshooting a “No Tube Current” error, calibrating the High Voltage Generator, or replacing the CCD Camera, this manual offers factory-standard protocols. It provides an in-depth Theory of Operation for every major subsystem, from the motorized lift column to the digital image processing units (BMS-500 and BMS-100).
The manual is heavily focused on Image System Calibration, providing step-by-step instructions for beam alignment and camera sensitivity adjustments to ensure compliance with federal performance standards (21CFR 1020.30-32).
Key Technical Coverage:
System Safety & Overview:
Electrical shock hazards (Monoblock 110kV, Image Intensifier 30kV).
X-Radiation safety and warning label locations.
Emergency Off and explosion hazard protocols.
Theory of Operation:
Power Distribution: AC input, power relays (K1, K2), and system warm-up logic.
Generator Control: kV and mA generation, regulation, and tracking verification.
Motion Control: Lift motor operation (Up/Down relays K2/K3) and C-Arm mechanical safety.
Collimator Logic: Manual, Normal, Mag, and Film mode iris positioning.
Digital Image System: Detailed function of the BMS-500 (Compact) and BMS-100 (Series) frame stores, including RAM disk storage and noise reduction filtering.
Calibration & Alignment:
Beam Alignment: Centering the X-ray source, adjusting collimator fields (Normal/Mag/Hand), and verifying field sizes.
Camera & Monitor: Focus adjustment, video signal black/white level tuning, and shading correction on the VD-01 PCB.
Generator Calibration: Precise adjustment of kV (P1 on PCB B64) and mA output (P2/P3 on PCB B143).
Component Removal & Replacement:
Step-by-step guides for removing the X-Ray Monoblock, Image Intensifier, Lift Motor, and Control Panel.
Power Supply (NG1/NG2) and Camera Electronics Rack replacement.
Table of Contents Overview:
Introduction & Safety Precautions
System Overview (Clinical Applications & Features)
Theory of Operation
Power On/Off & Emergency Circuits
Lift & Mechanical Motion
Collimator Control (Iris & Shutter)
Fluoro & Film Mode Control Logic
kV & mA Generation (Filament Drive, Feedback Loops)
Image Intensifier & Camera Power
BMS-500 / BMS-100 Digital Sub-Systems
Image System Calibration
Beam Alignment Procedure
Camera Alignment & Monitor Calibration
kV and mA Calibration

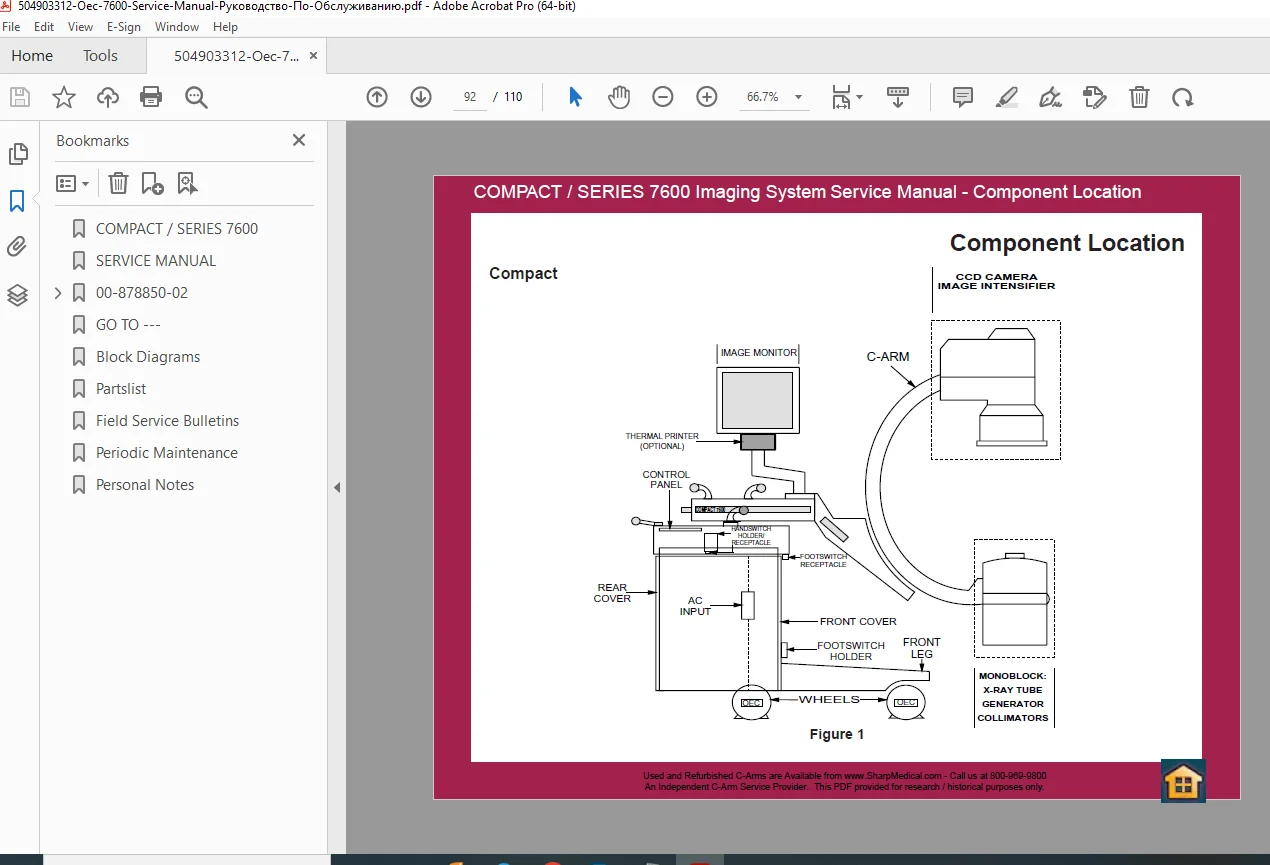

Component Location & Removal
Chassis, C-Arm, and Workstation Layouts
PCB Locations (B100, B64, B143, etc.)
FILE DETAILS
Manual Name: OEC Compact / Series 7600 Imaging System Service Manual
Models Covered: OEC 7600 Compact, OEC 7600 Series (Digital Mobile C-Arms)
Year: 1997 (Revision C)
File Type: High-Quality PDF (Searchable Text & Schematics)
Total Pages: 110 Pages
WHY BUY THIS MANUAL?
Restore crystal-clear imaging today. Don’t let a calibration drift or a “System Error” sideline your critical surgical equipment. This manual gives you the exact voltage test points and alignment targets needed to bring your C-Arm back to factory specs immediately. Click “Add to Cart” to download your essential repair guide now!
