O&K 1700 & 1900 Yale Loader Parts Manual 2022971 – PDF DOWNLOAD

Description

O&K 1700 & 1900 Yale Loader Parts Manual 2022971 – PDF DOWNLOAD

FILE DETAILS:

O&K 1700 & 1900 Yale Loader Parts Manual 2022971 – PDF DOWNLOAD

Language : English
Pages : 194
Downloadable : Yes
File Type : PDF

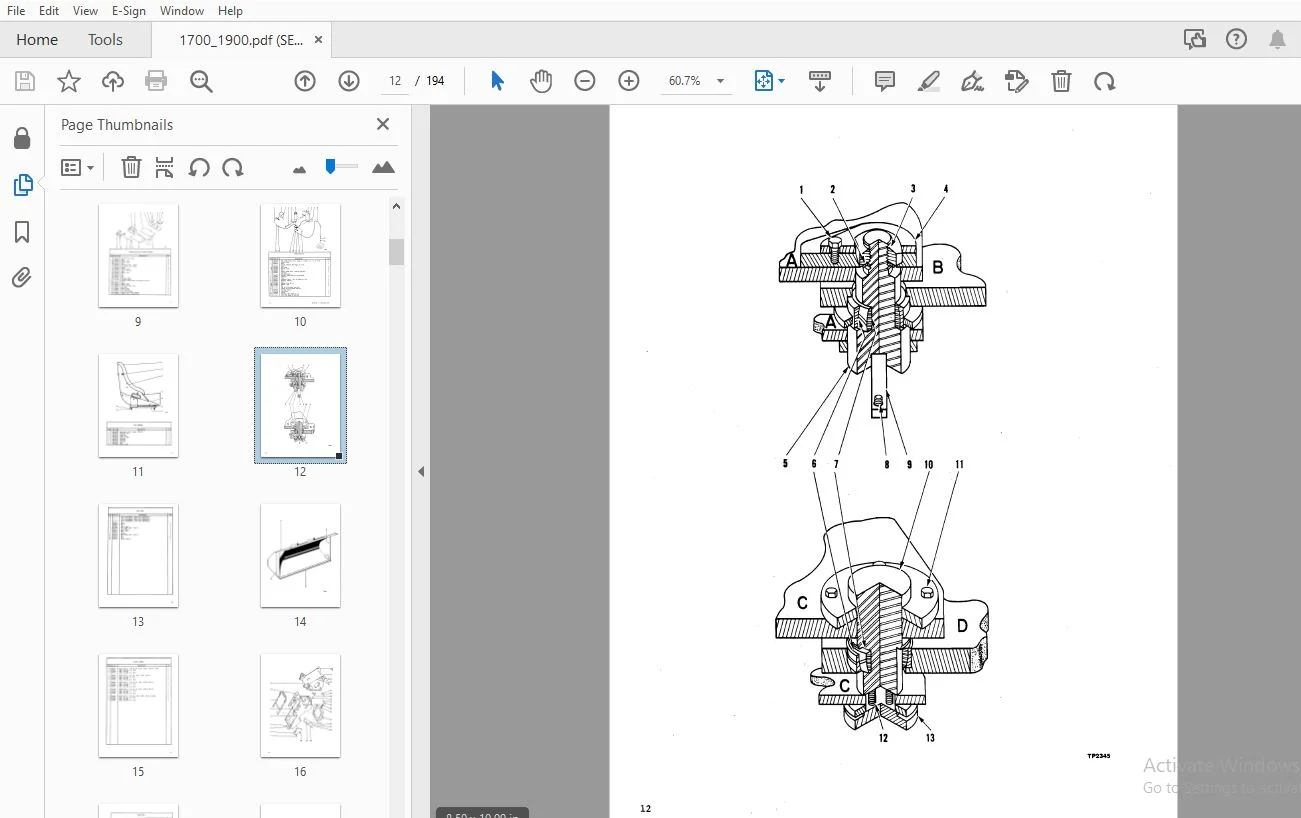

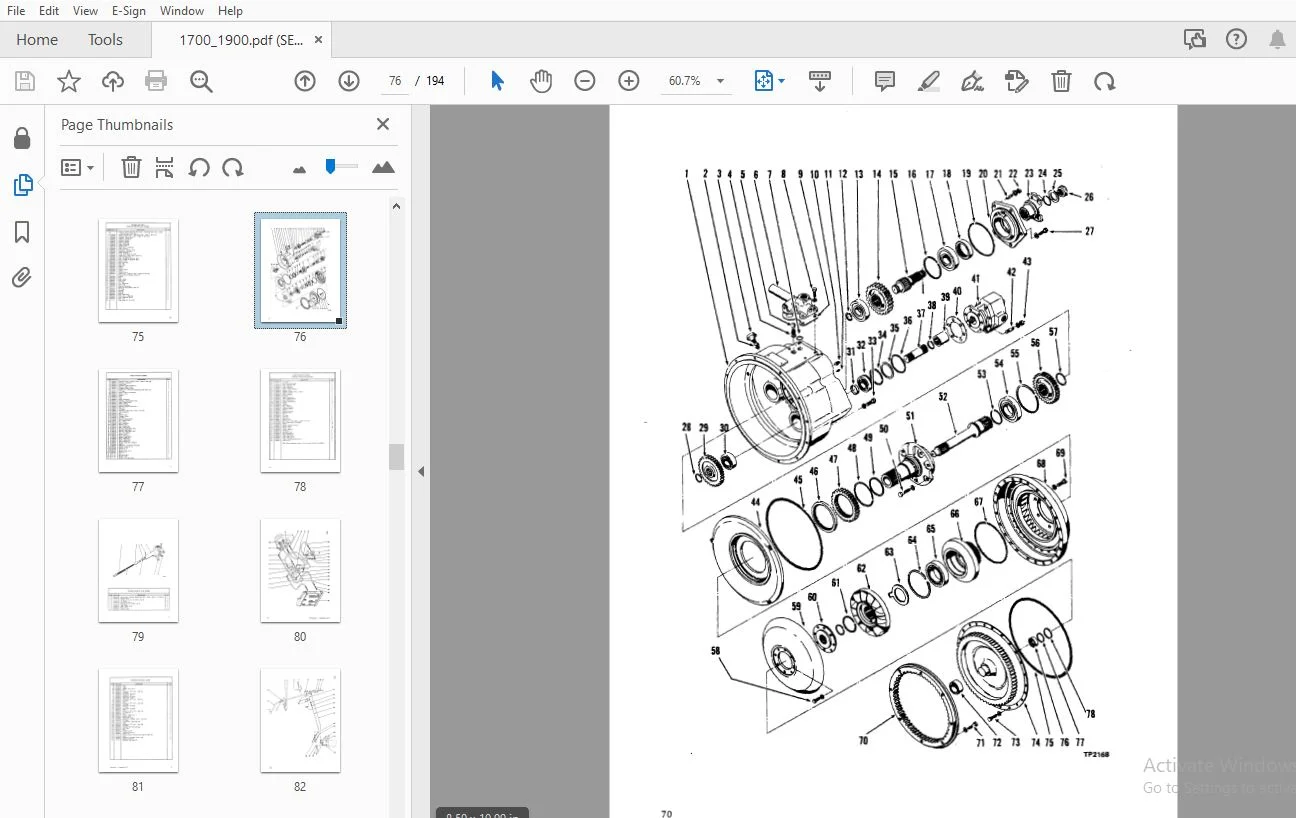

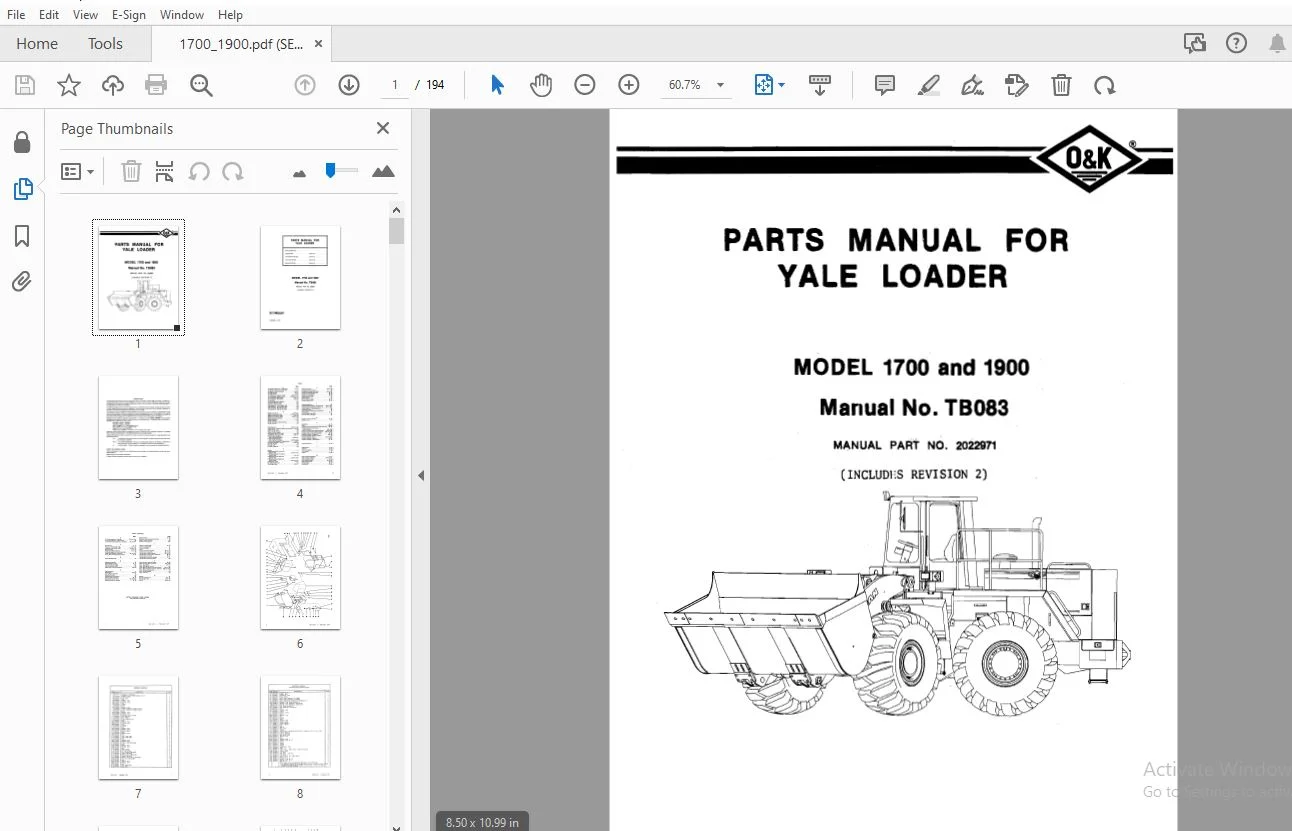

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

O&K 1700 & 1900 Yale Loader Parts Manual 2022971 – PDF DOWNLOAD

A
Accelerator Pedal and Linkage (GM) 32, 33
Accelerator Pedal and Linkage (PO) 31
Accessory Hydraulic Piping 52B, 53
Air Cleaner (GM) 36, 37
Air Cleaner (PO) 38, 39
Air Compressor Assembly (GM) 108 thru 110
Air Compressor Assembly (PO) 110B thru 110D
Air Compressor Piping (GM) 104, 105
Air Compressor Piping (PO) 106, 107
Air Governor 111
Air Shift (Reverse to Forward) 154
Automatic Bucket Leveler 155
Automatic Hoist Cut-Out 156
Axle Assembly, Front (Model 1700) 124
Axle Assembly, Front (Model 1900) 134
Axle Assembly, Rear (Model 1700) 125
Axle Assembly, Rear (Model 1900) 135
B
Battery and Wiring 46 thru 48
Brake Controls and Lines 102 thru 103A
Brake Groups (Model 1700) 128, 129
Brake Groups (Model 1900) 140 thru 143
Brake Assembly, Parking 98
Bucket Assembly 14, 15
Bucket Cylinder 56
Bucket Cylinder Hydraulic System 52
Bucket Indicator 20
C
Cab Assembly 147C thru 148
Clutch Group, Forward, Reverse, 2nd and 3rd 94, 94A
Clutch Group, Low 95
Clutch Cut-Out Switch 119
Clutch Cut-Out System 101
Compressor Piping, Air (GM) 104, 105
Compressor Piping, Air (PO) 106, 107
Control Valve Assembly, Main Hydraulic (2 Spool) 60 thru 62
Control Valve Assembly, Main Hydraulic (3 Spool) 62B thru 62D
Control Valve Assembly, Transmission 96, 97
Converter Assembly, Torque 70 thru 72
Cylinder, Bucket 56
Cylinder, Lift 57
Cylinder, Steering 66
D
Decals 41
Differential Group, Front Axle (Model 1700) 130 thru 131A
Differential Group, Front Axle (Model 1900) 144, 145
Differential Group, Rear Axle (Model 1700) 132 thru 133A
Differential Group, Rear Axle (Model 1900) 146 thru 147A
Directional Levers 76, 77
Drive Shaft Assembly 121
Dual Brake Valve 116, 117
E
Electrical System 46 thru 48
Emergency Control Valve 120
Engine and Related Parts (GM) 22 thru 24
Engine and Related Parts (PO) 26, 27
Engine Cooling System 28, 29
Engine Controls (GM) 32, 33
Engine Controls (PO) 31
Ether Start Kit 10
Exhaust System (GM) 36, 37
Exhaust System (PO) 38, 39
F
Fender Installation 149
Filter Element Assembly, Hydraulic Oil 50 thru 51A
Filter Assembly, Steering Hydraulic Oil 50 thru 51A
Filter Assembly, Transmission Oil 99
Fire Extinguisher 49
Floorplates and Seat Support Assembly 9
Frame, Main 16, 17
Fuel Tank and Lines (GM) 34
Fuel Tank and Lines (PO) 35
G
Gauges, Instrument Panel 42, 43
H
Headlights 44, 45
Hood 6 thru 8
I
Instrument Panel 42, 43
L
Leveling Arm 18, 19
Lift Arm 18, 19
Lift Arm Linkage 18, 19
Lift Cylinder 57
Lights 44, 45
M
Main Frame Components 16, 17
Main Hydraulic System 50 thru 51A
Main Hydraulic Pump 54, 55
O
Oil Filter Assembly, Steering 50 thru 51A
Oil Filter Assembly, Transmission 99
P
Parking Brake Assembly 98
Parking Brake Lever Assembly 53
Planetary Hub (Model 1700) 126, 127
Planetary Hub (Model 1900) 136 thru 139
Power Cluster 112, 113
R
Radiator Assembly 30
S
Seat Assembly 11
Sheet Metal 6 thru 8
T
Throttle Linkage (GM) 32, 33
Throttle Linkage (PO) 31
Tires and Wheels 21
V
Valve, Main Hydraulic Control (2 Spool) 60 thru 62
Valve, Main Hydraulic Control (3 Spool) 62B thru 62D
W
Wheels 21
Windshield Wiper Kit 150, 151
