O&K 4000 Parts Manual 2022684 – PDF DOWNLOAD

Description

O&K 4000 Parts Manual 2022684 – PDF DOWNLOAD

FILE DETAILS:

O&K 4000 Parts Manual 2022684 – PDF DOWNLOAD

Language : English
Pages : 306
Downloadable : Yes
File Type : PDF

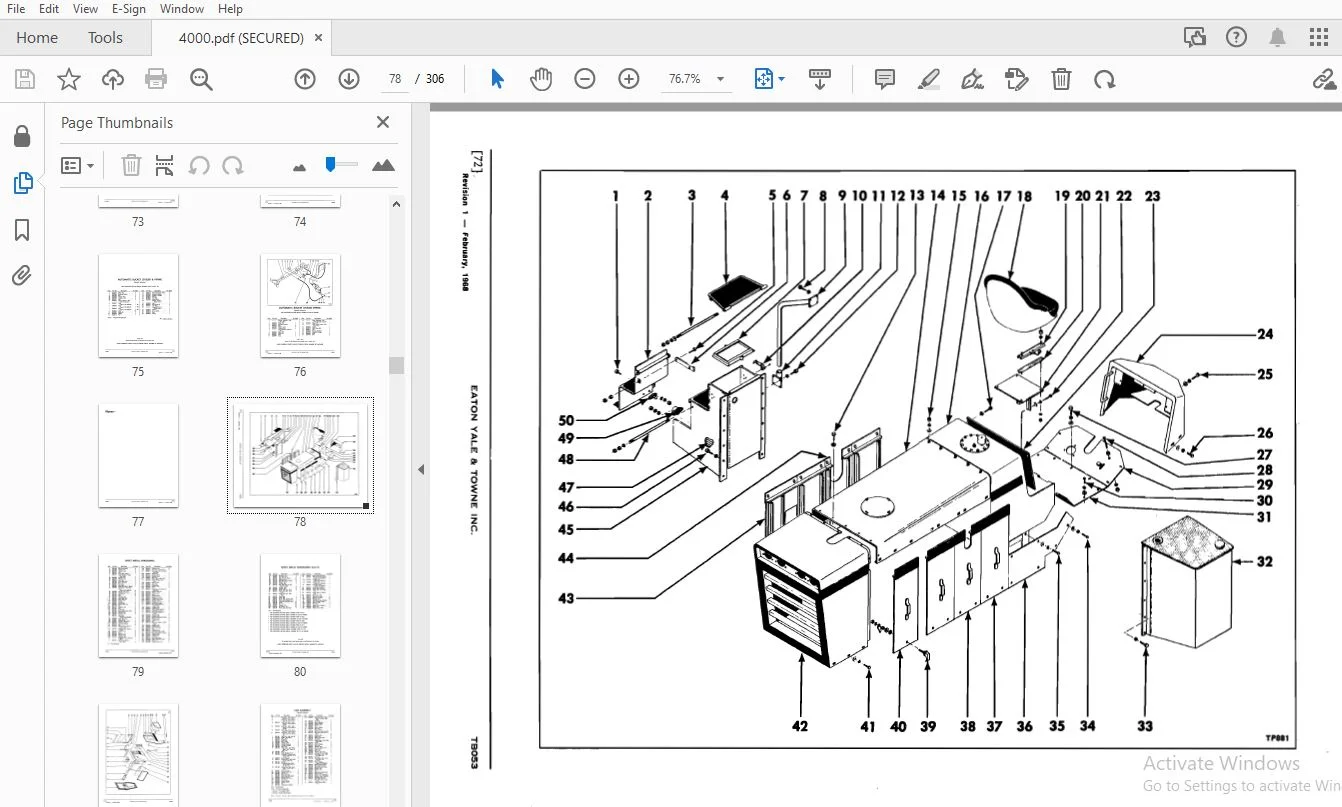

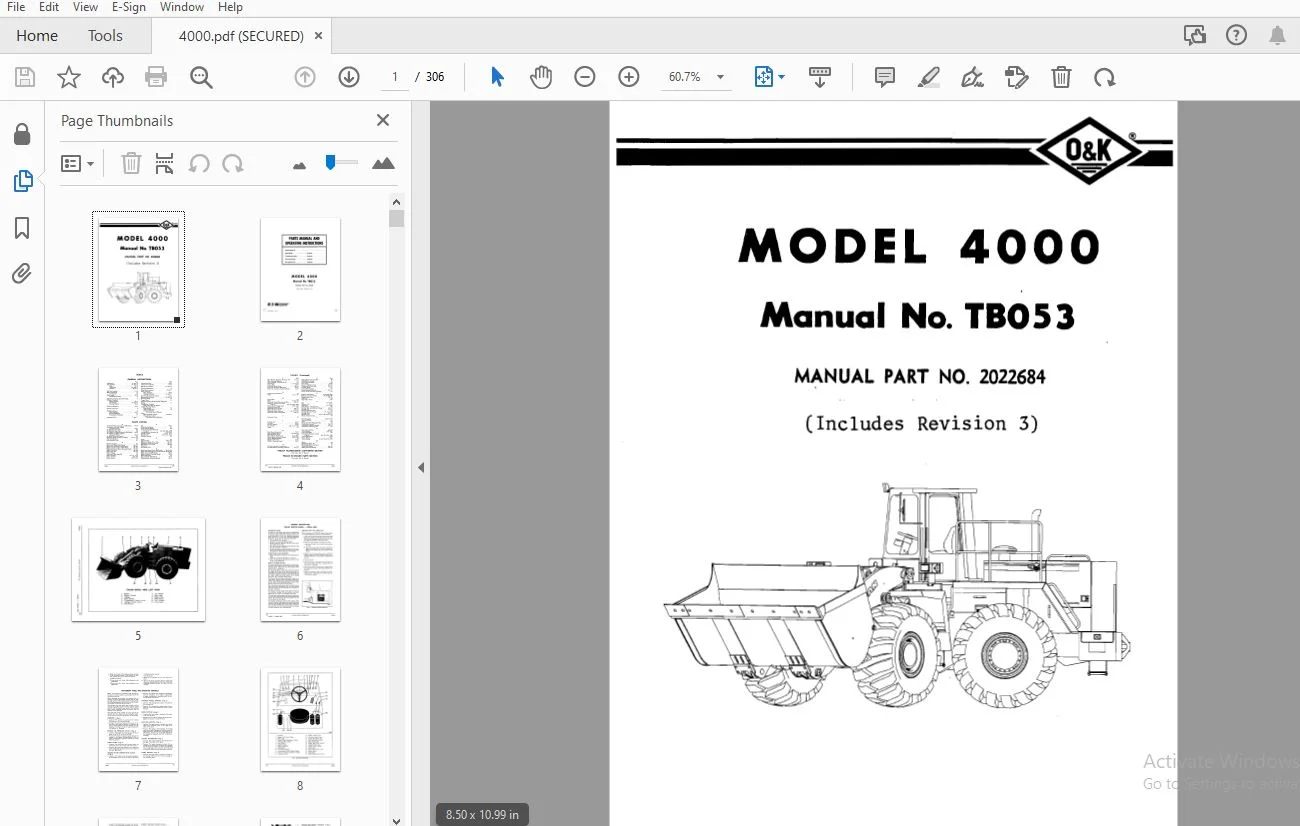

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

O&K 4000 Parts Manual 2022684 – PDF DOWNLOAD

Adjustments and Overhaul
Adjustments: Pages 15–19
Axle Overhaul: Pages 59–67
Differential: Pages 64–67
Planetary: Pages 59–61
Brake: Pages 62–63
Brake System: Pages 49–50
Brake Components: Page 51
Air Chamber: Page 51
Adjusting the Brakes: Page 52
Ball Slip Overhaul: Pages 57–58
Main Pivot Overhaul: Pages 53–55
Pillow Block Overhaul: Pages 55–57
Pump Overhaul:
Main Hydraulic: Pages 39–40
Steering Hydraulic: Pages 43–45
Steering Gear Overhaul: Pages 46–48
Capacities and Hydraulic Systems
Capacities, Pressures, Electrical System: Page 12
Filters and Breathers: Pages 19–20
Hydraulic Systems:
Main Hydraulic: Pages 26–27
Steering Hydraulic: Page 41
Transmission Hydraulic: Page 52
Cylinders
Bucket Cylinder: Pages 30–31
Lift Cylinder: Pages 29–31
Steering Cylinder: Pages 41–42
Instruments and Lubrication
Instrument Panel: Pages 7–11
Lubrication:
Charts: Pages 24–25
Instructions: Pages 21–22
Operating Instructions
General Instructions: Page 6
Operating Instructions: Page 14
Start-Up, Shut-Down Procedure: Pages 12–13
Towing: Page 14
Troubleshooting
Brake System: Page 50
Main Control Valve: Page 38
Parts Listing Index
A
Accelerator Pedal and Linkage
GM Diesel: Pages 90–91
Cummins Diesel: Pages 92–93
Air Chamber:
Front Axle: Page 152
Rear Axle: Page 160
Air Cleaner and Exhaust System:
GM Diesel: Pages 94–95
Cummins Diesel: Pages 96–97
Air Shift, Reverse to Forward: Page 130
Automatic Bucket Leveler and Piping: Pages 70–71A
B
Ball Slip Assembly: Page 142
Battery and Wiring:
GM Diesel: Pages 100–101
Cummins Diesel: Pages 102–103
Brake Controls and Lines:
GM Diesel: Pages 134–135
Cummins Diesel: Pages 136–137
Brake, Front Axle: Pages 148–149
Brake, Rear Axle: Pages 156–157
Brake, Parking: Page 85
C
Control Valve, Main Hydraulic (2 Spool): Pages 108–109B
Cooling System: Hydraulic Oil: Pages 115C–115D
D
Differential Group:
Front Axle: Page 125
Rear Axle: Page 117E–117F
E
Engine and Related Parts:
GM Diesel: Pages 86–89A
Cummins Diesel: Pages 88–89B
Ether Starting Kit: Page 125
H
Hydraulic Pump, Main: Page 107
Hydraulic Pump, Steering: Pages 116–117
Hydraulic System:
Main: Pages 104–105
Steering: Pages 114–115A
Transmission: Pages 126–127
T
Tires and Wheels: Page 144
V
Valve, Main Hydraulic Control (2 Spool): Pages 108–109B
Valve, Dual Brake: Page 140
