O&K Model 1500 Parts & Operating Manual TB065 – PDF DOWNLOAD

Description

O&K Model 1500 Parts & Operating Manual TB065 – PDF DOWNLOAD

FILE DETAILS:

O&K Model 1500 Parts & Operating Manual TB065 – PDF DOWNLOAD

Language : English
Pages : 154
Downloadable : Yes
File Type : PDF

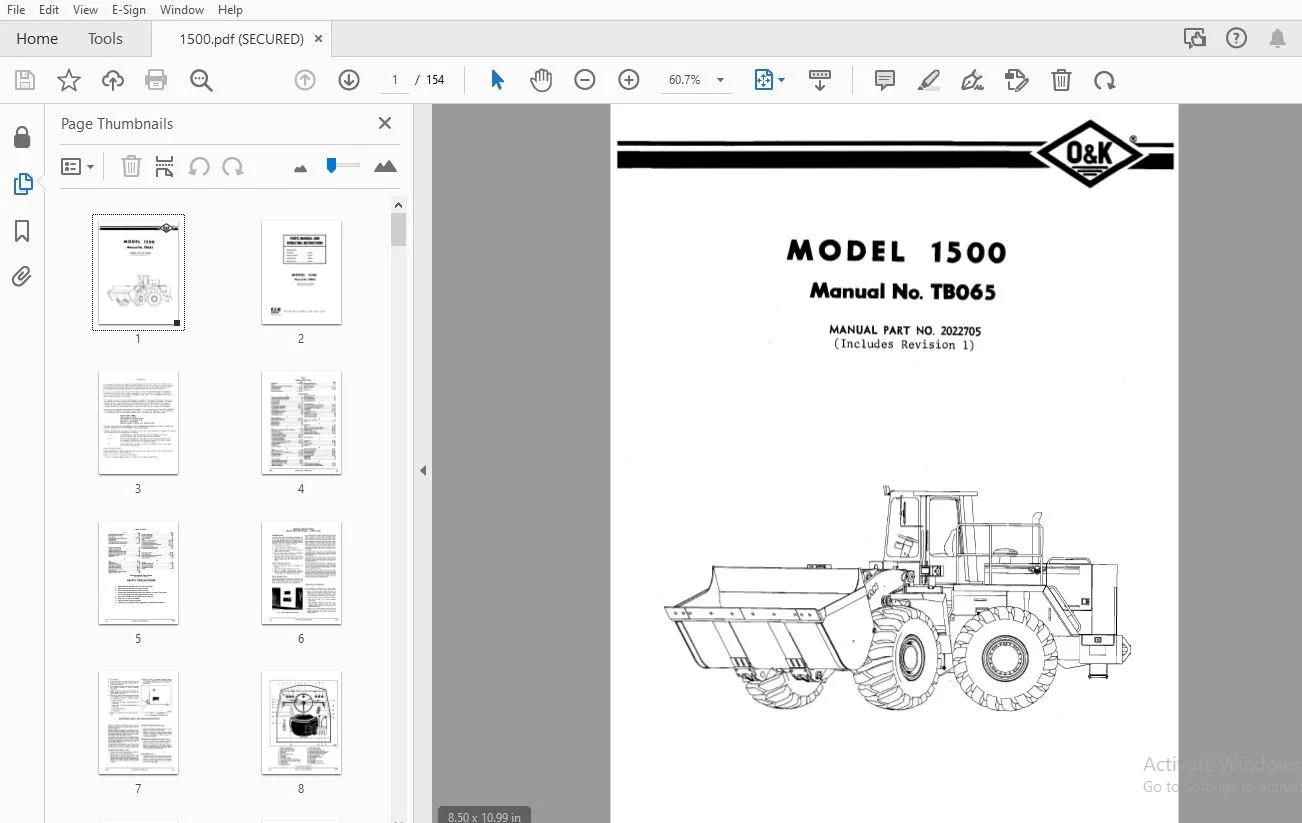

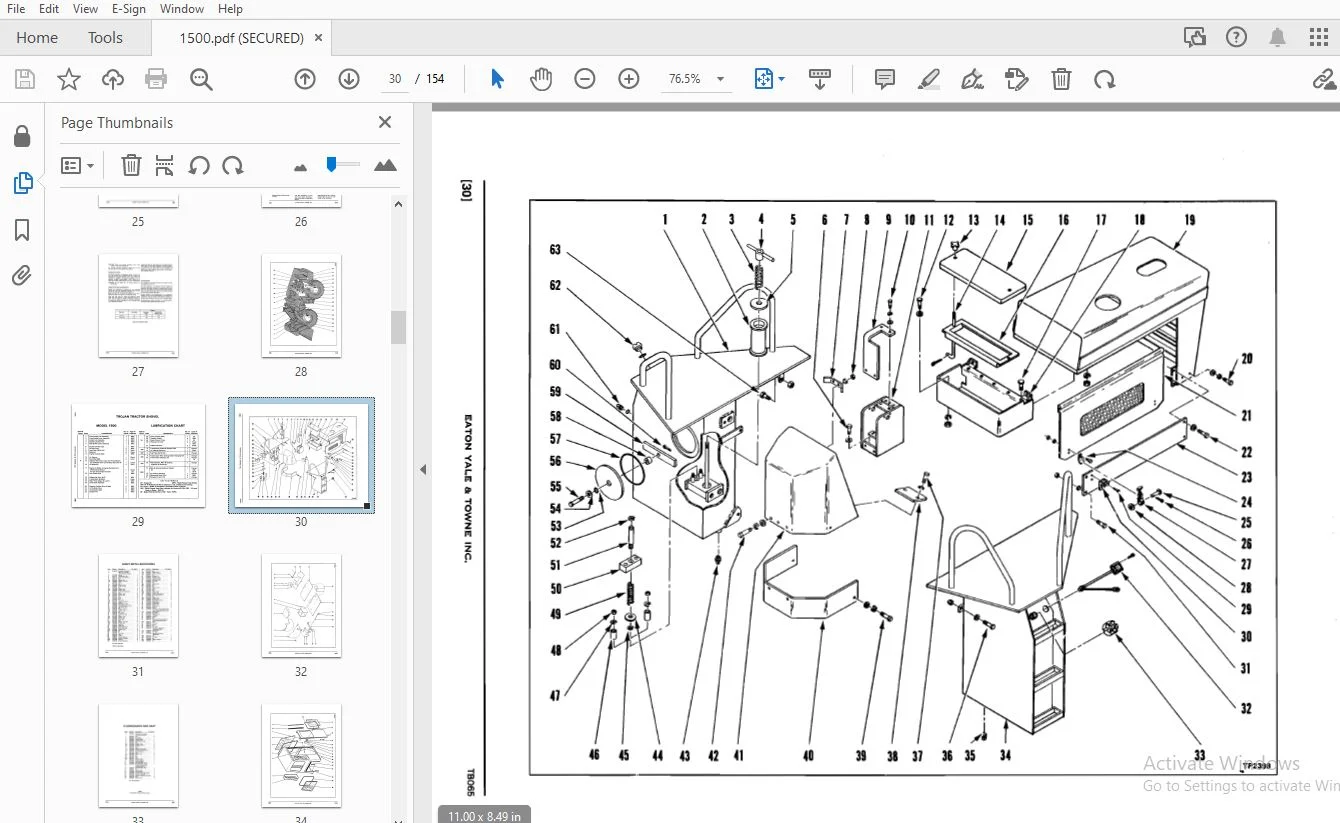

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

O&K Model 1500 Parts & Operating Manual TB065 – PDF DOWNLOAD

A
Accelerator Pedal and Linkage (GM) 67
Accelerator Pedal and Linkage (HD) 69
Accelerator Pedal and Linkage (HG) 71
Air Cleaner (GM) 73
Air Cleaner (HD) 74
Air Cleaner (HG) 75
B
Battery and Wiring 76, 77
Brake Controls and Lines 122, 123
Brake, Front and Rear Axle 142, 143
Brake, Parking 120
C
Cab 34, 35
Clutch Group, Forward, Reverse, 2nd and 3rd 114
Clutch Group, Low 115
Clutch Cut-Out Switch 135
Clutch Cut-Out System 121
D
Decals 79
Detent, Bucket Leveler 84, 85
Differential Group, Front and Rear Axle 144, 145
Drive Shaft Assembly 136
Dual Brake Valve 132, 133
E
Engine Controls (GM) 67
Engine Controls (HD) 69
Engine Controls (HG) 71
Engine and Related Parts (GM) 54, 55
Engine and Related Parts (HD) 56, 57
Engine and Related Parts (HG) 58, 59
F
Fender Installation 51
Filter Element Assembly, Hydraulic Oil 80, 81
Filter Assembly, Steering Hydraulic Oil 80, 81
Filter Assembly, Transmission Oil 119
Floorboards 32, 33
Frame, Main 40, 41
Front Axle Brake Group 142, 143
Fuel Filter 72
Fuel Tank and Lines (GM) 66
Fuel Tank and Lines (HD) 68
Fuel Tank and Lines (HG) 70
H
Head Lights 78
Hood 30, 31
L
Leveling Arm 44, 45
Lift Arm 44, 45
Lift Arm Linkage 44, 45
Lift Cylinder 94
M
Main Frame Components 40, 41
Main Hydraulic System 80, 81
Main Hydraulic Pump 90, 91
Motor Mounts (GM) 54, 55
Motor Mounts (HD) 56, 57
Motor Mounts (HG) 58, 59
S
Seat 32, 33
Steering Cylinder 98
Steering Gear Installation 101
Steering Gear Assembly 102, 103
Steering Hydraulic System 96, 97
Steering Pump 90, 91
T
Tires and Wheels 146
Torque Converter Assembly 108, 109
Transmission Assembly 110, 111
Transmission Hydraulic System 106
Transmission Controls 104, 105
