OM Pimespo T20000 POWERSHIFT TRANSMISSION 2 SPEED SHORT DROP Workshop Manual – PDF DOWNLOAD

Description

OM Pimespo T20000 POWERSHIFT TRANSMISSION 2 SPEED SHORT DROP Workshop Manual – PDF DOWNLOAD

FILE DETAILS:

OM Pimespo T20000 POWERSHIFT TRANSMISSION 2 SPEED SHORT DROP Workshop Manual – PDF DOWNLOAD

Language : English
Pages :130
Downloadable : Yes
File Type : PDF

DESCRIPTION:

OM Pimespo T20000 POWERSHIFT TRANSMISSION 2 SPEED SHORT DROP Workshop Manual – PDF DOWNLOAD

FOREWORD

• This manual has been prepared to provide the customer and the maintenance personnel with information and instructions on the maintenance and repair. Extreme care has been exercised in the design, selection of materials, and manufacturing of these units.
• The slight outlay in personal attention and cost required to provide regular and proper lubrication,inspection at stated intervals, and such adjustments as may be indicated will be reimbursed many times in low cost operation and trouble free service.
• In order to become familiar with the various parts of the product, its principle of operation, troubleshooting and adjustments, it is urged that the mechanic studies the instructions in this manual carefully and uses it as a reference when performing maintenance and repair operations.
• Whenever repair or replacement of component parts is required, only OM CARRELLI ELEVATORI S.p.A. approved parts as listed in the applicable parts manual should be used. Use of “will-fit” or non-approved parts may endanger proper operation and performance of the equipment.
• OM CARRELLI ELEVATORI S.p.A. does not warrant repair or replacement parts, nor failures resulting from the use of parts which are not supplied by or approved by OM CARRELLI ELEVATORI S.p.A.

1. SAFETY PRECAUTIONS

• To reduce the chance of personal injury and/or property damage, the following instruction must be carefully observed. Proper service and repair are important to the safety of the service technician and the safe, reliable operation of the machine. If replacement parts are required the part must be replaced by a spare part which has the same part number or with an equivalent part. Do not use a spare part of lesser quality.
• The service procedures recommended in this manual are effective methods for performing service and repair.
• Some of these procedures require the use of tools specifically designed for the purpose. Anyone intending to use a spare part, service procedure, or tool that has not been recommended by OM CARRELLII ELEVATORI S.p.A. must first ensure that the said spare part, service procedure, or tool will not jeopardize the operator’s safety nor the safe operation of the machine, and must assume full responsibility for any damages or injuries incurred.

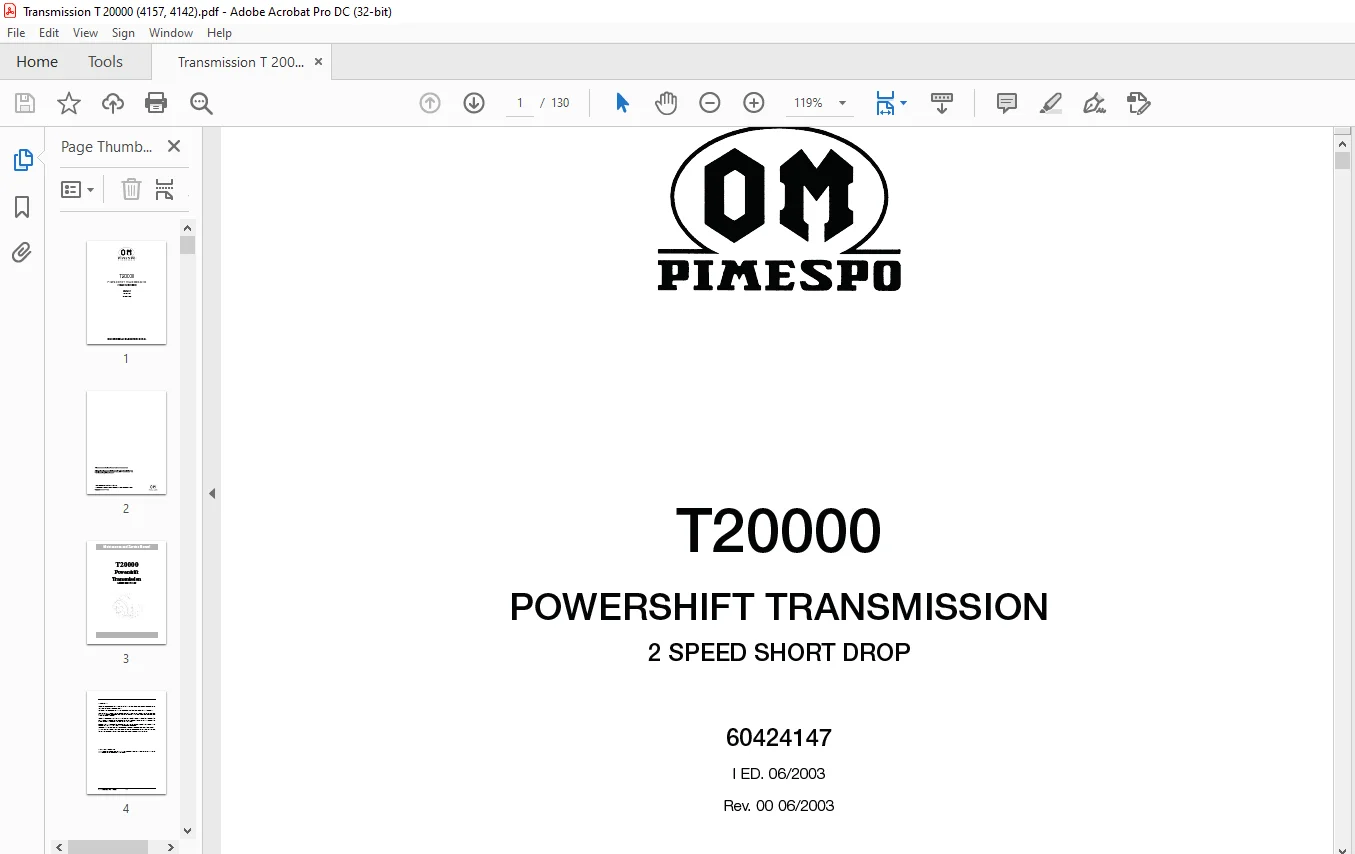

IMAGES PREVIEW OF THE MANUAL:

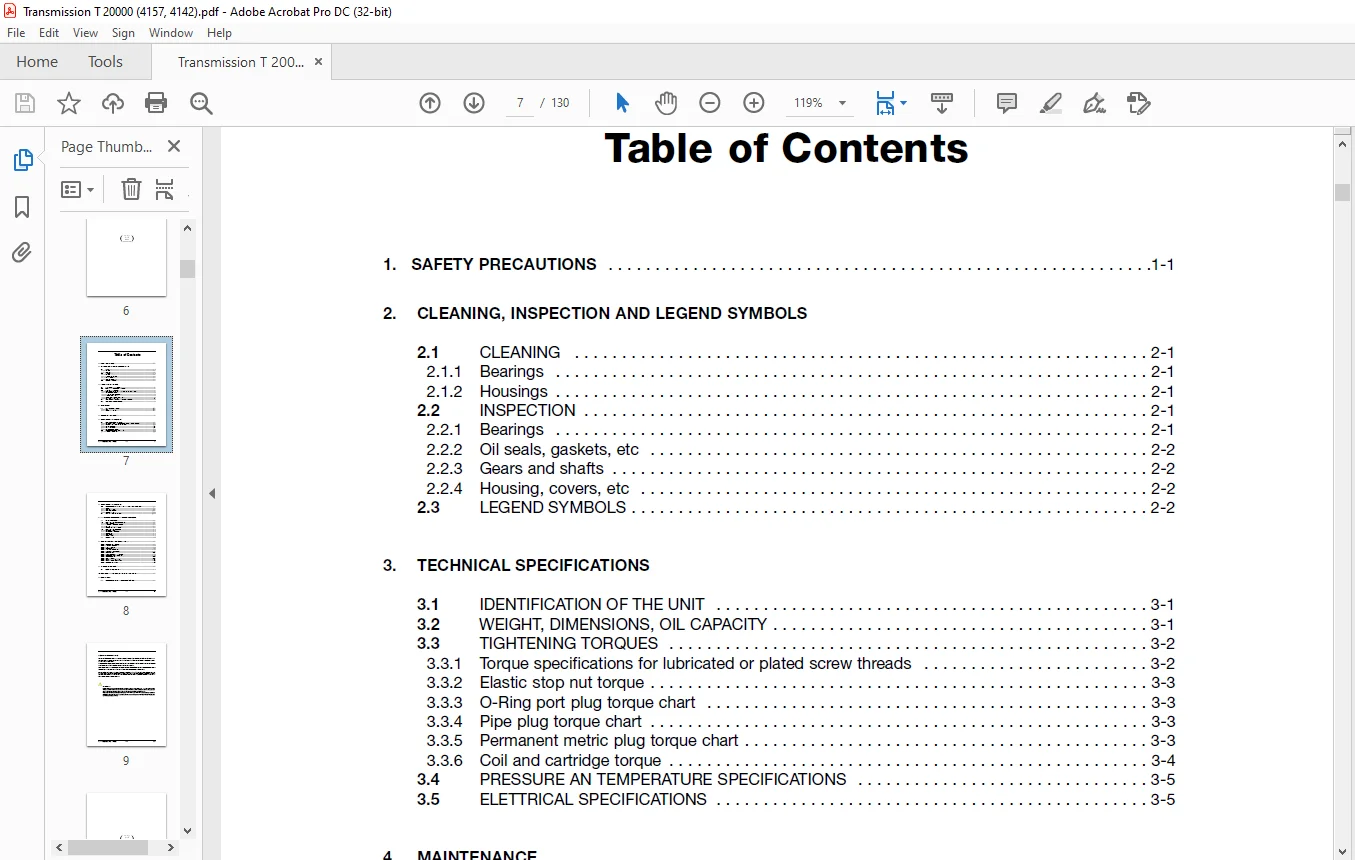

TABLE OF CONTENTS:

OM Pimespo T20000 POWERSHIFT TRANSMISSION 2 SPEED SHORT DROP Workshop Manual – PDF DOWNLOAD

1 SAFETY PRECAUTIONS 1-1
2 CLEANING, INSPECTION AND LEGEND SYMBOLS
2 1 CLEANING 2-1
2 1 1 Bearings 2-1
2 1 2 Housings 2-1
2 2 INSPECTION 2-1
2 2 1 Bearings 2-1
2 2 2 Oil seals, gaskets, etc 2-2
2 2 3 Gears and shafts 2-2
2 2 4 Housing, covers, etc 2-2
2 3 LEGEND SYMBOLS 2-2

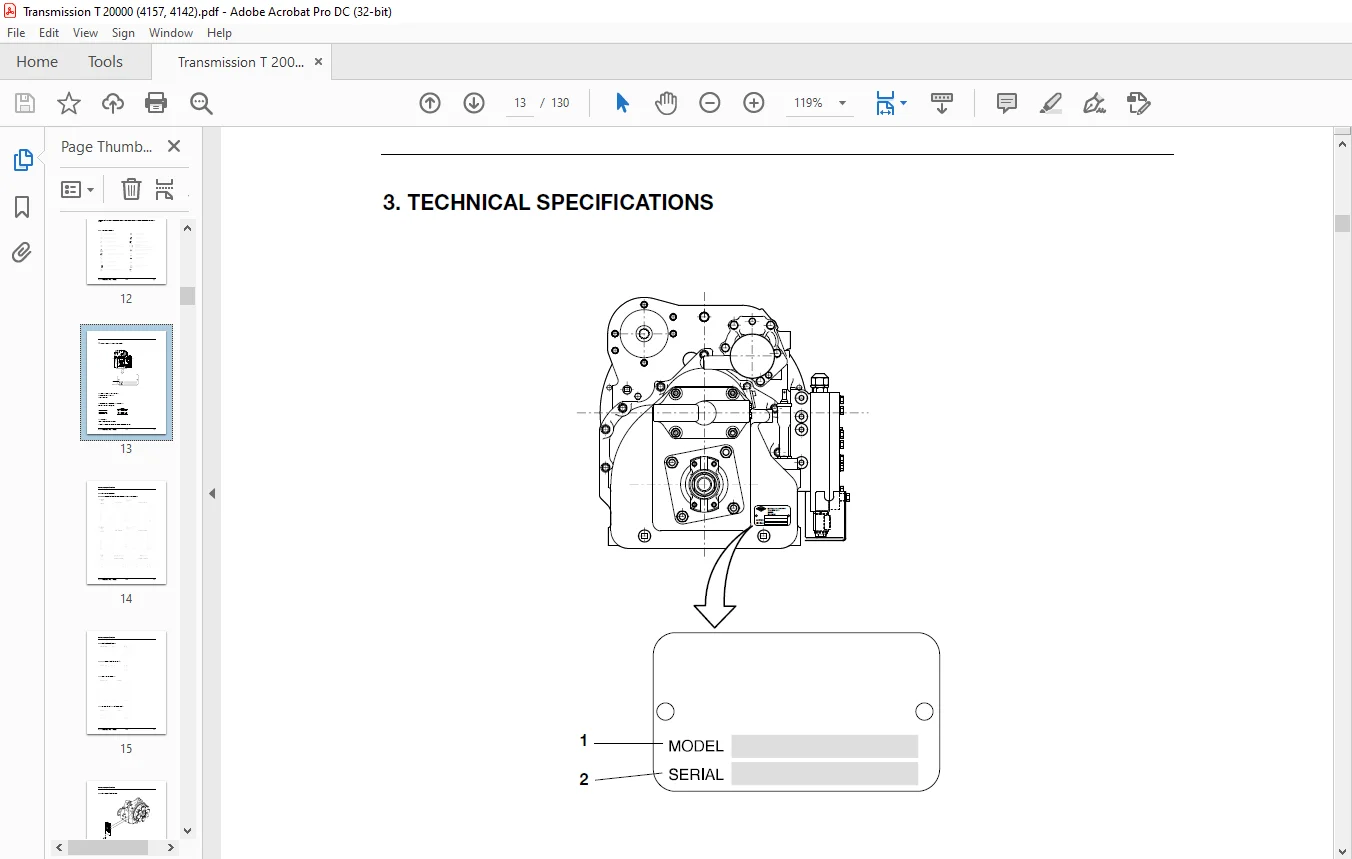

3 TECHNICAL SPECIFICATIONS
3 1 IDENTIFICATION OF THE UNIT 3-1
3 2 WEIGHT, DIMENSIONS, OIL CAPACITY 3-1
3 3 TIGHTENING TORQUES 3-2
3 3 1 Torque specifications for lubricated or plated screw threads 3-2
3 3 2 Elastic stop nut torque 3-3
3 3 3 O-Ring port plug torque chart 3-3
3 3 4 Pipe plug torque chart 3-3
3 3 5 Permanent metric plug torque chart 3-3
3 3 6 Coil and cartridge torque 3-4
3 4 PRESSURE AN TEMPERATURE SPECIFICATIONS 3-5
3 5 ELETTRICAL SPECIFICATIONS 3-5
4 MAINTENANCE
4 1 MAINTENANCE INTERVAL 4-1
4 1 1 Daily 4-1
4 1 2 Normal drain period 4-1
5 CONVERTER DRIVE COUPLING 5-1
6 OPERATION OF THE TRANSMISSION
6 1 THE TRANSMISSION ASSEMBLY 6-1
6 1 1 The converter, pump drive section and pressure regulating valve 6-2
6 1 2 The imput shaft and directional clutches 6-3
6 1 3 The range clutches 6-4
6 1 4 The output section 6-4
6 1 5 The transmission control 6-5
6 2 ELECTRIC SOLENOID CONTROLS 6-6
6 2 1 2-Speed transmission 6-6
T20000 TRANSMISSION 2 SPEED 06/03 II
6 OPERATION OF THE TRANSMISSION
6 3 POWERFLOWS, ACTIVATED SOLENOIDS AND HYDRAULIC CIRCUIT 6-7
6 3 1 Neutral 6-7
6 3 2 Forward 1st speed 6-9
6 3 3 Forward 2nd speed 6-11
6 3 4 Reverse 1st speed 6-13
6 4 GEAR AND CLUTCH LAY-OUT 6-15
7 TROUBLESHOOTING GUIDE FOR THE T20000 TRANSMISSION
7 1 T2000 TRANSMISSION 7-1
7 2 TROUBLESHOOTING PROCEDURES 7-1
7 2 1 Hydraulic checks 7-1
7 2 2 Mechanical and electrical checks 7-2
7 2 3 Stall Test 7-2
7 2 4 Transmission pressure checks 7-2
7 3 TROUBLESHOOTING GUIDE 7-3
7 3 1 Low clutch pressure 7-3
7 3 2 Low charging pump output 7-3
7 3 3 Overheating 7-3
7 3 4 Noisy converter 7-3
7 3 5 Lack of power 7-3
7 4 CHECK POINTS 7-4
8 SECTIONAL VIEWS AND PARTS IDENTIFICATION 8-1
GROUP – CONVERTER HOUSING 8-2
GROUP – TRANSMISSION CASE 8-4
GROUP – TURBINE SHAFT 8-6
GROUP – DRIVE PLATE 8-8
GROUP – TORQUE CONVERTER 8-10
GROUP – AUXILIARY PUMP DRIVE 8-12
GROUP – PUMP DRIVE 8-14
GROUP – FORWARD SHAFT – 1st SPEED 8-16
GROUP – REVERSE SHAFT – 2nd SPEED 8-18
GROUP – REVERSE IDLER 8-20
GROUP – OUTPUT SHAFT 8-22
GROUP – CHARGIN PUMP & FILTER 8-24
GROUP – ELECTRIC CONTROL VALVE 8-26
GROUP – MODULATOR VALVE 8-30
9 ASSEMBLY INTRUCTIONS 9-1
9 1 ASSEMBLY INSTRUCTIONS 9-3
10 DISASSEMBLY & REASSEMBLY OF THE T20000 TRANSMISSION 10-1
11 SERVICE TOOLS
11 1 REVERSE IDLER SHAFT NUT SOCKET (TG 1304 – 54) 11-1
