Panasonic CF-52EKM 1 D 2 M NOTEBOOK COMPUTER Service Manual – PDF DOWNLOAD

Description

Panasonic CF-52EKM 1 D 2 M NOTEBOOK COMPUTER Service Manual – PDF DOWNLOAD

Safety precautions

1. Before servicing, unplug the power cord to prevent an electric shock.

2. When replacing parts, use only manufacture’s recommended components for safety.

3. Check the condition of the power cord. Replace if wear or damage is evident.

4. After servicing, be sure to restore the lead dress, insulation barriers, insulation papers, shields, etc.

Important Safety Instructions

When using your telephone equipment, basic safety precautions should always he followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical storm. There may he a remote risk of electric shock from lightning.

3.Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

Lithium Battery

Lithium Battery! This computer contains a lithium battery to enable the date, time. and other data to be stored. The battery should only be exchanged by authorized service personnel. Warning! A risk of explosion from incorrect installation or misapplication may possibly occur

Panasonic CF-52EKM 1 D 2 M NOTEBOOK COMPUTER Service Manual – PDF DOWNLOAD

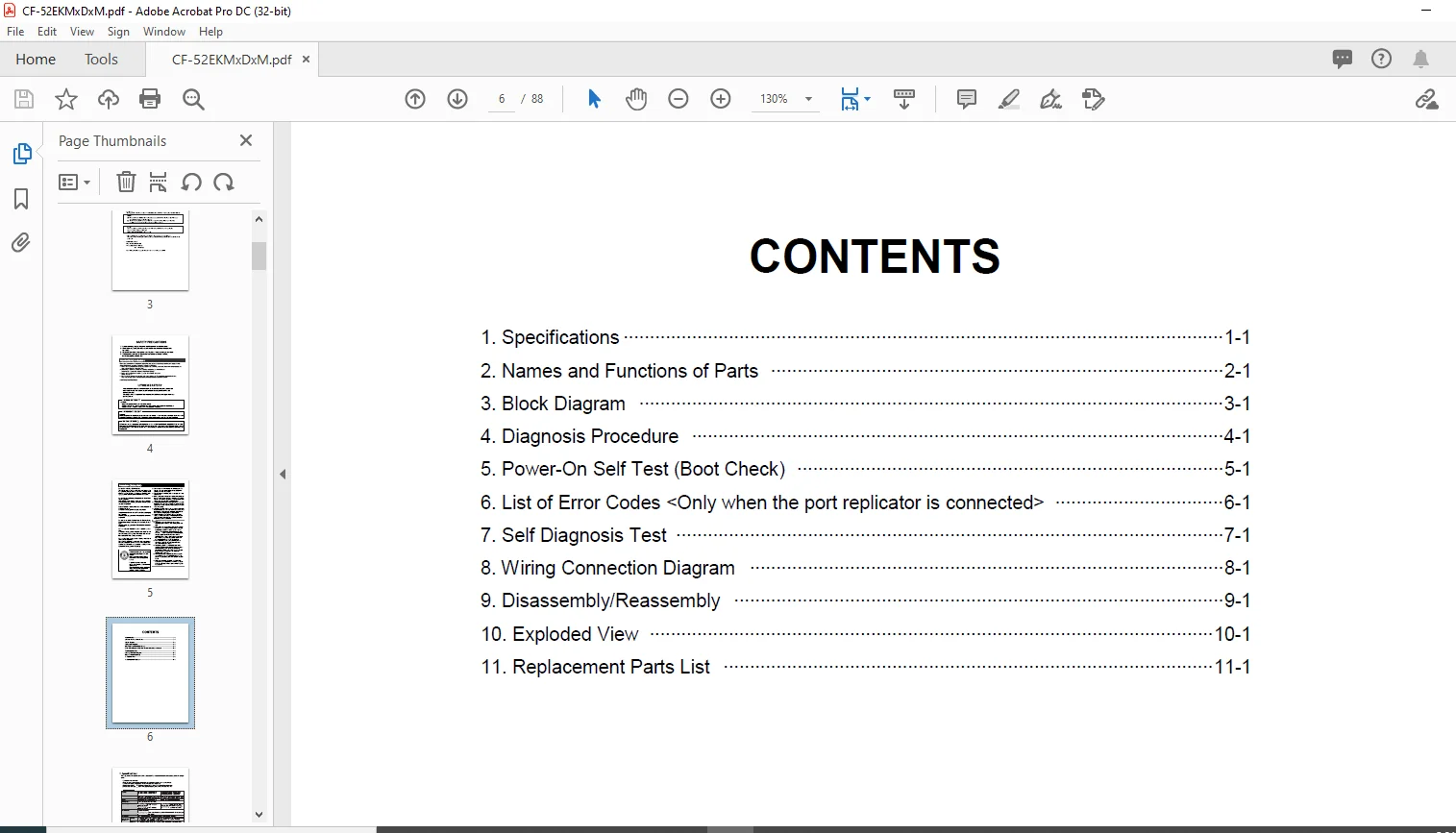

1. Specifications 1-1
2. Names and Functions of Parts 2-1
3. Block Diagram 3-1
4. Diagnosis Procedure 4-1
5. Power-On Self Test (Boot Check) 5-1
6. List of Error Codes <Only when the port replicator is connected> 6-1
7. Self Diagnosis Test 7-1
8. Wiring Connection Diagram 8-1
9. Disassembly/Reassembly 9-1
10. Exploded View 10-1
11. Replacement Parts List 11-1Cover Template(NA)….1
