Panasonic PT-53WX42F Service Manual PDF DOWNLOAD

Description

This Panasonic PT-53WX42F service manual PDF download is a key resource for service technicians maintaining Panasonic HDTV monitors. Issued as a simplified manual (P7W) to supplement the main manual MTNC020411C1 for PT-47WX52F, it adds coverage for models PT-53WX52F, PT-53WX52CF, PT-53WX42F, PT-56WX52F, PT-56WX52CF, PT-56WX42F with chassis EP824 and FP824. It includes Panasonic HDTV monitor convergence alignment procedures, PT-56WX52F disassembly procedures for screens, cabinets, chassis, and CRTs, plus a comprehensive Panasonic projection TV parts list for capacitors, diodes, ICs, resistors, and assemblies.

The manual stresses EP824 chassis service mode instructions for electronic controls, DAC adjustments in 480i, 480p, and 1080i formats, and safety precautions like x-ray radiation checks, leakage current tests, and insulation verification to prevent hazards.

For repairs, it details optical lens focus, vertical/horizontal size, pincushion, and trapezoid adjustments, with a convergence alignment template and coarse/fine modes.

No bookmarks or index are present, but the table of contents provides navigation, categorized below with bullet points:

Contents

• Important safety notice
• Safety precautions
  • General guidelines
  • X-ray precautions
  • Leakage current cold check
  • Leakage current hot check
  • Insulation test
  • X-ray radiation
• About lead free solder (PbF)
  • Suggested Pb free solder
• Important safety tests
  • Measuring H.V.
  • (EHT) Protector operation check
• About format aspect switching
• Service notes
  • Leadless chip component
  • Component removal
  • Chip component installation
  • How to replace Flat-IC
• Feature table
• Boards designation
• PTV – Location of controls
  • Quick reference control operation
• Remote – Location of controls
• Auto diagnosis feature
• A-Board check points
• A-Board check points waveforms
• Chassis & boards layout
  • Board description
• Disassembly for service
  • Speaker grille removal
  • Keyboard removal
  • Speakers replacement
  • Cabinet back lower cover removal
  • Cabinet back cover removal
  • Mirror removal
  • Screen frame removal
  • Screen assembly
  • Main chassis block
  • Chassis assembly

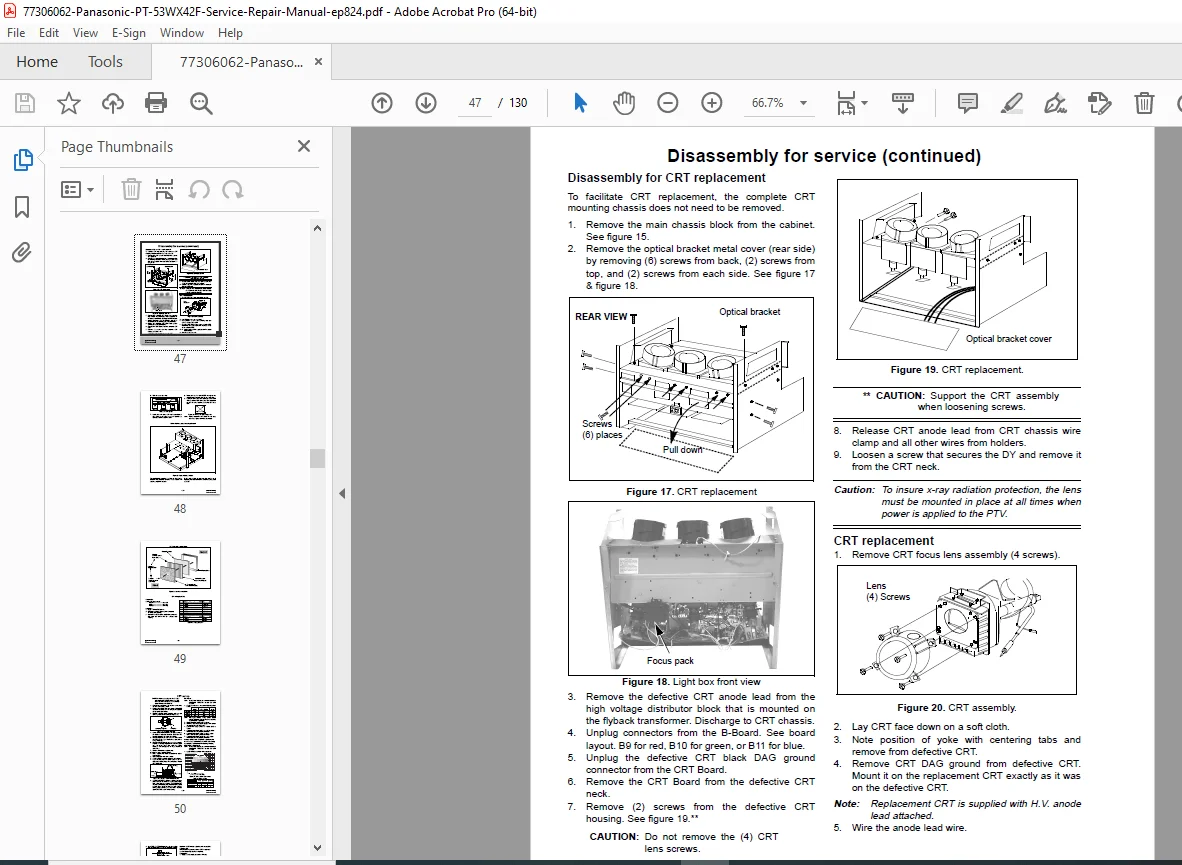

  • Disassembly for CRT replacement
  • CRT replacement
  • Optical block position adjustment
  • PTV screen assemblies
  • B+ voltages table
• CRT set up
  • Dynamic focus adjustments
  • Electrical adjustment
  • Focus – Optical lens adjustment
  • Optical adjustments
  • NTSC Vertical size adjustment (VSIZE)
  • HD 1080i Vertical size adjustment (VSIZE)
  • NTSC ZOOM Vertical size adjustment (VSIZE)
  • NTSC Horizontal phase adjustment (H-POS)
  • HD 1080i Horizontal phase adjustment (H-POS)
  • Trapezoid adjustment (EWTRA)
  • NTSC Pincushion adjustment (PCC)
  • HD 1080i Pincushion adjustment (PCC)
  • Centering magnets adjustment
  • NTSC Horizontal size adjustment (H WID)
  • HD 1080i Horizontal size adjustment (H WID)
  • Convergence adjustment
  • Coarse adjustment mode (COARSE)
  • Fine adjustment mode (FINE) (convergence)
  • Horizontal and vertical size check
  • Convergence alignment template
• Service mode (electronic controls)
  • Quick entry to service mode
  • To toggle between aging and service modes
  • Exiting the service mode
  • To check colors
  • Table of the service adjustments items available for each format
  • 480i Service mode DACs
  • 480p Service mode DACs
  • 1080i Service mode DACs
  • Instructional flow chart for format aspect switching (WX 16:9 or HX 4:3)
  • Instructional flow chart for service mode
  • NTSC Sub-Bright adjustment (BRIGHT)
  • 1080i Sub-Bright adjustment (BRIGHT)
  • NTSC Color adjustment (TINT, B-Y_G, R-Y_A)
  • 1080i Color adjustment (TINT, B-Y_G, R-Y_A)
  • Red, green & blue screen cutoff
  • White balance adjustment
  • Tint and color check
  • MTS circuit adjustments
  • Input level adjustment (MTSIN)
  • Stereo separation adjustment (SEPAL & SEPAH)
  • Clock Adjustment (CLOCK)
• Audio signal path block diagram
• Video-chroma signal path block diagram
• IIC connection
• Description of connectors
• Parts list
• Schematics

File Details

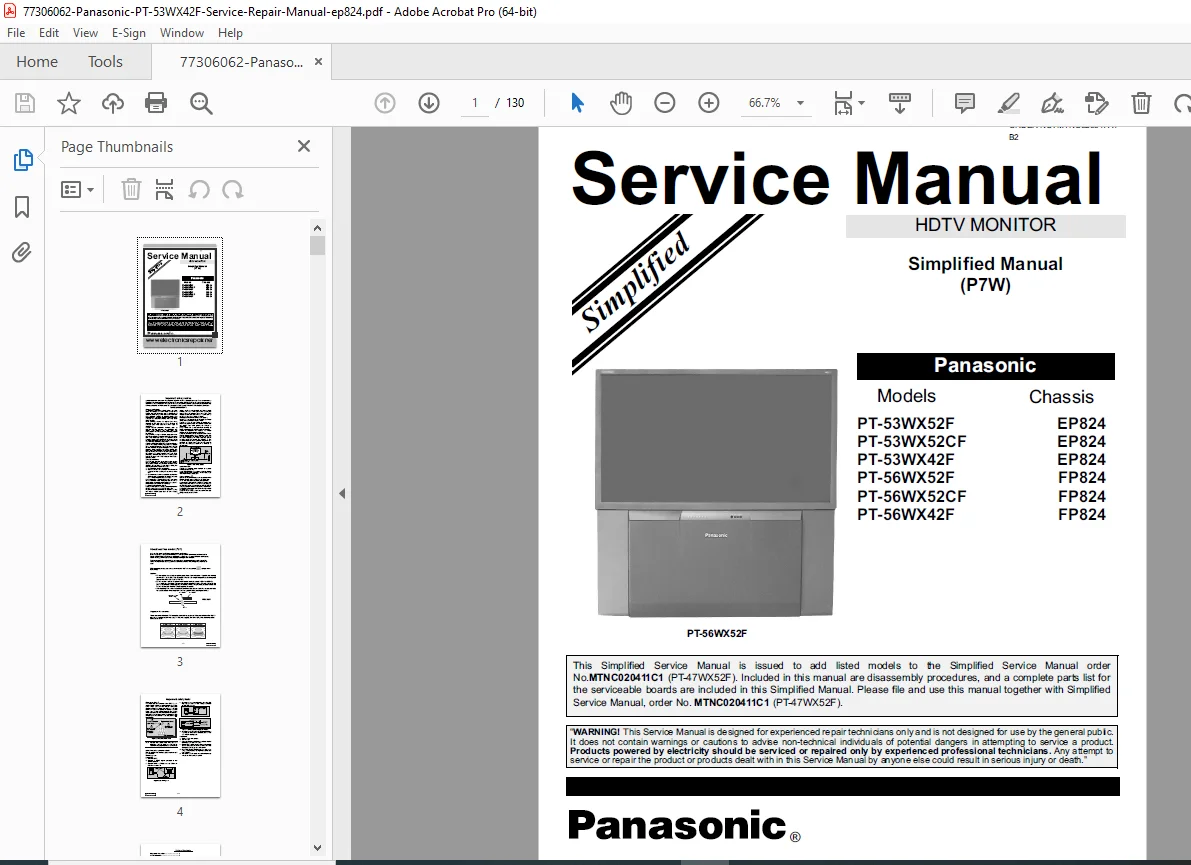

• Manual name: Service Manual HDTV MONITOR Simplified Manual (P7W)
• Models covered: PT-53WX52F, PT-53WX52CF, PT-53WX42F, PT-56WX52F, PT-56WX52CF, PT-56WX42F
• Year: 2002
• Manual PDF quality: High (clear text, diagrams, and schematics)
• No of pages: 130

This manual is indispensable for Panasonic projection TV parts list and EP824 chassis service mode instructions, ensuring safe and precise maintenance.

Equip yourself with this Panasonic PT-53WX42F service manual PDF to confidently perform alignments and repairs—your essential guide for restoring high-definition performance in these classic HDTV monitors.
