Overview

This Panterra 50cc Street Scooter Service Manual (Nikota USA edition) is a complete technical reference for the Retro, Fusion, and Freedom scooters equipped with 49.5cc four-stroke OHC engines. It provides full maintenance data, disassembly instructions, torque tables, wiring diagrams, and diagnostic charts for both mechanical and electrical systems.

The manual is divided into 17 detailed chapters covering every aspect of service — from general maintenance and bodywork removal to advanced troubleshooting for ignition, fuel, and charging systems.

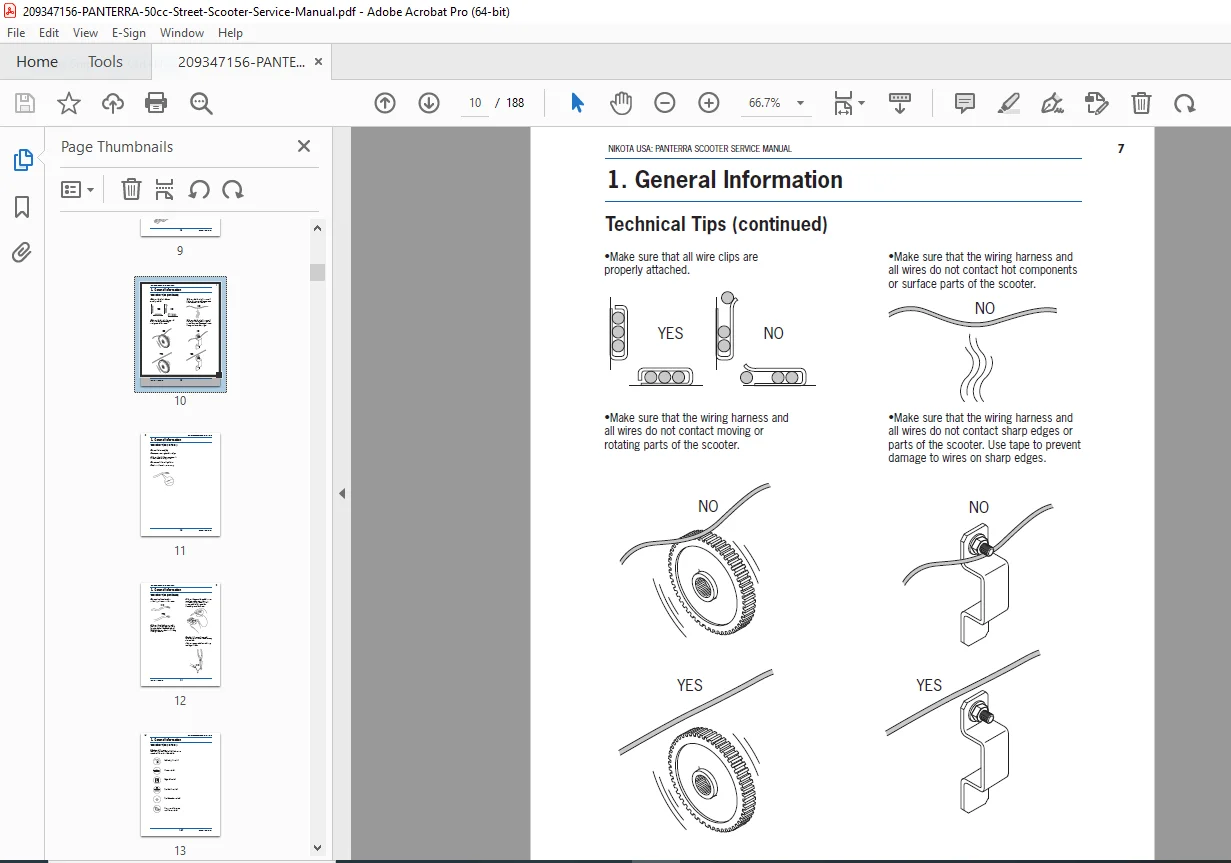

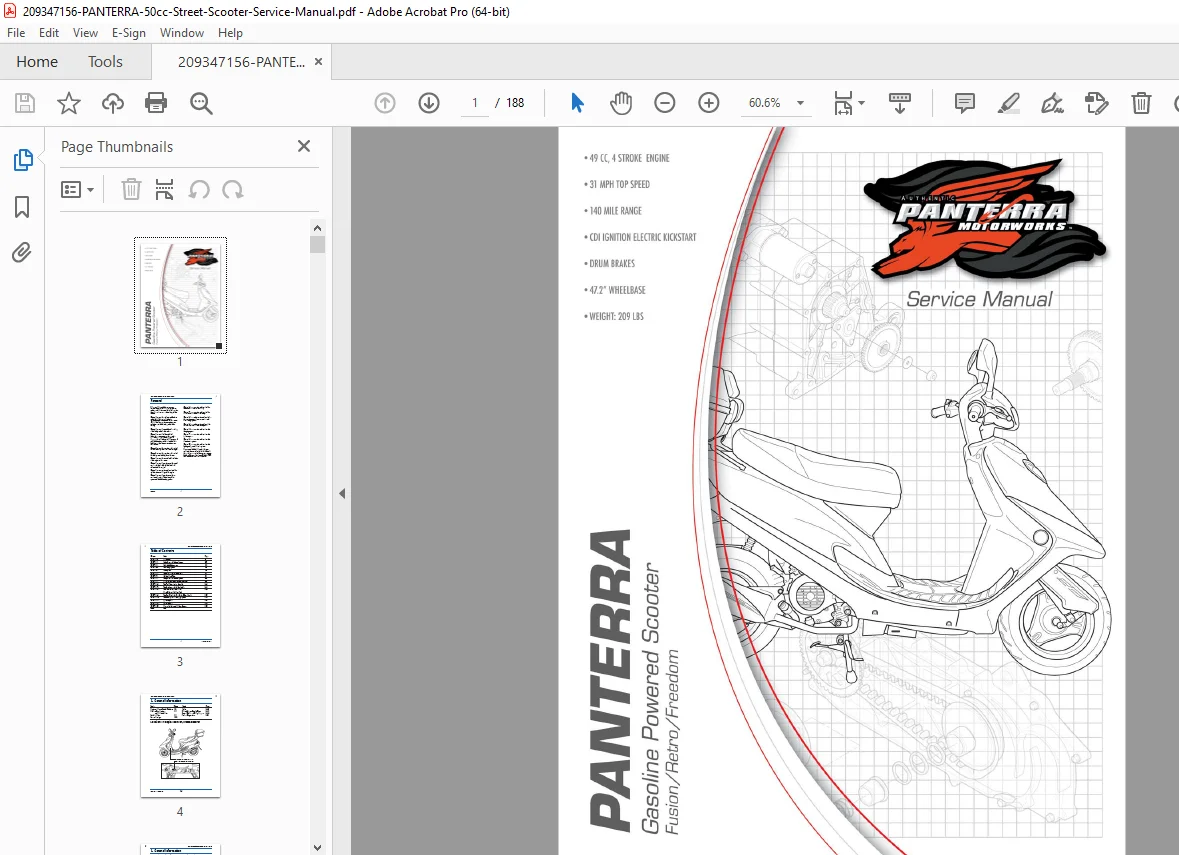

IMAGES:

Contents Summary

1. Introduction & Specifications

• Frame & engine number locations

• Technical data for 49.5cc engine: bore 39 mm × stroke 41.4 mm, compression ratio 10.5:1, output 2.2 HP @ 8000 RPM, torque 4.5 ft-lbs @ 6000 RPM

• Curb weight 97 kg, wheelbase 1195 mm, tire size 3.00 × 10

• CDI ignition timing 13° BTDC @ 2000 RPM, NGK C7HSA spark plug gap 0.5–0.6 mm

• Valve lash: IN 0.05 mm / EX 0.05 mm

• Torque chart for fasteners (M5–M12)

2. Body Cover & Exhaust

• Complete disassembly order for front/rear panels, seat, floorboard, and fenders

• Exhaust pipe and muffler removal procedure (torque: 35 kg m)

• Cautions for body tab removal to prevent cracking

3. Scheduled Maintenance

• Periodic maintenance chart up to 12 000 km

• Valve clearance, spark plug cleaning, drive belt inspection

• Brake and clutch adjustments

• Air filter replacement interval: every 3000 km

• Gear oil SAE 90W 0.12 L capacity

4. Lubrication System

• Internal gear oil pump service steps

• Pressure/splash lubrication diagram

• Oil capacity 0.8 L, dipstick checking procedure

• Pump rotor wear limit 0.12 mm

5. Fuel System

• CVK carburetor disassembly (venturi 18 mm)

• Float level 20.5 mm, mixture screw 2 ± ¼ turns

• Auto-choke resistance < 5 Ω (cold), plunger extends 3/8 in in 5 min

• Accelerator pump & fuel valve testing

• Full vacuum and electrical schematic

6–11. Engine & Transmission

• Cylinder head, piston, and crankshaft overhaul procedures

• Compression 215 psi at 600 RPM

• CVT drive belt replacement, clutch engagement ≈ 2200 RPM

• Crankcase assembly torque specifications

• Final reduction gear inspection

12–13. Suspension & Brakes

• Telescopic fork oil level, rear trailing arm service

• Front brake hydraulic system bleeding

• Rear mechanical drum clearance 10–20 mm

14–17. Electrical Systems

• Charging (stator, rectifier, 12 V 4 Ah battery)

• Ignition (CDI, coil, plug, pickup)

• Starter motor and relay troubleshooting

• Lighting and meter circuit schematic with color codes

Technical Data Summary
