Fiatallis 545 545H 545-B 605-B 645 645-B 745 745H 745-B 745H-B 745-C Service Manual PDF

Description

Fiatallis 545 545H 545-B 605-B 645 645-B 745 745H 745-B 745H-B 745-C Bucket Hydraulic System Service Manual – PDF DOWNLOAD

FILE DETAILS:

Fiatallis 545 545H 545-B 605-B 645 645-B 745 745H 745-B 745H-B 745-C Bucket Hydraulic System Service Manual – PDF DOWNLOAD

FN 73124400

Language : English
Pages : 278
Downloadable : Yes
File Type : PDF

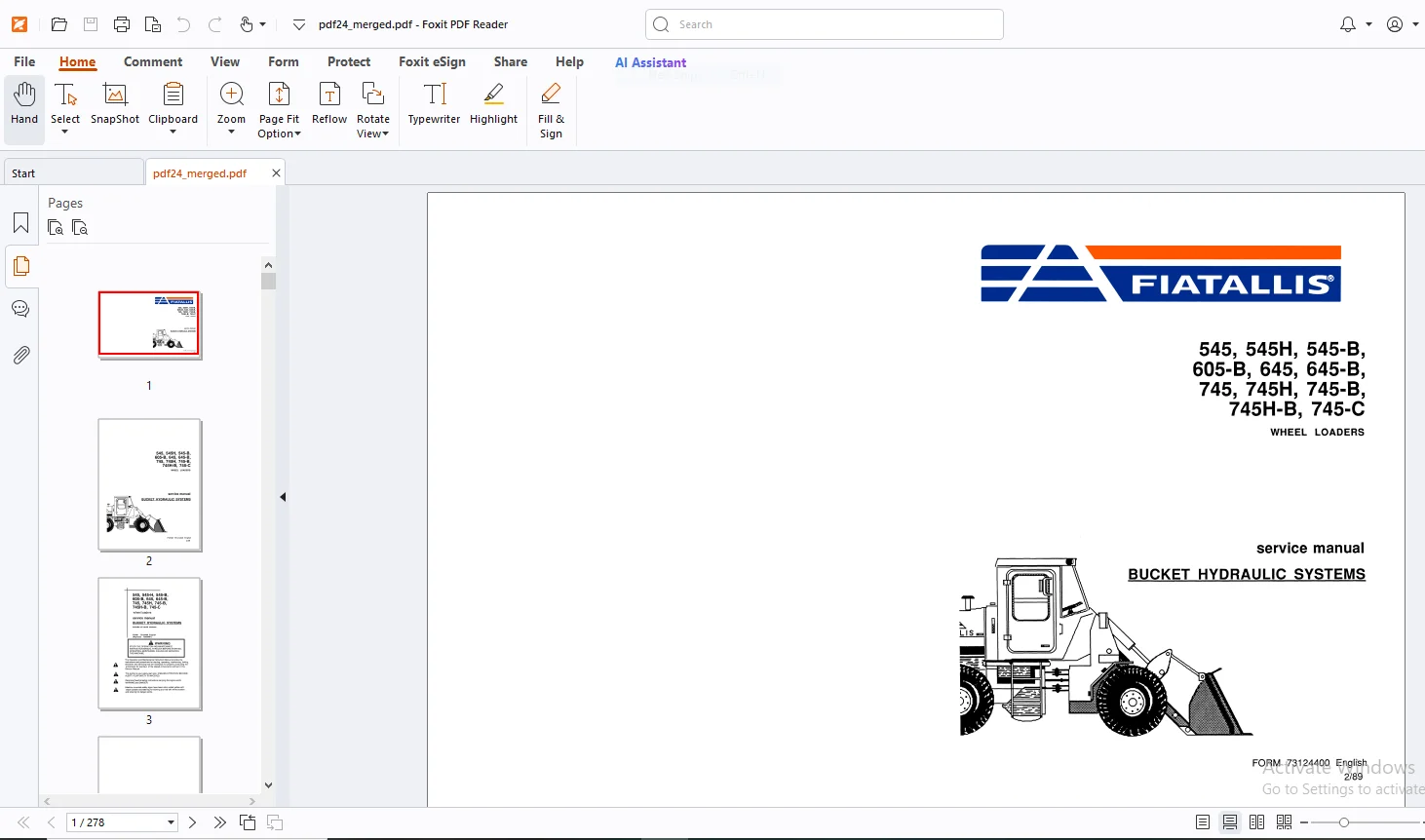

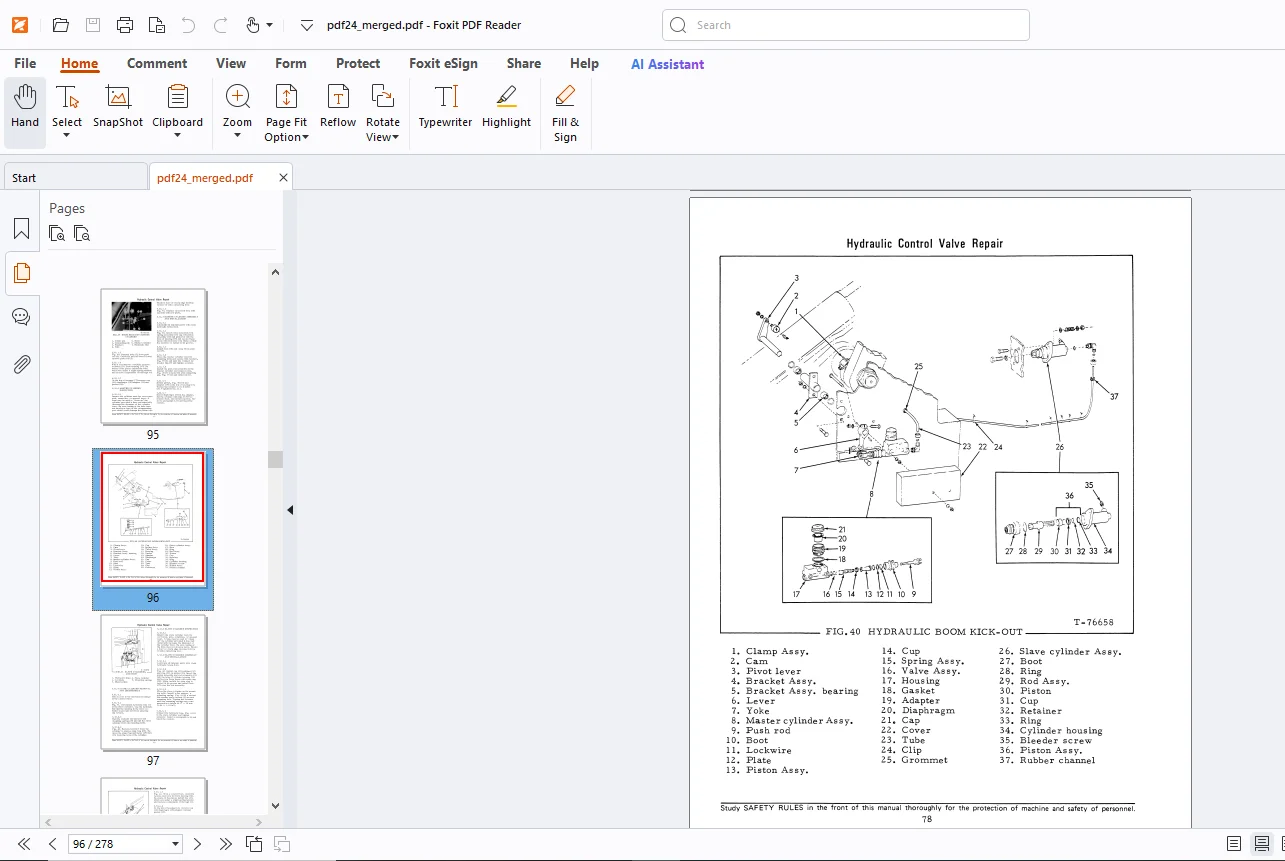

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Fiatallis 545 545H 545-B 605-B 645 645-B 745 745H 745-B 745H-B 745-C Bucket Hydraulic System Service Manual – PDF DOWNLOAD

FN 73124400

Supplement No 1 Service Manual Form 73124400 Bucket Hydraulic Systems 545 thru 745-C Wheel Loaders 5
Table of Contents 6
Safety Rules 11
General 19
Hydraulic System Specifications 20
Description and Operation 22
Troubleshooting and Testing 26
Hydraulic Pump Repair 41
Hydraulic Control Valve Repair 49
Hydraulic Cylinder Repair 102
Hydraulic Fittings, Hoses and Tubing 129
Service Tools 134
Torque Values 137

DESCRIPTION:

Fiatallis 545 545H 545-B 605-B 645 645-B 745 745H 745-B 745H-B 745-C Bucket Hydraulic System Service Manual – PDF DOWNLOAD

FN 73124400

GENERAL :

• Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine
• Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment Do not allow unauthorized personnel to operate service or maintain this machine Always check work area for dangerous features
• The following are examples of dangerous work areas slopes, over hangs, timber, demolitions, fire, high walls, drop off, backfills, rough terrain, ditches, ridges, excavations, heavy traffic. crowded parking, crowded maintenance and closed areas Use extreme care when in areas such as these
• An operator must know the machine’s capabilities When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control Do not jump on or off machine Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times
• Do not use controls or hoses as hand holds when climbing on or off machine Hoses and controls are movable and do not provide a solid support Controls also may be inadvertently moved causing accidental machine or equipment movement
• Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil grease, mud or snow accumulation to minimize the danger of slipping or stumbling Clean mud or grease from shoes before attempting to mount or operate the machine Be careful of slippery conditions on stepping points, hand rails, and on the ground Wear
• safety boots or shoes that have a high slip resistant sole material For your personal protection Do not attempt to climb on or off machine while machine is in motion Never leave the machine unattended with the engine running
• Always lock up machine when leaving it unattended Return keys to authorized security Heed all shut down procedures of the Operation and Maintenance Instruction Manual Always set the parking brake when leaving the machine for any reason
