Pfaff 1222 1221 1212 1211 Sewing Machine Service Repair Manual PDF Download

Description

Pfaff 1222 1221 1212 1211 Sewing Machine Service Repair Manual PDF Download

DESCRIPTION

Pfaff Service Manual – Complete Technical Documentation for Models 1222, 1221, 1212, 1211

This official Pfaff Service Manual provides complete service, adjustment, and repair information for Pfaff sewing machines models 1222, 1221, 1212, and 1211. Essential for professional sewing machine technicians, repair shops, and service personnel.

📋 FILE DETAILS

🔧 MODELS COVERED – TECHNICAL SPECIFICATIONS

Pfaff 1222 – Free-arm with Additional Top Feed

• Combined automatic unit (fixed-ratio functional + variable-ratio ornamental)
• Weight: 10.20 kg (22.4 lbs)
• Clear work space: 225 x 120 mm (9″ x 4¾”)

Pfaff 1221 – Flatbed with Additional Top Feed

• Combined automatic unit (fixed-ratio functional + variable-ratio ornamental)
• Weight: 9.00 kg (19.8 lbs)

Pfaff 1212 – Free-arm with Fixed-Ratio Automatic

• Fixed-ratio automatic functional-stitch mechanism
• Weight: 9.50 kg (20.9 lbs)

Pfaff 1211 – Flatbed with Fixed-Ratio Automatic

• Fixed-ratio automatic functional-stitch mechanism
• Weight: 8.35 kg (18.3 lbs)

Common Features:

• Stitch length: approx. 4 mm (6 s.p.i.)
• Stitch width: approx. 4.5 mm (11/64″)
• Needle system: 130
• Motor: Type GE 270/271, 220 or 110V, 0-60 c/s, 40/80W
• Maximum sewing speed: 900-1000 r.p.m.
• Electronic speed control with thyristor
• Transverse double-revolution rotary hook

📖 COMPLETE TABLE OF CONTENTS

SECTION 1: STOP MATIC MECHANISM (Pages 7-9)

• Operation Overview
  • Roller clutch engagement and disengagement
  • Automatic needle position control
• 1. Adjusting the Clutch Lever (0.7-1.5 mm clearance specifications)
• 2. Setting the Roller in Relation to Roller Clutch Pin

SECTION 2: ZIGZAG MECHANISM (Pages 10-19)

• 3. Dismantling the Automatic Mechanism
• 4. Relative Adjustment of Worm Gears and Drive Lever
• 5. Adjusting the Needle Position Knob
• 6. Basic Position of Eccentric Stud in Needle Bar Frame
• 7. Zeroing the Needle for Straight Stitching
• 8. Adjusting the Needle Vibration Controlled by Zigzag Mechanism
• 9. Adjusting the Needle Position (left, center, right settings)
• 10. Centering the Needle Throw in the Needle Plate Slot

SECTION 3: BUTTONHOLE MECHANISM (Pages 20-28)

• 11. Operation of Buttonhole Mechanism
  • Semi-automatic forward-reverse feed control
• 12. Basic Position of Buttonhole Control Stop
• 13. Adjusting the Relative Position of Driving Pawl and Ratchet Wheel
• 14. Timing the Pawl Stroke
• 15. Final Adjustment of Buttonhole Control Stop
• 16. Timing the Buttonhole Forward-Reverse Feed

SECTION 4: FEED MECHANISM (Pages 29-51)

• 17. Lateral Adjustment of Feed Dog
• 18. Setting the Feed Dog Parallel to the Needle Plate
• 19. Setting the Feed Dog at the Correct Height (0.9 mm specifications)
• 20. Adjusting the Feed Eccentric Clutch Sleeve
• 21. Adjusting the Feed Eccentric Endwise
• 22. Adjusting the Link-Type Feed Regulator Endwise
• 23. Zeroing the Feed Regulator
• 24. Timing the Top and Bottom Feed Strokes (1:1 feed ratio)
• 25. Adjusting the Drop Feed Mechanism
• 26. Setting the Presser Bar at the Correct Height (6.5 mm foot lift)
• 27. Adjusting the Pressure on the Material
• 28. Lateral Adjustment of Feeding Foot in Relation to Sewing Foot
• 29. Adjusting the Feeding Foot in Sewing Direction
• 30. Adjusting the Feeding Foot Vertically (1.2 mm maximum rise)
• 31. Adjusting the Vibrator
• 32. Timing the Buttonhole Forward-Reverse Feed

SECTION 5: SEWING MECHANISM (Pages 52-59)

• 33. Adjusting the Position of the Needle in the Needle Plate Slot
• 34. Basic Position of Hook Bearing
• 35. Timing the Sewing Hook
  • Transverse double-revolution rotary hook timing
  • Hook-to-needle clearance: 0.1 mm (.004″)
• 36. Setting the Needle Bar at the Correct Height (0.5 mm specifications)
• 37. Setting the Hook-to-Needle Clearance
• 38. Adjusting the Bobbin Case Position Finger (0.7 mm clearance)

SECTION 6: AUTOMATIC MECHANISM (Pages 60-74)

Fixed-Ratio Automatic Mechanism:

• 39. Operation Overview
  • Five functional stitches with zigzag variation
  • Reduction ratio 12:1
• 40. Fitting the Automatic Mechanism
• 41. Setting the Clearance Between Worm and Worm Wheel
• 42. Setting the Feeler Fingers Close to the Cam Stack
• 43. Adjusting the Needle Vibrating Controlled by Fixed-Ratio Mechanism
• 44. Centering the Needle Throw for Functional Stitching
• 45. Adjusting Forward and Backward Stitches for Hemstitching

Variable-Ratio Automatic Mechanism:

• 46. Operation Overview
  • Five ornamental stitches with pattern length adjustment
  • Intermittent drive with stitch number regulation
• 47. Setting the Feeler Fingers Close to the Cam Stack
• 48. Zeroing the Pattern Length Wheel
• 49. Close Setting of Feeler Finger for Scallops

SECTION 7: ELECTRICAL SYSTEM (Pages 75-84)

• 50. Description of Electrical Equipment
  • Electronic speed control by thyristor
  • Dual-voltage-range motors (110V and 220V)
  • Radio and TV suppression

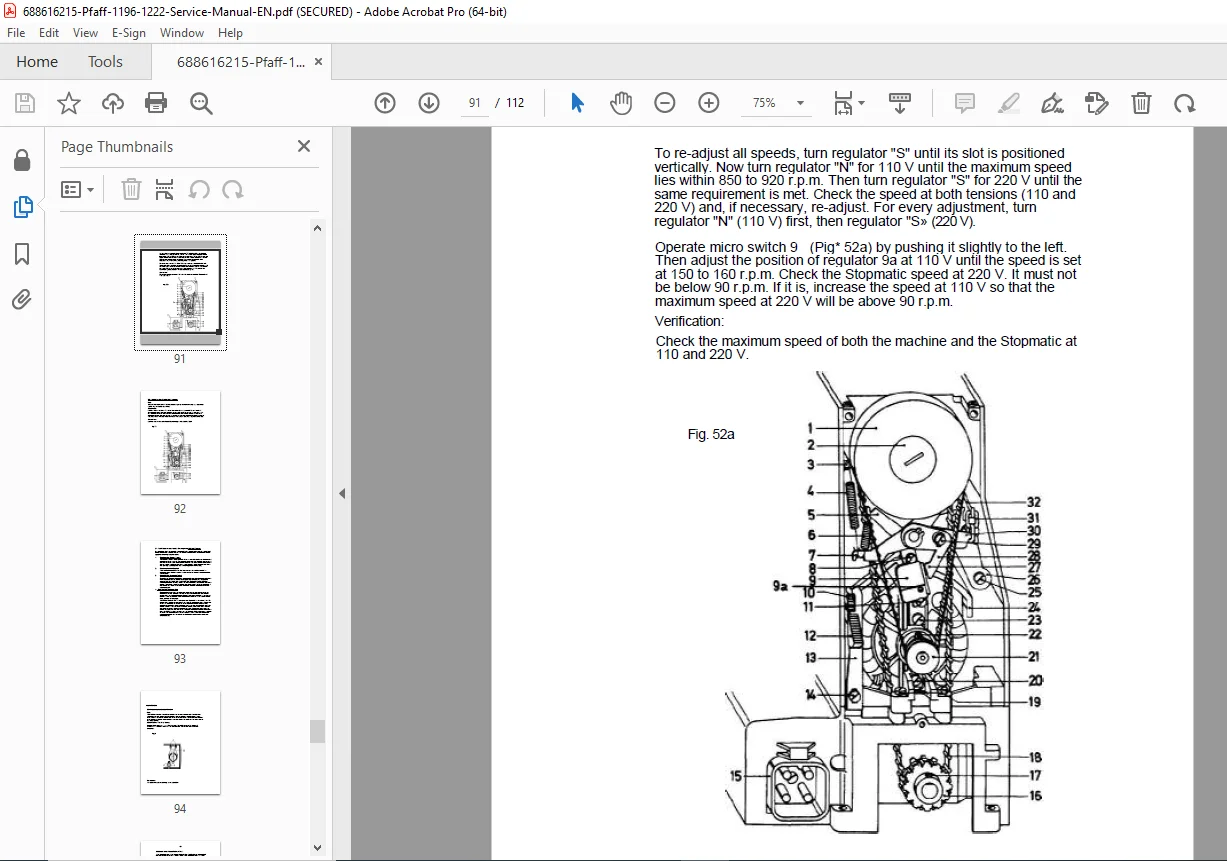

• 51. Setting Maximum Speed and Stop Matic Control Speed
  • Maximum: 900-1000 r.p.m.
  • Stop Matic: 120 r.p.m.
• 52. Setting Speed on Dual-Voltage-Range Motors
• 53. Adjusting the Cleared Belt Tension
• 54. Test Procedure and Troubleshooting in the Electrical System
  • Comprehensive diagnostic procedures
  • Low-tension testing requirements

SECTION 8: SEWING ADJUSTMENTS & MAINTENANCE (Pages 85-99)

• 55. Adjusting the Bobbin Winder
• 56. Operation of Needle Threader
• 57. Adjusting the Threader Bar Collar
• 58. Adjusting the Needle Threader Head
• 59. Tension Regulation Overview
• 60. Adjusting the Bobbin Thread Tension
• 61. Adjusting the Needle Thread Tension
• 62. Adjusting the Tension Release Mechanism
• 63. Adjusting the Stroke of the Thread Check Spring
• 64. Adjusting Forward and Backward Stitches for Hemstitching
• 64a. Setting the Household Overlock Stitch
• 64b. Adjusting Triple-Stitch Seam Length
• 65. Making Sample Swatch for Various Repairs
• 66. Changing the Motor and Carbon Brushes
• 67. Changing the Pressure Spring in Balance-Wheel Mechanism

🛠️ REQUIRED TOOLS & GAUGES

The manual specifies professional tools needed for proper adjustment:

• Needle rise gauge (870 136-01)
• C-clamp for gauge (870 137-00)
• Bobbin case position slot gauge (7*501.00-201)
• Machine feed gauge (63-112 120-08)
• Special spanner (106 300-306)
• Combination spanners (5.5mm, 7.0mm, 8mm)
• Circlip pliers (ZA 21, A 1)
• Clip washer pliers (1.9kz through 7.0kz)

📐 CRITICAL SPECIFICATIONS INCLUDED

✅ Needle Bar Rise: 2.0 mm (.08″)
✅ Hook-to-Needle Clearance: 0.1 mm (.004″)
✅ Needle Bar Height: 0.5 mm (.02″)
✅ Feed Dog Height: 0.9 mm (.035″)
✅ Foot Lift: 6.5 mm (.25″)
✅ Maximum Feeding Foot Rise: 1.2 mm (.05″)
✅ Darning Foot Position: 0-0.1 mm (.004″)
✅ Maximum Sewing Speed: 900-1000 r.p.m.
✅ Stop Matic Speed: 120 r.p.m.

💼 WHO NEEDS THIS MANUAL?

• Professional Sewing Machine Technicians
• Authorized Pfaff Service Centers
• Independent Repair Shops
• Sewing Machine Maintenance Personnel
• Technical Training Facilities
• Industrial Sewing Departments
• Tailoring & Alteration Shops
• Home Sewing Enthusiasts (Advanced)

🎯 WHAT MAKES THIS MANUAL ESSENTIAL?

This Pfaff service manual provides factory-level technical information for maintaining and repairing these sophisticated automatic sewing machines. With precise adjustment specifications, detailed mechanical diagrams, and comprehensive troubleshooting procedures, you’ll have the expert knowledge needed to service zigzag mechanisms, automatic stitch functions, rotary hooks, feed systems, and electronic controls. The manual covers both free-arm and flatbed configurations, making it versatile for various machine setups.

Key Features:

• Step-by-step adjustment procedures with precise measurements
• Detailed mechanical assembly and disassembly instructions
• Electrical system testing and troubleshooting
• Timing procedures for all critical mechanisms
• Automatic stitch mechanism calibration
• Professional-grade diagnostic procedures

⚡ INSTANT DOWNLOAD – START REPAIRS TODAY

Don’t let incomplete information delay your sewing machine repairs. Download this comprehensive Pfaff service manual now and gain immediate access to the factory technical specifications you need to service these advanced automatic sewing machines professionally. Perfect for technicians who need reliable adjustment procedures, timing specifications, and troubleshooting guidance for Pfaff 1222, 1221, 1212, and 1211 models!
