Philips BV Family R1.2 Service Manual – Libra Endura Pulsera (PDF)

Description

Philips BV Family R1.2 Service Manual – Libra Endura Pulsera (PDF) DOWNLOAD

Description

This professional Philips BV Family R1.2 Service Manual provides complete technical, diagnostic and specification data for:

• BV Libra

• BV Endura

• BV Pulsera

It is intended for service engineers, hospital biomedical teams, radiology equipment technicians, and maintenance engineers.

The manual covers mechanical, electrical, radiation, imaging, and performance specifications in detail — including approval test measurement basis, X-ray tube ratings, generator loading curves, scattered radiation maps, and thermal protection logic.

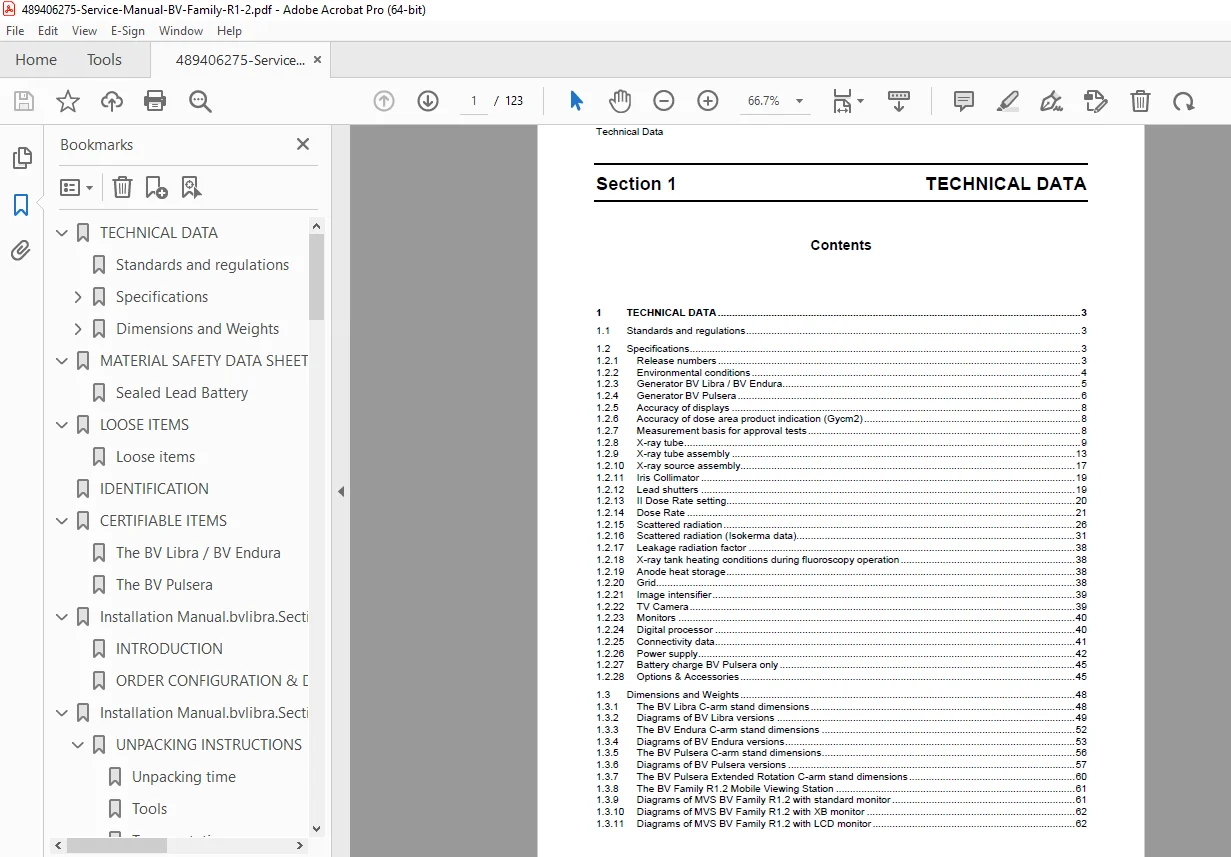

 Bookmarks / Table of Contents

SECTION 1 — Technical Data

1.1 Standards & Regulations

• IEC compliance & PMS support documentation

1.2 Specifications

• Release Numbers

• Environmental Conditions (Operating / Storage Limits)

• Generator Specifications (Libra / Endura / Pulsera)

• Maximum Loading Factors (Fluoro / HDF / Radiography)

• Accuracy of Displays & Dose Indication

• Measurement Basis for Approval Tests

X-Ray Components

• X-ray Tube Specs & Load Charts

• Tube Assembly & Filtration

• X-ray Source Assembly Heat Capacity

• Heating & Cooling Curves (graphs included)

Collimation & Radiation

• Iris Collimator configurations

• Lead Shutter operation

• II Dose Rate Settings

• Dose Rate Tables (Normal / HC / Pulsed Modes)

• Scattered Radiation Diagrams

• Isokerma Radiation Maps (horizontal & lateral positions)

Thermal & Safety

• Leakage Radiation Limits

• X-ray Tank Heating Notifications

• Anode Heat Storage Monitoring

Imaging & Electronics

• Grid Specifications

• Image Intensifier formats (6″, 9″, 12″)

• TV Camera properties

• Monitor options (Standard / High-End / LCD)

• Digital Processor storage capability

• DICOM & Ethernet Connectivity Data

Power & Dimensions

• Power Supply requirements

• Mains impedance limits

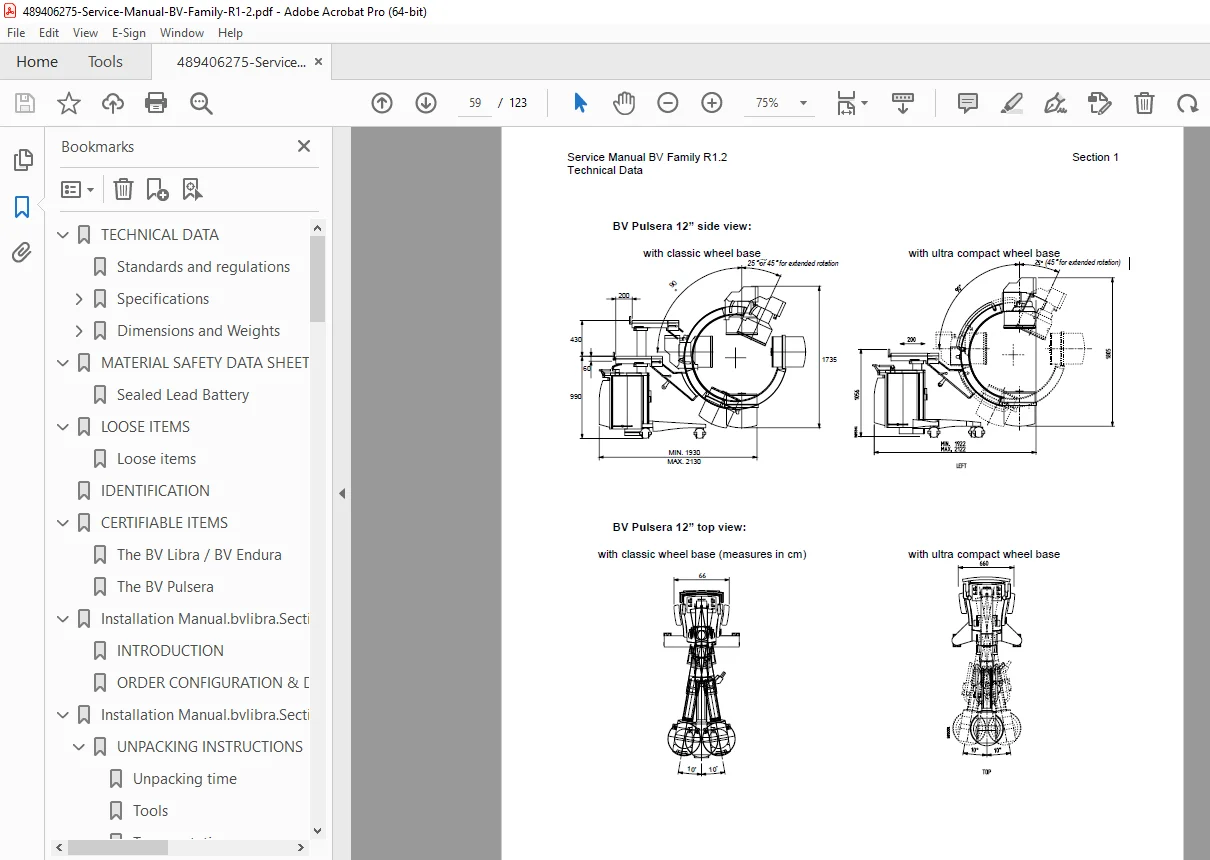

• Mechanical dimensions & weights

Additional Sections

• Material Safety Data Sheet (Sealed Lead Battery)

• Loose Items List

• Identification Plate Details

• Certifiable Compliance Items

(Technical tables, charts & diagrams are included throughout the manual.)

489406275-Service-Manual-BV-Fam…

🔍 Key Technical Highlights

• Generator loading curves for fluoroscopy, HDF & pulsed modes

• X-ray tube anode heat storage & dissipation ratings

• Accuracy tolerances for kV, mA, mAs & dose readings

• Scattered radiation exposure charts

• Isokerma exposure mapping at 1.0 m & 1.5 m height

• Dose rate behavior under HIP mode

• Tube heating lockout thresholds (~44–50°C)

• Complete II format combinations (6 / 9 / 12 inch)

These details are essential for preventive maintenance, repair validation, QA checks, radiation testing & certification.

🧾 File Details

🛒 Why Buy This Manual?

This is the official engineering-level service reference, not a basic operator manual. It contains the precise technical values, limits, charts, and safety parameters needed to:

• diagnose issues correctly

• pass compliance & radiation audits

• ensure safe servicing

• extend equipment lifespan

👉 Download instantly and keep your C-arm fleet running safely, accurately and within certified limits.
