Pioneer CDJ-2000NXS2 Service Manual – Diagnostics, Schematics & Parts PDF

Description

Pioneer CDJ-2000NXS2 Service Manual – Diagnostics, Schematics & Parts PDF DOWNLOAD

Description

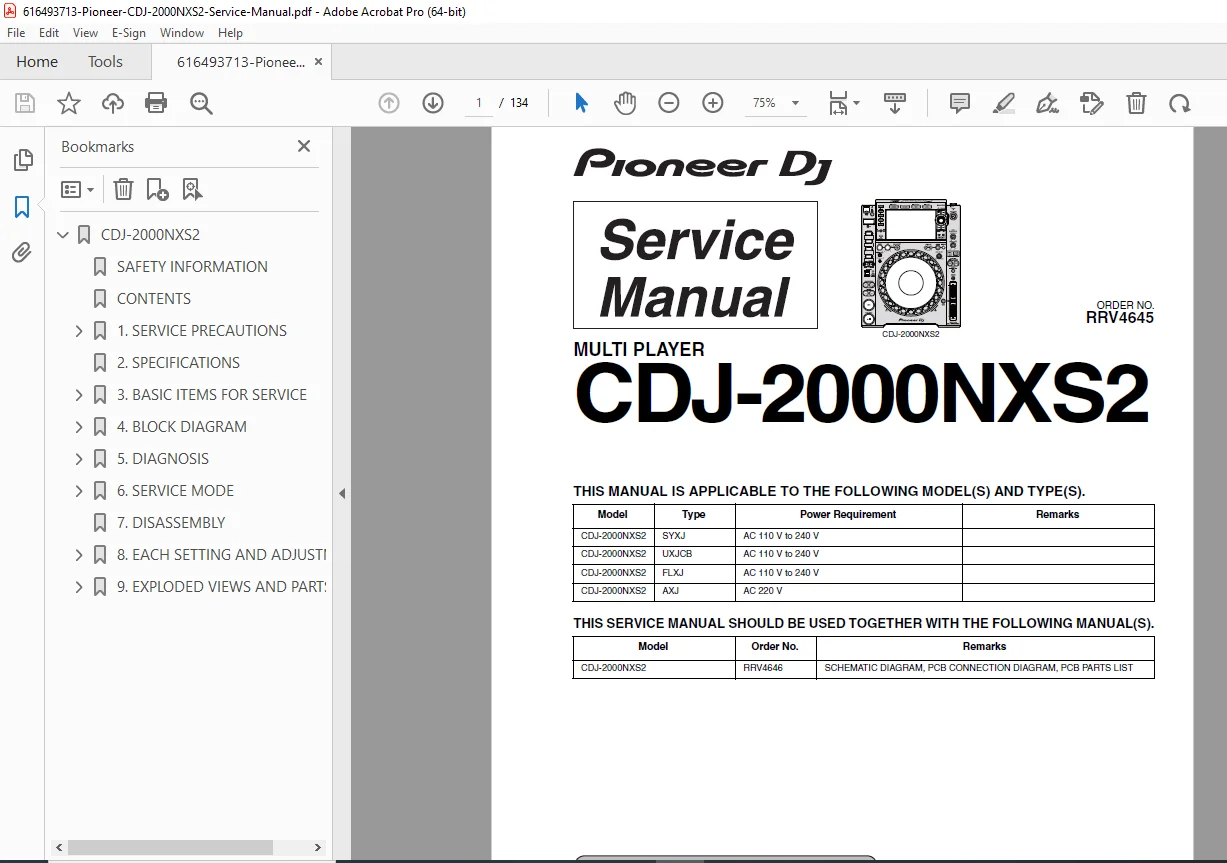

The Pioneer CDJ-2000NXS2 Service Manual is the factory-authorized technical repair guide intended strictly for qualified service technicians. This manual provides in-depth information required to diagnose, service, repair, and recalibrate the flagship Pioneer DJ CDJ-2000NXS2 Multi Player, used in professional clubs, festivals, and studios worldwide.

The document includes detailed circuit analysis, laser safety procedures, service mode diagnostics, firmware recovery, and complete exploded views with parts lists, making it indispensable for professional electronic repair and DJ equipment servicing.

🎧 Applicable Models & Power Variants

• CDJ-2000NXS2 (SYXJ) – AC 110–240V

• CDJ-2000NXS2 (UXJCB) – AC 110–240V

• CDJ-2000NXS2 (FLXJ) – AC 110–240V

• CDJ-2000NXS2 (AXJ) – AC 220V

📘 Manual Contents & Bookmarks (Fully Categorized)

1️⃣ Safety Information

• Class-1 laser safety warnings (CD/DVD pickup)

• Laser interlock mechanisms

• Electrical shock precautions (SW power supply)

• Lead-free soldering requirements

• California Proposition 65 notice

2️⃣ Service Precautions

• Notes on soldering & replacing BGA/QFN components

• Non-serviceable ICs & assemblies

• MAIN Assy, SRVB Assy, LCDB Assy replacement rules

• Authentication chip handling precautions

3️⃣ Specifications & Basic Service Items

• Power requirements & consumption

• Audio performance specifications (S/N ratio, THD)

• USB, LAN (PRO DJ LINK), SD card specs

• Jigs, test discs & cleaning materials list

• Firmware & serial number writing software

4️⃣ Block Diagrams

• Overall wiring diagram

• Signal block diagram

• Power supply block diagram

• CPU, DSP, FPGA, DAC, LAN, USB architecture

5️⃣ Diagnosis & Troubleshooting

• Power-on sequence flow

• Media detection & disc loading sequence

• Pickup failure judgement procedures

• Operational waveforms

• PC connection confirmation

• Error detection logic

6️⃣ Service Mode

• Entering service mode

• Drive self-diagnostics

• Error history & life checks

• Laser diode (LD) life time management

• Internal device information display

7️⃣ Disassembly Procedures

• Exterior & control panel removal

• Jog dial assembly disassembly

• Display & slot-in mechanism removal

• Power supply & PCB separation steps

8️⃣ Adjustments & Settings

• Firmware update & recovery

• Serial number writing procedure

• Jog dial rotation load adjustment

• Tempo zero-point calibration

• User-configurable settings backup & restore

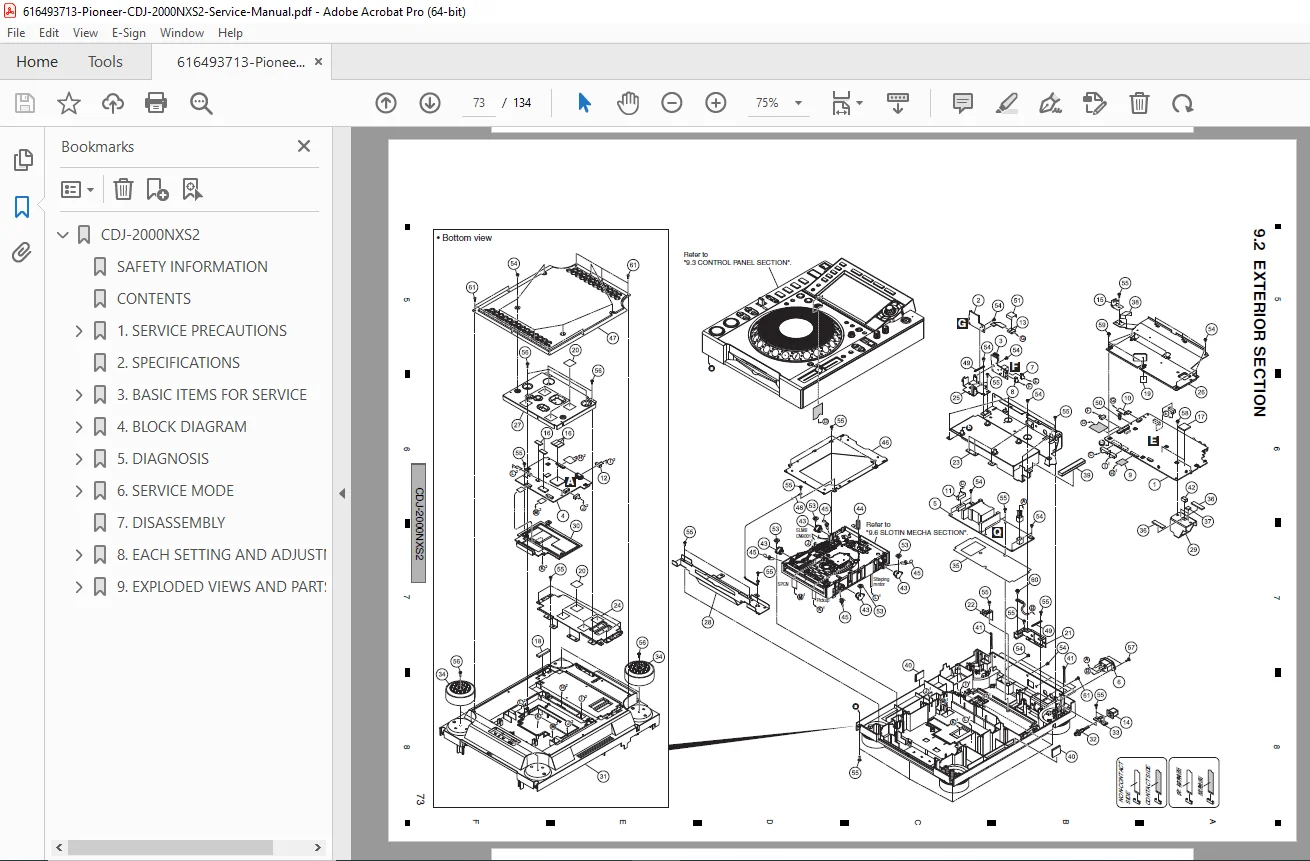

9️⃣ Exploded Views & Parts List

• Packing section

• Exterior section

• Control panel section

• Jog dial section

• Display section

• Slot-in mechanism section

• Complete PCB assembly references
