Pioneer DEH-5XU/UC DEH-15XU/UC DEH-1500XU/UC Service Manual – PDF DOWNLOAD

Description

Manual Overview

This is the service manual for the Pioneer DEH-5XU/UC, DEH-15XU/UC, and DEH-1500XU/UC car audio receivers. This technical document is intended for use by qualified service technicians and provides all the necessary information for performing detailed repairs, diagnostics, and maintenance on these units.

What’s Inside the Service Manual?

A service manual offers a level of detail far beyond a standard user guide. It is a critical tool for anyone performing electronic repairs, providing the manufacturer’s specifications and procedures. This manual includes:

• Complete Schematic Diagrams: Essential for tracing circuits and understanding the electronic functions.
• Printed Circuit Board (PCB) Layouts: Visual aids for locating components on the boards.
• Detailed Parts Lists: Identification of all internal components for accurate replacement.
• Troubleshooting Procedures: Logical steps to diagnose and resolve common and complex issues.
• Disassembly and Assembly Guides: Proper instructions for taking the unit apart and putting it back together without causing damage.

Applicable Models

This manual covers the following Pioneer car audio receiver models:

• DEH-5XU/UC
• DEH-15XU/UC
• DEH-1500XU/UC

Get instant access to this vital technical information with our PDF download. You can have the complete service guide available on your computer or tablet, ready to assist you in any repair or diagnostic task.

Original Product Details

Pioneer DEH-5XU/UC DEH-15XU/UC DEH-1500XU/UC Service Manual – PDF DOWNLOAD

FILE DETAILS:

Pioneer DEH-5XU/UC DEH-15XU/UC DEH-1500XU/UC Service Manual – PDF DOWNLOAD

Language : English
Pages : 68
Downloadable : Yes
File Type : PDF

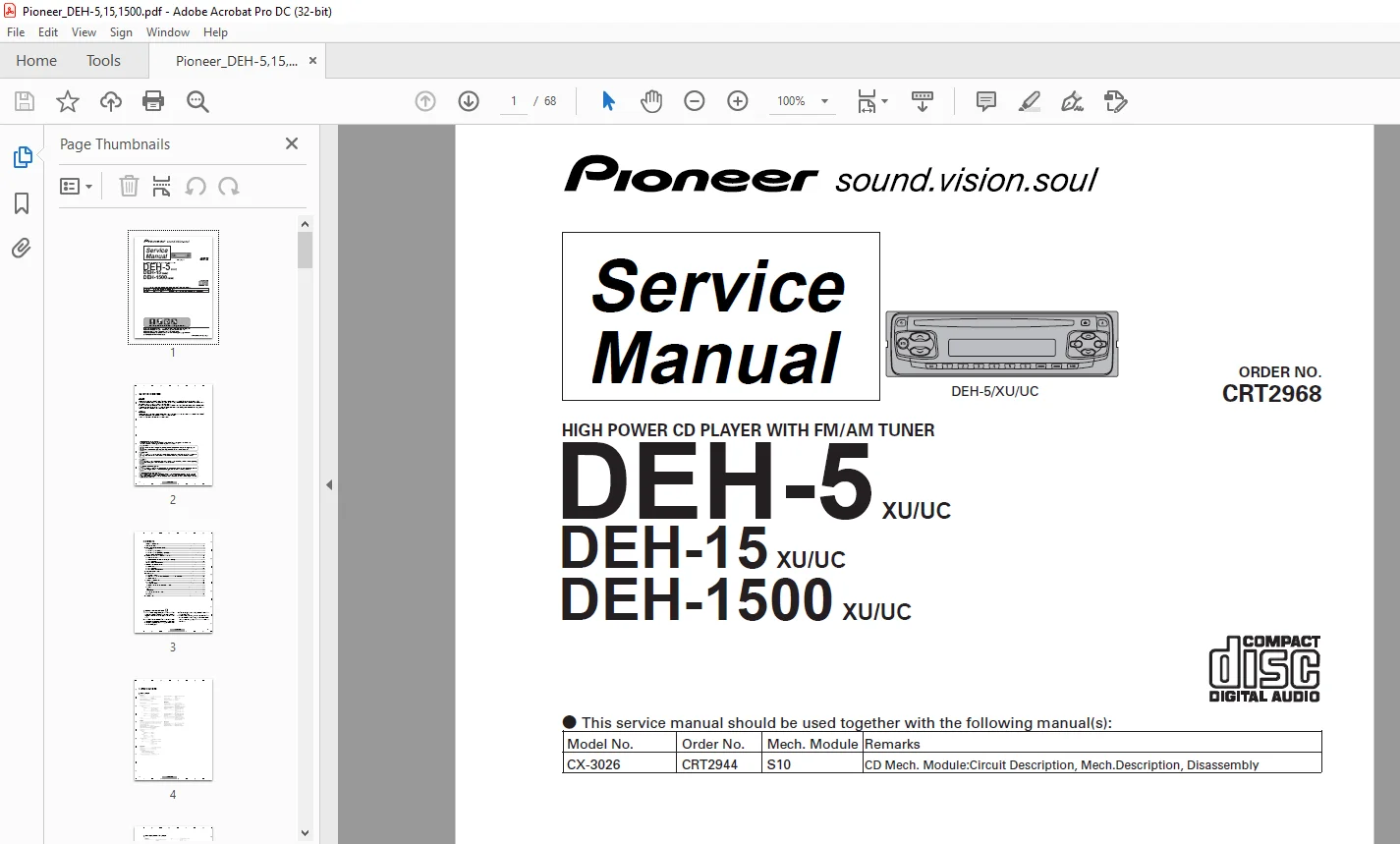

IMAGES PREVIEW OF THE MANUAL:
