Pioneer DJM-700 Service Manual – DJ Mixer Repair & Schematics Guide PDF
Original price was: $95.00.$18.95Current price is: $18.95.
Keep your performance flawless with the official Pioneer DJM-700 Service Manual. This essential Pioneer DJ mixer repair guide covers both DJM-700-K and DJM-700-S models. It features high-resolution DJM-700 schematic diagrams, step-by-step DJ mixer troubleshooting, and complete Pioneer DJ parts lists. Perfect for professional technicians and pro-audio DIYers, this DJM-700 shop manual ensures your gear stays in peak condition.
Description
Pioneer DJM-700 Service Manual DJ Mixer Repair & Schematics Guide PDF DOWNLOAD
Description
Restore your mixer to factory standards with the Pioneer DJM-700 Service Manual. This professional-grade technical guide is the definitive resource for maintaining and repairing the iconic DJM-700-K and DJM-700-S models. Whether you are dealing with fader wear, signal path issues, or firmware glitches, this Pioneer DJ mixer repair guide provides the detailed instructions necessary for a successful fix.
Inside, you will find comprehensive DJM-700 schematic diagrams and DJ mixer troubleshooting charts that simplify complex electrical repairs. The manual also includes a full Pioneer DJ parts list, complete with exploded views for easy component identification. For advanced users, it covers DJM-700 shop manual secrets like entering Test Mode and performing firmware updates to keep your hardware running the latest software.
Manual Table of Contents & Navigation:
The manual is logically organized to help you find the exact information you need quickly:
1. Service Precautions – Notes on lead-free soldering and safe handling.
2. Specifications – Electrical specs, accessories, and panel facilities.
3. Basic Service Items – PCB locations, jigs list, and post-service checkpoints.
4. Block Diagrams – Overall wiring, main block, and signal flow.
5. Diagnosis – Test Mode, firmware updating, and power-on sequences.
6. Service Mode – Advanced internal settings.
7. Disassembly – Step-by-step breakdown of the exterior and control panels.
8. Settings & Adjustments – Fine-tuning for original performance.
9. Exploded Views & Parts List – Packing, exterior, and control panel sections.
10. Schematic Diagrams – Full schematics for Input, Main, Output, and Power assemblies.

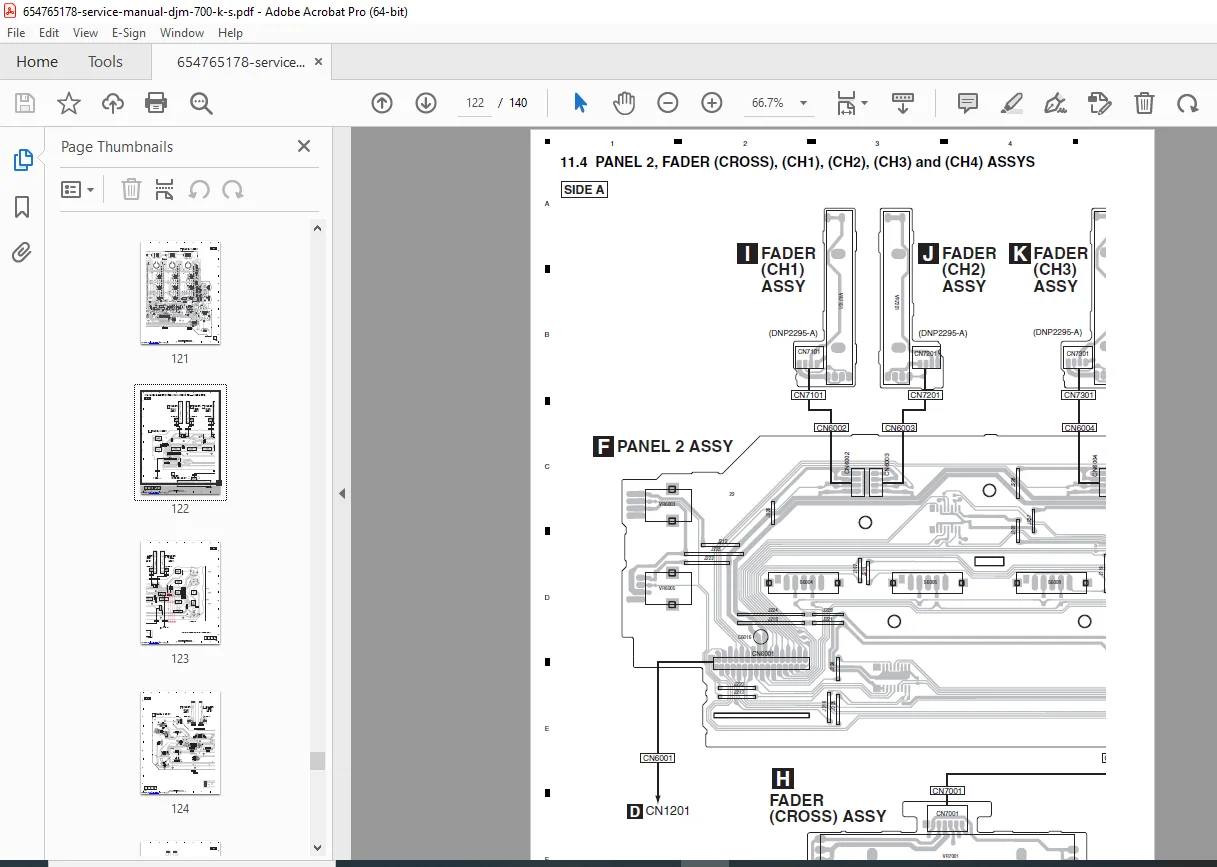

11. PCB Connection Diagrams – Detailed board layouts and connection paths.
12. PCB Parts List – Specific part numbers for every board component.
Technical File Details:
Manual Name: Pioneer DJM-700-K / DJM-700-S Service Manual
Models Covered: DJM-700-K (Black) and DJM-700-S (Silver)
Year / Issue Date: September 2007
Manual PDF Quality: Original Factory PDF – High-Resolution & Searchable
Number of Pages: 140 Pages
Don’t let a hardware failure stop the music! Download the Pioneer DJM-700 Service Manual now to get instant access to the professional schematics and repair steps needed to fix your mixer today.
