PRONAR T679-2 AGRICULTURAL MONOCOQUE TRAILER DUMPER Parts Manual – PDF DOWNLOAD

FILE DETAILS:

PRONAR T679-2 AGRICULTURAL MONOCOQUE TRAILER DUMPER Parts Manual – PDF DOWNLOAD

Language : English
Pages : 82
Downloadable : Yes
File Type : PDF

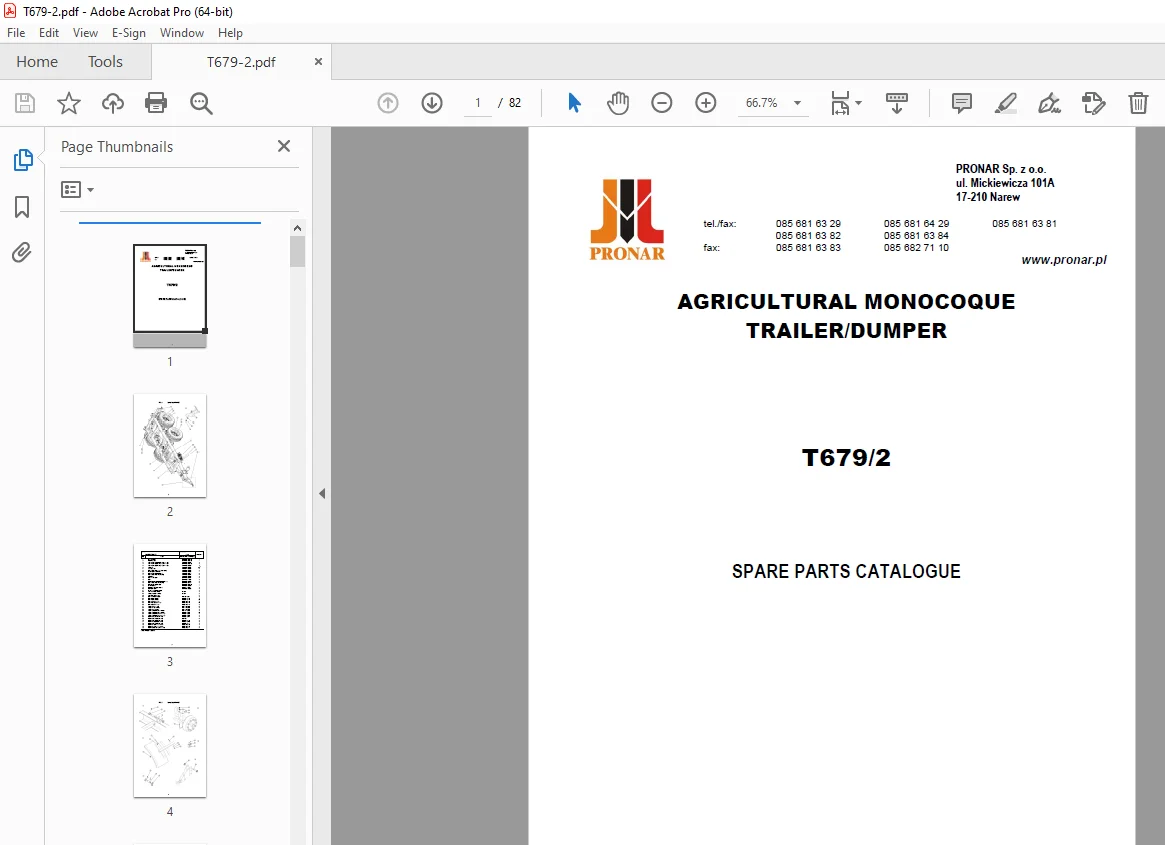

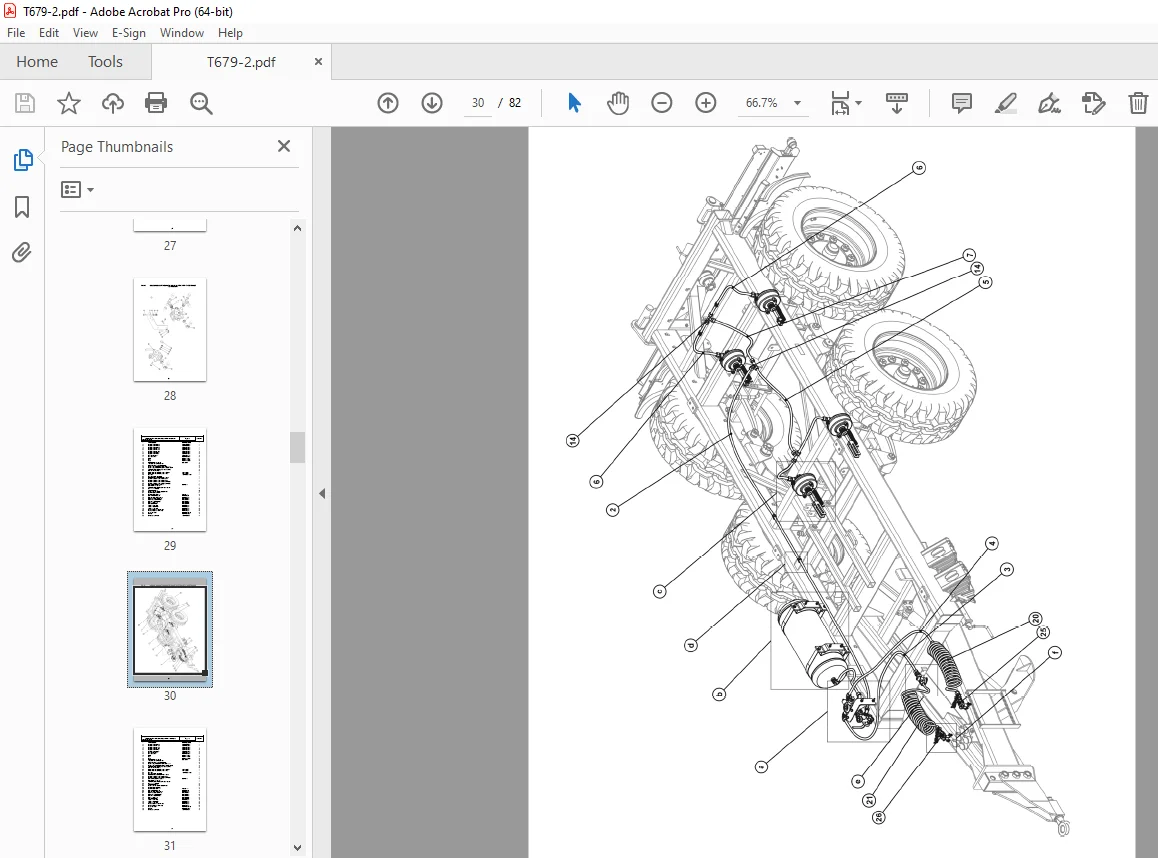

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

PRONAR T679-2 AGRICULTURAL MONOCOQUE TRAILER DUMPER Parts Manual – PDF DOWNLOAD

1 LOWER FRAME 96RPN-03.00.00.00 1
2 LIGHTING BAR 67RPN-00.00.03.00 1
3 WHEEL CPL. 385/65R22.5 18PR ET=-30 64RPN-00.07.000 4
4 WHEEL CPL. 500/60-22.5 16PR ET=-30 ( 96RPN-00.03.00.00 4
5 WHEEL CPL. 550/45-22.5 16PR ET=-50 ( 64RPN-00.10.000 4
6 WASHER 64RPN-01.00.022 0-6 ((
7 AXLE 90×1800 64RPN-21.00.000 2
8 MUDGUARD ARM (FOR POSITION ) 64RPN-00.04.000 2
9 LOAD CRATE SUPPORT 64RPN-00.00.300 1
10 SHOCK-ABSORBING PLATE 64RPN-00.00.004 6
11 MUDGUARD (FOR POSITION) 64RPN-00.00.007 2
12 U-SCREW 64RPN-00.00.008 8
13 CRATE TILT BOLT 58RPN-00.05.000 2
14 BOLT 58RPN-00.01.003 2
15 UPPER SUSPENSION SPRING PLATE 58RPN-00.00.003 4
16 MUDGUARD (FOR POSITION) 58RPN-00.00.016 2
17 ROTARY DRAUGHT BAR 96RPN-00.05.00.00 1
18 REAR HOOK ((( 45RPN-23.00.000 1
19 LIGHTING BAR DISTANCER 29RPN-10.00.001 4
20 SUPPORT BOLT 29RPN-00.00.009 2
21 REFLEX TRIANGLE DOB31 2
22 WHEEL WEDGE AL-KO 244374 2
23 WEDGE POCKET AL-KO 244377 2
24 ANGULAR NIPPLE M8 2
25 COTTER PIN S-ZN 4×32 PN-76/M-82001 8
26 NUT M5-5-B-FE/ZN5 PN-86/M-82144 4
27 NUT M8-5-B-FE/ZN5 PN-86/M-82144 20
28 NUT M10-8-B FEZ/N5 PN-86/M-82144 4
29 NUT M20x1.5-5-B FE/ZN5 PN-86/M-82144 32
30 NUT M30-5-B FE/ZN5 PN-85/M-82175 3
31 WASHER 8.4 FE/ZN5 PN-78/M-82005 12
32 WASHER 10.5 FE/ZN5 PN-78/M-82005 8
33 WASHER 21 FE/ZN5 PN-78/M-82005 8
34 ELASTIC WASHER Z5.1 FE/ZN5 PN-77/M-82008 4
35 ELASTIC WASHER Z8.2 FE/ZN5 PN-90/M-82008 20
36 ELASTIC WASHER Z10.2 FE/ZN5 PN-90/M-82008 4
37 ELASTIC WASHER Z12.2 FE/ZN5 PN-90/M-82008 2
38 SCREW M5x20-4.8-B FE/ZN5 PN-85/M-82215 4
39 SCREW M8x16-8.8-B FE/ZN5 DIN 7991 12
40 SCREW M8x25-8.8-B FE/ZN5 PN-85/M-82105 8
41 SCREW Z M8x25-5.8-FEZ/N5 PN-87/M-82406 8
42 SCREW M8x75-8.8-B FE/ZN5 PN-85/M-82101 4
43 SCREW M10x40-8.8-B FE/ZN PN-85/M-82105 4
44 SCREW M12x30-8.8-B FE/ZN PN-85/M-82105 2
45 SCREW M30x180-10.9-B FE/ZN5 PN-85/M-82101 3

S.V 11/24
