GENERAL
Before operation, check engine crankcase oil level and fill oil bath air cleaner to level mark. Fill battery with . Grease an· fittings. Refer to Lubrication Plate on machine or chart on Page 4.
OPERATION
- The Vibratory Roller is attached to the towing vehicle by means of the towing eye, which has a pin type vertical adjustment to hitch height of towing vehicle. Fig. 1. The swivel eye should be adjusted so the roller frame is parallel with the ·material or road surface.
- For convenience of the towing vehicle operator, the clutch control (Fig. 1) may be attached to the towing vehicle at a handy location for the operator. Unclamp the clutch control unit from the roller and attach to the towing vehicle convenient for the operator. Excess control cable should remain coiled on the frame.
- The clutch control cable, thru a means of end linkage also controls the engine throttle.
- Clutch control opertion -After starting engine.-(Figs. 2, 3, 4). The clutch is disengaged when the control lever is in the forward (front) position. Squeeze the shorter of the two levers against the long lever and move both levers rearward against stop. Release levers. The clutch will engage and throttle speed· will automatically pick Up to maximum governed speed. Engage clutch only when machine is moving forward. Re turn levers to the disengaged position, then shut off engine at control panel.
Sequence of starting: (Fig. 2)
- Turn on ignition Pull out hand throttle. Press in starter button and if necessary use choke.
- Let engine to warm Push in hand throttle.
- Engage clutch control while moving forward with towing (
- To stop – turn off ignition Clutch control unit may be returned to roller and cable coiled in place.
FILE DETAILS:
PULL VIBRATORY ROLLER OMS #447 – PDF DOWNLOAD
Size:2.68MB
Pages : 16
Format: PDF
Language: English
Brand: PULL
Format: PDF
Language: English
Brand: PULL
VIDEO PREVIEW OF THE MANUAL:

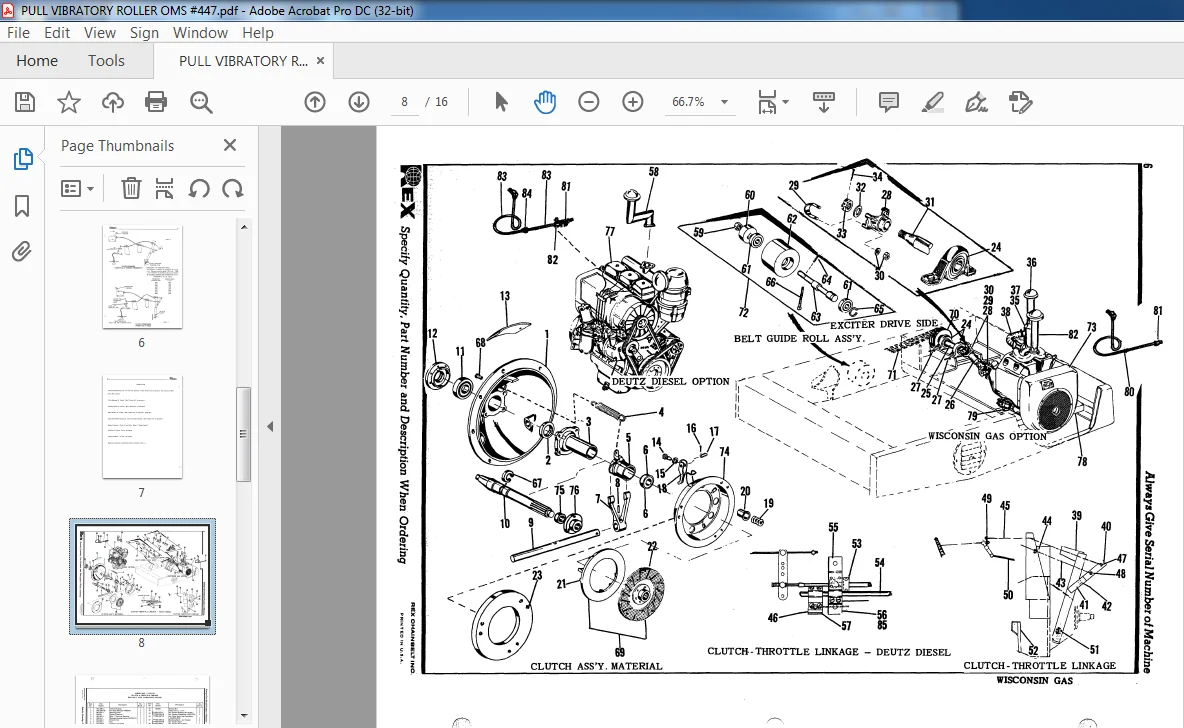

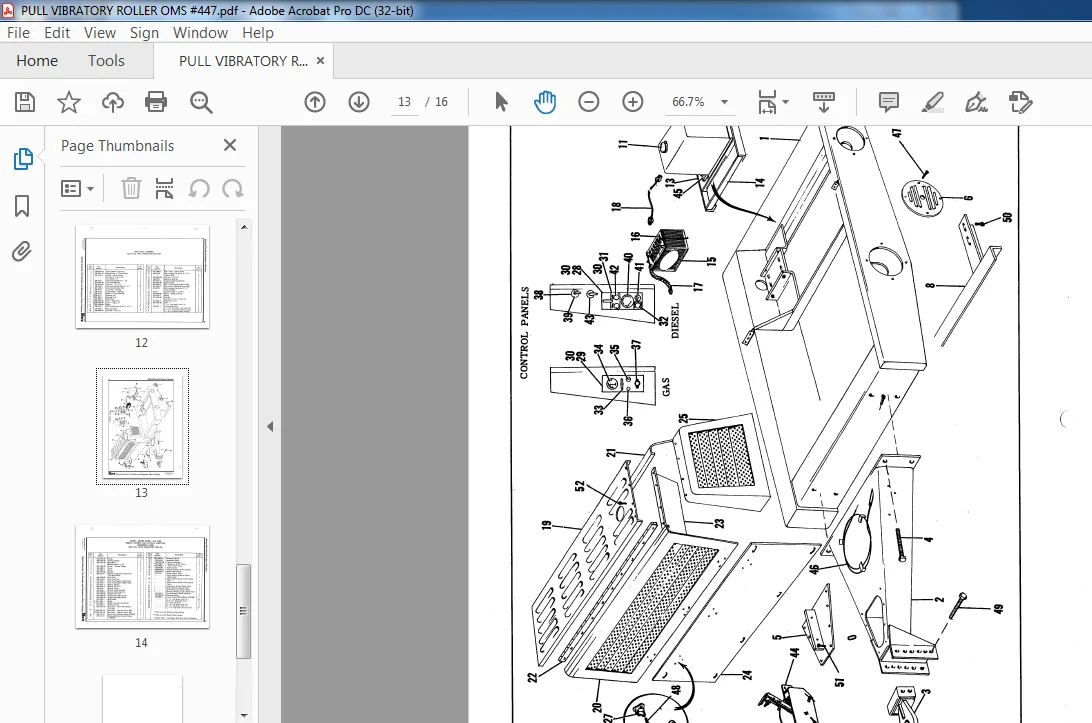

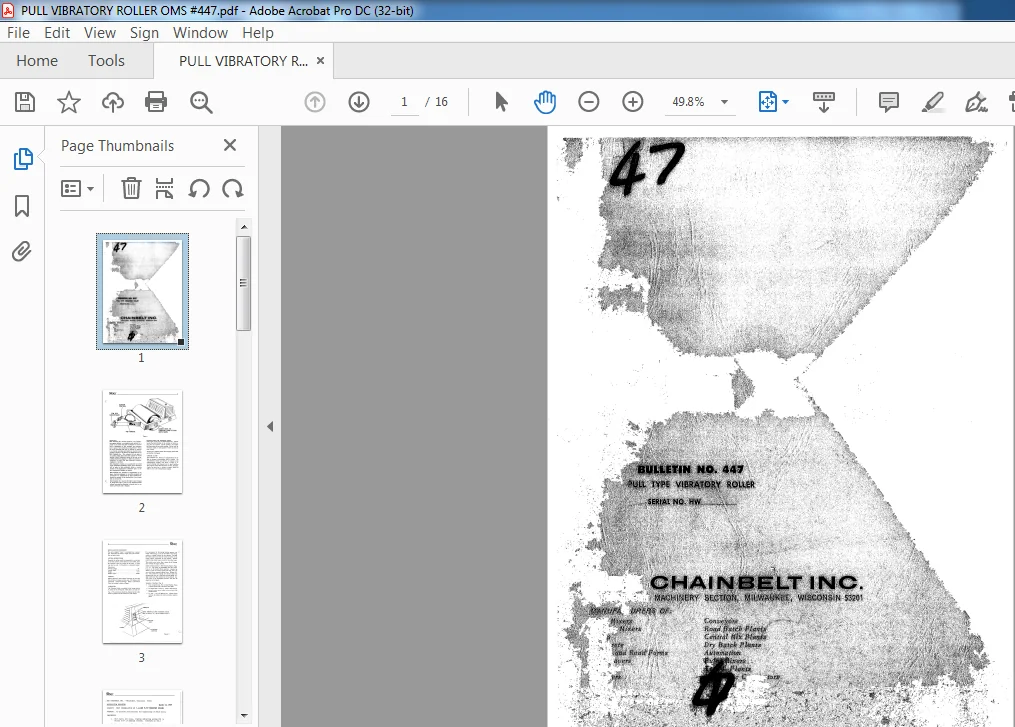

IMAGES PREVIEW OF THE MANUAL:
