RAUCH ALPHAMDS 1131 1132 Twin-disc fertilizer spreader PARTS MANUAL – PDF DOWNLOAD
$27.95
RAUCH ALPHAMDS 1131 1132 Twin-disc fertilizer spreader PARTS MANUAL – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
RAUCH ALPHAMDS 1131 1132 Twin-disc fertilizer spreader PARTS MANUAL – PDF DOWNLOAD
FILE DETAILS:
RAUCH ALPHAMDS 1131 1132 Twin-disc fertilizer spreader PARTS MANUAL – PDF DOWNLOAD
Language : German, French & English
Pages : 292
Downloadable : Yes
File Type : PDF

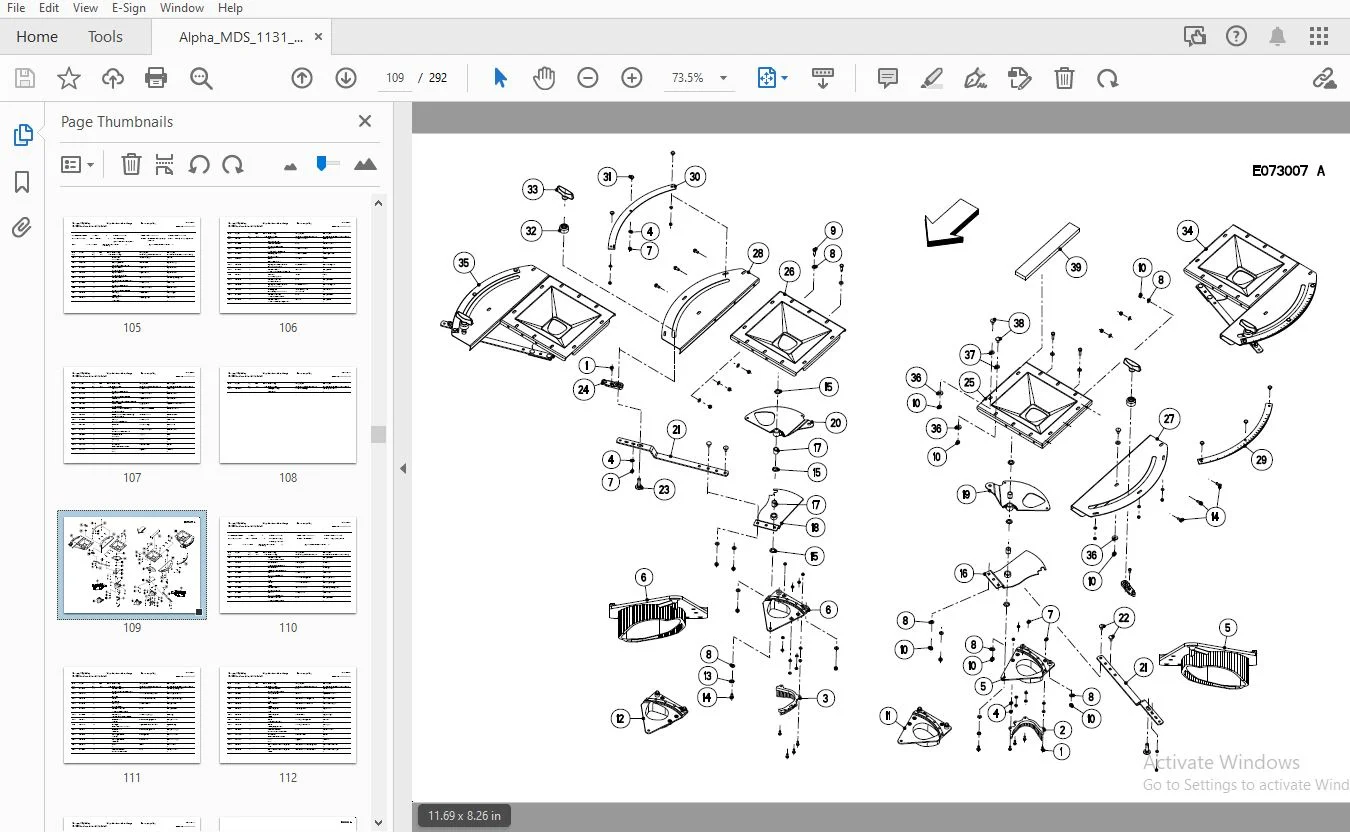

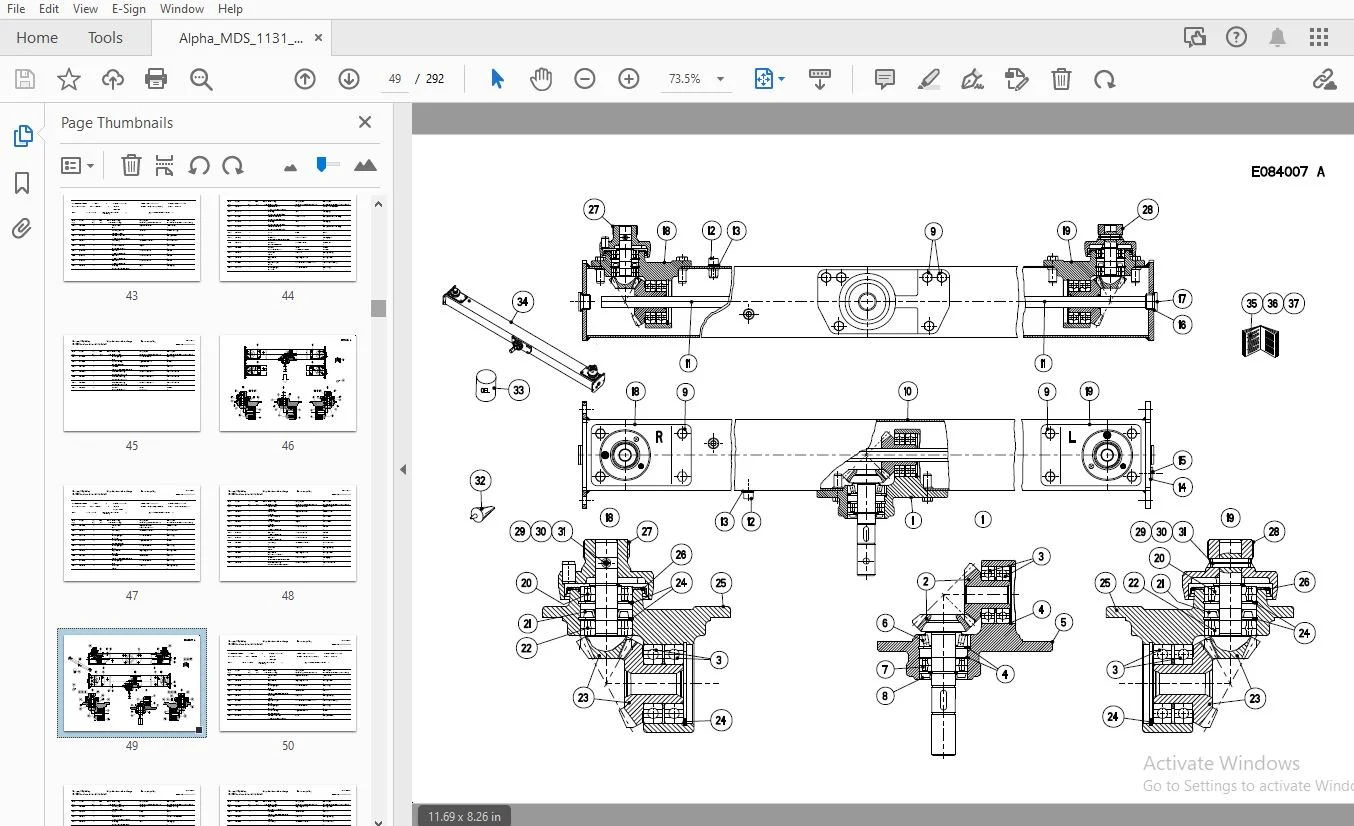

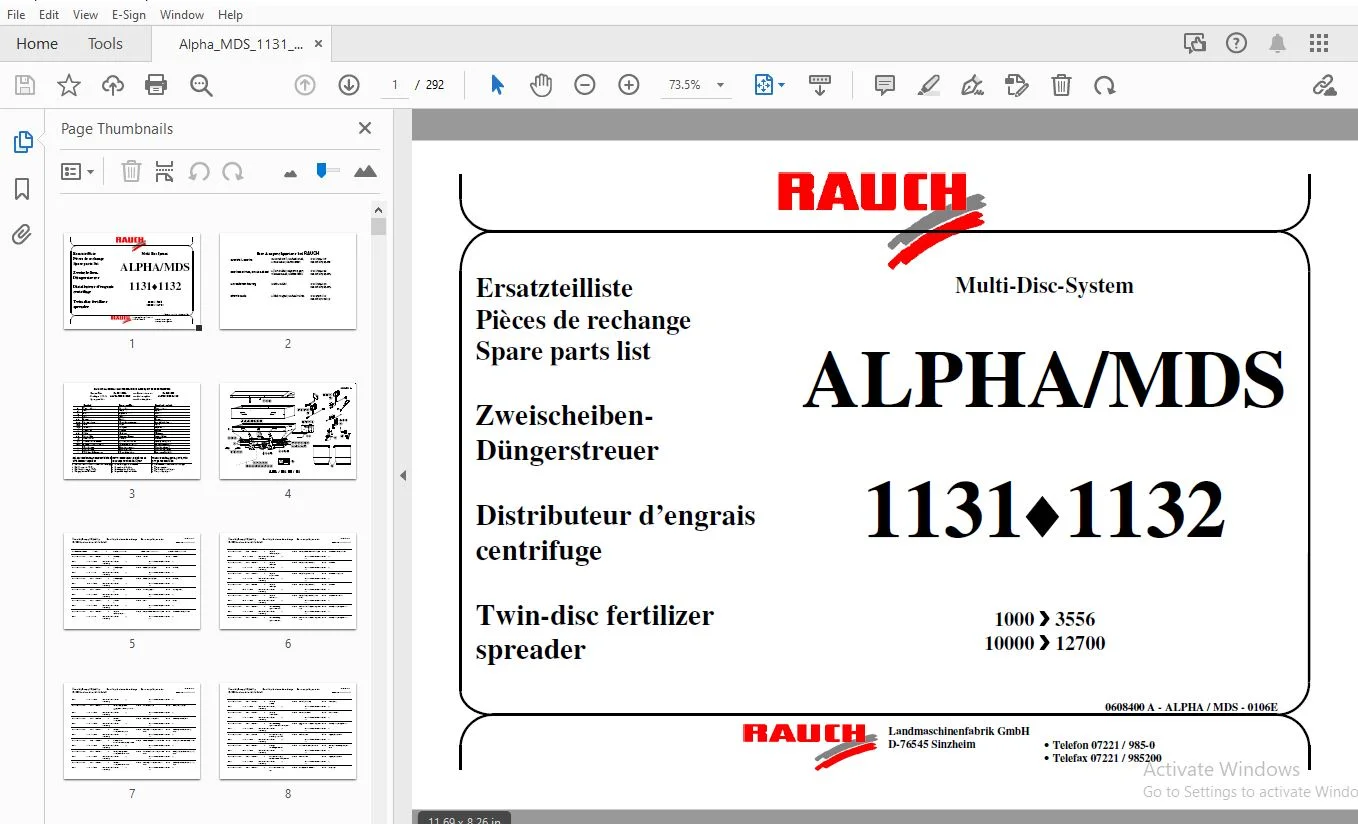

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
RAUCH ALPHAMDS 1131 1132 Twin-disc fertilizer spreader PARTS MANUAL – PDF DOWNLOAD
Main Assemblies and Subcomponents
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Additional Notes |
|---|---|---|---|---|---|---|
| 0001 | E084001 | A | Behaelter | Groupe Tremie | Group Hopper | Series 1000–12700 |
| 0002 | E083002 | A | Schutzbuegel | Groupe Support protecteur | Group Bracket | Series 1000–3166 |
| 0003 | E073038 | A | Schutzbuegel | Groupe Support protecteur | Group Bracket | Series 3167–12700 |
| 0004 | E072001 | A | Ruehrwerkswelle | Groupe Arbre Agitateur | Group Stirring Shaft | Series 1000–12700 |
| 0005 | E072002 | A | Bremse | Groupe Frein | Group Brake | Series 1000–12700 |
| 0006 | E084002 | A | Getriebe | Groupe Carter, commande excentrique | Group Gearbox, Eccentric Drive | Series 1000–3556 |
| 0007 | E084003 | A | Getriebe | Groupe Carter, commande excentrique | Group Gearbox, Eccentric Drive | Series 10000–12700 |
| 0008 | E084006 | A | Getriebe | Groupe Carter d’entrainement | Group Gearbox | Einzelteile – Series 1000–3556 |
Hydraulic and Electrical Components
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Additional Notes |
|---|---|---|---|---|---|---|
| 0012 | E083028 | A | Fernbedienung | Groupe Commande a distance hydraulique | Group Remote Control Hydraulical EW | Series 1000–12700 |
| 0013 | E083029 | A | Fernbedienung | Groupe Commande a distance hydraulique | Group Remote Control Hydraulical DW | Series 1000–12700 |
| 0014 | E083006 | A | Elektro-Stellzylinder | Groupe Verin electrique | Group Electrical Actuator (Quantron L & M) | CAN Compatible |
| 0015 | E083007 | A | Rechner | Groupe Computer Quantron L | Group Computer (Quantron L) | Series 1000–12700 |
| 0016 | E072011 | A | Rechner | Groupe Computer Quantron M avec CAN | Group Computer (Quantron M with CAN) | Series 1000–12700 |
| 0018 | E083030 | A | Elektro-Stellzylinder | Groupe Verin electrique | Group Electrical Actuator (Quantron M) | Without CAN |
Spreading Discs
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Additional Notes |
|---|---|---|---|---|---|---|
| 0027 | E083033 | A | Wurfscheibe | Groupe Disque de distribution | Group Spreading Disc (M 3 – White) | Series 1000–3556 |
| 0028 | E083034 | A | Wurfscheibe | Groupe Disque de distribution | Group Spreading Disc (M 4 – Black) | Series 1000–3556 |
| 0029 | E083035 | A | Wurfscheibe | Groupe Disque de distribution | Group Spreading Disc (M 5 – Orange) | Series 1000–3556 |
| 0030 | E083036 | A | Wurfscheibe | Groupe Disque de distribution | Group Spreading Disc (M 4S – Dark Brown) | Series 1000–12700 |
| 0031 | E083037 | A | Wurfscheibe | Groupe Disque de distribution | Group Spreading Disc (M 3-VxR – White) | Series 1000–12700 |
Lighting and Covers
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Additional Notes |
|---|---|---|---|---|---|---|
| 0048 | E083008 | A | Beleuchtung mit Warntafeln | Groupe Installation d’eclairage | Group Lighting Plant (BLW 11) | Series 1000–12700 |
| 0049 | E073051 | A | Beleuchtung ohne Warntafeln | Groupe Installation d’eclairage | Group Lighting Plant (BLO 3) | Series 1000–12700 |
| 0038 | E073044 | A | Behaelterabdeckung | Groupe Bache de recouvrement | Group Hopper Cover (AP 10, AP 11, APE10) | Series 1000–12700 |
S.S 11/24
