RAUCH AXIS-H 50.1 EMC+W Kat. III Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD
$26.95
RAUCH AXIS-H 50.1 EMC+W Kat. III Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
RAUCH AXIS-H 50.1 EMC+W Kat. III Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD
FILE DETAILS:
RAUCH AXIS-H 50.1 EMC+W Kat. III Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD
Language : German, French & English
Pages : 174
Downloadable : Yes
File Type : PDF

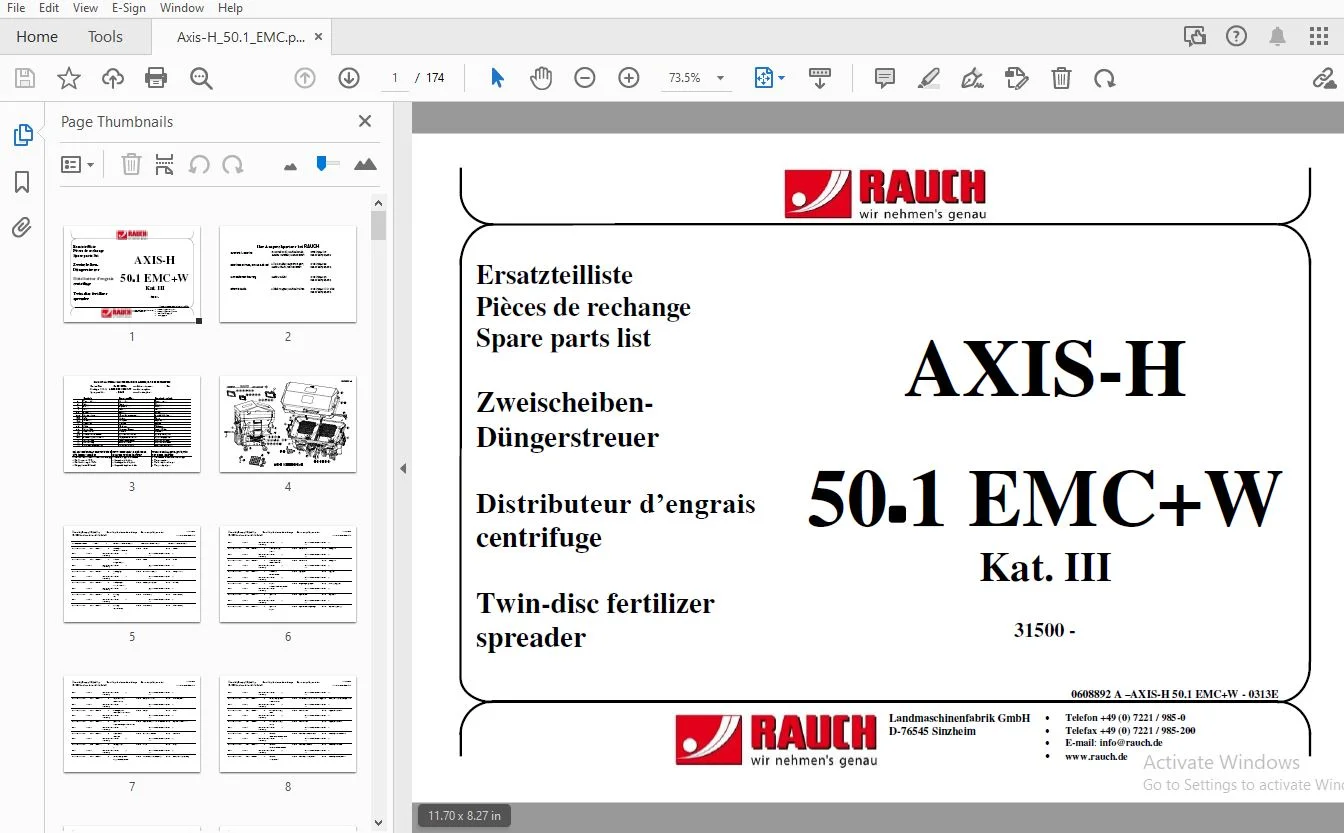

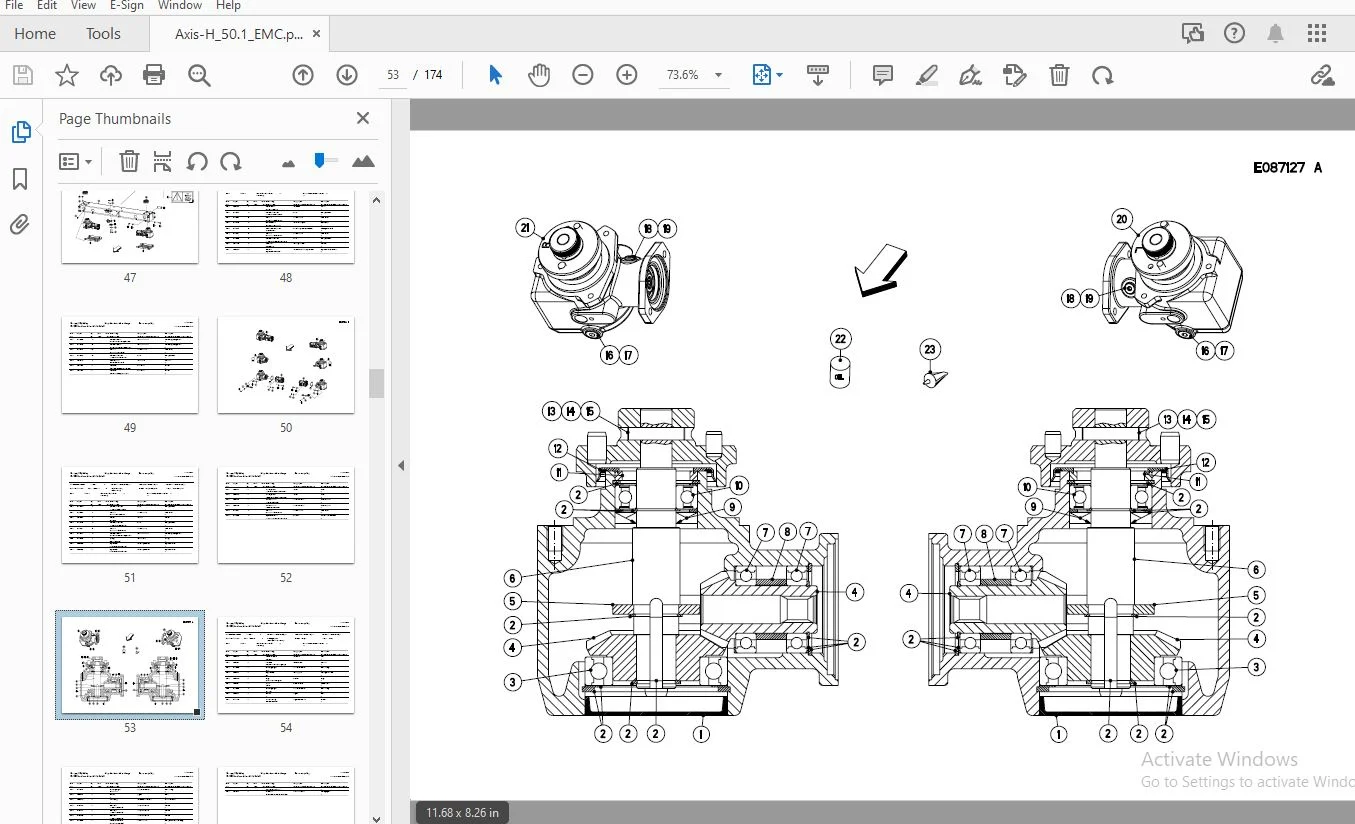

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
RAUCH AXIS-H 50.1 EMC+W Kat. III Twin-disc fertilizer spreader Parts Manual – PDF DOWNLOAD
Structural and Safety Components
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Notes |
|---|---|---|---|---|---|---|
| 0001 | E087120 | C | Behaelter | Groupe Tremie | Group Hopper | AXIS-H 50.1 EMC+W |
| 0002 | E087172 | A | Rahmen | Groupe Cadre | Group Frame | For weighing Category III |
| 0003 | E087082 | B | Schutzgitter | Groupe Grille de protection | Group Safety Screen | |
| 0004 | E087083 | B | Schutzbuegel SBO 50 + SBT 50 | Groupe Support protecteur | Group Bracket |
Hydraulic and Actuator Systems
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Notes |
|---|---|---|---|---|---|---|
| 0011 | E087124 | B | Hydraulik | Groupe Hydraulique | Group Hydraulic | |
| 0013 | E087126 | B | Getriebeeinheit links + rechts | Groupe Boitier multiplier | Group Gear Multiplier | |
| 0018 | E087131 | B | Elektro-Stellzylinder Aufgabepunkt | Groupe Verin electrique, dispositif | Group Electrical Actuator, Assy | EMC+W |
Electronics and Sensors
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Notes |
|---|---|---|---|---|---|---|
| 0022 | E087132 | A | Rechner | Groupe Computer ISOBUS EMC | Group Computer ISOBUS EMC | |
| 0026 | E087176 | A | Kamera Infrarot | Groupe Camera | Group Camera | |
| 0027 | E087175 | A | Sensor | Groupe Capteur | Group GPS Sensor – ISO 11786 |
Spreading Discs
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Notes |
|---|---|---|---|---|---|---|
| 0032 | E087019 | A | Wurfscheibe S4-18-28m – rot | Groupe Disque de distribution | Group Spreading Disc | Red, 18-28m |
| 0037 | E087022 | A | Wurfscheibe S8-VxR-30-42m – orange | Groupe Disque de distribution | Group Spreading Disc | Orange, 30-42m |
Accessories and Labels
| Grp.-Nr./Art.-Nr./Rev. | Part No. | Version | German Description | French Description | English Description | Notes |
|---|---|---|---|---|---|---|
| 0045 | E087103 | B | Behaelterabdeckung AP-L 50 | Groupe Bache de recouvrement | Group Hopper Cover | |
| 0050 | E087133 | A | Aufkleber AXIS-H 50.1 EMC+W | Groupe Autocollant | Group Sticker |
S.S 11/24
