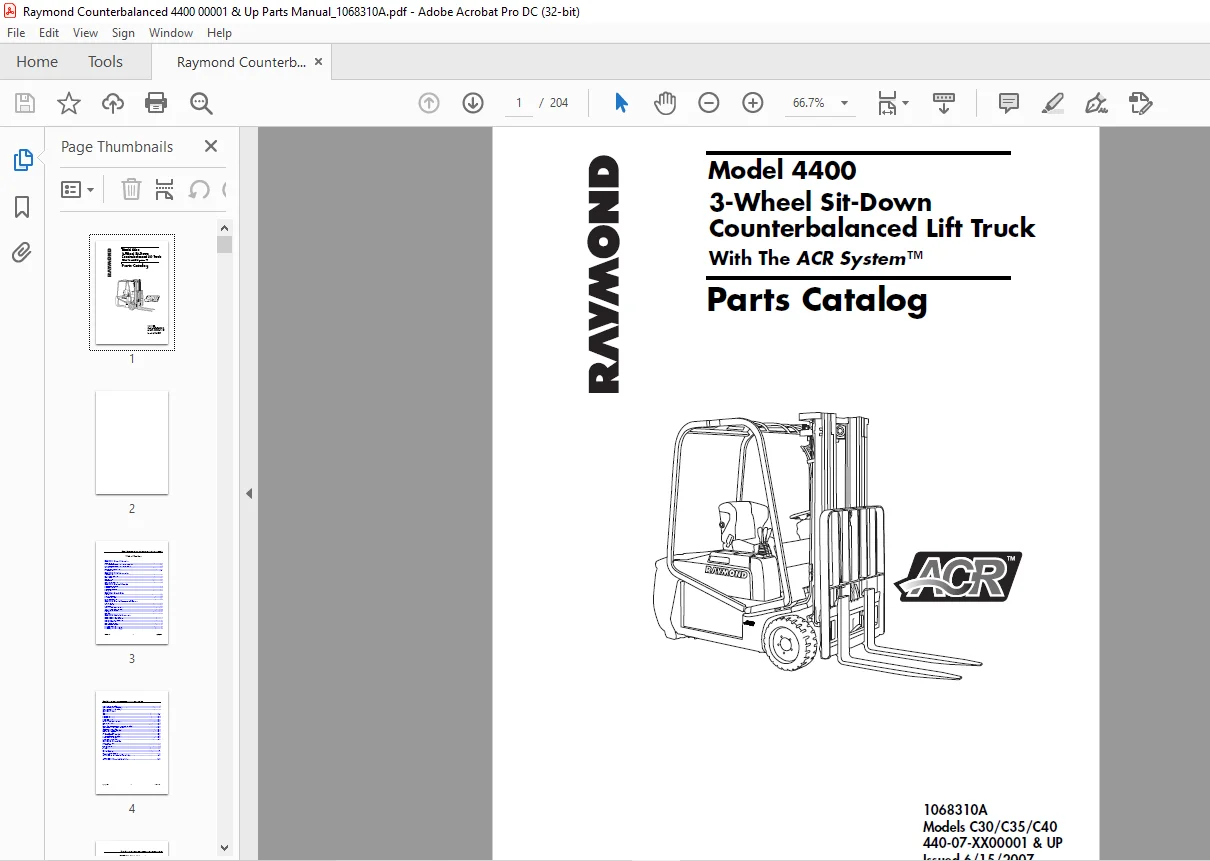

Raymond 4400 3-Wheel Sit-Down Counterbalanced Lift Truck With The ACR System Parts Catalog Manual 1068310A – PDF DOWNLOAD

Description

Raymond 4400 3-Wheel Sit-Down Counterbalanced Lift Truck With The ACR System Parts Catalog Manual 1068310A – PDF DOWNLOAD

FILE DETAILS:

Raymond 4400 3-Wheel Sit-Down Counterbalanced Lift Truck With The ACR System Parts Catalog Manual 1068310A – PDF DOWNLOAD

Language : English
Pages : 204
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Raymond 4400 3-Wheel Sit-Down Counterbalanced Lift Truck With The ACR System Parts Catalog Manual 1068310A – PDF DOWNLOAD

1068310A
Models C30/C35/C40
440-07-XX00001 & UP

To Our Customers :
The Part Numbers in this Parts Catalog were correct at the time your truck was manufactured. It is our policy to
constantly improve our products, therefore, part numbers may continue to change. When ordering parts, verify
part numbers through your Dealer’s Parts Catalog, which is kept up to date. Also note that Illustrations of assemblies
and components may not necessarily conform to the exact installation as they appear on your truck.
Tips for Ordering Parts:
In addition to Part Number and Description, have available:
• The model number and serial number of the truck
• Pertinent specifications such as mast height, battery voltage, drive motor type, etc.
• Pertinent name plate data
• Applicable installation or assembly numbers
• Accurate Part Number
Using This Catalog:
This Catalog contains navigational aids to help you locate specific parts information.
• Use Section 1 to decide where to start your search for information. The overall locator
views define the technical configuration of the Catalog and tie the figures in the Catalog
to the engineering database.
• Use the Table of Contents to locate assemblies and subassemblies by name.
• Use the Alphabetical Index (by Part Name) and the Numerical Index (by Part Number) to
locate individual parts.
• Determine configuration differences with the “Used On” codes contained within the Parts
List. The “Used On” code attaches a part number to a wide range of design variables
such as operating voltage, battery size, steering type, mast height and extension speed,
fork carriages, color and size of tires, guide wheel specs, etc.

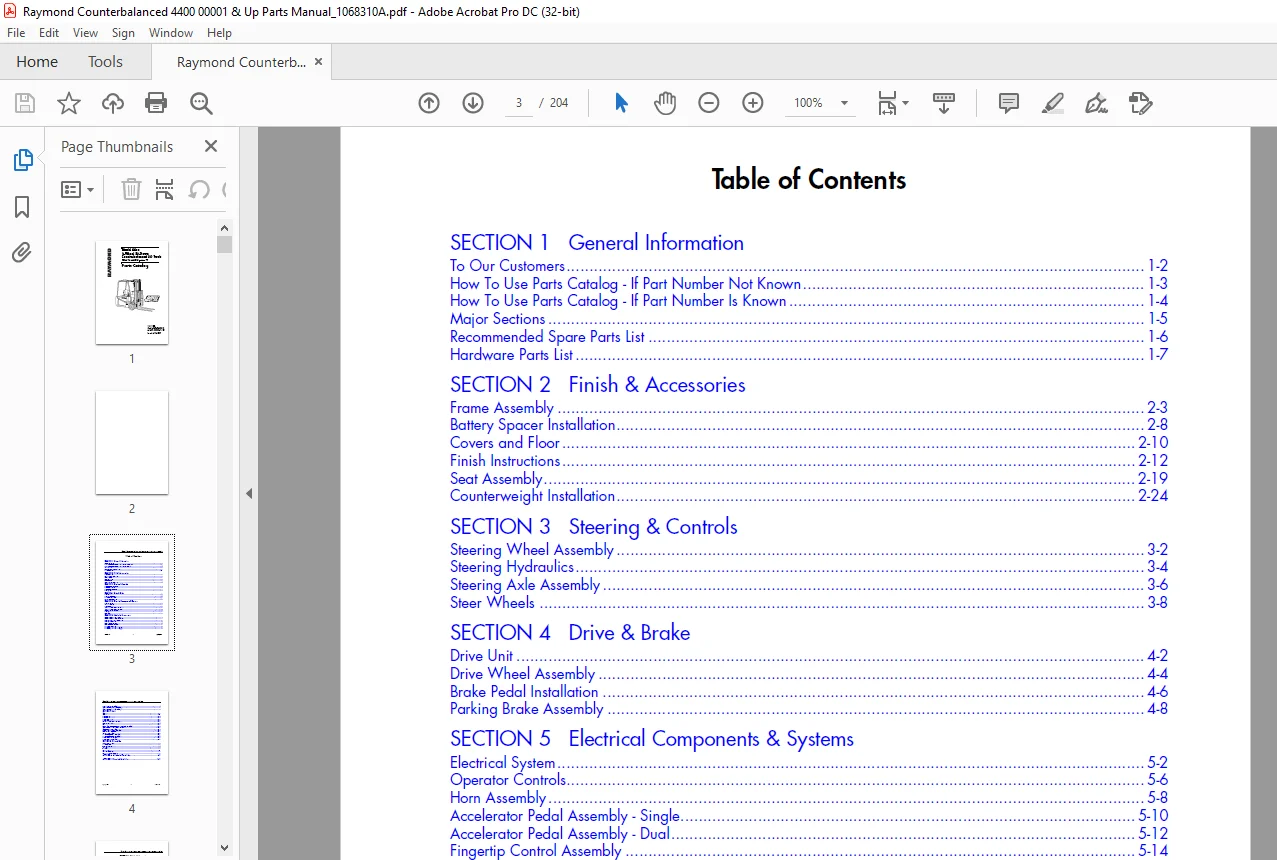

TABLE OF CONTENTS:

Raymond 4400 3-Wheel Sit-Down Counterbalanced Lift Truck With The ACR System Parts Catalog Manual 1068310A – PDF DOWNLOAD

SECTION 1 General Information
To Our Customers 1-2
How To Use Parts Catalog – If Part Number Not Known 1-3
How To Use Parts Catalog – If Part Number Is Known 1-4
Major Sections 1-5
Recommended Spare Parts List 1-6
Hardware Parts List 1-7
SECTION 2 Finish & Accessories
Frame Assembly 2-3
Battery Spacer Installation 2-8
Covers and Floor 2-10
Finish Instructions 2-12
Seat Assembly 2-19
Counterweight Installation 2-24
SECTION 3 Steering & Controls
Steering Wheel Assembly 3-2
Steering Hydraulics 3-4
Steering Axle Assembly 3-6
Steer Wheels 3-8
SECTION 4 Drive & Brake
Drive Unit 4-2
Drive Wheel Assembly 4-4
Brake Pedal Installation 4-6
Parking Brake Assembly 4-8
SECTION 5 Electrical Components & Systems
Electrical System 5-2
Operator Controls 5-6
Horn Assembly 5-8
Accelerator Pedal Assembly – Single 5-10
Accelerator Pedal Assembly – Dual 5-12
Fingertip Control Assembly 5-14
Drive Motor 5-16
Pump Motor 5-18
SECTION 6 Hydraulic Components
Hydraulic System – Spool Valve 6-2
Hydraulic System – Fingertip Controls 6-6
Spool Valve and Handle Installation 6-10
Spool Valve Assembly 6-12
Solenoid Valve Assembly 6-14
Pump and Motor Assembly 6-16
Tilt Cylinder Assembly 6-18
Lift Cylinder, Center and Side (TF) 6-20
Lift Cylinder, Center and Side (TT) 6-22
Model 4400 3-Wheel Sit Down Counterbalanced Lift Truck – Table of Contents
6/15/2007 ii 1068310A
Free Lift Cylinder (Quad Mast) 6-24
Main Lift Cylinder, Right (Quad Mast) 6-26
Main Lift Cylinder, Left (Quad Mast) 6-28
SECTION 7 Mast
Mast – TF 7-3
Mast – TT 7-7
Lift Cylinder Piping – TF 7-12
Lift Cylinder Piping – TT 7-14
Sideshift Piping – TF 7-16
Sideshift Piping – TT 7-18
Fork and Sideshift Carriage – TF & TT 7-21
Load Backrest – TF & TT 7-24
Forks 7-26
Decals, Mounting and Slack Chain Valve Kits – Quad Mast 7-28
Mast Chains and Free Lift Hoses – Quad Mast 7-30
Mast Assembly – Quad Mast 7-32
Lowering Control Valve – Quad Mast 7-35
Load Backrest – Quad Mast 7-36
Carriage – Quad Mast 7-38
Hose Reeving, Single – Quad Mast 7-41
Hose Reeving, Double – Quad Mast 7-45
Sideshift Assembly – Quad Mast 7-50
Sideshift Piping – Quad Mast 7-53
SECTION 8 Options/Kits
Overhead Guard Cover 8-2
Fire Extinguisher 8-3
Auxiliary Power Hookup 8-4
Mirror Kit 8-5
Alarm Kit 8-6
Working Lights 8-7
Quick Disconnect Kit 8-9
Bottler’s Tilt Sensor Installation 8-10
APPENDIX A Alphabetical Parts Index A-1
APPENDIX B Numerical Parts Index B-1
