Raymond 5200 High-Level Orderpicker Lift Truck Parts Manual 1043923 – PDF DOWNLOAD

Description

Raymond 5200 High-Level Orderpicker Lift Truck Parts Manual 1043923 – PDF DOWNLOAD

FILE DETAILS:

Raymond 5200 High-Level Orderpicker Lift Truck Parts Manual 1043923 – PDF DOWNLOAD

Language : English
Pages : 380
Downloadable : Yes
File Type : PDF

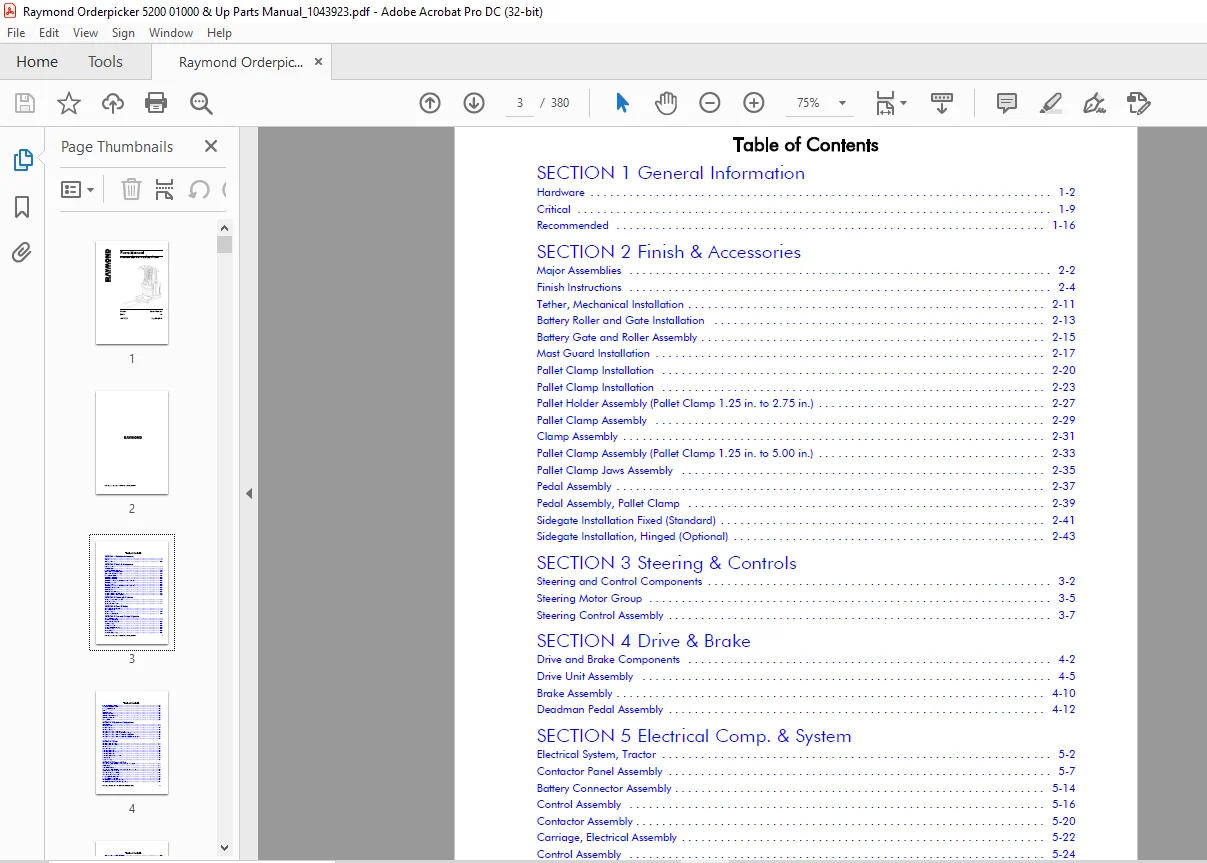

TABLE OF CONTENTS:

Raymond 5200 High-Level Orderpicker Lift Truck Parts Manual 1043923 – PDF DOWNLOAD

SECTION 1 General Information
Hardware 1-2
Critical 1-9
Recommended 1-16
SECTION 2 Finish & Accessories
Major Assemblies 2-2
Finish Instructions 2-4
Tether, Mechanical Installation 2-11
Battery Roller and Gate Installation 2-13
Battery Gate and Roller Assembly 2-15
Mast Guard Installation 2-17

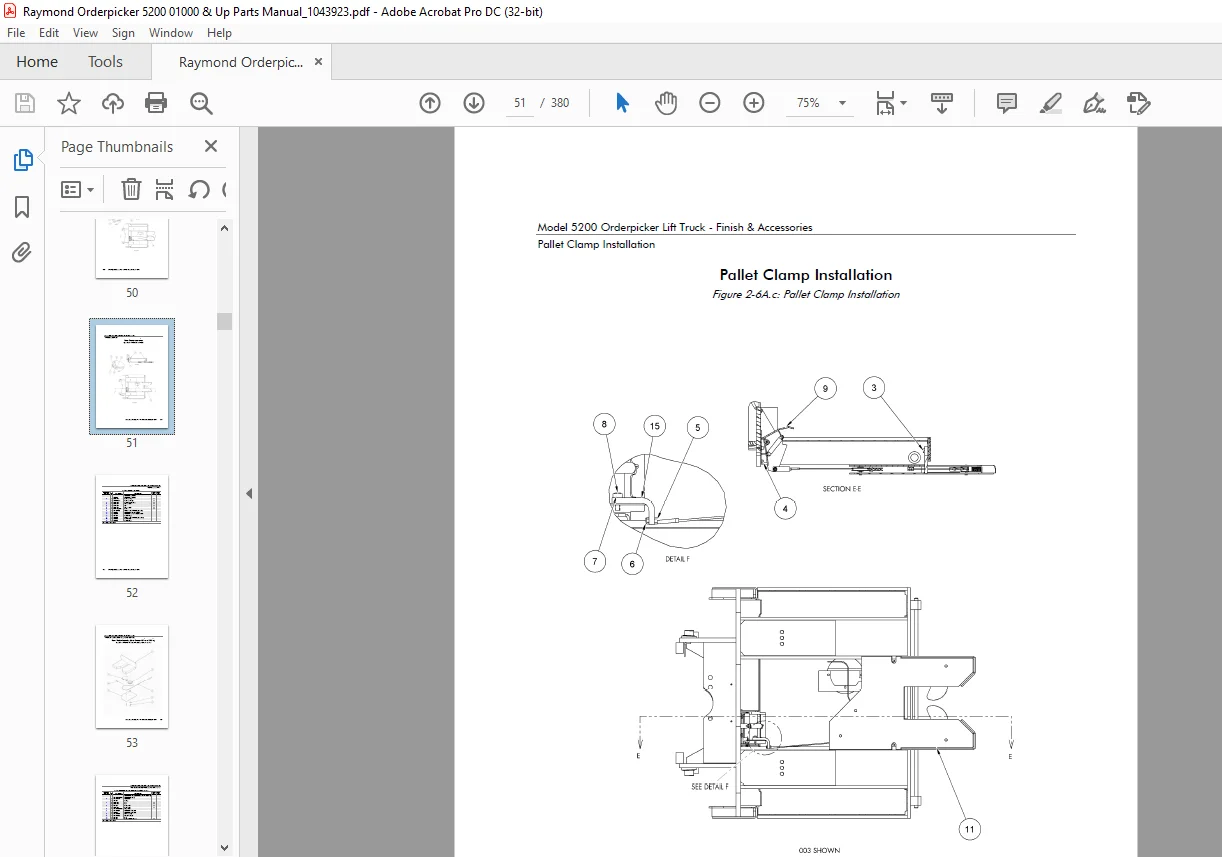

Pallet Clamp Installation 2-20
Pallet Clamp Installation 2-23
Pallet Holder Assembly (Pallet Clamp 125 in to 275 in) 2-27
Pallet Clamp Assembly 2-29
Clamp Assembly 2-31
Pallet Clamp Assembly (Pallet Clamp 125 in to 500 in) 2-33
Pallet Clamp Jaws Assembly 2-35
Pedal Assembly 2-37
Pedal Assembly, Pallet Clamp 2-39
Sidegate Installation Fixed (Standard) 2-41
Sidegate Installation, Hinged (Optional) 2-43
SECTION 3 Steering & Controls
Steering and Control Components 3-2
Steering Motor Group 3-5
Steering Control Assembly 3-7
SECTION 4 Drive & Brake
Drive and Brake Components 4-2
Drive Unit Assembly 4-5
Brake Assembly 4-10
Deadman Pedal Assembly 4-12
SECTION 5 Electrical Comp & System
Electrical System, Tractor 5-2
Contactor Panel Assembly 5-7
Battery Connector Assembly 5-14
Control Assembly 5-16
Contactor Assembly 5-20
Carriage, Electrical Assembly 5-22
Control Assembly 5-24
Bezel Assembly 5-27
Control Handle Assembly 5-29
Travel Limit Switch Installation 5-34
Limit Switch Installation, Platform 5-38
Warning Light Assembly 5-40
Motors 5-42
Drive Motor, EE 5-44
Lift Motor, Standard 5-46
Lift Motor, High Performance 5-48
Lift Motor (24 Volt) EE 5-50
Horn Installation 5-52
SECTION 6 Hydraulic Components
Hydraulic System 6-2
Reservoir Assembly 6-8
Manifold, Lift/Lower 6-10
Lift Pump Assembly 6-12
Lift Cylinder Assembly, 175 in (Two Stage) 6-14
Lift Cylinder Assembly, 175 in, Main Lift (Three Stage) 6-18
Lift Cylinder Assembly, 250 in, Free Lift (Three Stage) 107 in 6-23
Lift Cylinder Assembly, 250 in, Free Lift (Three Stage) 88 in and 95 in 6-26
6-29
SECTION 7 Mast
Elevating Section, Two Stage 7-2
Elevating Section, Three Stage 7-7
Load Wheels 7-14
Mast to Tractor Assembly 7-16
Pulley Assembly, Hose 7-25
Pulley Assembly, Cable, Bottom 7-27
Pulley Assembly, Cable 7-29
Pulley Assembly, End Cap, Free Lift 7-31
Fork Assembly 7-33
Bumper Assembly 7-36
SECTION 8 Options & Kits
Operator Compartment Lights and Fan Assembly, Fluorescent 8-2
Light Assembly 8-7
Ballast,Wire, Assembly 8-9
Operator Compartment Lights and Fan Assembly, Incandescent 8-11
Light Assembly, LED, Overhead 8-16
Operator Cooling Fan Installation 8-19
Operator Cooling Fan Assembly 8-21
Working Light Installation, LED 8-23
Working Light Assembly, LED 8-25
Bin Lights Kit (Work Area Lights) (Auxiliary) 8-27
Bin Light Assembly (Work Area Lights) (Auxiliary) 8-27
Lift/Lower Alarm and Security Start Kit 8-31
Control Assembly 8-34
Lift/Limit and Bypass 8-36
Auxiliary Power Hook-Up 8-39
Fire Extinguisher Kit 8-45
Platform Extension 8-47
Battery Covers 8-49
Clipboard 8-51
Guide Roller Assembly (4525 in to 4700 in) 8-53
Guide Rollers (4750 in) 8-55
Kit, Guide Rollers (4775 in to 5325 in) 8-57
Guide Rollers (5350 in to 6700 in ) 8-59
Guide Wheel Assembly 8-61
Wire Guidance 8-63
Wire Guidance Sensor, Tractor End 8-69
Wire Guidance Sensor, Load End 8-71
Back-Up Alarm Kit 8-73
Lower Limit With Bypass 8-75
RF Terminal Mounting 8-78
Slack Chain Switch, Installation 8-80
Mechanical Stop, Installation 8-86
iWarehouse RED 8-88
Guide Roller Installation (25 in Wheel) 8-90
Guide Roller Installation (325 in Wheel) 8-94
Guide Roller Assembly 8-102
Switch, Roller Assembly 8-104
Battery Guide 8-107
Overhead Guard, Plexiglass 8-109
