Raymond Forklift RA30TT W & W0 POWER TILT & SIDE SHIFT PARTS CATALOG MANUAL SN-020-29000 & UP – PDF DOWNLOAD

Description

Raymond Forklift RA30TT W & W0 POWER TILT & SIDE SHIFT PARTS CATALOG MANUAL SN-020-29000 & UP – PDF DOWNLOAD

FILE DETAILS:

Raymond Forklift RA30TT W & W0 POWER TILT & SIDE SHIFT PARTS CATALOG MANUAL SN-020-29000 & UP – PDF DOWNLOAD

Language : English
Pages :110
Downloadable : Yes
File Type : PDF
Size:12.5 MB

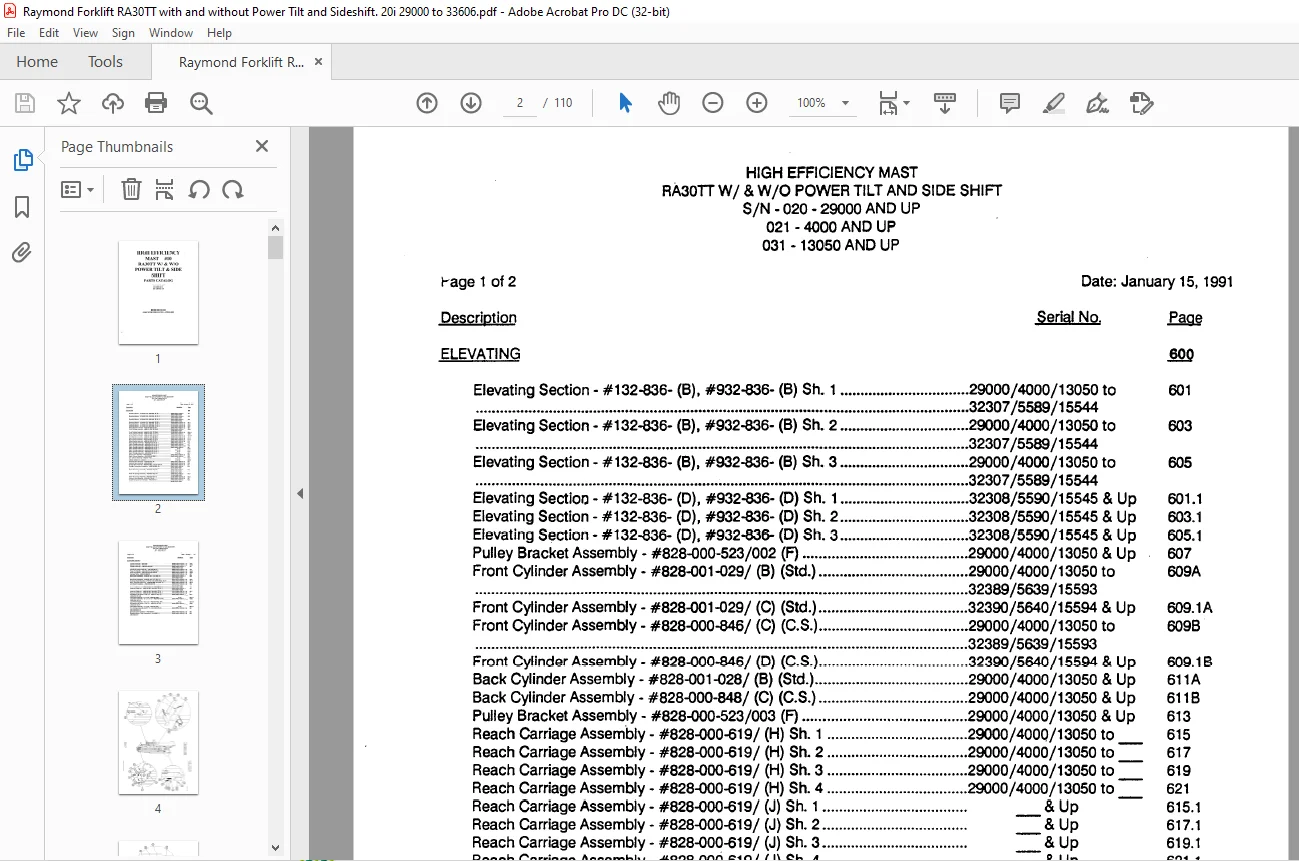

TABLE OF CONTENTS:

Raymond Forklift RA30TT W & W0 POWER TILT & SIDE SHIFT PARTS CATALOG MANUAL SN-020-29000 & UP – PDF DOWNLOAD

Elevating Section #132836 (B), #932836 (B) Sh 1 29000/4000/13050 to
32307 /5589/15544
Elevating Section #132836 (B), #932836 (B) Sh 2 29000/4000/13050 to
32307 /5589/15544
Elevating Section #132836 (B), #932836 (B) Sh 3 29000/4000/13050 to
32307 /5589/15544
Elevating SectiolJ #132836 (D), #932836 (D) Sh 1 32308/5590/15545 & Up
Elevating Section #132836 (D), #932836 (D) Sh 2 32308/5590/15545 & Up
Elevating Section #132836 (D), #932836 (D) Sh 3 32308/5590/15545 & Up
Pulley Bracket Assembly #828000523/002 (F) 29000/4000/13050 & Up
Front Cylinder Assembly #828001029/ (B) (Std) 29000/4000/13050 to
32389 /5639 /15593
Front Cylinder Assembly #828001029/ (C) (Std) 32390/5640/15594 & Up
Front Cylinder Assembly #828000846/ (C) (CS) 29000/4000/13050 to
32389/5639/15593
Front Cylinder Assembly #828000846/ (D) (CS) 32390/5640/15594 & Up
Back Cylinder Assembly #828001028/ (B) (Std) 29000/4000/13050 & Up
Back Cylinder Assembly #828000848/ (C) (CS) 29000/4000/13050 & Up
Pulley Bracket Assembly #828000523/003 (F) 29000/4000/13050 & Up
Reach Carriage Assembly #828000619/ (H) Sh 1 29000/4000/13050 to
Reach Carriage Assembly #828000619/ (H) Sh 2 29000/4000/13050 to
Reach Carriage Assembly #828000619/ (H) Sh 3 29000/4000/13050 to
Reach Carriage Assembly #828000619/ (H) Sh 4 29000/4000/13050 to
Reach Carriage Assembly #828000619/ (J) Sh 1 & Up
Reach Carriage Assembly #828000619/ (J) Sh 2 & Up
Reach Carriage Assembly #828000619/ (J) Sh 3 & Up
Reach Carriage Assembly #828000619/ (J) Sh 4 & Up
Scissors Arm Assembly #828000640 29000/4000/13050 & Up
Reach Cylinder Assembly #623032200 (RIE1) 29000/4000/13050 to
DA Cylinder Assembly #828001453/ & Up
Cylinder Assembly #540047 / & Up
Solenoid Valve Assembly #828000631 (B) 29000/4000/13050 & Up
Solenoid Valve Assembly #828000657 29000/4000/13050 & Up
Carriage Stop Assembly #828000985/, 123001197 (A) 29000/4000/13050 & Up
Carriage Components Installation #828000669/ (D) 29000/4000/13050 to
32334/5598/15557
Carriage Components Installation #828000669/ (E) 32335/5599/15558 & Up
Power Tilt Carriage Assembly #828000706/ (G) 29000/4000/13050 to
30465/4702/14202
Power Tilt Carriage Assembly #828000706/ (H) 30466/4703/14203 to
32334/5598/15557
Power Tilt Carriage Assembly #828000706/ (J) 32335/5599/15558 & Up
Solenoid Valve Assembly #828000748 (A) 29000/4000/13050 & Up
Double Acting Cylinder Alteration #483000011/ 29000/4000/13050 to
Cylinder Assembly #540056 30466/4703/14203 & Up
Cylinder Assembly #540057 30466/4703/14203 & Up
Cylinder Assembly #483000000/200 29000/4000/13050 to
30465/4702/14202
Cylinder & Linkage Assembly #787002090 (J) 29000/4000/13050 & Up
Power Tilt Cylinder #484050073/100 Raymond 29000/4000/13050 & Up
Power Tilt Cylinder #484050073/200 Cessna 29000/4000/13050 & Up
Carriage Piping #828000666 (E) 29000/4000/13050 & Up
Mast Guard Installation #828001007 / (A), 006/ (A) 29000/4000/13050 to
32244/5569/15504
Mast Guard Installation #828001007 / (C), 400/ (A) 32245/5570/15505 & Up
Overhead Guard Mounting #787001444/ (RIE1) (Mod 20/21) 29000/4000/13050 & Up
Mech Overhead Guard Inst #828000888/ (B) (Mod 31) 29000/4000/13050 & Up
Limit Switch Installation #828000603/ (D) 29000/4000/13050 & Up
Hose and Cable Inst #828000801/ thru 803/ (E) Sh 1 29000/4000/13050 to
31918/5407 /15206
Hose and Cable Inst #828000801/ thru 803/ (E) Sh 2 29000/4000/13050 to
31918/5407 /15206
Hose and Cable Inst #828000801/thru 803/ (F) Sh 1 31919/5408/15207 & Up
Hose and Cable Inst #828000801/ thru 803/ (F) Sh 2 31919/5408/15207 & Up
Articulating Load Wheel 5″x2 7 /8″ #623010100/ (C) ,, 29000/4000/13050 to
#623010101/ (C)
Load Wheel Assembly 5 x 27 /8″ #625001~8/ & Up
Load Wheel Assembly10 1/2″ x 3 1/2″ #625000158 (A) 29000/4000/13050 to
#625000159/ (A)
Load Wheel Assembly105 x 35″ #625001~3/, 644/ & Up
Articulating Load Wheel 4″x2 7 /8″ #623010127 (G) 29000/4000/13050 to
#623010128 (F)
Load Wheel Assembly 4 x 27 /8″ #625001627 / & Up
Fork Carriage Assembly fYv/0 PT) #812002015 (G) 29000/4000/13050 & Up
#812002016/ (J)
Solenoid Guard Installation #828000971 29000/4000/13050 & Up
Elevating Section Finish Instructions #736200011 29000/4000/13050 & Up

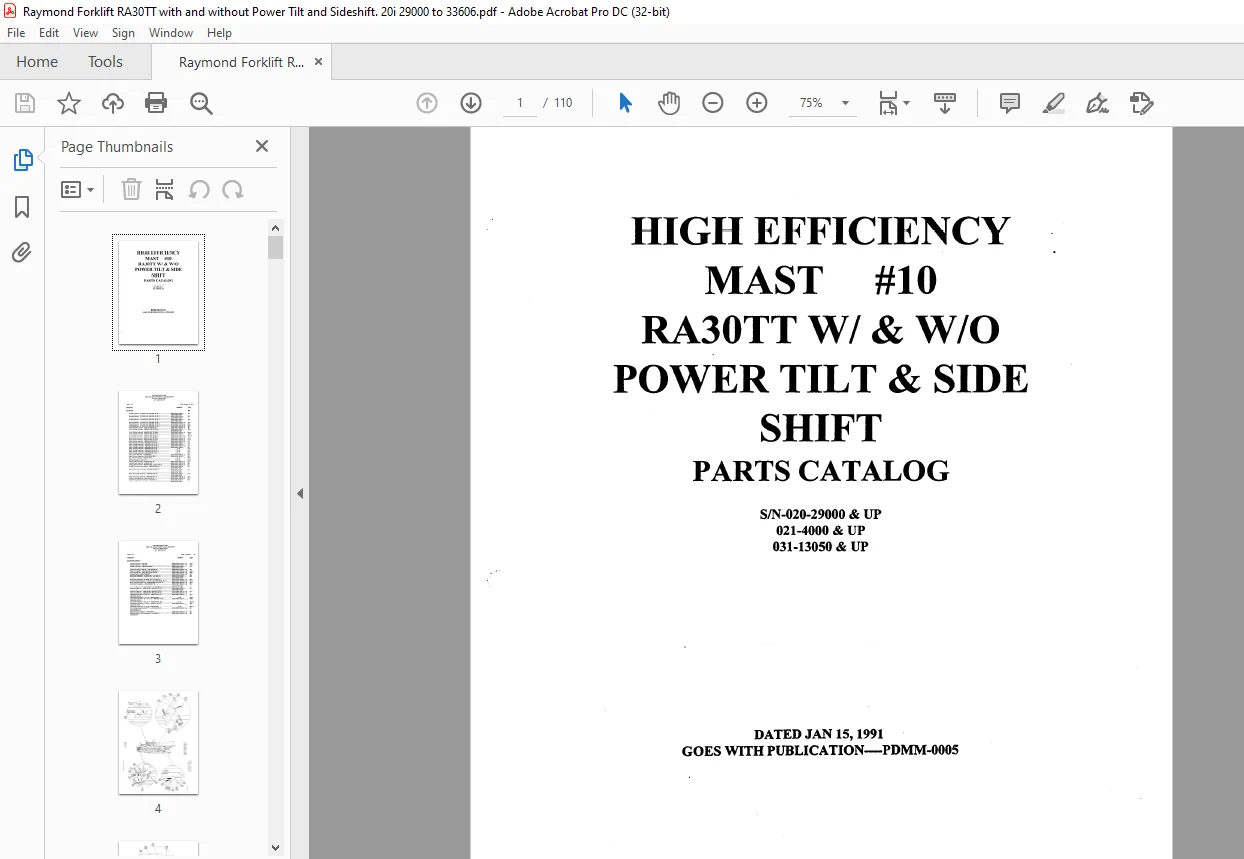

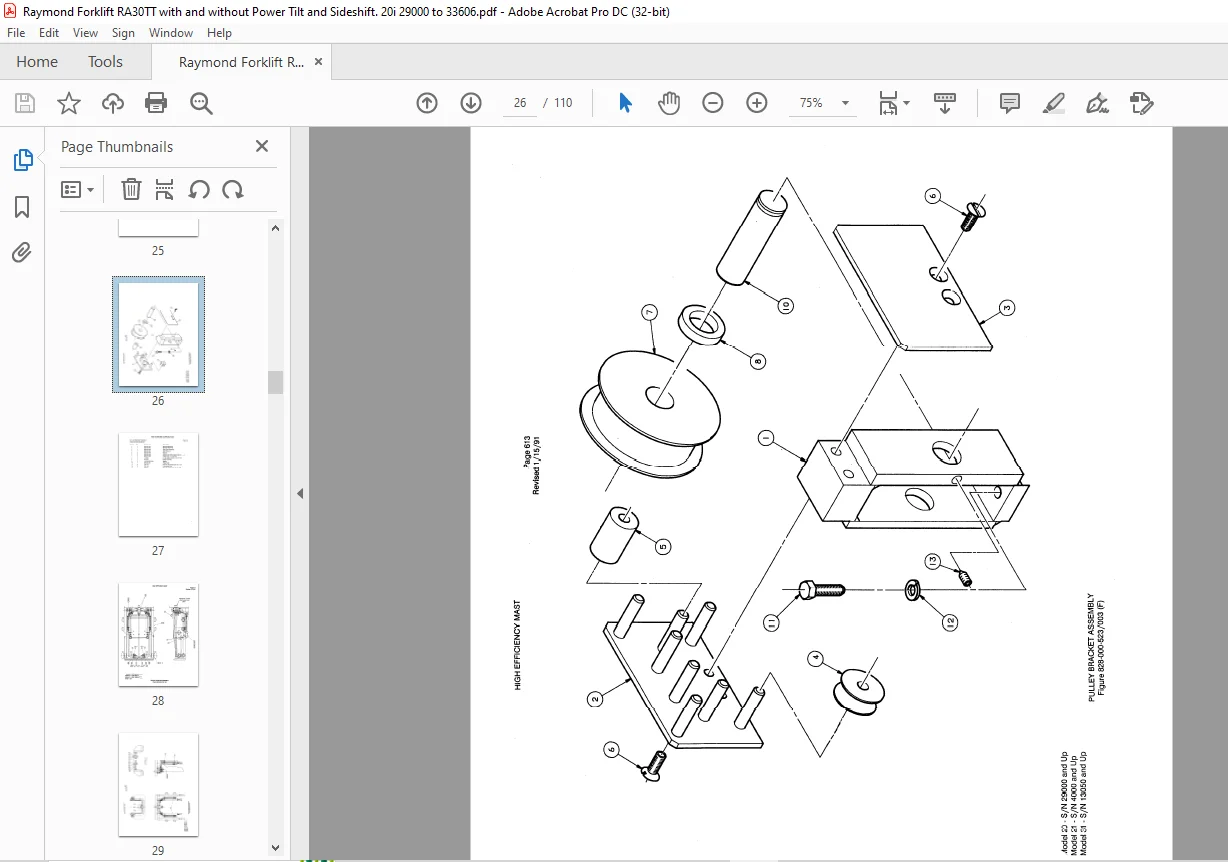

IMAGES PREVIEW OF THE MANUAL:
