Revox B780 B739 Stereo Receiver Service Manual Repair Guide PDF
Original price was: $95.00.$16.95Current price is: $16.95.
Complete factory service manual for Revox B780 and B739 high-fidelity stereo receivers. This professional 107-page multilingual PDF (English/German/French) covers complete servicing procedures including FM tuner alignment, amplifier adjustments, disassembly instructions, electronic schematics, and parts lists. Essential technical documentation for repairing and maintaining these premium Swiss-made audio receivers with detailed calibration procedures and troubleshooting guidance.
Description
Revox B780 B739 Stereo Receiver Service Manual Repair Guide PDF DOWNLOAD
DESCRIPTION
Official Revox B780/B739 Stereo Receiver Service Manual – Complete Technical Documentation
This is the genuine Revox factory service manual for the legendary B780 and B739 high-fidelity stereo receivers. Manufactured by Studer Revox in Switzerland, these premium audio components represent the pinnacle of 1980s receiver technology. This comprehensive manual provides complete technical information for professional audio technicians and serious enthusiasts.
📻 Equipment Covered:
Revox B780 – Premium AM/FM Stereo Receiver with Integrated Amplifier
- 140W music power per channel (4Ω) / 80W continuous (8Ω)
- Digital frequency synthesizer FM tuner
- 18 station memory presets
- Full phono preamplifier section
Revox B739 – FM Stereo Tuner Module
- Same tuner section as B780
- For use with separate amplification
🎯 Technical Specifications:
FM TUNER SECTION (B780/B739)
| Feature | Specification |
|---|---|
| Frequency Range | 87.5 – 107.975 MHz |
| Tuning System | Quartz-controlled frequency synthesizer |
| Channel Spacing | 25 kHz |
| Station Memory | 18 stations, quartz-accurate programming |
| Tuning Methods | Direct keyboard entry, incremental steps, auto scan |
| Frequency Accuracy | ± 0.0025% |
| Frequency Response | 30 Hz – 18 kHz ±1 dB |
| THD | < 0.075% (mono and stereo) |
| Signal-to-Noise Ratio | 76 dB unweighted |
| Stereo Separation | 42 dB at 1 kHz |
| AM Rejection | 70 dB |
| De-emphasis | Switchable 50/75 µs (optional 25/50/75 µs with noise reduction) |
| Antenna Inputs | 60-75Ω coaxial (DIN 45325), 240-300Ω balanced |
AMPLIFIER SECTION (B780 ONLY)
| Feature | Specification |
|---|---|
| Music Power | 140W per channel @ 4Ω (both channels driven) |
| Continuous Power (DIN 45500) | 110W @ 4Ω / 80W @ 8Ω per channel |
| THD | < 0.03% @ 70W (8Ω, 1 kHz) |
| Frequency Response | 20 Hz – 20 kHz (+0/-0.7 dB) |
| Damping Factor | > 100 @ 1 kHz (8Ω) |
| Signal-to-Noise Ratio | > 90 dB (AUX, Tape) / > 73 dB (Phono @ 5mV) |
| Stereo Separation | > 70 dB @ 1 kHz (all inputs) |
| Input Sensitivity | AUX/Tape: 150mV, Phono: 3mV, Power In: 1V |
| Phono Equalization | IEC 98, MOD 4 1976 (±0.5 dB) |
TONE CONTROLS
- Bass: ±8 dB @ 120 Hz
- Treble: ±8 dB @ 5 kHz
- Presence: ±8 dB @ 3 kHz
- Filters: Low 18 Hz, High 8 kHz (-3 dB, 12 dB/octave)
- Loudness compensation
POWER SUPPLY
- Voltage: 100/120/140/200/220/240V AC ±10% (switchable)
- Frequency: 50-60 Hz
- Power Consumption: 50W maximum
- Memory Backup: 3 x NiCd rechargeable batteries (station memory retention)
📋 Complete Manual Sections:
SECTION 1 – GENERAL INFORMATION
- Index of Operating Controls – Complete identification of all front panel controls and functions
- Tuner Section – Control layout and function descriptions
- Amplifier/Preamplifier Section (B780) – Input/output controls, tone controls, filters
- Connector Panels:
- B780 rear panel connections
- B739 rear panel connections
- Socket pin assignments and wiring diagrams

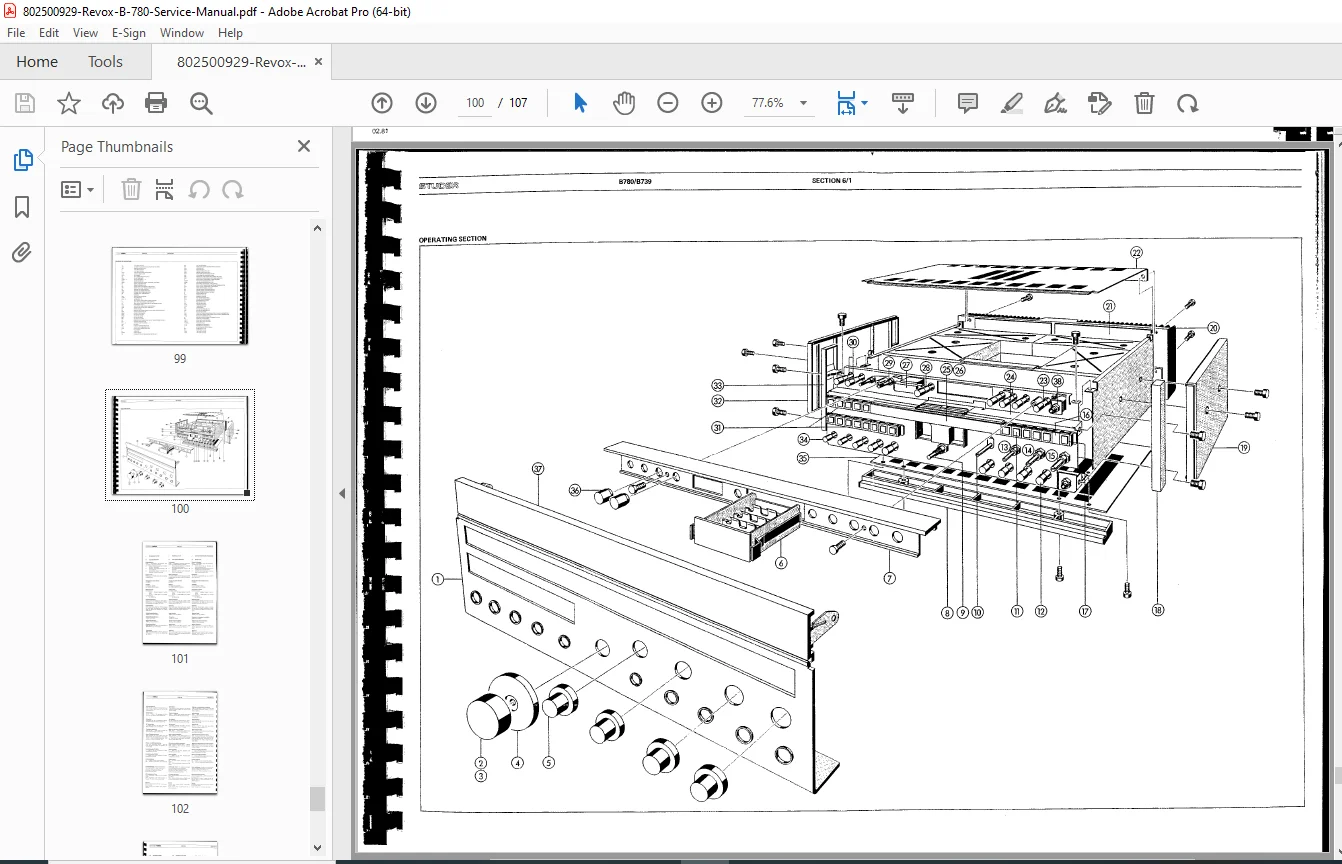

SECTION 2 – DISASSEMBLY PROCEDURES
- Removing the Top Cover Plate – Step-by-step disassembly instructions
- Removing the Bottom Cover Plate – Access to internal components
- Removing the Side Covers – Complete chassis access procedures
- Heat Sink and Power Stage PCB Removal (B780 only) – Amplifier module service access
SECTION 3 – (Additional Sections) Detailed service procedures for component-level repair
SECTION 4 – ADJUSTMENT INSTRUCTIONS
- Required Measuring Instruments – Complete test equipment list
- General Procedures – Service preparation and safety guidelines
- Power Supply Voltage Verification – Checking all supply rails
- Functional Quick Test:
- Tuner section B780/B739 rapid testing
- Amplifier section B780 functionality checks
- Preparation for Adjustment Work – Setup procedures
- Quartz Reference Calibration – Synthesizer reference adjustment
- Local Oscillator and Synthesizer Alignment – Frequency accuracy calibration
- RF Circuit Tuning – High frequency stage alignments
- IF Filter, IF Amplifier, and Display Discriminator Adjustment – Complete IF section calibration
- Stereo Decoder Adjustment – MPX decoder alignment procedures
- Tuner Audio Level Adjustment – Output level calibration
- Amplifier Adjustments – Complete amplifier section setup
SECTION 5 – SCHEMATICS Complete electronic circuit diagrams:
- Tuner section detailed schematics
- RF and IF stages
- Frequency synthesizer circuits
- Stereo decoder and MPX circuits
- Amplifier power supply schematics (B780)
- Preamplifier circuits (B780)
- Power amplifier circuits (B780)
- Tone control and filter circuits
- Protection circuits
- Power supply sections
- Complete interconnection diagrams
SECTION 6 – PARTS LIST
- Complete component listings with part numbers
- PCB component location diagrams
- Replacement parts specifications
- Cross-reference information
- Ordering codes for service parts
SECTION 7 – TECHNICAL SPECIFICATIONS
- Complete electrical specifications
- Mechanical dimensions
- Performance parameters
- Test conditions and measurement standards
- Compliance certifications (DIN standards)
🔧 Special Features of This Manual:
MULTILINGUAL DOCUMENTATION All sections presented in three languages side-by-side:
- English – Complete service instructions
- German (original) – Serviceanleitung
- French – Instructions de service
PROFESSIONAL CALIBRATION PROCEDURES
- Step-by-step adjustment sequences
- Required test equipment specifications
- Exact test points and measurement values
- Tolerance specifications
- Alignment tool requirements
COMPREHENSIVE SCHEMATICS
- Full circuit diagrams for all sections
- Component-level detail
- Signal flow diagrams
- Voltage and waveform references
- PCB layout information
📁 File Details:
| Detail | Information |
|---|---|

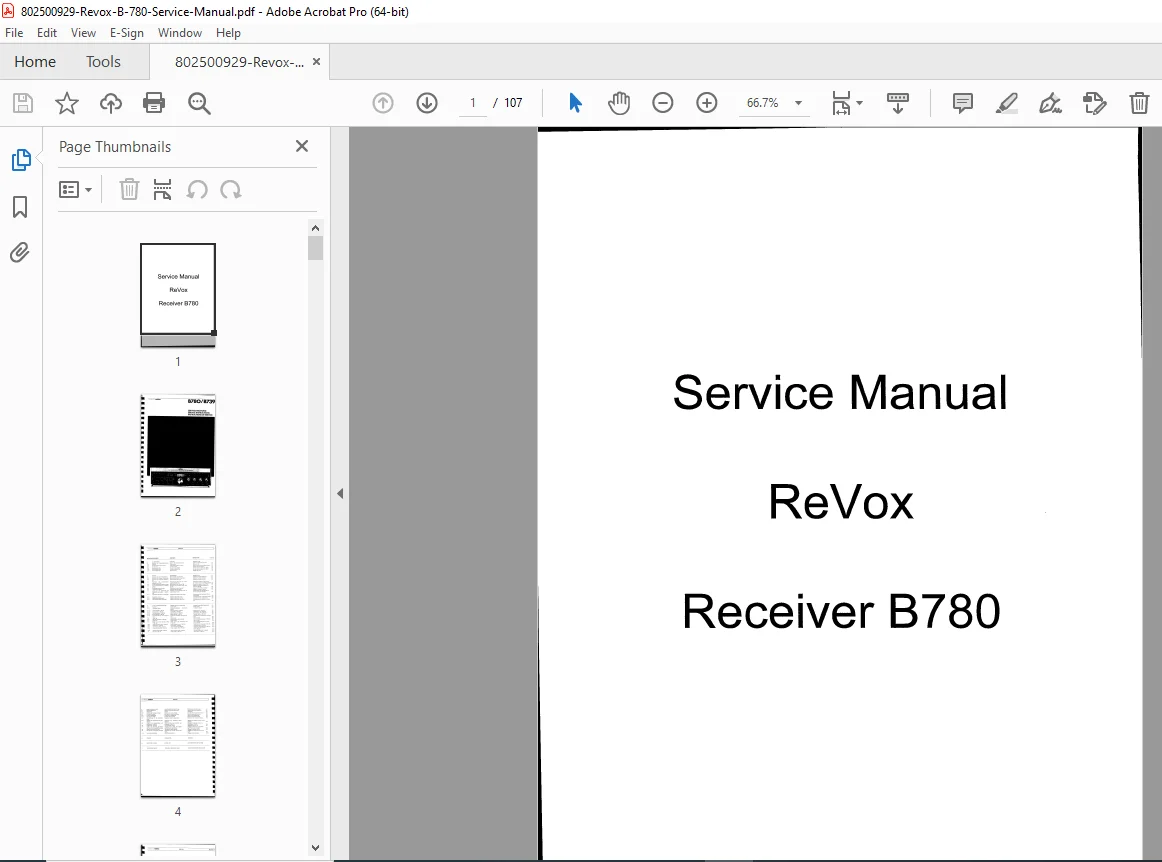

| Manual Name | Revox Receiver B780/B739 Service Manual |
| Models Covered | B780 (Receiver), B739 (Tuner) |
| Manufacturer | Studer Revox AG, Switzerland |
| Pages | 107 pages |
| Format | PDF (Scanned Original) |
| Quality | Factory Original – High Quality Scans |
| Languages | English, German, French (trilingual) |
| File Size | ~8.1 MB |
| Coverage | Complete service, repair, alignment, schematics, parts |
✅ Who Needs This Manual:
✔ Professional audio service technicians repairing vintage Revox equipment
✔ High-end audio repair shops specializing in premium vintage receivers
✔ Revox collectors and enthusiasts maintaining their equipment
✔ Vintage audio restoration specialists performing complete overhauls
✔ Audio engineers servicing broadcast and studio equipment
✔ Technical schools teaching vintage audio equipment repair
✔ DIY audiophiles performing their own maintenance and upgrades
✔ Museum curators maintaining vintage audio collections
🎵 About Revox Equipment:
Revox (Studer Revox) is a legendary Swiss manufacturer renowned for producing some of the world’s finest audio equipment from the 1960s through 1990s. The B780 and B739 represent Revox’s premium receiver technology featuring:
- Swiss Precision Engineering – Exceptional build quality and reliability
- Audiophile-Grade Components – Premium parts throughout
- Professional Features – Studio-quality performance for home use
- Timeless Design – Classic brushed aluminum aesthetics
- Long-Term Value – Highly collectible vintage audio equipment
💰 Essential for Vintage Audio Preservation
Revox B780 receivers are highly sought-after vintage audio components commanding premium prices in today’s collector market. Professional service requires authentic factory documentation – this is the exact manual Revox-certified technicians used for service and calibration. Proper alignment and repair of the synthesizer tuner, stereo decoder, and amplifier sections require these precise specifications and procedures. Download instantly and preserve your valuable Revox equipment with authentic factory service information!
