Sakai Vibrating Roller SW880 SW990 Part Manual – PDF DOWNLOAD

Description

Sakai Vibrating Roller SW880 SW990 ENGINE DEUTZ TCD2012L04 2V(SW880) DEUTZ TCD2012L06 2V(SW990) Part Manual – PDF DOWNLOAD

FILE DETAILS:

Sakai Vibrating Roller SW880 SW990 ENGINE DEUTZ TCD2012L04 2V(SW880) DEUTZ TCD2012L06 2V(SW990) Part Manual – PDF DOWNLOAD

Language : English
Pages :172
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Sakai Vibrating Roller SW880 SW990 ENGINE DEUTZ TCD2012L04 2V(SW880) DEUTZ TCD2012L06 2V(SW990) Part Manual – PDF DOWNLOAD

SW880,SW990 PARTS CATAROGUE 1
GUIDE FOR USE OF PARTS CATALOGUE 3
CONTENTS 4
ENGINE SYSTEM :SW880 6
ENGINE SYSTEM :SW990 10
FUEL SYSTEM :SW880 14
FUEL SYSTEM :SW990 18
COOLING SYSTEM 22
INTAKE SYSTEM :SW880 26
INTAKE SYSTEM :SW990 30
EXHAUST SYSTEM :SW880 32
EXHAUST SYSTEM :SW990 34
CONTROL SYSTEM (REVERSING) 36
BRAKE SYSTEM 38
STEERING HYDRAULIC SYSTEM :SW880 40
STEERING HYDRAULIC SYSTEM :SW990 44
STEERING SYSTEM (CYLINDER) 48
STEERING SYSTEM (WHEEL) 50
HYDRAULIC SYSTEM (PUMP MOUNTING) 52
HYDRAULIC SYSTEM(DRIVE1) :SW880 54
HYDRAULIC SYSTEM(DRIVE1) :SW990 58
HYDRAULIC SYSTEM(TANK ASS’Y) 62
HYDRAULIC SYSTEM(DRIVE2) :SW880 66
HYDRAULIC SYSTEM(DRIVE2) :SW990 70
HYDRAULIC SYSTEM(VIBRATING1) :SW880 74
HYDRAULIC SYSTEM(VIBRATING1) :SW990 76
HYDRAULIC SYSTEM(BLOCK ASS’Y) 78
HYDRAULIC SYSTEM(VIBRATING2) :SW880 80
HYDRAULIC SYSTEM(VIBRATING2) :SW990 84
VIBRATING ROLL :SW880 88
VIBRATING ROLL :SW990 92
FRAME(FRONT) :SW880 96
FRAME(FRONT) :SW990100
FRAME(REAR) :SW880104
FRAME(REAR) :SW990108
FRAME(CENTER PIN)112
DASH BORD1114
DASH BORD2118
SEAT122
SCRAPER SYSTEM :SW880124
SCRAPER SYSTEM :SW990126
SPRINKLER SYSTEM :SW880128
SPRINKLER SYSTEM :SW990132
ROPS136
ROPS(LOW PROFILE)(OPTION)138
ELECTRICAL EQUIPMENT(PANEL)140
ELECTRICAL EQUIPMENT(BATTERY) :SW880144
ELECTRICAL EQUIPMENT(BATTERY) :SW990148
ELECTRICAL EQUIPMENT(LIGHT)152
INDEX154
SAKAI HEAVY INDUSTRIES,LTD172

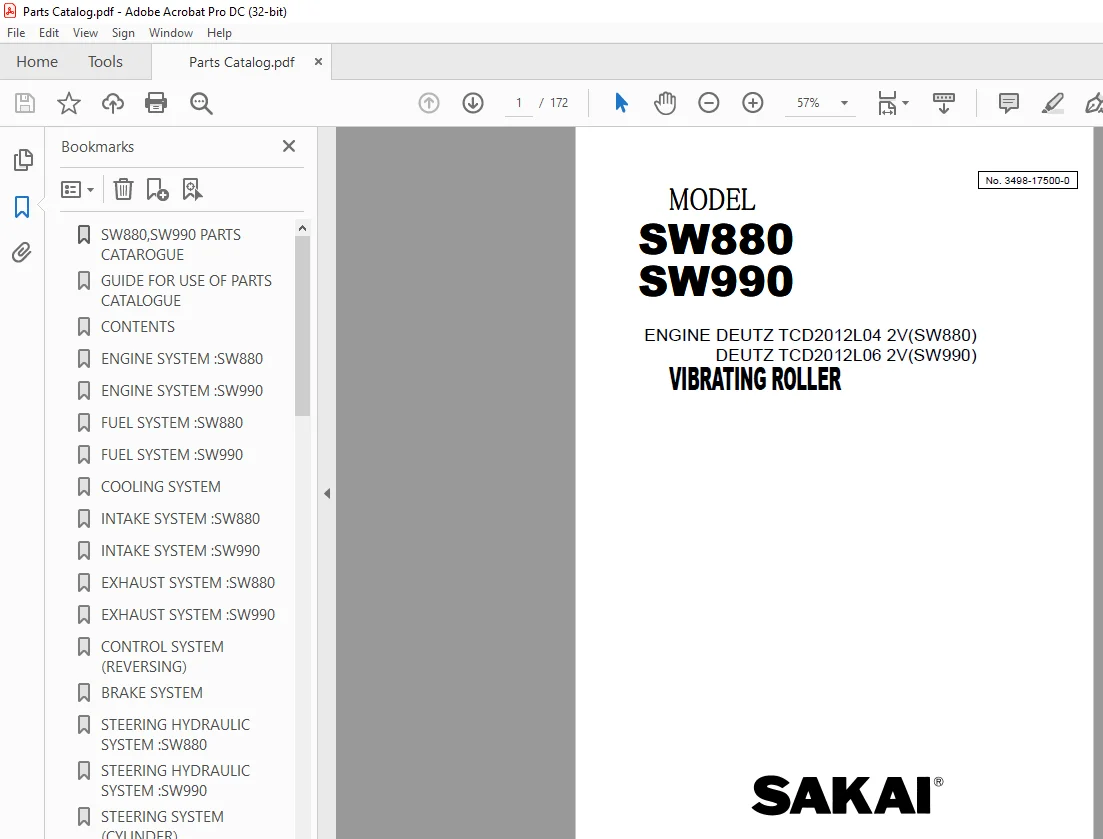

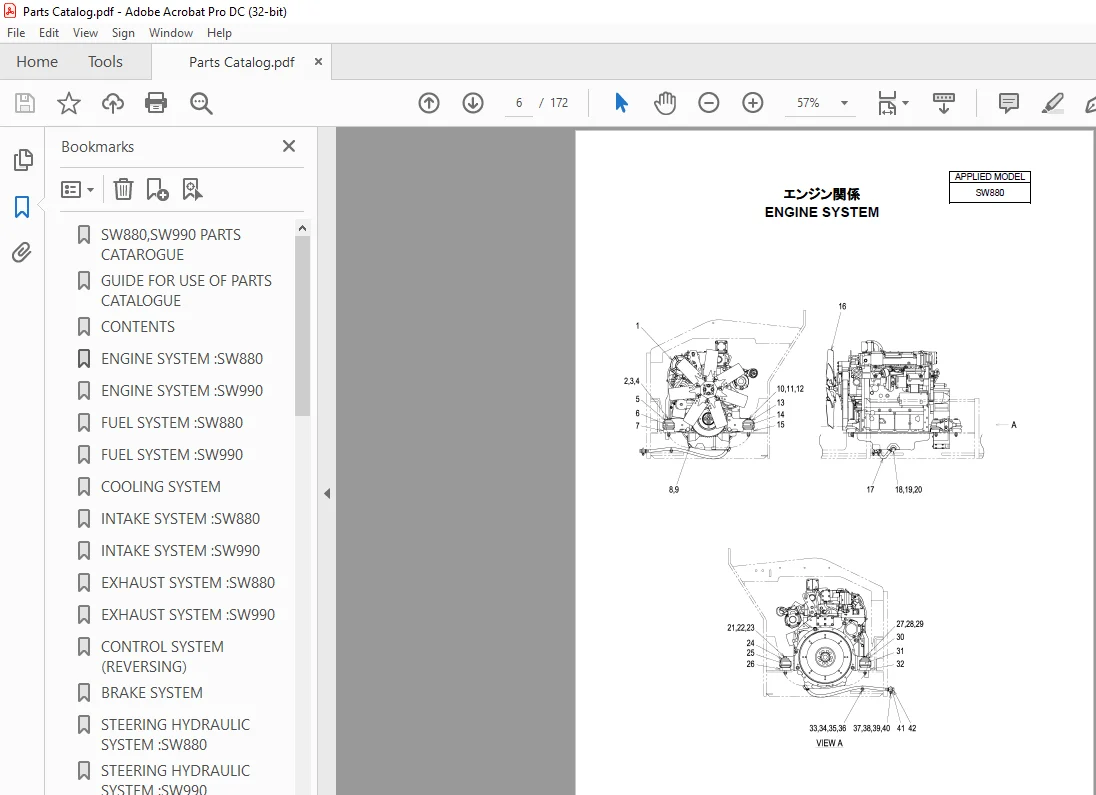

IMAGES PREVIEW OF THE MANUAL:
