Same Tractor DORADO³ 60 after 5001 Parts Catalog Manual – PDF DOWNLOAD

Description

Same Tractor DORADO³ 60 after 5001 Parts Catalog Manual – PDF DOWNLOAD

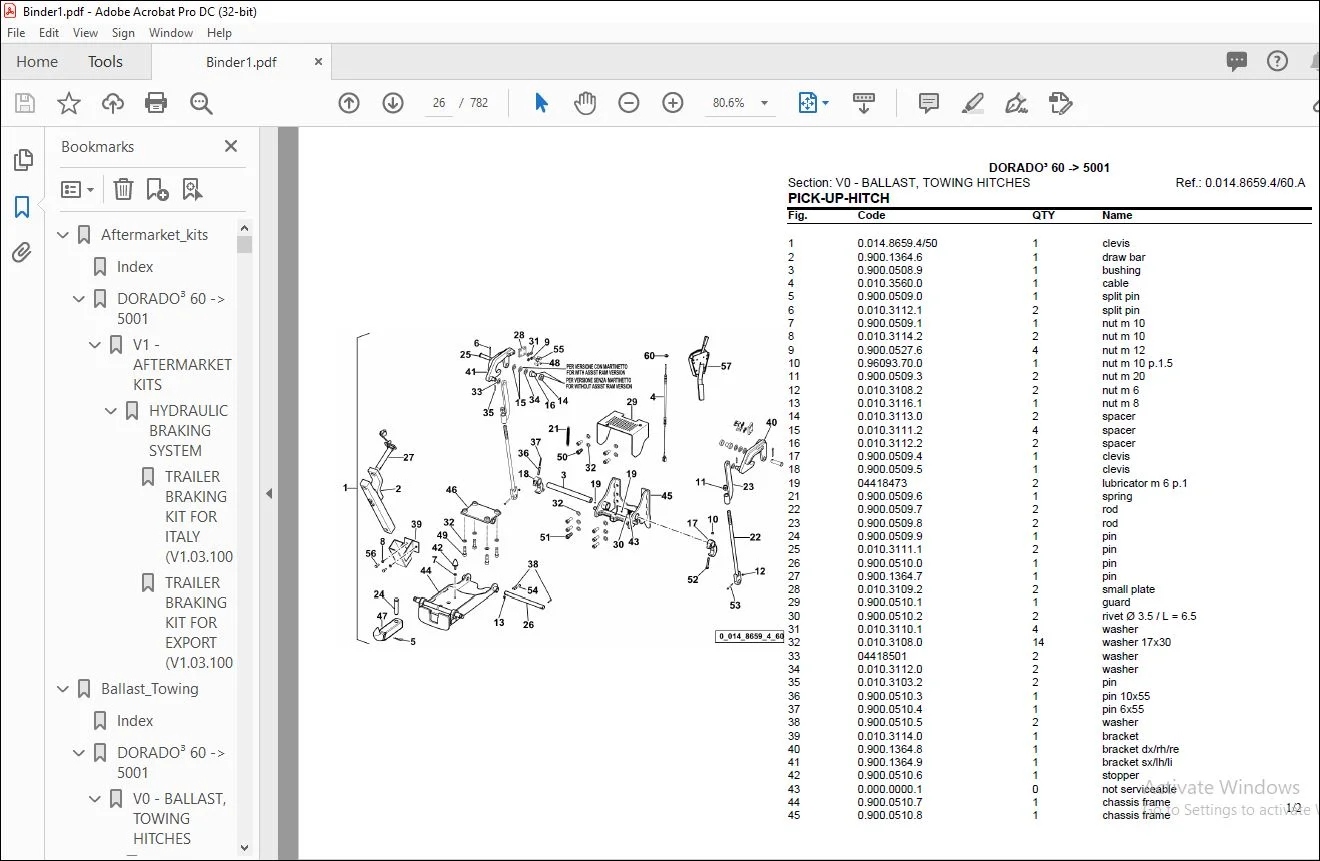

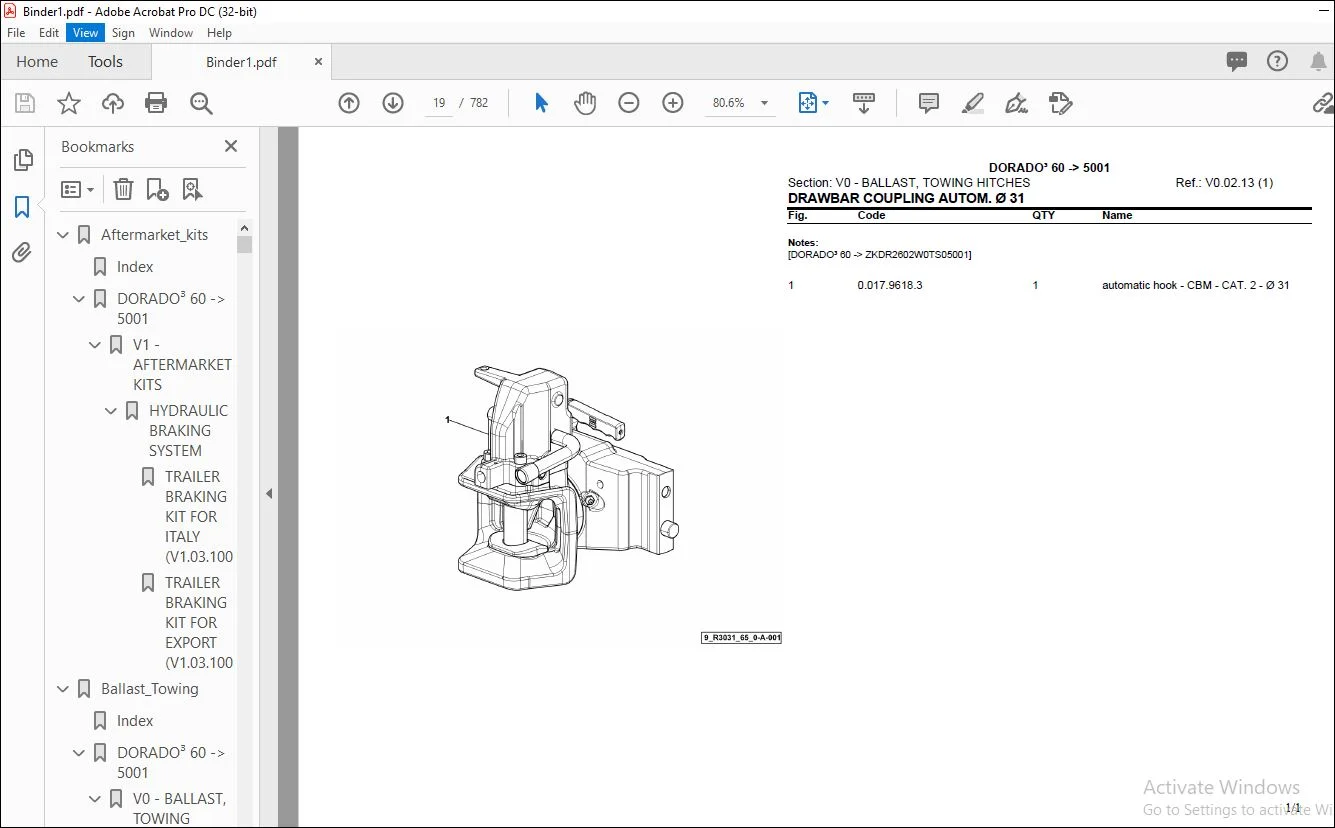

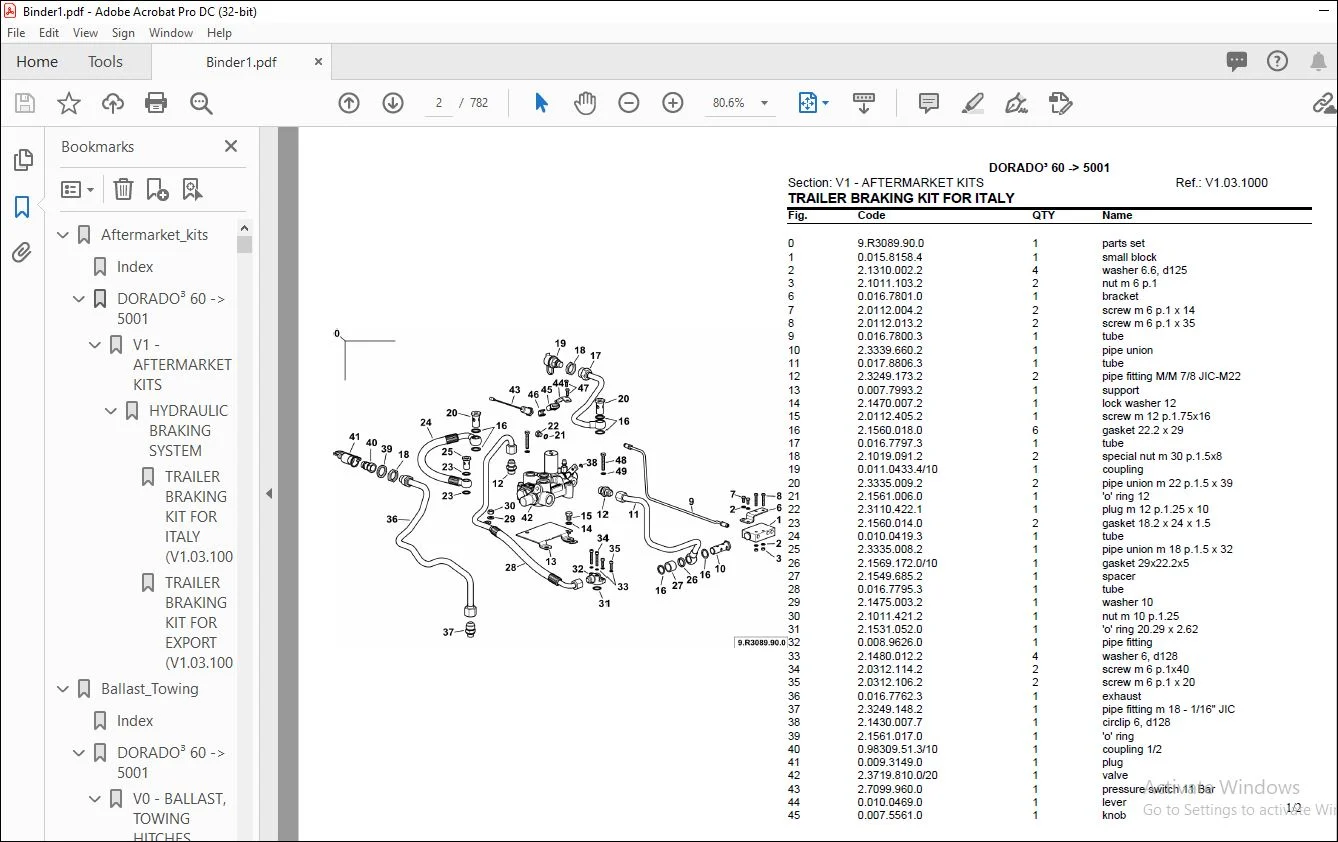

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Same Tractor DORADO³ 60 after 5001 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 782
Downloadable : Yes
File Type : PDF
Size : 36.0 MB

TABLE OF CONTENTS:

Same Tractor DORADO³ 60 after 5001 Parts Catalog Manual – PDF DOWNLOAD

Aftermarket_kits 1
Index 1
DORADO³ 60 -> 5001 2
V1 – AFTERMARKET KITS 2
HYDRAULIC BRAKING SYSTEM 2
TRAILER BRAKING KIT FOR ITALY (V1 03 1000) 2
TRAILER BRAKING KIT FOR EXPORT (V1 03 1000) 4
Ballast_Towing 5
Index 5
DORADO³ 60 -> 5001 6
V0 – BALLAST, TOWING HITCHES 6
FRONT HITCHES 6
FRONT TOWING HITCH (V0 01 0 (1)) 6
HOOK PLATE (V0 01 1 (1)) 7
REAR HITCHES 8
SUPPORTS (V0 02 2 (1)) 8
PIN FOR REAR TOW HOOK (V0 02 3 (1)) 9
REAR TOWING HITCH (V0 02 4 (1)) 10
REAR TOWING HITCH BRACKET (V0 02 5 (1)) 11
REAR SWINGING TOWING-HITCH (V0 02 6 (1)) 12
TOWING FRAME – WITH PITON-FIX (V0 02 7 (1)) 13
REAR OSCILLATING HITCH (V0 02 8 (1)) 14
REAR TOWING HITCH CAT ” C ” (V0 02 9 (1)) 15
REAR TOWING HITCH cat 2 – CEE (V0 02 10 (1)) 16
REAR TOWING HITCH CAT ” D2 ” (V0 02 11 (1)) 17
DRAWBAR COUPLING CEE (V0 02 12 (1)) 18
DRAWBAR COUPLING AUTOM Ø 31 (V0 02 13 (1)) 19
DRAWBAR COUPLING AUTOM Ø 38 (V0 02 14 (1)) 20
PICK-UP-HITCH – MECHANICAL (V0 02 15 (1)) 21
PICK-UP-HITCH – MECHANICAL (V0 02 15 (2)) 22
PICK-UP-HITCH – MECHANICAL (V0 02 15 (3)) 23
PICK-UP-HITCH (0 014 8659 4/40 A) 24
PICK-UP-HITCH (0 014 8659 4/60 A) 26
FRONT BALLAST WEIGHTS 28
FRONT WEIGHT CARRIER (V0 03 0 (1)) 28
FRONT BALLAST Kg 80 (V0 03 1 (1)) 29
FRONT BALLAST Kg 160 (V0 03 2 (1)) 30
FRONT BALLAST 320 Kg (V0 03 3 (1)) 31
BALLAST LOCK BAR mm 30×780 (V0 03 4 (1)) 32
FRONT BALLAST KG 250 (V0 03 5 (1)) 33
Bodywork_Cab 34
Index 34
DORADO³ 60 -> 5001 40
G0 – BODYWORK – CAB 40
HOOD – SIDE PANELS – SUPPORTS 40
HOOD – SUPPORTS (G0 01 0 (1)) 40
BONNET – FRONT PORTION (G0 01 6 (1)) 41
HOOD INSULATION PANEL (G0 01 9 (1)) 42
HOOD SEAL AND REINFORCEMENT (G0 01 11 (1)) 43
HOOD – SUPPORTS (G0 01 12 (1)) 44
ENGINE HOOD GASKETS (G0 01 14 (1)) 45
HOOD SUPPORT (G0 01 16 (1)) 46
HOOD CATCH (G0 01 17 (1)) 47
CONNECTION FRAME (G0 01 19 (1)) 48
CONNECTION FRAME (G0 01 20 (1)) 49
BELT GUARD SUPPORT BRACKET (G0 01 21 (1)) 50
FAN BELT GUARD (G0 01 22 (1)) 51
FAN BELT GUARD (G0 01 23 (1)) 52
SUPPORT (G0 01 24 (1)) 53
FUEL FILTER SUPPORT (G0 01 27 (1)) 54
FUSE AND RELAY SUPPORTS (G0 01 29 (1)) 55
CABLE CONDUIT (G0 01 30 (1)) 56
BATTERY SUPPORT (G0 01 32 (1)) 57
LETTERING 58
MODEL PLATE (G0 02 0 (1)) 58
PRODUCT PLATE (G0 02 19 (1)) 59
WARNING PLATES (G0 02 20 (1)) 60
WATER COOLER IDENTIFICATION PLATE (G0 02 22 (1)) 61
WARNING PLATES (G0 02 23 (1)) 62
WARNING PLATES (G0 02 23 (2)) 63
WARNING PLATES (G0 02 23 (3)) 64
P T O WARNING PLATE FRONT (G0 02 24 (1)) 65
WARNING PLATE (G0 02 25 (1)) 66
REAR LIFT MOVEMENT WARNING LABEL (G0 02 31 (1)) 67
REAR LIFT MOVEMENT WARNING LABEL (G0 02 32 (1)) 68
SHUTTLE AND CREEPER KNOB COVER (G0 02 33 (1)) 69
SHUTTLE COVER (G0 02 34 (1)) 70
3-RANGE REDUCTION UNIT COVER (G0 02 36 (1)) 71
START ENABLE PLATE (G0 02 39 (1)) 72
START ENABLE PLATE (G0 02 40 (1)) 73
PREHEATER BUTTON PLATE (G0 02 43 (1)) 74
PREHEATER BUTTON PLATE (G0 02 44 (1)) 75
HEATING CONTROL IDENTIFICATION PLATE (G0 02 46 (1)) 76
VENTILATION AND CONDITIONING CONTROL IDENTIFICATION PLATE (G0 02 47 (1)) 77
HEATING CONTROL IDENTIFICATION PLATE (G0 02 48 (1)) 78
AIR CONDITIONING DATA PLATE (G0 02 49 (1)) 79
AIR CONDITIONING DATA PLATE (G0 02 50 (1)) 80
SPEED DATA PLATES (G0 02 51 (1)) 81
PTO DATA PLATE 540/N (G0 02 52 (1)) 82
PTO DATA PLATE 540 – 750 (G0 02 53 (1)) 83
PTO DATA PLATE 540 – 750 + SYNCRO (G0 02 54 (1)) 84
PTO DATA PLATE 540 – 750 – 1000 (G0 02 55 (1)) 85
PRINTING FOR FUSE BOX (G0 02 58 (1)) 86
PRINTING FOR FUSE BOX (G0 02 59 (1)) 87
IDENTIFICATION PLATES FOR REAR CONNECTORS (G0 02 60 (1)) 88
SPEED LABEL – 40 KM/H – REFLEX (G0 02 61 (1)) 89
SPEED LABEL – 40 KM/H (G0 02 62 (1)) 90
CAB STRUCTURE – PLATFORM -SUSPENSION 91
PLATFORM (G0 03 0 (1)) 91
CAB STRUCTURE (G0 03 1 (1)) 92
GEAR LEVERS BASE (G0 03 2 (1)) 93
SUPPORTS (G0 03 3 (1)) 94
SPREADER PLATES (G0 03 4 (1)) 95
LADDER (G0 03 5 (1)) 96
CABLE GROMMET (G0 03 8 (1)) 97
CABLE GROMMET (G0 03 9 (1)) 98
FLOOR HOLE REDUCTION PLATE W/ ELECTRONIC REAR LIFT (G0 03 10 (1)) 99
FENDERS – FOOTSTEPS – EXTENSIONS 100
4WD – FRONT MUDGUARDS mm 355 (G0 04 1 (1)) 100
4WD – FRONT MUDGUARDS mm 410 (G0 04 2 (1)) 102
MUDGUARDS EXTENSIONS mm 108 (G0 04 3 (1)) 104
MUDGUARDS EXTENSIONS L=180 (G0 04 4 (1)) 105
MUDGUARDS EXTENSIONS mm 200 (G0 04 5 (1)) 106
MUDGUARDS EXTENSIONS L = mm 240 (G0 04 6 (1)) 107
FENDERS (G0 04 7 (1)) 108
FENDERS (G0 04 8 (1)) 109
COMPLETION (G0 04 9 (1)) 110
PLUGS (G0 04 9 (2)) 111
BRACKET – SPEED LABEL – DX/RH/RE (G0 04 10 (1)) 112
REFLECTOR SUPPORT – SX/LH/LI (G0 04 11 (1)) 113
REFLECTOR SUPPORT (G0 04 12 (1)) 114
WING HOLDER sx/lh/li (0 015 4232 3 A) 115
WING HOLDER dx/rh/re (0 015 4233 3 A) 116
DOORS – WINDOWS – WIPERS 117
WINDSCREEN (G0 05 0 (1)) 117
CAB DOOR DX/RH/RE (G0 05 1 (1)) 118
CAB DOOR SX/LH/LI (G0 05 2 (1)) 119
REAR WINDOW (G0 05 3 (1)) 120
DAMPER FOR REAR WINDOW HATCH (G0 05 4 (1)) 121
DAMPER FOR REAR WINDOW HATCH (G0 05 5 (1)) 122
HANDLE REAR WINDOW (G0 05 6 (1)) 123
SCREEN WIPER FRONT / REAR (G0 05 7 (1)) 124
SCREEN WIPER FRONT / REAR (G0 05 8 (1)) 125
SCREEN WASH SYSTEM (G0 05 9 (1)) 126
PISTON COOL NOZZLE (G0 05 10 (1)) 127
PISTON COOL NOZZLE (G0 05 11 (1)) 128
PISTON COOL NOZZLE (G0 05 12 (1)) 129
SCREEN WASH SYSTEM (G0 05 13 (1)) 130
SPRAYERS (G0 05 14 (1)) 131
INTERIOR TRIM 132
DASHBOARD (G0 06 0 (1)) 132
INSTRUMENT PANEL – BLANKING PLUGS (G0 06 1 (1)) 133
STEERING COLUMN SHROUD (G0 06 2 (1)) 134
CONTROL CONSOLE – DX/RH/RE (G0 06 6 (1)) 135
CONTROL CONSOLE – DX/RH/RE (G0 06 7 (1)) 136
PLUG FOR VERSION WITHOUT CIGAR LIGHTER (G0 06 8 (1)) 137
MECHANICAL LIFT LEVER PANEL WITH GUIDE SLOTS – DX/RH/RE (G0 06 9 (1)) 138
ELECTRONIC LIFT LEVER PANEL WITH GUIDE SLOTS DX/RH/RE (G0 06 10 (1)) 139
CONTROL CONSOLE FOR 6-WAY REMOTE VALVE DX/RH/RE (G0 06 11 (1)) 140
CONTROL CONSOLE FOR 6-WAY REMOTE VALVE DX/RH/RE (G0 06 12 (1)) 141
INTERIOR TRIM (G0 06 13 (1)) 142
INTERIOR TRIM (G0 06 14 (1)) 143
INTERIOR TRIM (G0 06 15 (1)) 144
FLOOR PLUG (G0 06 16 (1)) 145
FLOOR PLUG (G0 06 17 (1)) 146
SOUNDPROOFING FOR GEAR LEVERS (G0 06 18 (1)) 147
INTERIOR TRIM (G0 06 20 (1)) 148
INTERIOR TRIM (G0 06 21 (1)) 149
INTERIOR TRIM (G0 06 22 (1)) 150
INTERIOR TRIM (G0 06 23 (1)) 151
INTERIOR TRIM (G0 06 23 (2)) 152
INTERIOR TRIM (G0 06 24 (1)) 153
INTERIOR TRIM (G0 06 24 (2)) 154
INTERIOR TRIM (G0 06 25 (1)) 155
INTERIOR TRIM (G0 06 25 (2)) 156
COVER (G0 06 26 (1)) 157
INTERIOR TRIM (G0 06 27 (1)) 158
INTERIOR TRIM (G0 06 28 (1)) 159
BRACKET (G0 06 29 (1)) 160
BRACKET (G0 06 30 (1)) 161
BRACKET (G0 06 31 (1)) 162
EXTERIOR TRIM – ROOF 163
SUN GUARD ROOF (G0 07 0 (1)) 163
SUPPORTS FOR SUNBLIND ROOF AND ROTATING BEACON (G0 07 1 (1)) 164
DRIVER’S CAB ROOF (G0 07 2 (1)) 165
DRIVER’S CAB ROOF (G0 07 2 (2)) 166
DRIVER’S CAB ROOF (G0 07 3 (1)) 167
DRIVER’S CAB ROOF (G0 07 3 (2)) 168
CAB INTERIOR TRIM (G0 07 4 (1)) 169
CAB INTERIOR TRIM (G0 07 4 (2)) 170
DRIVER’S CAB ROOF (G0 07 5 (1)) 171
FASTENINGS (G0 07 6 (1)) 172
SKYLIGHT WITH GLASS (G0 07 7 (1)) 173
FLASHING LIGHT SUPPORT (G0 07 8 (1)) 174
SPIN-ON FILTER (G0 07 9 (1)) 175
SPIN-ON FILTER (G0 07 9 (2)) 176
SPIN-ON FILTER (G0 07 10 (1)) 177
SPIN-ON FILTER (G0 07 10 (2)) 178
SPIN-ON FILTER (G0 07 11 (1)) 179
CARBON FILTER (G0 07 12 (1)) 180
CARBON FILTER (G0 07 13 (1)) 181
REARVIEW MIRROR – SX/LH/LI (G0 07 14 (1)) 182
REARVIEW MIRROR AND ROTATING BEACON SUPPORT SX/LH/LI (G0 07 15 (1)) 183
EXTENDING REARVIEW MIRROR SX/LH/LI – DX/RH/RE (G0 07 16 (1)) 184
REARVIEW MIRROR (0 009 7547 4/20 A) 185
REARVIEW MIRROR (0 010 1604 4/40 A) 186
REARVIEW MIRROR (0 010 1605 4/40 A) 187
SEATS 188
DRIVER’S SEAT GRAMMER MSG 83/7L (G0 08 0 (2)) 188
DRIVER’S SEAT GRAMMER MSG 83/7L (G0 08 1 (1)) 189
DRIVER’S SEAT – PNEUMATIC SPRINGING MSG 93/721 (G0 08 4 (1)) 190
HEAD REST (G0 08 5 (1)) 191
HEAD REST (G0 08 6 (1)) 192
SAFETY BELT (G0 08 13 (1)) 193
SAFETY BELT (G0 08 14 (1)) 194
SEAT SUPPORT PLATE (G0 08 15 (1)) 195
SEAT-COMPONENTS (0 007 5683 4/20 A) 196
SEAT-COMPONENTS (0 014 3062 4/20 A) 197
SEAT-COMPONENTS (0 014 3062 4/20 B) 199
HEATING AND AIR CONDITIONING 200
VENTILATION – HEATING (G0 09 0 (1)) 200
VENTILATION – HEATING (G0 09 0 (2)) 201
VENTILATION – AIR CONDITIONING – HEATING (G0 09 1 (1)) 202
VENTILATION – AIR CONDITIONING – HEATING (G0 09 1 (2)) 203
CONDENSER (G0 09 2 (1)) 204
AIR CONDITIONING SYSTEM PIPES (G0 09 3 (1)) 205
HEATING SYSTEM (G0 09 4 (1)) 206
HEATING AND AIR CONDITIONING SYSTEM (G0 09 5 (1)) 207
HEATING SYSTEM (G0 09 6 (1)) 208
HEATING SYSTEM (G0 09 6 (2)) 209
MANUAL CLIMATE CONTROL SYSTEM (G0 09 7 (1)) 210
MANUAL CLIMATE CONTROL SYSTEM (G0 09 7 (2)) 211
MANUAL CLIMATE CONTROL SYSTEM (G0 09 8 (1)) 212
VENTILATION – AIR CONDITIONING – HEATING (G0 09 9 (1)) 213
VENTILATION – AIR CONDITIONING – HEATING (G0 09 10 (1)) 214
VENTILATION – AIR CONDITIONING – HEATING (G0 09 10 (2)) 215
CONDENSER – AIR CONDITIONING UNIT (G0 09 11 (1)) 216
CONDENSER – AIR CONDITIONING UNIT (G0 09 12 (1)) 217
HEATING SYSTEM (G0 09 13 (1)) 218
HEATING AND AIR CONDITIONING SYSTEM (G0 09 14 (1)) 219
AIR CONDITIONING UNIT – LINES – WITH MANUAL AIR CONDITIONING (G0 09 15 (1)) 220
AIR CONDITIONING UNIT – LINES – WITH MANUAL AIR CONDITIONING (G0 09 16 (1)) 221
HEATING SYSTEM (G0 09 17 (1)) 222
HEATING AND AIR CONDITIONING SYSTEM (G0 09 18 (1)) 223
COMPRESSOR PIPES (G0 09 19 (1)) 224
COMPRESSOR (G0 09 21 (1)) 225
COMPRESSOR SUPPORTS (G0 09 22 (1)) 226
COMPRESSOR-PARTS (0 007 7197 4 A) 227
HEATER PARTS (0 010 8108 4/30 A) 228
AIR-CONDITIONING HEATING PARTS (0 010 9215 4/30 A) 229
CONDENSER (0 014 8525 4 A) 231
CLIMATE CONTROL (0 015 5549 4/10 A) 232
HEATING CONTROL (0 015 5594 4/10 A) 233
MECHANICAL CLUTCH CONTROLS 234
CLUTCH CONTROL (G0 10 0 (1)) 234
CLUTCH CONTROL (G0 10 2 (1)) 235
CYLINDER PARTS (0 007 1961 4/20 A) 236
PUMP-COMPONENTS (0 255 6538 4/50 A) 237
MECHANICAL BRAKE CONTROLS 238
BRAKE AND CLUTCH FLUID RESERVOIR (G0 11 1 (1)) 238
BRAKE CONTROLS (G0 11 2 (1)) 239
HAND BRAKE (G0 11 3 (1)) 240
BRACKET FOR HANDBRAKE (G0 11 4 (1)) 241
TRAILER HANDBRAKE CONTROL CABLE – ITALY (G0 11 5 (1)) 242
HANDBRAKE BRACKET FOR TRAILER (G0 11 6 (1)) 243
MECHANICAL – ELECTRONIC THROTTLE CONTROLS 244
ELECTRONIC ACCELERATOR CONTROL (G0 12 0 (1)) 244
ELECTRONIC ACCELERATOR CONTROL (G0 12 1 (1)) 245
STEERING CONTROLS 246
STEERING WHEEL CAP (G0 13 3 (1)) 246
STEERING WHEEL (G0 13 4 (1)) 247
STEERING COLUMN (G0 13 5 (1)) 248
STEERING COLUMN (G0 13 5 (2)) 249
STEERING ADJUSTMENT (G0 13 6 (1)) 250
MECHANICAL GEARSHIFT CONTROLS 251
GEAR SHIFTING (G0 14 0 (1)) 251
GEARSHIFT LEVER – FOR TYPES WITH MINREDUCTION (G0 14 3 (1)) 252
KNOB FOR MECHANICAL SHUTTLE (G0 14 4 (1)) 253
KNOB FOR 3-RANGE GEARBOX (G0 14 5 (1)) 254
PTO CONTROLS 255
P T O SHAFT DRIVE (G0 16 0 (1)) 255
P T O SHAFT DRIVE (G0 16 1 (1)) 256
P T O SHAFT DRIVE (G0 16 1 (2)) 257
LIFT CONTROLS 258
SLIDER FOR LIFT CONTROL LEVERS (G0 17 0 (1)) 258
LIFT CONTROL LEVERS (G0 17 1 (1)) 259
TIE RODS FOR LIFT CONTROL LEVERS (G0 17 2 (1)) 260
S A C GROUND CONTROL (G0 17 3 (1)) 261
S A C GROUND CONTROL (G0 17 4 (1)) 262
S A C GROUND CONTROL (G0 17 5 (1)) 263
S A C GROUND CONTROL (G0 17 6 (1)) 264
REMOTE VALVE CONTROLS 265
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0 18 0 (1)) 265
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0 18 1 (1)) 266
OIL REGULATOR CONTROL (G0 18 2 (1)) 267
ACCESSORIES 268
ASHTRAY (G0 19 0 (1)) 268
SUN BLIND (G0 19 1 (1)) 269
SUN BLIND (G0 19 2 (1)) 270
LICENCE PLATE HOLDER (G0 19 3 (1)) 271
FRONT NUMBER PLATE BRACKET (G0 19 4 (1)) 272
FRONT NUMBER PLATE BRACKET (G0 19 5 (1)) 273
METAL TOOLBOX (G0 19 6 (1)) 274
HOLDING DEVICE – WHEEL CHOCK (G0 19 7 (1)) 275
TRIANGLE SUPPORT (G0 19 8 (1)) 276
LUBRICATOR (G0 19 9 (1)) 277
SAFETY ROLL BAR 278
SAFETY ARCH (G0 20 0 (1)) 278
FIXED SAFETY ROLL BAR (G0 20 0 (2)) 279
SAFETY ARCH FOLDING (G0 20 1 (1)) 280
Electrical_system 281
Index 281
DORADO³ 60 -> 5001 285
L0 – ELECTRIC AL SYSTEM 285
BATTERY – ALTERNATOR 285
BATTERY 12V 88Ah 580A (L0 01 0 (1)) 285
ALTERNATOR 14V – 65A – ISKRA (L0 01 1 (1)) 286
ALTERNATOR 85A (L0 01 2 (1)) 287
ALTERNATOR AND PULLEY SUPPORTS (L0 01 3 (1)) 288
ALTERNATOR AND PULLEY SUPPORTS (L0 01 3 (2)) 289
ALTERNATOR AND PULLEY SUPPORTS (L0 01 4 (1)) 290
ALTERNATOR AND PULLEY SUPPORTS (L0 01 4 (2)) 291
ALTERNATOR PARTS (2 9439 420 0/10 A) 292
ALTERNATOR PARTS (2 9439 460 0/10 A) 293
WIRING LOOMS 294
HEADLIGHTS / HORN WIRING (L0 02 0 (1)) 294
HEADLIGHTS / HORN WIRING (L0 02 1 (1)) 295
wiring for front sidelights and direction indicators (L0 02 4 (1)) 296
ELECTRICAL SYSTEM FOR REAR/FRONT LIGHTS (L0 02 5 (1)) 297
wiring for front sidelights and direction indicators (L0 02 6 (1)) 298
wiring for front sidelights and direction indicators (L0 02 7 (1)) 299
WIRING FOR HEADLIGHTS IN BASSO (L0 02 8 (1)) 300
ELECTRICAL SYSTEM FOR REAR LIGHTS (L0 02 9 (1)) 301
WIRING FOR WORKLIGHTS AND FLASHING LIGHT (L0 02 10 (1)) 302
ELECTRICAL WIRE FOR REAR WORKLIGHT (L0 02 11 (1)) 303
PREARRANGEMENT FOR WARNING BEACON (L0 02 12 (1)) 304
ELECTRICAL EQUIPMENT ROTARY WARN LAMP (L0 02 13 (1)) 305
ELECTRICAL EQUIPMENT FRONT – BATTERY LEADS (L0 02 14 (1)) 306
CENTRAL WIRING LOOM (L0 02 17 (1)) 307
CENTRAL WIRING LOOM (L0 02 19 (1)) 308
TRAILER SOCKET-OUTLET (L0 02 20 (1)) 309
TRAILER SOCKET FIXING (L0 02 21 (1)) 310
ELECTRICAL EQUIPMENT REAR (L0 02 23 (1)) 311
ELECTRICAL EQUIPMENT REAR (L0 02 25 (1)) 312
CAB POWER SUPPLY WIRING (L0 02 26 (1)) 313
CAB ELECTRICAL SYSTEM (L0 02 27 (1)) 314
CAB ELECTRICAL SYSTEM (L0 02 28 (1)) 315
CAB ELECTRICAL SYSTEM (L0 02 29 (1)) 316
CAB ELECTRICAL SYSTEM (L0 02 30 (1)) 317
WIRING FOR WINDSCREEN WIPER MOTOR (L0 02 31 (1)) 318
CABLE HARNESS – AIR CONDITIONING SYSTEM (L0 02 32 (1)) 319
SINGLE POLE SOCKET – DOUBLE POLE SOCKET – LIGHTS FLASHER RELAY (L0 02 34 (1)) 320
SINGLE POLE SOCKET – DOUBLE POLE SOCKET – LIGHTS FLASHER RELAY (L0 02 36 (1)) 321
POWER SUPPLY ELECTRICAL SYSTEM (L0 02 37 (1)) 322
ELECTRICAL WIRE FOR OIL FILTER CLOGGING SENSOR 8″ (L0 02 39 (1)) 323
ELECTRICAL CABLE FOR OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L0 02 40 (1)) 324
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 02 41 (1)) 325
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 02 41 (2)) 326
ELECTRICAL SWITCH WIRE P T O 540/N (L0 02 42 (1)) 327
ELECTRIC LEAD FOR PTO (L0 02 43 (1)) 328
ELECTRIC LEAD FOR PTO (L0 02 44 (1)) 329
PRESSURE SWITCH WIRING FOR TRAILER HYDRAULIC BRAKING SYSTEM – ITALY (L0 02 45 (1)) 330
FRONT P T O SOLENOID VALVE ELECTRICAL CABLE (L0 02 46 (1)) 331
GEARBOX CONTROL ELECTRIC CABLE (L0 02 47 (1)) 332
WIRING FOR PNEUMATIC SEAT MSG 93/721 (L0 02 48 (1)) 333
ELECTRICAL SYSTEM (0 009 7853 3/20 A) 334
FLASHING LIGHT SUPPORT (0 011 7840 4 A) 335
ELECTRIC WIRING FOR PARKING LIGHTS AND DIRECTION INDICATORS, FRONT AND REAR (0 013 4910 4 A) 336
BATTERY LEADS (0 014 1647 4 A) 337
PARTS FOR ELECTRICAL SYSTEM (0 016 0865 4/10 A) 338
POWER SUPPLY ELECTRICAL SYSTEM (0 016 6285 4 A) 339
ELECTRICAL EQUIPMENT FRONT (0 016 6287 4 A) 340
CENTRAL WIRING LOOM (0 016 6290 4/10 A) 341
CENTRAL WIRING LOOM (0 016 6299 4/10 A) 342
ECUs 343
ELECTRONICS BOX (L0 03 0 (1)) 343
CONTROL UNIT SUPPORT (L0 03 1 (1)) 344
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 03 2 (1)) 345
ECU SUPPORT FOR ELECTRONIC REAR LIFT (L0 03 3 (1)) 346
CONTROL UNIT – P T O SHAFT (L0 03 5 (1)) 347
CONTROL UNIT – P T O SHAFT (L0 03 7 (1)) 348
SENSORS – POTENTIOMETERS – ENABLING SWITCHES 349
COOLING SYSTEM MANIFOLD SENSORS (L0 04 0 (1)) 349
AIR CLEANER AND ENGINE OIL FILTER CLOGGING PRESSURE SWITCH (L0 04 2 (1)) 350
ENGINE OIL PRESSURE SWITCH (L0 04 3 (1)) 351
HYDRAULIC SYSTEM PRESSURE SWITCH (L0 04 7 (1)) 352
OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L0 04 9 (1)) 353
OIL FILTER CLOGGING SENSOR 8″ (L0 04 10 (1)) 354
START ENABLE SWITCH (L0 04 11 (1)) 355
SPEED SENSOR (L0 04 16 (1)) 356
SPEED SENSOR (L0 04 17 (1)) 357
PTO SPEED SENSOR 540/N WITH INTERCHANGEABLE OUTPUT SHAFTS (L0 04 18 (1)) 358
P T O SWITCH (L0 04 19 (1)) 359
SWITCHES FOR 2-SPEED PTO WITH FIXED OUTPUT SHAFT 540-750 (L0 04 20 (1)) 360
SWITCH FOR 2-SPEED P T O WITH INSERTED END SHAFTS 540-750 (L0 04 21 (1)) 361
SWITCHES FOR 2-SPEED WITH FIXED OUTPUT SHAFT + SYNCRO AND 3 SPEEDS (L0 04 22 (1)) 362
SWITCH FOR P T O WITH INSERTED END SHAFTS – 2 -SPEED + GROUNDSP AND 3- SPEED (L0 04 23 (1)) 363
SWITCHES AND SENSOR FOR 3-SPEED P T O WITH INSERTED OUTPUT SHAFTS 540-750-1000 (L0 04 24 (1)) 364
ELECTRONIC ACCELERATOR CONTROL SENSOR (L0 04 25 (1)) 365
ELECTRONIC ACCELERATOR CONTROL SENSOR (L0 04 26 (1)) 366
PRESSURE SWITCH FOR HYDRAULIC TRAILER BRAKING SYSTEM – ITALY (L0 04 29 (1)) 367
CLUTCH AND BRAKE LIGHT SWITCHES (L0 04 31 (1)) 368
HAND BRAKE SWITCHES (L0 04 33 (1)) 369
HANDBRAKE SWITCH / CLUTCH SWITCH (L0 04 35 (1)) 370
REAR LIFT POSITION SENSOR (L0 04 36 (1)) 371
REAR LIFT POSITION SENSOR (L0 04 37 (1)) 372
AIR DUCT RESISTOR (L0 04 38 (1)) 373
INSTRUMENT PANEL 374
DIGITAL INSTRUMENT PANEL (L0 05 0 (1)) 374
ELECTRICAL CONTROLS – PUSHBUTTONS 375
GEAR SHIFTING (L0 07 2 (1)) 375
STEERING COLUMN SWITCH UNIT (L0 07 3 (1)) 376
KEYSWITCH BLOCK AND PUSHBUTTONS (L0 07 8 (1)) 377
KEYSWITCH BLOCK AND PUSHBUTTONS (L0 07 10 (1)) 378
STARTER SWITCH BLOCK COVER (L0 07 11 (1)) 379
STARTER SWITCH BLOCK COVER (L0 07 12 (1)) 380
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (L0 07 13 (1)) 381
OPERATION – FRONTP T O SHAFT (L0 07 14 (1)) 382
SWITCHES FOR WORKLIGHTS AND FLASHING LIGHT (L0 07 15 (1)) 383
REAR WORKLIGHT SWITCH (L0 07 16 (1)) 384
LOW FRONT WORKLIGHTS SWITCH (L0 07 17 (1)) 385
PRE-HEATER BUTTON (L0 07 19 (1)) 386
PRE-HEATER BUTTON (L0 07 21 (1)) 387
ELECTRONIC ACCELERATOR MEMORY PUSHBUTTON (L0 07 22 (1)) 388
CAB TOP SWITCHES (L0 07 23 (1)) 389
CAB TOP SWITCHES (L0 07 24 (1)) 390
CAB TOP SWITCHES (L0 07 25 (1)) 391
CAB TOP SWITCHES (L0 07 26 (1)) 392
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 07 27 (1)) 393
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0 07 27 (2)) 394
LIGHTING AND SIGNALLING 395
HEADLIGHTS \ HORN (L0 08 0 (2)) 395
HEADLIGHTS \ HORN (L0 08 1 (2)) 396
FRONT/REAR LIGHTS (L0 08 4 (1)) 397
FRONT/REAR LIGHTS (L0 08 5 (1)) 398
LIGHT SUPPORT WITH FIXED SAFETY ROLL BAR (L0 08 6 (1)) 399
LIGHT SUPPORT WITH FOLDING SAFETY ROLL BAR (L0 08 7 (1)) 400
FRONT SIDELIGHTS AND TURN INDICATORS (L0 08 8 (1)) 401
FRONT SIDELIGHTS AND TURN INDICATORS (L0 08 9 (1)) 402
FRONT/REAR LIGHTS (L0 08 10 (1)) 403
REAR LIGHTS / REFLECTORS (L0 08 11 (1)) 404
WORKING SPOTLIGHT REAR (L0 08 12 (1)) 405
REAR WORKLIGHT (L0 08 13 (1)) 406
WORKING SPOTLIGHT FRONT/REAR (L0 08 14 (1)) 407
WORKING SPOTLIGHT FRONT/REAR (L0 08 14 (2)) 408
WORKING SPOTLIGHT FRONT/REAR (L0 08 15 (1)) 409
WORKING SPOTLIGHT FRONT/REAR (L0 08 15 (2)) 410
WORKING SPOTLIGHT FRONT BOTTOM (L0 08 16 (1)) 411
FRONT/REAR WORKLIGHTSAND INTERIOR ROOF LIGHT (L0 08 17 (1)) 412
WARNING BEACON (L0 08 18 (1)) 413
WARNING BEACON (L0 08 19 (1)) 414
LICENCE PLATE LIGHT (L0 08 20 (1)) 415
RETROREFLECTOR (L0 08 21 (1)) 416
COURTESY LIGHT (L0 08 22 (1)) 417
COURTESY LIGHT (L0 08 23 (1)) 418
COURTESY LIGHT (L0 08 24 (1)) 419
COURTESY LIGHT (L0 08 25 (1)) 420
WARNING BEACON (0 013 0868 4 A) 421
HEADLAMP COMPONENTS (04411920 4 A) 422
HEADLAMP COMPONENTS (04411921 4 A) 423
HEADLAMP COMPONENTS (2 8019 180 0 A) 424
HEADLAMP COMPONENTS (2 8019 190 0 A) 425
HEADLAMP COMPONENTS (2 8019 200 0 A) 426
HEADLAMP COMPONENTS (2 8019 960 0 A) 427
HEADLAMP COMPONENTS (2 8019 970 0 A) 428
HEADLAMP COMPONENTS (2 8029 300 0 A) 429
HEADLAMP COMPONENTS (2 8029 730 0 A) 430
HEADLAMP COMPONENTS (2 8039 004 0 A) 431
HEADLAMP COMPONENTS (2 8039 005 0 A) 432
HEADLAMP COMPONENTS (2 8039 008 0 A) 433
HEADLAMP COMPONENTS (2 8039 180 0/10 A) 434
HEADLAMP COMPONENTS (2 8039 299 0 A) 435
HEADLAMP COMPONENTS (2 8059 440 0/10 A) 436
HEADLAMP COMPONENTS (2 8059 450 0 A) 437
HEADLAMP COMPONENTS (2 8059 460 0 A) 438
HEADLAMP COMPONENTS (2 8059 490 0 A) 439
LICENCE PLATE LIGHT (2 8059 526 0 A) 440
INTERIOR LIGHT (2 8339 032 0 A) 441
ACCESSORIES 442
CIGAR LIGHTER (L0 09 0 (1)) 442
LOUDSPEAKERS AND RADIO ANTENNA (L0 09 1 (1)) 443
LOUDSPEAKERS (L0 09 2 (1)) 444
LOUDSPEAKERS (L0 09 3 (1)) 445
RADIO ANTENNA (L0 09 4 (1)) 446
RADIO ANTENNA (L0 09 4 (2)) 447
RADIO ANTENNA (L0 09 5 (1)) 448
RADIO ANTENNA (L0 09 5 (2)) 449
Engine 450
Index 450
DORADO³ 60 -> 5001 452
B0 – ENGINE 452
CYLINDER BLOCK 452
CRANKCASE (B0 01 0 (1)) 452
MONOBLOC ENGINE-GEARBOX CONNECTING FLANGE (B0 01 2 (1)) 453
CRANKSHAFT 454
CRANKSHAFT PULLEY (B0 02 0 (1)) 454
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0 02 1 (1)) 455
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0 02 3 (1)) 456
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0 02 4 (1)) 457
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0 02 5 (1)) 458
CRANKSHAFT (B0 02 6 (1)) 459
ENGINE FLYWHEEL (B0 02 9 (1)) 460
CYLINDERS – PISTONS – CONNECTING RODS 461
CYLINDER – PISTON – CONNECTING ROD (B0 03 0 (1)) 461
TIMING 462
TIMING CASE (B0 04 0 (1)) 462
TIMING COVER FIXING (B0 04 2 (1)) 463
CASING COVER (B0 04 3 (1)) 464
CAMSHAFT (B0 04 4 (1)) 465
CYLINDER HEAD 466
CYLINDER HEAD (B0 05 0 (1)) 466
LUBRICATION 467
ENGINE OIL PUMP (B0 06 0 (1)) 467
LUBRICATION (B0 06 4 (1)) 468
BLOW-BY HOSE BRACKET (B0 06 8 (1)) 469
LUBRICANT OIL SUCTION PIPE (B0 06 10 (1)) 470
LUBRICATION (B0 06 12 (1)) 471
ENGINE OIL FILTER (B0 06 16 (1)) 472
ENGINE OIL PAN (B0 06 17 (1)) 473
OIL PIPES FOR TURBOCHARGER (B0 06 19 (1)) 474
FUEL INJECTION SYSTEM 475
INJECTION PUMP – INJECTOR (B0 07 0 (1)) 475
INJECTION PUMP DRIVE (B0 07 3 (1)) 476
MECHANICAL – ELECTRONIC GOVERNOR 477
ELECTRONIC MOTOR CONTROLLER (B0 08 0 (1)) 477
COOLING 478
COOLING SYSTEM MANIFOLD (B0 09 0 (1)) 478
ENGINE COOLING WATER PUMP (B0 09 2 (1)) 479
COOLANT PIPE (B0 09 3 (1)) 480
WATER PUMP HOSES (B0 09 5 (1)) 481
COOLANT PUMP PULLEY (B0 09 7 (1)) 482
WATER COOLING -SEALING (B0 09 9 (1)) 483
HEAT EXCHANGER (B0 09 11 (1)) 484
LUBRIC OIL COOLER (0 007 0172 0 A) 485
COOLING WATER PUMP (0 016 0460 4 A) 486
INTAKE – EXHAUST MANIFOLDS 487
AIR INTAKE MANIFOLD – EXHAUST MANIFOLD (B0 10 0 (1)) 487
TURBOCHARGER 488
TURBOCHARGER (B0 11 0 (1)) 488
Engine_accessories 489
Index 489
DORADO³ 60 -> 5001 490
C0 – ENGINE ACCESSORIES 490
RADIATORS – FANS 490
BLOWER (C0 01 0 (1)) 490
COOLING – COOLANT RADIATOR (C0 01 2 (1)) 491
COOLING – EXPANSION TANK (C0 01 4 (1)) 492
COOLING SYSTEM EXPANSION TANK (0 016 1528 4 A) 493
INTERCOOLER – AIR CLEANER 494
8″ AIR CLEANER (C0 02 1 (1)) 494
8″ AIR CLEANER WITH DUST EXHAUSTER (C0 02 2 (1)) 495
AIR CLEANER HOSE (C0 02 3 (1)) 496
AIR CLEANER (2 4249 718 0 A) 497
FUEL SYSTEM 498
FUEL TANK (C0 03 0 (1)) 498
FUEL TANK (C0 03 0 (2)) 499
FUEL TANK SUPPORTS (C0 03 1 (1)) 500
FUEL FEED PUMP (C0 03 2 (1)) 501
FUEL FILTER (C0 03 4 (1)) 502
FUEL FEED PIPES AND PREFILTER (C0 03 6 (1)) 503
FUEL PIPES (C0 03 8 (1)) 504
PRE-FILTER – COMPONENTS (2 4319 220 0 A) 505
FUEL FILTER PARTS (2 4319 230 0 A) 506
FUEL FEED PUMP (2 4519 330 0/50 A) 507
PREHEATING 508
HEATING ELEMENT (C0 04 0 (1)) 508
HEATING ELEMENT EARTH (C0 04 3 (1)) 509
STARTER MOTOR 510
STARTER (C0 05 0 (1)) 510
STARTER (C0 05 0 (2)) 511
STARTER MOTOR COVER (C0 05 2 (1)) 512
STARTER PARTS (2 9619 400 0 A) 513
EXHAUST SILENCER 514
EXHAUST SILENCER (C0 06 0 (1)) 514
EXHAUST SILENCER PIPE (C0 06 2 (1)) 515
VERICAL EXHAUST SILENCER (C0 06 3 (1)) 516
VERICAL EXHAUST SILENCER (C0 06 4 (1)) 517
ELECTRICAL ACCESSORIES 518
SOLENOID VALVE (C0 08 0 (1)) 518
SOLENOID VALVE PROTECTION (C0 08 4 (1)) 519
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/20 A) 520
SEALING SET 521
GASKET SET FOR ENGINE ASSEMBLY (C0 09 0 (1)) 521
Front_axle 522
Index 522
DORADO³ 60 -> 5001 523
F0 – FRONT AXLE 523
FRONT SUPPORT 523
FRONT SUPPORT (F0 01 0 (1)) 523
FRONT SUPPORT – WITH FRONT PTO AND LIFT (F0 01 1 (1)) 524
BLANKING PLUGS FOR TYPES WITHOUT FRONT PTO BUT WITH PROVISION FOR FUTURE INSTALLATION (F0 01 2 (1)) 525
4WD – FRONT SUPPORT (F0 01 4 (1)) 526
FRONT SUPPORT – FIXINGS (F0 01 5 (1)) 527
4WD FRONT AXLE 528
4WD – FRONT DRIVE AXLE (F0 03 0 (1)) 528
4WD – FRONT DRIVE AXLE (F0 03 1 (1)) 529
4WD – FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0 03 2 (1)) 530
4WD – FRONT AXLE YOKES KIT (F0 03 3 (1)) 531
4WD – STANDARD SEALING (F0 03 4 (1)) 532
STEERING ROD – MECH STEERING – TELESCOPIC AXLE (0 010 0488 4/10 A) 533
FRONT DIFFERENTIAL 534
4WD – BEVEL WHEEL GEAR Z = 15 / Z = 33 (F0 04 0 (1)) 534
4WD – FRONT DIFFERENTIAL LOCK- STANDARD SEALING (F0 04 1 (1)) 535
DIFFERENTIAL BEVEL GEAR PAIR (F0 04 2 (1)) 536
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (F0 04 3 (2)) 537
4WD – FLANGE (F0 04 4 (1)) 539
4WD – TRANSMISSION SHAFT (F0 04 5 (1)) 540
4WD – PROPELLER SHAFT (F0 04 6 (1)) 541
STEERING CYLINDER 542
STEERING CYLINDER – 4WD (F0 05 0 (1)) 542
CYLINDER PARTS (0 009 9892 4/10 A) 543
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS 544
4WD – FRONT REDUCTION GEARBOX (F0 06 0 (2)) 544
4WD – FRONT REDUCTION GEARBOX (F0 06 0 (3)) 545
4WD – AXLESHAFTS (F0 06 1 (1)) 546
FRONT WHEEL HUB COVER (F0 06 2 (1)) 547
4WD – AXLESHAFTS (0 009 6694 4/30 B) 548
FRONT BRAKES 549
4WD – FRONT BRAKES (F0 07 0 (1)) 549
Front_lift 550
Index 550
DORADO³ 60 -> 5001 551
N0 – FRONT LIFT 551
LIFT ASSEMBLY 551
FRONT HYDRAULIC POWER-LIFT (N0 01 0 (1)) 551
HYDRAULIC CYLINDER (2 3749 007 0 A) 552
Front_pto 553
Index 553
DORADO³ 60 -> 5001 554
M0 – FRONT PTO 554
PTO INPUT SHAFT 554
PTO INPUT SHAFT (M0 01 0 (1)) 554
FRONT PTO COVER – PROTECTIONS 555
P T O GUARD (M0 02 0 (1)) 555
GEARS AND CLUTCH 556
P T O FRONT (M0 03 0 (1)) 556
P T O FRONT (M0 03 1 (1)) 558
HYDRAULIC SYSTEM 559
FRONT PTO HYDRAULIC SYSTEM (M0 04 0 (1)) 559
FRONT PTO HYDRAULIC SYSTEM (M0 04 1 (1)) 560
FRONT PTO HYDRAULIC SYSTEM (M0 04 1 (2)) 561
FITTING WITH CHOKE SCREW (M0 04 4 (1)) 562
FRONT PTO PACKAGE (M0 04 5 (1)) 563
VALVE (M0 04 6 (1)) 564
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/20 A) 565
Hydraulic_and_pneumatic_system 566
Index 566
DORADO³ 60 -> 5001 568
H0 – HYDRAULIC AND PNEUMATIC SYSTEM| 568
HYDRAULIC SYSTEM 568
GEARBOX OIL COOLER PIPES (H0 01 0 (1)) 568
HYDRAULIC PUMP 14 cc – sx/lh/li (H0 01 2 (1)) 569
HYDRAULIC PUMP 22 5 cc – dx/rh/re (H0 01 5 (1)) 570
SUCTION HYDRAULIC SYSTEM (H0 01 6 (1)) 571
SUCTION HYDRAULIC SYSTEM WITH 22 5 CC PUMP (H0 01 7 (1)) 572
GEAR BOX OIL FEED PIPES (H0 01 8 (1)) 573
POWER STEERING OIL FEED HYDRAULIC SYSTEM (H0 01 9 (1)) 574
LUBRIC OIL FILTER 8 ” (H0 01 10 (1)) 575
BYPASS VALVE ASSEMBLY (H0 01 11 (1)) 576
BYPASS VALVE ASSEMBLY (H0 01 12 (1)) 577
OIL CONTROL VALVES HOUSING PIPES (H0 01 13 (1)) 578
HYDRAULIC SYSTEM (H0 01 16 (1)) 579
HYDRAULIC SYSTEM (H0 01 17 (1)) 580
LUBRICATION (H0 01 18 (1)) 581
LUBRICATION (H0 01 19 (1)) 582
LUBRICATION WITH FRONT PTO (H0 01 20 (1)) 583
LUBRICATION WITH FRONT PTO (H0 01 21 (1)) 584
SUPPLY LINE TO REMOTE CONTROL VALVE (H0 01 23 (1)) 585
PIPE FROM AUX CONTROL VALVE TO MECHANICAL REAR LIFT CONTROL VALVE (H0 01 24 (1)) 586
PIPE FROM AUX CONTROL VALVE TO ELECTRONIC REAR LIFT CONTROL VALVE (H0 01 25 (1)) 587
FRONT DIFFERENTIAL LOCK PIPE (H0 01 26 (1)) 588
FRONT DIFFERENTIAL LOCK PIPE (H0 01 27 (1)) 589
FRONT DIFFERENTIAL LOCK PIPE (H0 01 28 (1)) 590
REAR LIFT CYLINDER BARREL (H0 01 30 (1)) 591
REAR LIFT CYLINDER BARREL (H0 01 31 (1)) 592
REAR LIFT CYLINDER BARREL (H0 01 32 (1)) 593
DETAILS OF OIL FILTER (2 4419 490 0/30 A) 594
HYDRAULIC PUMP PARTS (2 4539 120 0/10 A) 595
HYDRAULIC PUMP PARTS (2 4539 620 0/10 A) 596
STEERING SYSTEM 597
HYDROSTATIC STEERING CONTROL VALVE (H0 02 0 (1)) 597
HYDRAULIC SYSTEM OF POWER STEERING DELIVERY AND RADIATOR RETURN (H0 02 1 (1)) 598
PIPES FOR HYDROSTATIC STEERING – 4WD (H0 02 4 (1)) 599
HYDRAULIC STEERING GEAR (2 4569 005 0 A) 600
TRANSMISSION – PTO COOLERS 601
GEARBOX OIL COOLER (H0 03 0 (1)) 601
FRONT LIFT 602
FRONT LIFT – HYDRAULIC SYSTEM (H0 05 0 (1)) 602
FRONT LIFT – HYDRAULIC SYSTEM (H0 05 1 (1)) 603
FRONT LIFT – HYDRAULIC SYSTEM (H0 05 1 (2)) 604
FRONT LIFT – HYDRAULIC SYSTEM (H0 05 2 (1)) 605
PRESSURE CONTROL VALVE (0 009 2038 4/10 A) 606
REAR REMOTE CONTROL VALVES 607
6-WAY AUXILIARY DISTRIBUTOR (H0 07 0 (1)) 607
6-WAY AUXILIARY DISTRIBUTOR (H0 07 1 (1)) 608
6-WAY AUXILIARY DISTRIBUTOR (H0 07 2 (1)) 609
AUXILIARY CONTROL VALVE SYSTEM (H0 07 3 (1)) 610
AUXILIARY CONTROL VALVE SYSTEM (H0 07 4 (1)) 611
QUICK-ACTION PROTECTIONS – 6-WAY (H0 07 5 (1)) 612
EXHAUST SYSTEM (H0 07 6 (1)) 613
EXHAUST SYSTEM (H0 07 7 (1)) 614
TANK – PARTS (0 011 0212 3 A) 615
ENGAGEMENT (0 98309 50 3/10 A) 616
DISTRIBUTOR (2 3729 720 0/20 A) 617
BRAKING SYSTEM AND PNEUMATIC SYSTEM| 618
FLOW CONTROL VALVE (H0 09 0 (1)) 618
BLAKES BLOCK (H0 09 2 (1)) 619
BRAKING SYSTEM (H0 09 3 (1)) 620
BRAKE PIPES – FRONT (H0 09 5 (1)) 621
HYDRAULIC BREAKING FOR TRAILER – ITALY (H0 09 7 (1)) 622
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (H0 09 8 (1)) 623
SYSTEM FROM HYDRAULIC PUMP TO HYDRAULIC BRAKES (H0 09 9 (1)) 624
HYDRAULIC TRAILER BRAKING SYSTEM (H0 09 11 (1)) 625
HYDRAULIC TRAILER BRAKING SYSTEM (H0 09 11 (2)) 626
TRAILER BRAKE VALVE (2 3719 550 0/50 A) 627
VALVE PARTS (2 3719 810 0/20 A) 628
ELECTROHYDRAULICS 629
H-M-L CONTROL (H0 10 1 (1)) 629
OIL FLOW CONTROL VALVE CASING (H0 10 2 (1)) 630
SOLENOID VALVE – 4WD (H0 10 3 (1)) 631
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (2 3729 697 0/20 A) 632
Rear_axle 633
Index 633
DORADO³ 60 -> 5001 634
E0 – REAR AXLE 634
REAR AXLE 634
REAR AXLE (E0 01 0 (1)) 634
PARTS SET FOR REAR AXLE – STANDARD SEAL (E0 01 1 (1)) 635
REAR AXLE CROWN WHEEL (E0 01 2 (1)) 636
REAR AXLE – MOUNTINGS (E0 01 3 (1)) 637
REAR DIFFERENTIAL / HALF-SHAFTS 638
DIFFERENTIAL (E0 02 0 (1)) 638
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (E0 02 1 (1)) 639
REAR REDUCTION GEARS AND AXLE SHAFTS (E0 02 2 (1)) 640
HALF AXLES (E0 02 3 (1)) 641
REAR BRAKES 642
REAR BRAKES (E0 03 0 (2)) 642
REAR BRAKES (E0 03 0 (3)) 643
REAR BRAKES (E0 03 1 (1)) 644
Rear_lift 645
Index 645
DORADO³ 60 -> 5001 646
R0 – REAR LIFT 646
LIFT COVER 646
POWER-LIFT CASE (R0 01 0 (1)) 646
PLUG (R0 01 1 (1)) 647
REAR ELECTRONIC LIFT PLUG (R0 01 2 (1)) 648
LIFT FIXING COMPONENTS (R0 01 3 (1)) 649
LIFT ASSEMBLY 650
LIFTING (R0 02 0 (1)) 650
LIFTING (R0 02 1 (1)) 651
RAISE (R0 02 2 (1)) 652
LIFT CONTROL VALVE 653
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (R0 03 0 (1)) 653
MECHANICAL LIFT CONTROL VALVE FIXING (R0 03 1 (1)) 655
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (R0 03 2 (1)) 656
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (R0 03 3 (1)) 657
DISTRIBUTOR (2 3729 460 0 A) 658
IN-CAB CONTROLS 659
INTERNAL CONTROLS (R0 04 0 (1)) 659
SENSOR 660
SENSITIVE ELEMENTS (R0 05 0 (1)) 660
SENSING ELEMENTS WITH ELECTRONIC CONTROL (R0 05 1 (1)) 661
THREE-POINT LINKAGE – LINK ARMS 662
LIFT ARMS TO GEARBOX LOCK PINS (R0 06 0 (1)) 662
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD (R0 06 2 (1)) 663
3-POINT HITCH WITH HYDRAULIC LIFT ROD (R0 06 3 (1)) 664
TOP LINKATTACHMENT SPRING WITH MECHANICAL REAR LIFT (R0 06 4 (1)) 665
THREE POINT LINKAGE (R0 06 5 (1)) 666
3-POINT LINKAGE (R0 06 6 (1)) 667
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R0 06 7 (2)) 668
TOWING BAR (R0 06 8 (1)) 669
CYLINDER PARTS (0 010 7534 4 A) 670
LINKAGE (0 014 1412 3 A) 671
TOWING HITCH (0 014 1420 3 A) 672
Transmission 673
Index 673
DORADO³ 60 -> 5001 676
D0 – TRANSMISSION 676
MAIN CLUTCH 676
CLUTCH 11″ (D0 01 0 (1)) 676
CLUTCH CONTROL (D0 01 3 (1)) 677
CLUTCH CONTROL (D0 01 4 (2)) 678
HML – HI-LO – SHML 679
H-M-L UNIT (D0 04 2 (1)) 679
H-M-L UNIT (D0 04 3 (1)) 680
GEARBOX INPUT SHAFT 681
GEARBOX INPUT SHAFT (D0 05 2 (1)) 681
GEARBOX INPUT SHAFT (D0 05 3 (1)) 682
SHUTTLE SHAFT (D0 05 4 (1)) 683
SHUTTLE FOR 5-SPEED TRANSMISSION (D0 05 6 (1)) 684
SHUTTLE FOR 5-SPEED TRANSMISSION W/ UNDERDRIVE (D0 05 8 (1)) 685
SYNCHRONISERS (D0 05 10 (1)) 686
SYNCHRONIZER PARTS (0 007 7620 4/10 A) 687
SYNCHRONIZER PARTS (0 009 6826 4 A) 688
PTO INPUT SHAFT 689
P T O – CLUTCH TRANSMISSION SHAFT (D0 06 1 (1)) 689
P T O – CLUTCH TRANSMISSION SHAFT (D0 06 2 (1)) 690
MAIN SHAFT 691
5-SPEED GEARBOX PRIMARY SHAFT (D0 07 2 (1)) 691
5-SPEED GEARBOX PRIMARY SHAFT WITH UNDERDRIVE (D0 07 3 (1)) 692
SECONDARY SHAFT 693
TRANSMISSION SHAFT (D0 08 0 (1)) 693
TRANSMISSION SHAFT – FOR TYPES WITHOUT H-M-L (POWERSHIFT) (D0 08 1 (1)) 694
H-M-L GEARBOX SECONDARY SHAFT (D0 08 3 (2)) 695
5-SPEED GEARBOX SECONDARY SHAFT (D0 08 5 (1)) 696
5-SPEED GEARBOX SECONDARY SHAFT WITH UNDERDRIVE (D0 08 7 (1)) 697
SYNCHRONISERS (D0 08 8 (1)) 698
SYNCHRONISERS (D0 08 9 (1)) 699
SYNCHRONIZER PARTS (0 009 6825 4 A) 700
SYNCHRONIZER PARTS (0 009 6826 4 A) 701
GEARBOX 702
GEARBOX FRONT- FIXINGS (D0 09 0 (1)) 702
GEARBOX FRONT (D0 09 2 (1)) 703
GEARBOX REAR (D0 09 3 (2)) 704
GEARBOX REAR (D0 09 3 (3)) 705
FRONT GEARBOX PLUG (D0 09 5 (1)) 706
PLUG FOR GEARBOX WITHH-M-L (D0 09 7 (1)) 707
PLUGS FOR GEARBOX (D0 09 8 (1)) 708
FRONT GEARBOX PLUG (D0 09 9 (1)) 709
PLUGS FOR GEARBOX (D0 09 10 (1)) 710
GEARBOX UPPER COVER (D0 09 12 (1)) 711
REAR GEARBOX PLUG (D0 09 13 (1)) 712
FRONT GEARBOX PLUG (D0 09 14 (1)) 713
REAR GEARBOX PLUG (D0 09 15 (1)) 714
PLUG FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (D0 09 16 (1)) 715
REAR GEARBOX PLUG (D0 09 17 (1)) 716
SENSOR BRACKET (D0 09 18 (1)) 717
INTERNAL AND EXTERNAL GEARBOX CONTROLS 718
GEARBOX CONTROL ROD (D0 10 0 (1)) 718
5-SPEED GEARBOX INTERNAL CONTROLS (D0 10 3 (2)) 719
INTERNAL CONTROLS OF 5-SPEED GEARBOX WITH UNDERDRIVE (D0 10 4 (2)) 720
GEAR SHIFTING (D0 10 7 (1)) 721
PARTS SET – 5-SPEED GEARBOX (D0 10 8 (1)) 723
PARTS SET – 5-SPEED WITH UNDERDRIVE (D0 10 9 (1)) 724
SPEED RANGE REDUCTION GEAR SHAFT (D0 10 10 (1)) 725
3-RANGE BOX (D0 10 11 (1)) 726
LOW SPEED RANGES 727
BEVEL WHEEL GEAR Z = 12 / Z = 44 (D0 11 0 (1)) 727
BEVEL DRIVE PINION BEARING (D0 11 1 (1)) 728
SPEED RANGE REDUCTION GEAR UNIT (D0 11 2 (1)) 729
3-RANGE BOX 40 Km\h (D0 11 3 (1)) 730
PHONIC WHEEL FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (D0 11 5 (1)) 731
HYDRAULIC REAR PTO CLUTCH 732
P T O – HYDRAULIC CLUTCH (D0 12 0 (2)) 732
P T O – HYDRAULIC CLUTCH (0 011 9686 4/40 A) 733
P T O – HYDRAULIC CLUTCH (0 011 9686 4/40 B) 734
HYDRAULIC PUMP DRIVE 735
P T O – PUMP CONTROL (D0 13 0 (2)) 735
PTO/GROUNDPSPEED DRIVE 736
CONTROL LEVER P T O (D0 14 0 (1)) 736
CONTROL LEVER P T O (D0 14 1 (1)) 737
BEARINGS OF – 2-SPEED P T O (D0 14 2 (1)) 738
P T O – 540/N – WITH INSERTED END SHAFTS (D0 14 4 (1)) 739
CONTROL LEVER P T O (D0 14 5 (1)) 740
P T O – 540/N – WITH INSERTED END SHAFTS (D0 14 6 (1)) 741
P T O – 2 SPEED TYPE 540-750 (D0 14 7 (1)) 742
2-SPEED – PTO WITH FIXED OUTPUT SHAFT 540-750 (D0 14 8 (1)) 743
2-SPEED – PTO WITH FIXED OUTPUT SHAFT 540-750 (D0 14 8 (2)) 744
PTO – 2-SPEED WITH INSERTED END SHAFT 540-750 (D0 14 9 (1)) 745
PTO – 2-SPEED WITH INSERTED END SHAFT 540-750 (D0 14 10 (1)) 746
P T O SHAFT 540 – 750 + SYNCRO (D0 14 11 (1)) 747
P T O SHAFT 540 – 750 + SYNCRO (D0 14 12 (1)) 748
3-SPEED P T O WITH FIXED OUTPUT SHAFT 540-750-1000 (D0 14 13 (1)) 749
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 14 (1)) 750
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 15 (1)) 751
P T O WITH FIXED OUTPUT SHAFT – 2 SPEEDS + SINCRO AND 3 SPEEDS (D0 14 16 (1)) 752
P T O WITH FIXED OUTPUT SHAFT – 2 SPEEDS + SINCRO AND 3 SPEEDS (D0 14 16 (2)) 753
P T O WITH INSERTED END SHAFTS – 2 -SPEED + GROUNDSP AND 3- SPEED (D0 14 17 (1)) 754
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 18 (2)) 755
REAR PTO COVER WITH STANDARD SEAL (D0 14 19 (1)) 756
P T O – 2 SPEED TYPE + SINCRO (D0 14 20 (1)) 757
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 21 (1)) 758
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D0 14 22 (1)) 759
GUARD PLATE P T O (D0 14 23 (1)) 760
GUARD PLATE P T O (D0 14 24 (1)) 761
GUARD PLATE P T O (D0 14 25 (1)) 762
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE 763
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (D0 15 0 (1)) 763
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (D0 15 1 (1)) 764
HAND BRAKE (D0 15 2 (2)) 765
Wheels 766
Index 766
DORADO³ 60 -> 5001 767
S0 – WHEELS 767
FRONT WHEEL BOLTS 767
4WD – FRONT WHEEL MOUNTING (S0 01 1 (1)) 767
REAR WHEEL BOLTS 768
REAR WHEEL BOLTS (S0 02 0 (1)) 768
WHEELS 769
WHEELS 320/70 R20″ A8 (S0 04 0 (1)) 769
WHEELS 320/85R20″(12 4R20″) (S0 04 1 (2)) 770
WHEELS 360/70R20″a8 (S0 04 2 (1)) 771
WHEELS 380/70 R20″ A8 (S0 04 4 (1)) 772
WHEELS 405/70 R20″ (S0 04 5 (1)) 773
WHEELS 420/65R20″ A8 (S0 04 6 (1)) 774
WHEELS 320/70 R24″ A8 (S0 04 7 (1)) 775
WHEELS 420/70 R28″ A8 (S0 04 8 (1)) 776
WHEELS 540/65R28″ A8 (S0 04 9 (1)) 777
WHEELS 380/85R30″(14 9R30″) (S0 04 10 (3)) 778
WHEELS 420/70 R30″ A8 (S0 04 11 (1)) 779
WHEELS 480/70R-30″ a8 (S0 04 12 (1)) 780
WHEELS 480/70R30 GRUNLAND (S0 04 13 (1)) 781
WHEELS 13 6R36″ a8 (S0 04 15 (1)) 782

Customer Support: [email protected]

https://vimeo.com/745282193

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

I.G
