Same Tractor Frutteto’v 80 after 5001 Parts Catalog Manual – PDF DOWNLOAD

Description

Same Tractor Frutteto’v 80 after 5001 Parts Catalog Manual – PDF DOWNLOAD

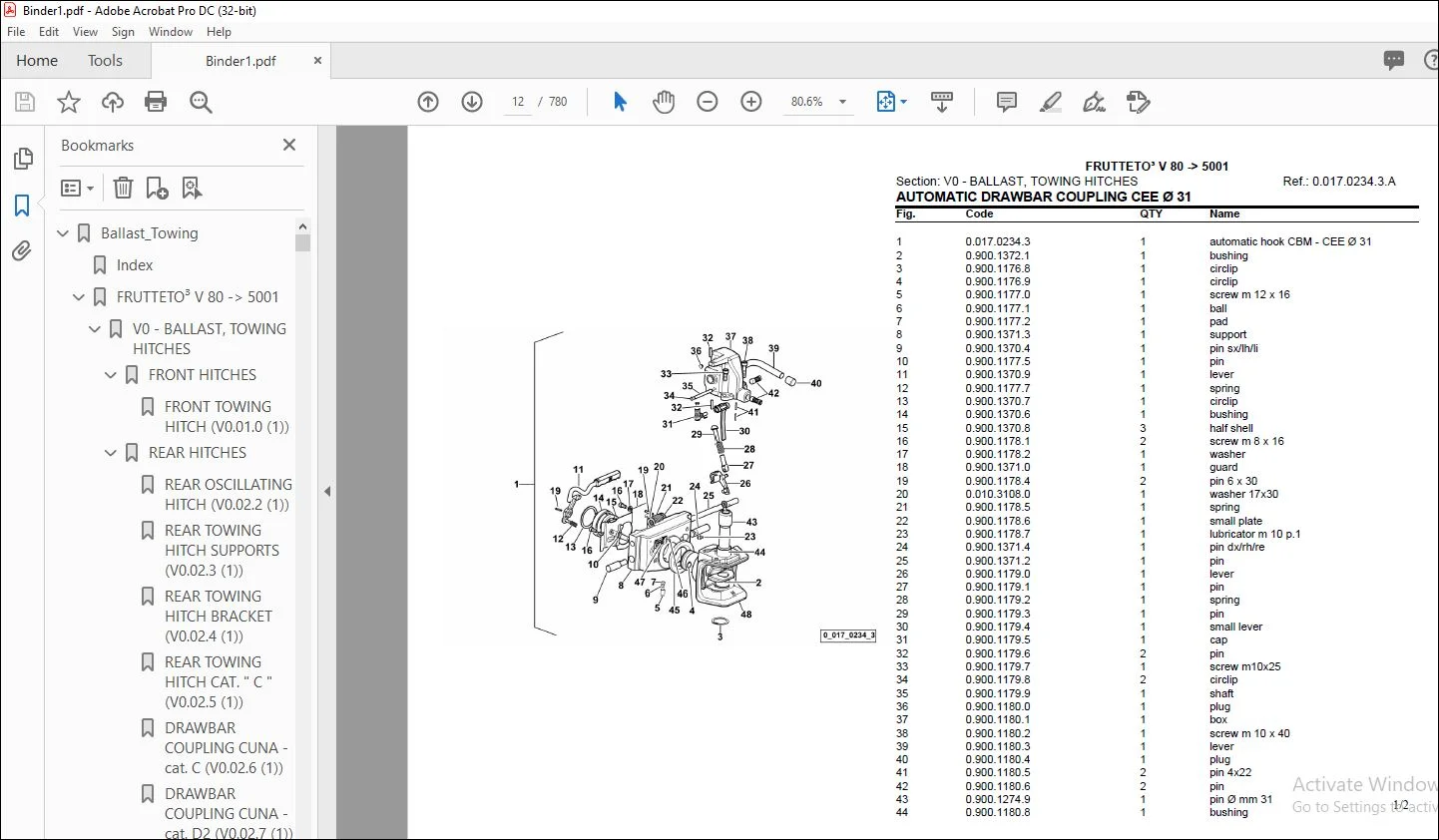

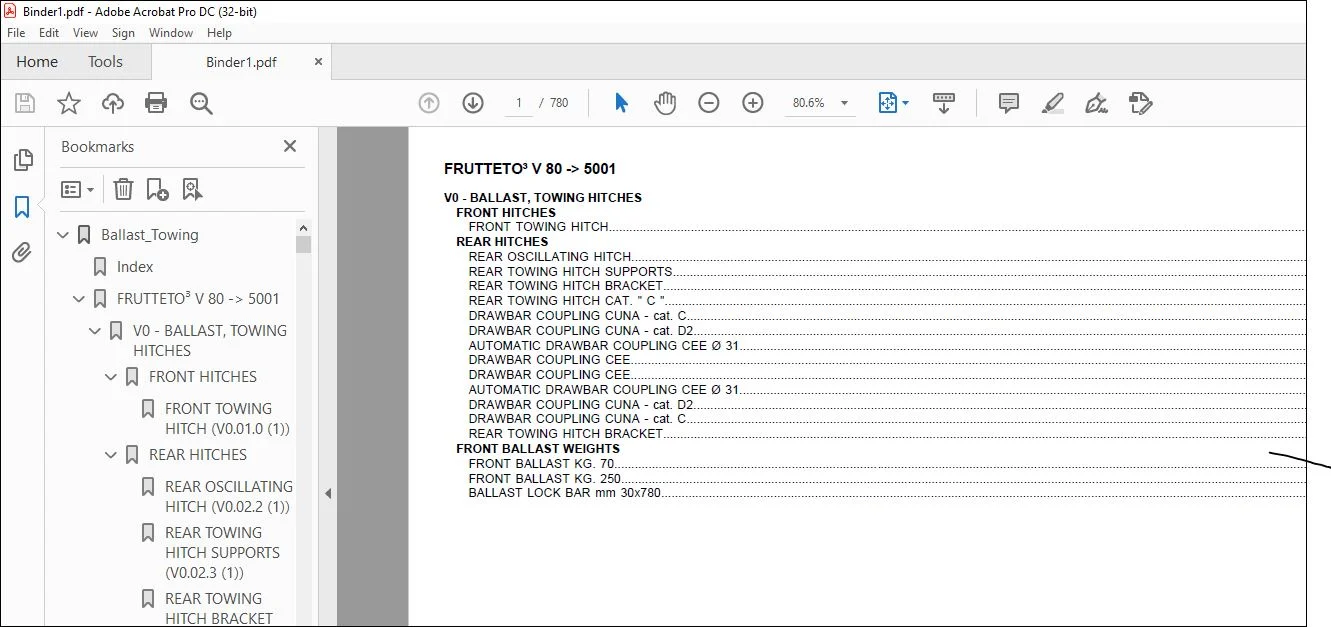

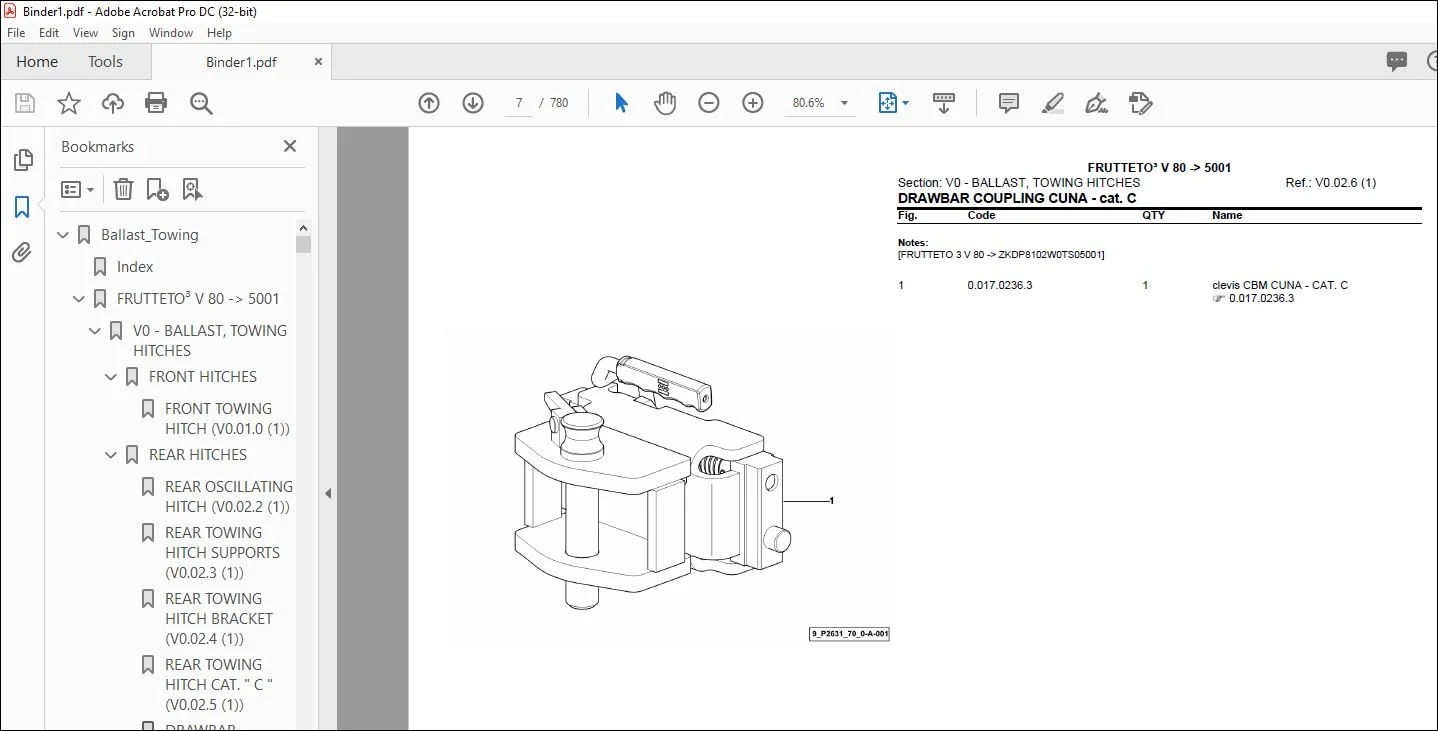

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Same Tractor Frutteto’v 80 after 5001 Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :780
Downloadable : Yes
File Type : PDF
Size:39.1 MB
TABLE OF CONTENTS:

Same Tractor Frutteto’v 80 after 5001 Parts Catalog Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
FRUTTETO³ V 80 -> 5001 2
V0 – BALLAST, TOWING HITCHES 2
FRONT HITCHES 2
FRONT TOWING HITCH (V0010 (1)) 2
REAR HITCHES 3
REAR OSCILLATING HITCH (V0022 (1)) 3
REAR TOWING HITCH SUPPORTS (V0023 (1)) 4
REAR TOWING HITCH BRACKET (V0024 (1)) 5
REAR TOWING HITCH CAT ” C ” (V0025 (1)) 6
DRAWBAR COUPLING CUNA – cat C (V0026 (1)) 7
DRAWBAR COUPLING CUNA – cat D2 (V0027 (1)) 8
AUTOMATIC DRAWBAR COUPLING CEE Ø 31 (V0028 (1)) 9
DRAWBAR COUPLING CEE (V0029 (1)) 10
DRAWBAR COUPLING CEE (001702333A) 11
AUTOMATIC DRAWBAR COUPLING CEE Ø 31 (001702343A) 12
DRAWBAR COUPLING CUNA – cat D2 (001702353A) 14
DRAWBAR COUPLING CUNA – cat C (001702363A) 15
REAR TOWING HITCH BRACKET (001702383A) 16
FRONT BALLAST WEIGHTS 17
FRONT BALLAST KG 70 (V0030 (1)) 17
FRONT BALLAST KG 250 (V0031 (1)) 18
BALLAST LOCK BAR mm 30×780 (V0032 (1)) 19
Bodywork_Cab 20
Index 20
FRUTTETO³ V 80 -> 5001 25
G0 – BODYWORK – CAB 25
HOOD – SIDE PANELS – SUPPORTS 25
HOOD – SUPPORTS (G0010 (1)) 25
HOOD UPPER GRILLE (G0016 (1)) 26
BONNET – FRONT PORTION (G0019 (1)) 27
HOOD INSULATION PANEL (G00112 (1)) 28
HOOD SEAL AND REINFORCEMENT (G00114 (1)) 29
HOOD – SUPPORTS (G00115 (1)) 30
ENGINE HOOD GASKETS (G00117 (1)) 31
HOOD SUPPORT (G00118 (1)) 32
HOOD CATCH (G00119 (1)) 33
CONNECTION FRAME (G00121 (2)) 34
CONNECTION FRAME (G00122 (1)) 35
PEDAL SUPPORT (G00123 (2)) 36
BELT GUARD SUPPORT BRACKET (G00124 (1)) 37
FAN BELT GUARD (G00125 (1)) 38
FAN BELT GUARD (G00126 (1)) 39
SUPPORT (G00127 (1)) 40
FUEL FILTER SUPPORT (G00129 (1)) 41
FUSE AND RELAY SUPPORTS (G00131 (1)) 42
CABLE CONDUIT (G00132 (1)) 43
WIRING SUPPORT BRACKETS (G00135 (1)) 44
BATTERY SUPPORT (G00136 (2)) 45
BATTERY COVER (G00137 (1)) 46
BATTERY COVER (G00138 (1)) 47
SUPPORTS SX/LH/LI – DX/RH/RE (G00139 (1)) 48
SUPPORTS SX/LH/LI – DX/RH/RE (G00141 (1)) 49
LETTERING 50
MODEL PLATE (G0020 (1)) 50
STEERING WHEEL PRODUCT IDENTIFICATION PLATE (G00212 (1)) 51
BADGE FOR SPLASH GUARDS SAME (G00216 (1)) 52
WARNING PLATES (G00220 (1)) 53
WARNING PLATES (G00220 (2)) 54
WARNING PLATES (G00220 (3)) 55
WARNING PLATES (G00221 (1)) 56
WATER COOLER IDENTIFICATION PLATE (G00222 (1)) 57
PTO WARNING PLATE FRONT (G00223 (1)) 58
FOLDING ROLL BAR WARNING PLATE (G00224 (1)) 59
REAR LIFT MOVEMENT WARNING LABEL – DX/RH/RE (G00226 (1)) 60
REAR LIFT MOVEMENT WARNING LABEL – DX/RH/RE (G00227 (1)) 61
REAR LIFT MOVEMENT WARNING LABEL – SX/LH/LI (G00228 (1)) 62
REAR LIFT MOVEMENT WARNING LABEL – SX/LH/LI (G00229 (1)) 63
RH CONSOLE IDENTIFICATION PLATES (G00230 (1)) 64
RH CONSOLE IDENTIFICATION PLATES (G00230 (2)) 65
RH CONSOLE IDENTIFICATION PLATES (G00231 (1)) 66
RH CONSOLE IDENTIFICATION PLATES (G00231 (2)) 67
IDENTIFICATION PLATE PTO (G00232 (1)) 68
START ENABLE PLATE (G00233 (1)) 69
START ENABLE PLATE (G00234 (1)) 70
ELECTRONIC ACCELERATOR CONTROL IDENTIFICATION PLATE (G00235 (1)) 71
INFORMATION PLATE (G00236 (1)) 72
COVER FOR UNDERDRIVE (G00240 (1)) 73
GROUNDSPEED PTO COVER (G00241 (1)) 74
3-RANGE REDUCTION UNIT COVER (G00242 (1)) 75
SPEED DATA PLATES – 40 Km\h (G00243 (1)) 76
SPEED DATA PLATES 25 MPH (G00244 (1)) 77
PTO DATA PLATE 540/N (G00245 (1)) 78
PTO DATA PLATE 540-750 (G00246 (1)) 79
PTO DATA PLATE 540 – 750 + SYNCRO (G00247 (1)) 80
PTO DATA PLATE 540-750-1000 (G00248 (1)) 81
PRINTING FOR FUSE BOX (G00250 (1)) 82
PRINTING FOR FUSE BOX (G00250 (2)) 83
PRINTING FOR FUSE BOX (G00252 (1)) 84
PRINTING FOR FUSE BOX (G00252 (2)) 85
SOLENOID VALVE IDENTIFICATION PLATES (G00253 (1)) 86
FLOW CONTROL PLATE (G00254 (1)) 87
IDENTIFICATION PLATES FOR REAR CONNECTORS (G00256 (1)) 88
IDENTIFICATION PLATES FOR REAR CONNECTORS (G00257 (1)) 89
IDENTIFICATION PLATES FOR CENTRAL SOCKETS 2+1 (G00258 (2)) 90
IDENTIFICATION PLATES FOR CENTRAL SOCKETS 4+1 (G00259 (2)) 91
IDENTIFICATION PLATES FOR CENTRAL SOCKETS 4+1 (G00260 (2)) 92
PLATES FOR MID-MOUNT HYDRAULIC COUPLERS (G00262 (2)) 93
SPEED LABEL – 40 KM/H – REFLEX (G00263 (1)) 94
SPEED LABEL – 40 KM/H (G00264 (1)) 95
WARNING PLATE (G00265 (1)) 96
IDENTIFICATION PLATES FOR 4-WAY FRONT AUXILIARY CONTROL VALVE (G00271 (1)) 97
FLOW DIVIDER CONTROL PLATE (G00272 (1)) 98
CAB STRUCTURE – PLATFORM -SUSPENSION 99
PLATFORM – 20″ (G0030 (1)) 99
SINGLE-STRUCTURE CAB – 20″ (G0033 (1))100
FLOOR PLUG (G0034 (1))101
PLUG FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (G0035 (1))102
SILENTBLOCK AND SUPPORTS (G0036 (1))103
SUPPORTS FOR SILENTBLOCK (G0037 (1))104
FASTENERS FOR SILENTBLOCK (G0038 (1))105
SPREADER PLATES (G0039 (1))106
FENDERS – FOOTSTEPS – EXTENSIONS107
FRONT MUDGUARDS mm 240 (G0041 (1))107
FRONT MUDGUARDS mm 265 (G0043 (1))108
MUDGUARDS EXTENSIONS mm 50 (G0044 (1))109
MUDGUARDS EXTENSIONS mm 80 (G0045 (1))110
MUDGUARDS EXTENSIONS mm 120 (G0046 (1))111
MUDGUARDS EXTENSIONS mm 170 (G0047 (1))112
REAR FENDERS EXTENSION FIXINGS (G0048 (1))113
SPRAY GUARD – DX/RH/RE (G0049 (1))114
SPRAY GUARD – DX/RH/RE (G00410 (1))115
LH SPRAY GUARD AND SUPPORTS FOR LH-RH SPRAY GUARDS (G00411 (1))116
LH SPRAY GUARD AND SUPPORTS FOR LH-RH SPRAY GUARDS (G00412 (1))117
BRACKET – SPEED LABEL (G00413 (1))118
DOORS – WINDOWS – WIPERS119
FRONT CAB GLASS SHIELD (G0050 (1))119
CAB DOOR – DX/RH/RE (G0051 (1))120
CAB DOOR – SX/LH/LI (G0052 (1))121
REAR WINDOW (G0053 (1))122
HANDLE REAR WINDOW (G0054 (1))123
SCREEN WASH RESERVOIR (G0055 (1))124
FRONT AND REAR WINDSCREEN WIPER SYSTEM (G0056 (1))125
FRONT AND REAR WINDSCREEN WIPER SYSTEM (G0057 (1))126
SCREEN WIPER FRONT (G0058 (1))127
SCREEN WIPER REAR (G0059 (1))128
INTERIOR TRIM129
DASHBOARD (G0060 (1))129
PLUGS (G0062 (1))130
CONTROL CONSOLE – DX/RH/RE (G0063 (1))131
CONTROL CONSOLE – DX/RH/RE (G0063 (2))132
CONTROL CONSOLE – DX/RH/RE (G0064 (1))133
CONTROL CONSOLE – DX/RH/RE (G0064 (2))134
POWER LIFT CONTROL CONSOLE FIXING (G0065 (1))135
CONSOLE HANDLE DX/RH/RE (G0066 (1))136
CONTROL CONSOLE – LOWER PART (G0067 (1))137
CARPETS (G0068 (1))138
INTERIOR TRIM (G0069 (1))139
INTERIOR TRIM (G00610 (1))140
FRONT UPRIGHT COVER SX/LH/LI – DX/RH/RE (G00611 (1))141
REAR UPRIGHT COVER – SX/LH/LI (G00612 (1))142
INTERNAL CAB LININGS (G00613 (1))143
INTERNAL CAB LININGS (G00614 (1))144
INTERNAL CAB LININGS (G00615 (1))145
EXTERIOR TRIM – ROOF146
ROOF (G0070 (1))146
ROOF (G0070 (2))147
ROOF (G0071 (1))148
ROOF (G0071 (2))149
CARBON FILTER (G0072 (1))150
PRE-CASING SX/LH/LI – DX/RH/RE (G0073 (1))151
REARVIEW MIRROR (G0074 (1))152
REARVIEW MIRROR DX/RH/RE (G0075 (1))153
REARVIEW MIRROR (001141994/20A)154
REARVIEW MIRROR (001142054/20A)155
REARVIEW MIRROR (092341474/10A)156
SEATS157
DRIVER’S SEAT – WITH MECHANICAL SUSPENSION (G0083 (1))157
DRIVER’S SEAT – WITH MECHANICAL SUSPENSION COBO-MT SC74/M200 PVC (G0084 (1))158
DRIVER’S SEAT – PNEUMATIC SPRINGING (G0085 (1))159
SEAT SUPPORT PLATE (G0088 (1))160
SAFETY BELT (G00810 (1))161
SEAT-COMPONENTS (001470664A)162
SEAT-COMPONENTS (001470674A)163
SEAT-COMPONENTS (001470684A)164
HEATING AND AIR CONDITIONING165
VENTILATION-HEATING (G0090 (1))165
VENTILATION-AIR CONDITIONING-HEATING (G0091 (1))166
CONDENSER (G0092 (1))167
CONDENSER (G0092 (2))168
HEATING SYSTEM (G0093 (1))169
COMPRESSOR (G0094 (1))170
COMPRESSOR SUPPORTS (G0095 (1))171
COMPRESSOR PIPES (G0097 (1))172
COMPRESSOR-PARTS (000771974A)173
AIR CONDITIONER PARTS (001215684/30A)174
AIR-CONDITIONING HEATING PARTS (001666684A)175
AIR-CONDITIONING HEATING PARTS (001666684B)176
HEATER PARTS (001666904A)177
HEATER PARTS (001666904B)178
MECHANICAL CLUTCH CONTROLS179
CLUTCH CONTROL (G0101 (1))179
MECHANICAL BRAKE CONTROLS180
BRAKE CONTROLS (G0110 (1))180
BRAKE FLUID RESERVOIR (G0112 (1))181
HAND BRAKE (G0113 (1))182
HAND BRAKE (G0114 (1))183
TRAILER HANDBRAKE CONTROL CABLE (G0115 (1))184
HANDBRAKE BRACKET FOR TRAILER (G0116 (1))185
HANDBRAKE BRACKET FOR TRAILER (G0117 (1))186
MECHANICAL – ELECTRONIC THROTTLE CONTROLS187
HAND CONTROL FOR ELECTRONIC THROTTLE (G0120 (1))187
CONTROL PEDAL FOR ELECTRONIC THROTTLE (G0121 (1))188
STEERING CONTROLS189
STEERING WHEEL CAP (G0130 (1))189
STEERING COLUMN (G0135 (1))190
STEERING COLUMN (G0136 (1))191
MECHANICAL GEARSHIFT CONTROLS192
GEAR SHIFTING (G0141 (1))192
GEAR SHIFTING (G0143 (1))193
DRIVE INTERMEDIATE GEARS (G0147 (1))194
REDUCTION GEAR CONTROL (G0148 (1))195
REDUCTION GEAR CONTROL (G01410 (1))196
PTO CONTROLS197
PTO – EXTERNAL CONTROLS 540/N (G0160 (1))197
PTO – EXTERNAL CONTROLS 540-750 (G0161 (1))198
PTO – EXTERNAL CONTROLS 540 – 750 + SYNCRO (G0162 (1))199
PTO – EXTERNAL CONTROLS 540-750-1000 (G0163 (1))200
PTO SHAFT DRIVE (G0164 (1))201
PTO SHAFT DRIVE (G0165 (1))202
PTO-SYNCHRONIZED CONTROL (G0166 (1))203
LIFT CONTROLS204
LIFT CONTROL LEVERS (G0170 (2))204
TIE RODS FOR LIFT CONTROL LEVERS (G0171 (1))205
REMOTE VALVE CONTROLS206
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0180 (2))206
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0181 (2))207
CONTROLS FOR 6-WAY AUXILIARY SERVICES CONTROL VALVE (G0181 (3))208
6-WAY AUXILIARY HYDRAULIC CONTROL VALVE PLATE (G0182 (1))209
CONTROLS FOR 4-WAY FRONT AUXILIARY SERVICES CONTROL VALVE (G0183 (1))210
FLOW CONTROL (G0184 (1))211
FLOW DIVIDER CONTROL (G0186 (1))212
ACCESSORIES213
SUN BLIND (G0190 (1))213
LICENCE PLATE HOLDER (G0191 (1))214
METAL TOOLBOX (G0193 (1))215
METAL TOOLBOX (G0194 (1))216
METAL TOOLBOX (G0195 (1))217
LUBRICATOR (G0196 (1))218
SAFETY ROLL BAR219
SAFETY ARCH (G0200 (1))219
Electrical_system220
Index220
FRUTTETO³ V 80 -> 5001224
L0 – ELECTRIC AL SYSTEM224
BATTERY – ALTERNATOR224
BATTERY 12V 100Ah 650A (L0010 (1))224
ALTERNATOR 14V – 65A – ISKRA (L0011 (1))225
ALTERNATOR 85A (L0012 (1))226
ALTERNATOR AND PULLEY SUPPORTS (L0013 (2))227
ALTERNATOR AND PULLEY SUPPORTS (L0014 (2))228
ALTERNATOR PARTS (294394200/10A)229
ALTERNATOR PARTS (294394600/10A)230
WIRING LOOMS231
HEADLIGHTS / HORN WIRING (L0022 (1))231
HEADLIGHTS / HORN WIRING (L0023 (1))232
CABLES FOR ROTATING BEACONS ON ROPS (L0024 (1))233
CABLES FOR ROTATING BEACONS ON ROPS (L0025 (1))234
WIRING FOR CAB FRONT LIGHTS (L0026 (1))235
WIRING FOR CAB FRONT LIGHTS (L0027 (1))236
ELECTRICAL EQUIPMENT FRONT (L0028 (1))237
CENTRAL WIRING LOOM (L00211 (2))238
CENTRAL WIRING LOOM (L00211 (3))239
CENTRAL WIRING LOOM (L00213 (2))240
CENTRAL WIRING LOOM (L00213 (3))241
ELECTRIC CABLE FOR WORK LIGHT (L00214 (1))242
ELECTRICAL EQUIPMENT REAR (L00216 (1))243
ELECTRICAL EQUIPMENT REAR (L00218 (1))244
ELECTRICAL SYSTEM – ROOF (L00219 (1))245
ELECTRICAL SYSTEM – ROOF (L00220 (1))246
ELECTRICAL SYSTEM – ROOF (L00221 (1))247
ELECTRICAL SYSTEM – ROOF (L00222 (1))248
WIRING FOR 4-WAY FRONT AUXILIARY CONTROL VALVE (L00223 (1))249
WIRING FOR 4-WAY FRONT AUXILIARY CONTROL VALVE (L00223 (2))250
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L00224 (1))251
3-POINT LINKAGE SYSTEM WITH ELECTROHYDRAULIC CONTROL (L00225 (1))252
SINGLE POLE SOCKET – DOUBLE POLE SOCKET – LIGHTS FLASHER RELAY (L00226 (1))253
SINGLE POLE SOCKET – DOUBLE POLE SOCKET – LIGHTS FLASHER RELAY (L00227 (1))254
TRAILER SOCKET-OUTLET (L00228 (1))255
TRAILER SOCKET BRACKET (L00229 (1))256
BATTERY LEADS (L00230 (1))257
CAB GROUND CABLE (L00231 (1))258
PLATFORM GROUND CABLE (L00232 (1))259
POWER SUPPLY ELECTRICAL SYSTEM (L00233 (1))260
POWER SUPPLY ELECTRICAL SYSTEM (L00235 (1))261
ELECTRICAL CABLE FOR OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L00237 (1))262
FRONT PTO SOLENOID VALVE ELECTRICAL CABLE (L00238 (1))263
BRAKE SENSOR CABLES (L00239 (1))264
BRAKE SENSOR CABLES (L00240 (1))265
PRESSURE SWITCH WIRING FOR TRAILER HYDRAULIC BRAKING SYSTEM (L00241 (1))266
PREARRANGEMENT FOR WARNING BEACON – FOR MODELS WITH CAB (L00242 (1))267
PREARRANGEMENT FOR WARNING BEACON – FOR MODELS WITH CAB (L00243 (1))268
PREARRANGEMENT FOR WARNING BEACON (L00244 (1))269
ELECTRICAL EQUIPMENT ROTARY WARN LAMP (L00245 (1))270
BATTERY LEADS (001067083/20A)271
ELECTRICAL SYSTEM (001120254/40A)272
FLASHING LIGHT SUPPORT (001178404A)273
ELECTRICAL SYSTEM (001201014A)274
ELECTRICAL SYSTEM (001363264A)275
BRAKE SENSOR CABLES (001520804A)276
ELECTRICAL EQUIPMENT FRONT (001605524A)277
CENTRAL WIRING LOOM (001605584/10A)278
CENTRAL WIRING LOOM (001605584/20A)279
CENTRAL WIRING LOOM (001605594/10A)280
CENTRAL WIRING LOOM (001605594/20A)281
POWER SUPPLY ELECTRICAL SYSTEM (001605704A)282
POWER SUPPLY ELECTRICAL SYSTEM (001605724A)283
ELECTRICAL SYSTEM – ROOF (001607664/20A)284
ELECTRICAL SYSTEM – ROOF (001607674A)285
ELECTRICAL SYSTEM – ROOF (001607684/10A)286
WIRING FOR CAB FRONT LIGHTS (001607714A)287
WIRING FOR CAB FRONT LIGHTS (001607724A)288
ECUs289
ELECTRONICS BOX (L0030 (1))289
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L0031 (1))290
CONTROL UNIT FOR 4-WAY FRONT AUXILIARY CONTROL VALVE (L0032 (1))291
CONTROL UNIT – PTO SHAFT (L0034 (1))292
CONTROL UNIT – PTO SHAFT (L0036 (1))293
SENSORS – POTENTIOMETERS – ENABLING SWITCHES294
COOLING SYSTEM MANIFOLD SENSORS (L0040 (1))294
AIR CLEANER AND ENGINE OIL FILTER CLOGGING PRESSURE SWITCH (L0042 (1))295
ENGINE OIL PRESSURE SWITCH (L0043 (1))296
START ENABLE SWITCH (L0047 (1))297
START ENABLE SWITCH PROTECTION (L0048 (1))298
SPEED SENSOR (L00410 (1))299
SPEED SENSOR (L00411 (1))300
GEARBOX INPUT SHAFT SENSOR (L00412 (1))301
UNDERDRIVE SWITCH (L00413 (1))302
OIL CONTROL VALVES HOUSING PRESSURE SWITCH (L00414 (1))303
OIL FILTER CLOGGING SENSOR 7″ (L00415 (1))304
SHUTTLE VALVE BODY PRESSURE SWITCH (L00416 (1))305
LUBRICATION OIL TEMPERATURE SENSOR WITHOUT FRONT PTO (L00417 (1))306
LUBRICATION OIL TEMPERATURE SENSOR WITH FRONT PTO (L00418 (1))307
SWITCHES FOR 2-SPEED PTO WITH FIXED OUTPUT SHAFT 540-750 (L00419 (1))308
SWITCH FOR 2-SPEED PTO WITH INSERTED END SHAFTS 540-750 (L00420 (1))309
SWITCHES FOR 2-SPEED WITH FIXED OUTPUT SHAFT + SYNCRO AND 3 SPEEDS (L00421 (1))310
SWITCH FOR PTO WITH INSERTED END SHAFTS – 2 -SPEED + GROUNDSP AND 3- SPEED (L00422 (1))311
PTO SWITCH (L00423 (1))312
PTO SPEED SENSOR 540/N WITH INTERCHANGEABLE OUTPUT SHAFTS (L00424 (1))313
SWITCHES AND SENSOR FOR 3-SPEED PTO WITH INSERTED OUTPUT SHAFTS 540-750-1000 (L00425 (1))314
GROUNDSPEED PTO SWITCH (L00426 (1))315
SENSOR FOR ACCELERATOR PEDAL WITH ELECTRONIC CONTROL (L00427 (1))316
ELECTRONIC ACCELERATOR CONTROL SENSOR (L00428 (1))317
CLUTCH SENSOR AND SWITCH (L00430 (1))318
BRAKE CONTROL SWITCH (L00431 (1))319
BRAKE SENSORS (L00432 (1))320
BRAKE SENSORS (L00433 (1))321
PRESSURE SWITCH FOR HYDRAULIC TRAILER BRAKING SYSTEM (L00434 (1))322
HAND BRAKE SWITCHES (L00435 (1))323
REAR LIFT POSITION SENSOR (L00436 (1))324
HYDRAULIC SYSTEM PRESSURE SWITCH (L00437 (1))325
INSTRUMENT PANEL326
DIGITAL INSTRUMENT PANEL (L0050 (1))326
ELECTRICAL CONTROLS – PUSHBUTTONS327
GEAR SHIFTING (L0071 (1))327
GEAR SHIFTING (L0072 (1))328
REVERSING GEAR UNIT CONTROL (L0073 (1))329
STEERING COLUMN SWITCH AND LIGHTS SWITCH (L0075 (1))330
CONTROL FOR 4-WAY FRONT HYDRAULIC CONTROL VALVE (L0076 (1))331
KEYSWITCH BLOCK AND PUSHBUTTONS (L0077 (1))332
KEYSWITCH BLOCK AND PUSHBUTTONS (L0078 (1))333
ELECTRONIC ACCELERATOR MEMORY PUSHBUTTON (L0079 (1))334
OPERATION – PTO SHAFT (L00710 (1))335
STOP & GO AND PREHEATING BUTTON (L00713 (1))336
STOP & GO AND PREHEATING BUTTON (L00714 (1))337
SWITCH FOR ROTATING BEACON (L00715 (1))338
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (L00716 (1))339
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (L00717 (1))340
CAB TOP SWITCHES (L00718 (1))341
CAB TOP SWITCHES (L00719 (1))342
ELECTRICAL SYSTEM FOR REAR ELECTRONIC LIFT (L00720 (1))343
3-POINT LINKAGE CONTROLS WITH ELECTROHYDRAULIC CONTROL (L00721 (1))344
LIGHTING AND SIGNALLING345
HEADLIGHTS \ HORN (L0080 (2))345
HEADLIGHTS \ HORN (L0081 (2))346
REAR LIGHTS (L0084 (1))347
REAR LIGHTS (L0085 (1))348
REAR WORKLIGHT (L0086 (1))349
ROTATING BEACONS ON ROPS (L0087 (2))350
ROTATING BEACONS ON ROPS (L0088 (2))351
FRONT LIGHTS FOR CAB (L0089 (1))352
FRONT LIGHTS FOR CAB (L00810 (1))353
FRONT WORKLIGHTS FOR CAB ROOF (L00811 (1))354
REAR WORKLIGHTS FOR CAB ROOF (L00812 (1))355
REAR WORKLIGHTS FOR CAB ROOF (L00813 (1))356
COURTESY LIGHT (L00814 (1))357
COURTESY LIGHT (L00815 (1))358
COURTESY LIGHT (L00816 (1))359
WARNING BEACON (L00817 (1))360
LICENCE PLATE LIGHT (L00818 (1))361
RETROREFLECTOR (L00819 (1))362
RETROREFLECTOR (L00820 (1))363
WARNING BEACON (001308684A)364
HEADLAMP COMPONENTS (280199600A)365
HEADLAMP COMPONENTS (280199700A)366
HEADLAMP COMPONENTS (280292400/10A)367
HEADLAMP COMPONENTS (280293000A)368
HEADLAMP COMPONENTS (280390040A)369
HEADLAMP COMPONENTS (280390050A)370
HEADLAMP COMPONENTS (280390080A)371
WORKING SPOTLIGHT (280390170A)372
HEADLAMP FOR RIGHT-HAND DRIVE dx/rh/re (280590010A)373
HEADLAMP FOR LEFT-HAND DRIVE sx/lh/li (280590020A)374
HEADLAMP COMPONENTS (280594400/10A)375
HEADLAMP COMPONENTS (280594500A)376
HEADLAMP COMPONENTS (280594600A)377
HEADLAMP COMPONENTS (280594900A)378
HEADLAMP COMPONENTS (280595230A)379
HEADLAMP COMPONENTS (280595240A)380
INTERIOR LIGHT (283390320A)381
ACCESSORIES382
CIGAR LIGHTER (L0090 (1))382
RADIO ANTENNA (L0091 (1))383
RADIO ANTENNA (L0092 (1))384
Engine385
Index385
FRUTTETO³ V 80 -> 5001387
B0 – ENGINE387
CYLINDER BLOCK387
CRANKCASE (B0010 (1))387
MONOBLOC ENGINE-GEARBOX CONNECTING FLANGE (B0012 (1))388
CRANKSHAFT389
CRANKSHAFT PULLEY (B0020 (1))389
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0021 (1))390
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0022 (1))391
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0023 (1))392
COOLANT PUMP AND ALTERNATOR DRIVEBELT (B0024 (1))393
CRANKSHAFT (B0025 (1))394
ENGINE FLYWHEEL (B0028 (1))395
CYLINDERS – PISTONS – CONNECTING RODS396
CYLINDER – PISTON – CONNECTING ROD (B0030 (1))396
TIMING397
TIMING CASE (B0040 (1))397
TIMING COVER FIXING (B0042 (1))398
CASING COVER (B0043 (1))399
CAMSHAFT (B0044 (1))400
CYLINDER HEAD401
CYLINDER HEAD (B0050 (1))401
LUBRICATION402
ENGINE OIL PUMP (B0060 (1))402
LUBRICATION (B0063 (1))403
BLOW-BY HOSE BRACKET (B0066 (1))404
LUBRICANT OIL SUCTION PIPE (B0067 (1))405
LUBRICATION (B0069 (1))406
ENGINE OIL FILTER (B00612 (1))407
ENGINE OIL PAN (B00613 (1))408
OIL PIPES FOR TURBOCHARGER (B00615 (1))409
FUEL INJECTION SYSTEM410
INJECTION PUMP – INJECTOR (B0070 (1))410
INJECTION PUMP DRIVE (B0072 (1))411
MECHANICAL – ELECTRONIC GOVERNOR412
ELECTRONIC MOTOR CONTROLLER (B0080 (1))412
COOLING413
COOLING SYSTEM MANIFOLD (B0090 (1))413
ENGINE COOLING WATER PUMP (B0092 (1))414
COOLANT PIPE (B0093 (1))415
WATER PUMP HOSES (B0094 (1))416
COOLANT PUMP PULLEY (B0096 (1))417
WATER COOLING -SEALING (B0098 (1))418
HEAT EXCHANGER (B00910 (1))419
LUBRIC OIL COOLER (000701720A)420
COOLING WATER PUMP (001604604A)421
INTAKE – EXHAUST MANIFOLDS422
AIR INTAKE MANIFOLD – EXHAUST MANIFOLD (B0100 (1))422
TURBOCHARGER423
TURBOCHARGER (B0110 (1))423
Engine_accessories424
Index424
FRUTTETO³ V 80 -> 5001426
C0 – ENGINE ACCESSORIES426
RADIATORS – FANS426
BLOWER (C0010 (1))426
COOLING – COOLANT RADIATOR (C0011 (1))427
COOLING – EXPANSION TANK (C0012 (1))428
COOLING SYSTEM EXPANSION TANK (001615284A)429
INTERCOOLER – AIR CLEANER430
INTERCOOLER (C0020 (1))430
AIR CLEANER (C0021 (1))431
AIR CLEANER (C0022 (1))432
AIR CLEANER HOSE (C0023 (1))433
CYCLONE FILTER (C0025 (1))434
PRE-FILTER – COMPONENTS (242391100A)435
FUEL SYSTEM436
FUEL TANK (C0030 (1))436
FUEL TANK (C0031 (1))437
FUEL FEED PUMP (C0032 (1))438
FUEL FILTER (C0034 (1))439
FUEL FEED PIPES AND PREFILTER (C0036 (1))440
FUEL PIPES (C0037 (1))441
SUPPLEMENTARY FUEL TANK PIPES (C0039 (1))442
SUPPLEMENTARY FUEL TANK PIPES (C00311 (1))443
AUXILIARY TANK (C00312 (1))444
PRE-FILTER – COMPONENTS (243192200A)445
FUEL FILTER PARTS (243192300A)446
FUEL FEED PUMP (245193300/50A)447
PREHEATING448
HEATING ELEMENT (C0040 (1))448
HEATING ELEMENT EARTH (C0042 (1))449
STARTER MOTOR450
STARTER (C0050 (1))450
STARTER (C0050 (2))451
STARTER MOTOR COVER (C0052 (1))452
STARTER PARTS (296194000A)453
EXHAUST SILENCER454
EXHAUST SILENCER (C0060 (1))454
EXHAUST SILENCER PIPE (C0062 (1))455
VERICAL EXHAUST SILENCER (C0063 (1))456
ELECTRICAL ACCESSORIES457
SOLENOID VALVE (C0080 (1))457
SOLENOID VALVE PROTECTION (C0083 (1))458
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/20A)459
SEALING SET460
GASKET SET FOR ENGINE ASSEMBLY (C0090 (1))460
Front_axle461
Index461
FRUTTETO³ V 80 -> 5001462
F0 – FRONT AXLE462
FRONT SUPPORT462
FRONT SUPPORT (F0010 (1))462
FRONT SUPPORT – WITH FRONT PTO AND LIFT (F0011 (1))463
FROMT PLATE FOR IMPLEMENTS (F0012 (1))464
4WD FRONT AXLE465
4WD – FRONT DRIVE AXLE (F0030 (1))465
4WD – FRONT DRIVE AXLE (F0031 (1))466
4WD – FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0032 (1))467
4WD – FRONT AXLE FORKS FOR TYPES WITH BRAKES (F0033 (1))468
AIR BREATHER (F0034 (1))469
4WD – STANDARD SEALING (F0036 (1))470
FRONT DIFFERENTIAL471
BEVEL WHEEL GEAR Z = 23 / 43 (F0040 (1))471
4WD – FRONT DIFFERENTIAL (F0041 (1))472
4WD – STANDARD SEALING (F0042 (1))473
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (F0043 (1))474
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (F0044 (1))475
4WD – FLANGE (F0045 (1))476
4WD – FLANGE (F0046 (1))477
4WD – PROPELLER SHAFT (F0047 (1))478
4WD – TRANSMISSION SHAFT (F0048 (1))479
STEERING CYLINDER480
STEERING CYLINDER (F0050 (1))480
STEERING CYLINDER (F0051 (1))481
CYLINDER PARTS (001005084A)482
ADJUSTABLE LIFT ROD PARTS (001007984/30A)483
ADJUSTABLE LIFT ROD PARTS (001007994/30A)484
CYLINDER PARTS (001013254/10A)485
ADJUSTABLE LIFT ROD PARTS (001013264/20A)486
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS487
4WD – PLANETARY GEAR (F0060 (1))487
4WD – FRONT AXLE PLANET CARRIER WITH BRAKES (F0061 (1))488
4WD – FRONT AXLE PLANET CARRIER WITH BRAKES (F0062 (1))489
4WD – AXLESHAFTS (F0063 (1))490
4WD – AXLESHAFTS (F0064 (1))491
FRONT WHEEL HUB COVER (F0065 (1))492
4WD – AXLESHAFTS L = mm 5705 (001002304/10A)493
4WD – AXLESHAFTS L = mm 5705 (001101384/10A)494
FRONT BRAKES495
4WD – FRONT BRAKES (F0070 (1))495
4WD – FRONT BRAKES (F0071 (1))496
Front_lift497
Index497
FRUTTETO³ V 80 -> 5001498
N0 – FRONT LIFT498
LIFT ASSEMBLY498
FRONT HYDRAULIC POWER-LIFT (N0010 (2))498
RED AND WHITE STRIPED WARNING SIGN (N0012 (1))499
HYDRAULIC CYLINDER (237490070A)500
Front_pto501
Index501
FRUTTETO³ V 80 -> 5001502
M0 – FRONT PTO502
PTO INPUT SHAFT502
PTO INPUT SHAFT (M0010 (1))502
FRONT PTO COVER – PROTECTIONS503
PTO GUARD (M0020 (1))503
GEARS AND CLUTCH504
PTO FRONT (M0030 (1))504
PTO FRONT (M0031 (1))506
HYDRAULIC SYSTEM507
FRONT PTO HYDRAULIC SYSTEM (M0040 (1))507
FITTING WITH CHOKE SCREW (M0043 (1))508
FRONT PTO PACKAGE (M0044 (1))509
VALVE (M0045 (1))510
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/20A)511
Hydraulic_and_pneumatic_system512
Index512
FRUTTETO³ V 80 -> 5001516
H0 – HYDRAULIC AND PNEUMATIC SYSTEM|516
HYDRAULIC SYSTEM516
GEARBOX OIL COOLER PIPES (H0010 (1))516
HYDRAULIC PUMP 225 cc – dx/rh/re (H0012 (1))517
HYDRAULIC PUMP 14 + 11 cm³, dx/rh/re (H0013 (1))518
HYDRAULIC PUMP 16 cc – sx/lh/li (H0014 (2))519
HYDRAULIC PUMP 19 cc – sx/lh/li (H0015 (1))520
SUCTION HYDRAULIC SYSTEM (H0017 (1))521
SUCTION HYDRAULIC SYSTEM WITH 225 CC PUMP (H0018 (1))522
SUCTION HYDRAULIC SYSTEM WITH 14 + 11 CC PUMP (H0019 (1))523
COMPLETING THE HYDRAULIC PUMP 225 CM ³ (H00110 (1))524
COMPLETING THE HYDRAULIC PUMP 14 + 11 cm³ (H00111 (1))525
COMPLETING THE HYDRAULIC PUMP 14 + 11 cm³ (H00112 (1))526
SYSTEM FROM HYDRAULIC PUMP TO 6-WAY DIRECTIONAL CONTROL VALVE (H00113 (1))527
SYSTEM FROM HYDRAULIC PUMP TO 3-POINT HITCH CONTROL SOLENOID VALVES (H00114 (1))528
ELECTRO-HYDRAULIC THREE-POINT HITCH PARTS KIT (H00115 (1))529
PIPE FROM AUX CONTROL VALVE TO MECHANICAL REAR LIFT CONTROL VALVE (H00116 (1))530
PIPE FROM AUX CONTROL VALVE TO MECHANICAL REAR LIFT CONTROL VALVE (H00117 (1))531
PIPE FROM AUX CONTROL VALVE TO ELECTRONIC REAR LIFT CONTROL VALVE (H00118 (1))532
PIPE FROM AUX CONTROL VALVE TO ELECTRONIC REAR LIFT CONTROL VALVE (H00119 (1))533
3-POINT LINKAGE HYDRAULIC SYSTEM WITH ELECTROHYDRAULIC CONTROL (H00120 (1))534
3-POINT LINKAGE HYDRAULIC SYSTEM WITH ELECTROHYDRAULIC CONTROL (H00121 (1))535
LUBRIC OIL FILTER 7″ (H00122 (1))536
POWER STEERING OIL FEED HYDRAULIC SYSTEM (H00123 (1))537
GEAR BOX OIL FEED PIPES (H00124 (1))538
OIL CONTROL VALVES HOUSING PIPES (H00125 (1))539
HYDRAULIC SYSTEM (H00128 (1))540
HYDRAULIC SYSTEM (H00129 (1))541
LUBRICATION WITHOUT FRONT PTO (H00133 (1))542
LUBRICATION WITH FRONT PTO (H00135 (1))543
WORKING HYDR SYSTEM CUTTING ANGLE ADJUSTMENT (H00136 (1))544
WORKING HYDR SYSTEM CUTTING ANGLE ADJUSTMENT (H00136 (2))545
WORKING HYDR SYSTEM CUTTING ANGLE ADJUSTMENT (H00136 (3))546
WORKING HYDR SYSTEM CUTTING ANGLE ADJUSTMENT (H00137 (1))547
WORKING HYDR SYSTEM CUTTING ANGLE ADJUSTMENT (H00137 (2))548
WORKING HYDR SYSTEM CUTTING ANGLE ADJUSTMENT (H00137 (3))549
FRONT REMOTE VALVE SYSTEM WITH MID-MOUNT COUPLERS (H00138 (1))550
FRONT REMOTE VALVE SYSTEM WITH MID-MOUNT COUPLERS (H00139 (1))551
DRAIN LINE OF FRONT REMOTE VALVE (H00140 (1))552
DRAIN LINE OF FRONT REMOTE VALVE (H00141 (1))553
DRAIN LINE OF FRONT REMOTE VALVE (H00142 (1))554
DRAIN LINE OF FRONT REMOTE VALVE (H00143 (1))555
FRONT REMOTE VALVE SYSTEM WITH MID-MOUNT COUPLERS (H00144 (1))556
FRONT ELECTRO-HYDRAULIC CONTROL VALVE SYSTEM WITH MID-MOUNT COUPLERS (H00145 (1))557
FRONT ELECTRO-HYDRAULIC CONTROL VALVE SYSTEM WITH MID-MOUNT COUPLERS (H00145 (2))558
FRONT REMOTE VALVE SYSTEM WITH MID-MOUNT COUPLERS (H00146 (1))559
REAR LIFT CYLINDER BARREL (H00147 (1))560
REAR LIFT CYLINDER BARREL (H00148 (1))561
4WD – FRONT DIFFERENTIAL LOCK (H00149 (1))562
FRONT DIFFERENTIAL LOCK PIPE (H00150 (1))563
FRONT DIFFERENTIAL LOCK PIPE (H00152 (1))564
DETAILS OF OIL FILTER (244197920A)565
HYDRAULIC PUMP PARTS (245390900A)566
HYDRAULIC PUMP PARTS (245393100/10A)567
HYDRAULIC PUMP PARTS (245396200/10A)568
STEERING SYSTEM569
HYDROSTATIC STEERING CONTROL VALVE (H0020 (1))569
PIPES FOR HYDROSTATIC STEERING (H0021 (1))570
PIPES FOR HYDROSTATIC STEERING (H0022 (1))571
STEERING CYLINDER PIPES (H0024 (1))572
STEERING CYLINDER PIPES (H0025 (1))573
HYDRAULIC STEERING GEAR (245690070A)574
TRANSMISSION – PTO COOLERS575
GEARBOX OIL COOLER (H0030 (1))575
FRONT LIFT576
FRONT LIFT – HYDRAULIC SYSTEM (H0050 (1))576
FRONT LIFT – HYDRAULIC SYSTEM (H0051 (2))577
FRONT LIFT – HYDRAULIC SYSTEM (H0052 (2))578
FRONT LIFT – HYDRAULIC SYSTEM (H0053 (1))579
FRONT LIFT – HYDRAULIC SYSTEM (H0054 (1))580
PRESSURE CONTROL VALVE (000920384/10A)582
FRONT REMOTE CONTROL VALVES583
2+1 MID-MOUNT HYDRAULIC COUPLERS – REAR (H0060 (1))583
2+1 MID-MOUNT HYDRAULIC COUPLERS – REAR (H0061 (1))584
4+1 MID-MOUNT HYDRAULIC COUPLERS – REAR (H0062 (1))585
4+1 MID-MOUNT HYDRAULIC COUPLERS – REAR (H0063 (1))586
MID-MOUNT HYDRAULIC COUPLERS – REAR (H0064 (1))587
MID-MOUNT HYDRAULIC COUPLERS – FRONT (H0065 (1))588
MID-MOUNT HYDRAULIC COUPLERS – REAR (H0066 (1))589
MID-MOUNT HYDRAULIC COUPLERS – FRONT (H0067 (1))590
4-WAY AUXILIARY DISTRIBUTOR – BUCHER (H0068 (1))591
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – SAUER – (H0069 (1))592
AUXILIARY FRONT HYDRAULIC DISTRIBUTOR WITH 4 OIL WAYS – SAUER – (H0069 (2))593
MID-MOUNT HYDRAULIC COUPLERS – FRONT – SX/LH/LI (H00610 (2))594
MID-MOUNT HYDRAULIC COUPLERS – FRONT – SX/LH/LI (H00611 (1))595
MID-MOUNT HYDRAULIC COUPLERS – FRONT – SX/LH/LI (H00611 (2))596
MID-MOUNT HYDRAULIC COUPLERS – FRONT – SX/LH/LI (H00612 (2))597
MID-MOUNT HYDRAULIC COUPLERS – FRONT – DX/RH/RE (H00613 (2))598
2+1 OR 4+1 MID-MOUNT HYDRAULIC COUPLERS – FRONT – DX/RH/RE (H00614 (2))599
4+1 MID-MOUNT HYDRAULIC COUPLERS – FRONT – DX/RH/RE (H00615 (2))600
MID-MOUNT HYDRAULIC COUPLERS – FRONT – DX/RH/RE (H00616 (2))601
BRACKET FOR MID-MOUNT COUPLERS 2+1 (H00617 (1))602
BRACKET FOR MID-MOUNT COUPLERS 4+1 (H00618 (1))603
BRACKET FOR MID-MOUNT COUPLERS 4+1 (H00619 (1))604
ENGAGEMENT (098308503/10A)605
DISTRIBUTOR (237296870A)606
REAR REMOTE CONTROL VALVES607
6-WAY AUXILIARY DISTRIBUTOR (H0070 (1))607
AUXILIARY CONTROL VALVE SYSTEM (H0071 (1))608
AUXILIARY CONTROL VALVE SYSTEM (H0072 (1))609
HYDRAULIC SYSTEM – FOR 6-WAY CONTROL VALVE (H0073 (1))610
HYDRAULIC SYSTEM – FOR 6-WAY CONTROL VALVE (H0073 (2))611
HYDRAULIC SYSTEM – FOR 6-WAY CONTROL VALVE (H0074 (1))612
QUICK-ACTION PROTECTIONS – 6-WAY (H0075 (1))613
AUXILIARY CONTROL VALVE SYSTEM WITH 2+1 CENTRAL CONNECTORS (H0076 (1))614
AUXILIARY CONTROL VALVE SYSTEM WITH 4+1 CENTRAL CONNECTORS (H0077 (1))615
AUXILIARY CONTROL VALVE SYSTEM (H0078 (1))616
AUXILIARY CONTROL VALVE SYSTEM (H0079 (1))617
TANK – PARTS (001102123A)618
ENGAGEMENT (098309503/10A)619
HYDRAULIC DISTRIBUTOR-PARTS (237197400/20A)620
BRAKING SYSTEM AND PNEUMATIC SYSTEM|622
FLOW CONTROL VALVE (H0090 (1))622
BRAKES CONTROL VALVE (H0092 (1))623
BRAKING SYSTEM (H0094 (1))624
BRAKE PIPES – FRONT (H0095 (1))625
HYDRAULIC BREAKING FOR TRAILER (H0097 (1))626
HYDRAULIC BREAKING FOR TRAILER (H0098 (1))627
BRAKING SYSTEM (H00910 (1))628
SYSTEM FROM HYDRAULIC PUMP TO HYDRAULIC BRAKES (H00911 (1))629
HYDRAULIC TRAILER BRAKING SYSTEM (H00912 (1))630
HYDRAULIC TRAILER BRAKING SYSTEM (H00913 (1))631
TRAILER BRAKE VALVE (237195500/50A)632
VALVE PARTS (237198100/20A)633
ELECTROHYDRAULICS634
HYDRAULIC SHUTTLE CONTROL (H0100 (1))634
BYPASS VALVE ASSEMBLY (H0102 (1))635
BYPASS VALVE ASSEMBLY (H0103 (1))636
OIL FLOW CONTROL VALVE CASING (H0104 (1))637
SOLENOID VALVE – 4WD (H0105 (1))638
SOLENOID VALVE ASSEMBLY FOR 3-POINT LINKAGE CONTROL (H0106 (1))639
SOLENOID VALVE (237293300/50A)640
SOLENOID VALVE (237293400/50A)641
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/20A)642
SOLENOID VALVE (237296980/10A)643
Rear_axle644
Index644
FRUTTETO³ V 80 -> 5001645
E0 – REAR AXLE645
REAR AXLE645
REAR AXLE (E0010 (1))645
REAR AXLE CROWN WHEEL (E0011 (1))646
REAR AXLE – MOUNTINGS (E0012 (1))647
REAR DIFFERENTIAL / HALF-SHAFTS648
DIFFERENTIAL (E0020 (1))648
DIFFERENTIAL LOCK CONTROL – ELECTROHYDRAUDLIC (E0021 (1))649
REAR REDUCTION GEARS AND AXLE SHAFTS (E0022 (1))650
REAR BRAKES651
REAR BRAKES (E0030 (2))651
REAR BRAKES (E0030 (3))652
REAR BRAKES (E0031 (1))653
Rear_lift654
Index654
FRUTTETO³ V 80 -> 5001655
R0 – REAR LIFT655
LIFT COVER655
POWER-LIFT CASE (R0010 (1))655
PLUG (R0011 (1))656
LIFT FIXING COMPONENTS (R0012 (1))657
LIFT ASSEMBLY658
LIFTING (R0020 (1))658
LIFTING (R0021 (1))659
LIFT CONTROL VALVE660
FLOW CONTROL VALVE WITH MECHANICAL CONTROL (R0030 (1))660
REGULATING DISTRIBUTOR WITH ELECTRONIC CONTROL (R0031 (1))662
DISTRIBUTOR PARTS (237293200A)663
IN-CAB CONTROLS664
INTERNAL CONTROLS (R0040 (1))664
SENSOR665
SENSITIVE ELEMENTS (R0050 (1))665
SENSING ELEMENTS WITH ELECTRONIC CONTROL (R0051 (1))666
THREE-POINT LINKAGE – LINK ARMS667
LIFT ARMS TO GEARBOX LOCK PINS (R0060 (1))667
REAR BRACKETS ON GEARBOX (R0062 (1))668
3-POINT LINKAGE (R0063 (1))669
THREE-POINT COUPLING – TOP/LOWER LINK (R0064 (1))670
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R0065 (1))671
3-POINT LINKAGE WITH AUTOMATIC COUPLERS (R0066 (2))672
3-POINT LINKAGE (R0067 (1))673
3-POINT LINKAGE – ADJUSTABLE MECHANICAL TIE ROD (R0068 (1))674
3-POINT HITCH WITH HYDRAULIC LIFT ROD (R0069 (2))675
3-POINT HITCH WITH ELECTRO-HYDRAULIC ADJUSTMENT (R00610 (1))676
HYDRAULIC CYLINDERS (R00611 (1))677
TOWING BAR (R00612 (1))678
TOWING HITCH (001017023A)679
CYLINDER PARTS (001149044A)680
LINKAGE (001414123A)681
TOWING HITCH (001414203A)682
CYLINDER PARTS (237490030A)683
Transmission684
Index684
FRUTTETO³ V 80 -> 5001687
D0 – TRANSMISSION687
HYDRAULIC SHUTTLE ASSEMBLY687
HYDRAULIC SHUTTLE (D0030 (1))687
HML – HI-LO – SHML689
H-M-L UNIT (D0044 (1))689
H-M-L UNIT (D0045 (1))691
GEARBOX INPUT SHAFT692
FLEXIBLE COUPLINGS (D0050 (1))692
GEARBOX INPUT SHAFT (D0051 (1))693
5-SPEED GEARBOX INPUT SHAFT (D0057 (1))694
5-SPEED GEARBOX INPUT SHAFT WITH UNDERDRIVE (D0058 (1))695
SYNCHRONISERS (D00510 (1))696
SYNCHRONIZER PARTS (000776204/10A)697
PTO INPUT SHAFT698
PTO – CLUTCH TRANSMISSION SHAFT (D0062 (1))698
MAIN SHAFT699
5-SPEED GEARBOX PRIMARY SHAFT (D0071 (1))699
5-SPEED GEARBOX PRIMARY SHAFT WITH UNDERDRIVE (D0073 (1))700
SECONDARY SHAFT701
TRANSMISSION SHAFT – FOR TYPES WITHOUT H-M-L (POWERSHIFT) (D0080 (1))701
H-M-L GEARBOX SECONDARY SHAFT (D0082 (1))702
5-SPEED GEARBOX SECONDARY SHAFT (D0084 (1))703
5-SPEED GEARBOX SECONDARY SHAFT WITH UNDERDRIVE (D0086 (1))704
SYNCHRONISERS (D0087 (1))705
SYNCHRONISERS (D0089 (1))706
SYNCHRONIZER PARTS (000776204/10A)707
SYNCHRONIZER PARTS (000776214A)708
GEARBOX709
GEARBOX FRONT- FIXINGS (D0090 (1))709
GEARBOX (D0093 (2))710
BEARING FLANGE (D0094 (1))711
GEARBOX REAR (D0097 (2))712
GEARBOX REAR (D0097 (3))713
GEARBOX UPPER COVER (D0098 (1))714
GEARBOX UPPER COVER (D0099 (1))715
COVER AND PLUG FOR GEARBOX WITH H-M-L (D00912 (1))716
GEARBOX UPPER COVER (D00913 (1))717
REAR GEARBOX PLUG (D00915 (1))718
PLUGS FOR GEARBOX (D00916 (1))719
PLUG FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (D00918 (1))720
REAR GEARBOX PLUG (D00919 (1))721
SENSOR BRACKET (D00920 (1))722
FRONT GEARBOX PLUG (D00921 (1))723
INTERNAL AND EXTERNAL GEARBOX CONTROLS724
INTERNAL CONTROLS OF 5-SPEED GEARBOX WITH UNDERDRIVE (D0101 (2))724
5-SPEED GEARBOX INTERNAL CONTROLS (D0103 (2))725
GEARBOX CONTROL ROD (D0105 (2))726
GEAR SHIFTING (D0107 (1))727
DRIVE INTERMEDIATE GEARS (D01010 (1))728
REDUCTION GEAR CONTROL (D01012 (1))729
SPEED RANGE REDUCTION GEAR UNIT (D01013 (1))730
CONTROL FOR 3-RANGE GEARBOX (D01014 (1))731
LOW SPEED RANGES732
BEVEL WHEEL GEAR Z = 10 / Z = 34 (D0110 (1))732
BEVEL DRIVE PINION BEARING (D0111 (1))733
SPEED RANGE REDUCTION GEAR SHAFT (D0112 (1))734
SPEED RANGE REDUCTION GEAR UNIT (D0113 (1))735
3-RANGE BOX (D0114 (1))736
PHONIC WHEEL FOR TYPES WITH ELECTROHYDRAULIC 4WD ENGAGEMENT (D0115 (1))737
HYDRAULIC REAR PTO CLUTCH738
PTO – HYDRAULIC CLUTCH (D0120 (2))738
PTO – HYDRAULIC CLUTCH (001196864/40A)739
PTO – HYDRAULIC CLUTCH (001196864/40B)740
HYDRAULIC PUMP DRIVE741
PTO – PUMP CONTROL (D0130 (2))741
PTO/GROUNDPSPEED DRIVE742
BEARINGS OF – 2-SPEED PTO (D0140 (1))742
PTO – 540/N – WITH INSERTED END SHAFTS (D0141 (1))743
PTO – 540/N – WITH INSERTED END SHAFTS (D0142 (1))744
PTO – 540/N – WITH FIXED OUTPUT SHAFT (D0143 (2))745
CONTROL LEVER PTO (D0144 (1))746
PTO – 2 SPEED TYPE 540-750 (D0145 (1))747
2-SPEED – PTO WITH FIXED OUTPUT SHAFT 540-750 (D0146 (2))748
PTO – 2-SPEED WITH INSERTED END SHAFT 540-750 (D0147 (1))749
PTO – 2-SPEED WITH INSERTED END SHAFT 540-750 (D0148 (1))750
PTO SHAFT 540 – 750 + SYNCRO (D0149 (1))751
PTO WITH FIXED OUTPUT SHAFT – 2 SPEEDS + SINCRO AND 3 SPEEDS (D01410 (2))752
REAR PTO COVER WITH STANDARD SEAL (D01411 (1))753
PTO SHAFT 540 – 750 + SYNCRO (D01412 (1))754
PTO WITH INSERTED END SHAFTS – 2 -SPEED + GROUNDSP AND 3- SPEED (D01413 (1))755
PTO – SYNCHRONIZED CONTROL (D01414 (2))756
3-SPEED PTO WITH FIXED OUTPUT SHAFT 540-750-1000 (D01415 (1))757
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D01416 (1))758
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D01417 (1))759
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D01418 (1))760
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D01419 (2))761
PTO – 3-SPEED WITH INSERTED END SHAFT 540-750-1000 (D01420 (1))762
GUARD PLATE PTO (D01421 (1))763
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE764
4WD – ELECTROHYDRAULIC ENGAGEMENT CONTROL (D0150 (1))764
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (D0151 (1))765
HAND BRAKE (D0152 (2))766
Wheels767
Index767
FRUTTETO³ V 80 -> 5001768
S0 – WHEELS768
FRONT WHEEL BOLTS768
FRONT WHEEL MOUNTING (S0010 (1))768
REAR WHEEL BOLTS769
REAR WHEEL BOLTS (S0020 (1))769
REAR WHEEL BOLTS (S0021 (1))770
SPACER FOR REAR WHEEL RIMS (S0022 (1))771
WHEELS772
WHEELS 280/60 R155″ (S0040 (1))772
WHEELS 650 R16″ PR 8 (S0041 (1))773
WHEELS 240/70 R16″ (S0042 (1))774
WHEELS 260/70 R16″ (S0043 (1))775
WHEELS 260/70 R16″ (S0044 (1))776
WHEELS 380/70 R20″ A8 (S0045 (1))777
WHEELS 280/85R24″(112R24″) (S0046 (1))778
WHEELS 320/70 R24″ A8 (S0047 (1))779
WHEELS 360/60 R24″ (S0048 (1))780

Need help? Contact: [email protected]

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
