Same Tractor Iron 140 S Parts Catalog Manual – PDF DOWNLOAD

Description

Same Tractor Iron 140 S Parts Catalog Manual – PDF DOWNLOAD

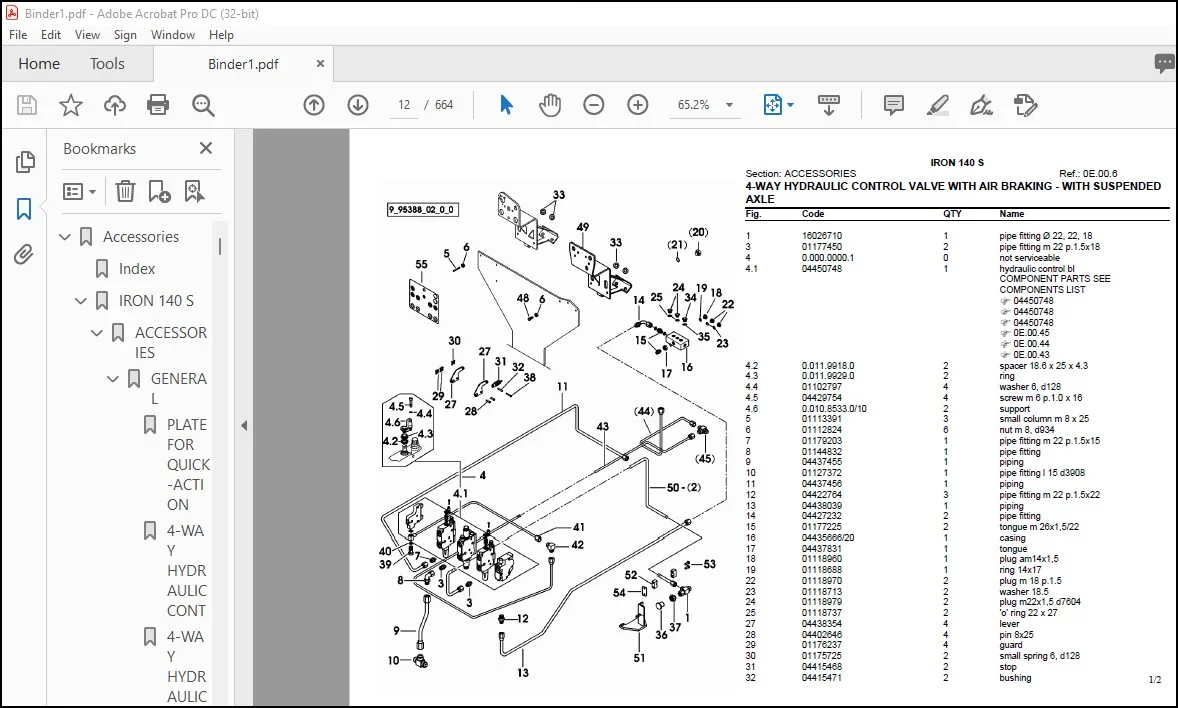

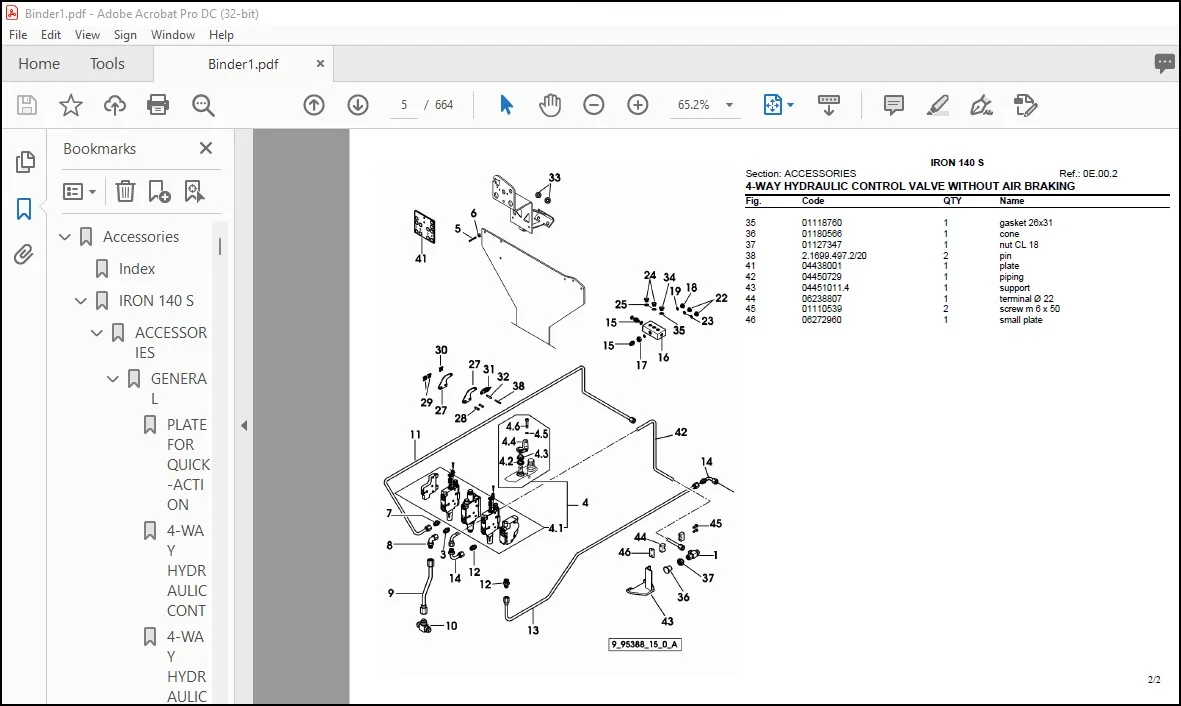

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Same Tractor Iron 140 S Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages :664
Downloadable : Yes
File Type : PDF
Size:27.7 MB

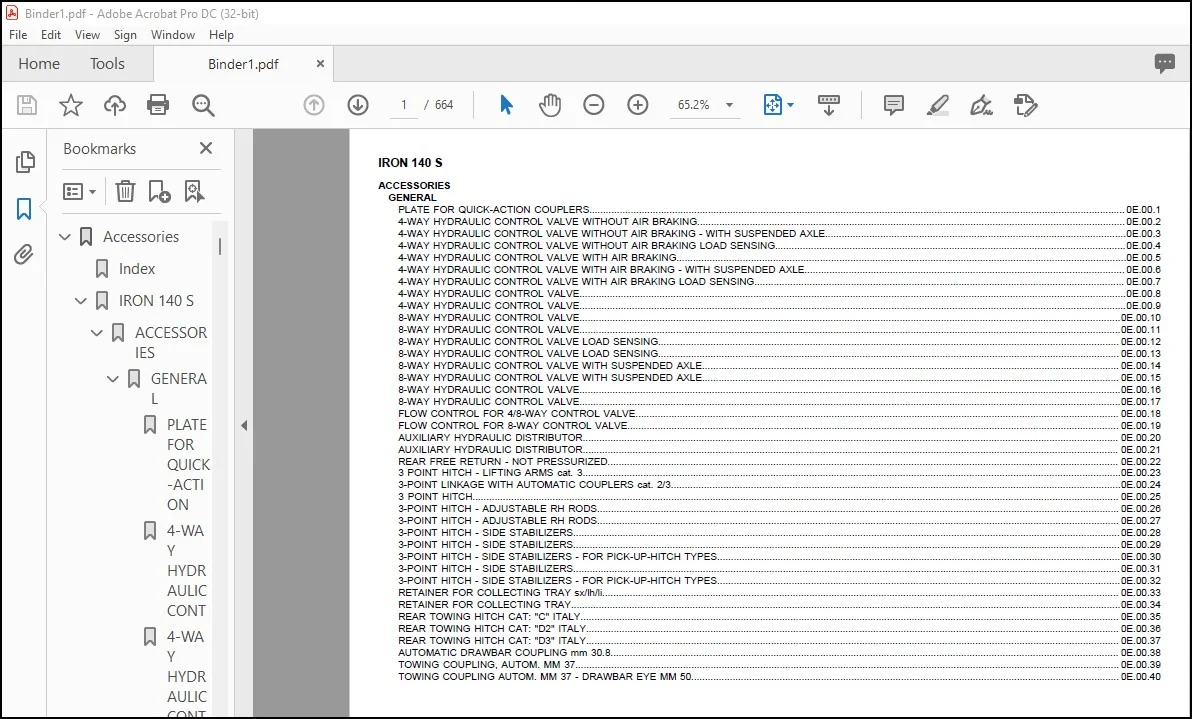

TABLE OF CONTENTS:

Same Tractor Iron 140 S Parts Catalog Manual – PDF DOWNLOAD

Accessories 1
Index 1
IRON 140 S 3
ACCESSORIES 3
GENERAL 3
PLATE FOR QUICK-ACTION COUPLERS (0E001) 3
4-WAY HYDRAULIC CONTROL VALVE WITHOUT AIR BRAKING (0E002) 4
4-WAY HYDRAULIC CONTROL VALVE WITHOUT AIR BRAKING – WITH SUSPENDED AXLE (0E003) 6
4-WAY HYDRAULIC CONTROL VALVE WITHOUT AIR BRAKING LOAD SENSING (0E004) 8
4-WAY HYDRAULIC CONTROL VALVE WITH AIR BRAKING (0E005) 10
4-WAY HYDRAULIC CONTROL VALVE WITH AIR BRAKING – WITH SUSPENDED AXLE (0E006) 12
4-WAY HYDRAULIC CONTROL VALVE WITH AIR BRAKING LOAD SENSING (0E007) 14
4-WAY HYDRAULIC CONTROL VALVE (0E008) 16
4-WAY HYDRAULIC CONTROL VALVE (0E009) 17
8-WAY HYDRAULIC CONTROL VALVE (0E0010) 18
8-WAY HYDRAULIC CONTROL VALVE (0E0011) 19
8-WAY HYDRAULIC CONTROL VALVE LOAD SENSING (0E0012) 20
8-WAY HYDRAULIC CONTROL VALVE LOAD SENSING (0E0013) 21
8-WAY HYDRAULIC CONTROL VALVE WITH SUSPENDED AXLE (0E0014) 22
8-WAY HYDRAULIC CONTROL VALVE WITH SUSPENDED AXLE (0E0015) 24
8-WAY HYDRAULIC CONTROL VALVE (0E0016) 25
8-WAY HYDRAULIC CONTROL VALVE (0E0017) 26
FLOW CONTROL FOR 4/8-WAY CONTROL VALVE (0E0018) 27
FLOW CONTROL FOR 8-WAY CONTROL VALVE (0E0019) 28
AUXILIARY HYDRAULIC DISTRIBUTOR (0E0020) 29
AUXILIARY HYDRAULIC DISTRIBUTOR (0E0021) 30
REAR FREE RETURN – NOT PRESSURIZED (0E0022) 31
3 POINT HITCH – LIFTING ARMS cat 3 (0E0023) 32
3-POINT LINKAGE WITH AUTOMATIC COUPLERS cat 2/3 (0E0024) 34
3 POINT HITCH (0E0025) 36
3-POINT HITCH – ADJUSTABLE RH RODS (0E0026) 37
3-POINT HITCH – ADJUSTABLE RH RODS (0E0027) 38
3-POINT HITCH – SIDE STABILIZERS (0E0028) 39
3-POINT HITCH – SIDE STABILIZERS (0E0029) 40
3-POINT HITCH – SIDE STABILIZERS – FOR PICK-UP-HITCH TYPES (0E0030) 41
3-POINT HITCH – SIDE STABILIZERS (0E0031) 42
3-POINT HITCH – SIDE STABILIZERS – FOR PICK-UP-HITCH TYPES (0E0032) 43
RETAINER FOR COLLECTING TRAY sx/lh/li (0E0033) 44
RETAINER FOR COLLECTING TRAY (0E0034) 45
REAR TOWING HITCH CAT: “C” ITALY (0E0035) 46
REAR TOWING HITCH CAT: “D2” ITALY (0E0036) 47
REAR TOWING HITCH CAT: “D3” ITALY (0E0037) 48
AUTOMATIC DRAWBAR COUPLING mm 308 (0E0038) 49
TOWING COUPLING, AUTOM MM 37 (0E0039) 50
TOWING COUPLING AUTOM MM 37 – DRAWBAR EYE MM 50 (0E0040) 51
REAR TOWING HITCH mm 37 X 50 Km/H (0E0041) 52
AUTOMATIC DRAWBAR COUPLING mm 38 (0E0042) 53
DRAWBAR COUPLING MECH (0E0043) 54
REAR TOWING HITCH BRACKET (0E0044) 55
REAR TOWING HITCH BRACKET (0E0045) 56
REAR TOWING HITCH BRACKET ITALY (0E0046) 57
REMOTE CONTROL FOR AUTOMATIC REAR TOWING HITCH (0E0047) 58
PICK-UP-HITCH – HYDRAULIC (0E0048) 59
PICK-UP-HITCH – MECHANICAL (0E0049) 60
DRAWBAR COUPLING EXPORT F (0E0050) 61
FRAME HOOK HOLDER (0E0051) 62
TOWING BAR (0E0052) 63
TOWING BAR (0E0053) 64
TOWING BAR (0E0054) 65
REAR TOWING HITCH HITCH (0E0055) 66
FRONT TOWING HITCH (0E0056) 67
CATCHING MOUTH (0E0057) 68
FRONT BALLAST Kg 80 (0E0058) 69
FRONT BALLAST Kg 160 (0E0059) 70
FRONT BALLAST 240 Kg (0E0060) 71
FRONT BALLAST 320 Kg (0E0061) 72
FRONT BALLAST 400 Kg (0E0062) 73
FRONT BALLAST kg 100 (0E0063) 74
FRONT BALLAST 330 Kg (0E0064) 75
FRONT BALLAST 330 Kg (0E0065) 76
FRONT BALLAST 600 Kg (0E0066) 77
FRONT BALLAST 1000 Kg (0E0067) 78
HYDRAULIC BREAKING FOR TRAILER – ITALY – (0E0068) 79
HYDRAULIC BREAKING FOR TRAILER – ITALY – – FOR TYPES WITH PNEUMATIC BRAKE (0E0069) 81
HYDRAULIC BREAKING FOR TRAILER – EXPORT F (0E0070) 83
HYDRAULIC BREAKING FOR TRAILER – EXPORT F – FOR TYPES WITH PNEUMATIC BRAKE (0E0071) 85
1 – 2 WAY AIR BRAKING SYSTEM (0E0072) 87
1 – 2 WAY AIR BRAKING SYSTEM (0E0073) 89
2-WAY AIR BRAKING SYSTEM ITALY (0E0074) 91
2-WAY AIR BRAKING SYSTEM ITALY (0E0075) 93
4-WAY QUICK COUPLERS (0E0080) 94
4-WAY QUICK COUPLERS (0E0081) 95
8-WAY QUICK COUPLERS (0E0082) 96
8-WAY QUICK COUPLERS (0E0083) 97
4-WAY QUICK COUPLERS (0E0084) 98
8-WAY QUICK COUPLERS (0E0085) 99
AIR-PRESSURE GAUGE (0E0086)100
Bodywork101
Index101
IRON 140 S103
BODY WORK103
GENERAL103
HOOD – SUPPORTS – FOR RIGHT-HAND DRIVE (07001)103
HOOD – SUPPORTS – FOR LEFT-HAND DRIVE (07002)108
HOOD – SUPPORTS – FOR RIGHT-HAND DRIVE (07003)113
HOOD – SUPPORTS – FOR LEFT-HAND DRIVE (07004)116
HOOD FRONT PART – FOR RIGHT-HAND DRIVE (07005)119
HOOD FRONT PART – FOR LEFT-HAND DRIVE (07006)121
PRODUCT PLATE (07008)123
HOOD FRONT PART (070011)124
DEFLECTORS AND SUPPORTS (070012)128
DASHBOARD (070013)132
DASHBOARD (070014)133
DASHBOARD (070015)134
COOLING SYSTEM (070016)135
COOLING SYSTEM (070017)143
FAN BELT GUARD (070018)146
INFORMATION PLATE (070019)147
INFORMATION PLATE (070020)148
GEARSHIFT DIAGRAM 40 Km/h (070023)149
GEARSHIFT DIAGRAM 50 Km/h (070024)150
METAL TOOLBOX (070026)151
THROTTLE (070027)152
ELECTRONIC ACCELERATOR CONTROL (070028)153
FRONT MUDGUARDS mm 470 (070029)154
FRONT MUDGUARDS mm 540 (070030)155
FRONT MUDGUARDS mm 470 (070032)156
FRONT MUDGUARDS mm 540 (070033)157
FRONT MUDGUARD SUPPORTS (070035)158
FRONT MUDGUARD SUPPORTS (070036)159
FRONT MUDGUARDS mm 470 (070037)160
FRONT MUDGUARDS mm 540 (070038)161
FRONT MUDGUARDS mm 620 (070039)162
SUPPORTS (070040)163
MECHANICAL CAB SUSPENSION (070042)164
MECHANICAL CAB SUSPENSION (070043)165
PNEUMATIC CAB SUSPENSION (070045)166
PNEUMATIC CAB SUSPENSION (070046)167
PNEUMATIC CAB SUSPENSION (070047)168
LADDER (070050)169
WING SIDE PANEL (070051)170
REINFORCED FENDER (070052)171
REAR MUDGUARDS – NARROW (070053)172
REAR MUDGUARDS (070054)173
REAR MUDGUARDS – WIDE (070055)174
EXTENSION FOR WING (070056)175
MUDGUARDS EXTENSIONS mm 145 (070057)176
MUDGUARDS EXTENSIONS mm 250 (070058)177
FRONT NUMBER PLATE BRACKET (070059)178
LICENCE PLATE HOLDER – FOR WIDE FENDERS – EXPORT USA (070060)179
LICENCE PLATE HOLDER – FOR NARROW FENDERS – EXPORT USA (070061)180
CHOCK (070062)181
SPEED LABEL – 40 KM/H (070063)182
SPEED LABEL – 40 KM/H – REFLEX (070064)183
SPEED LABEL – 50 KM/H – REFLEX (070065)184
FUEL TANK (070066)185
FUEL SYSTEM – TANK (070067)186
FUEL SUPPLY – AIR FILTER (070068)187
FUEL SUPPLY – AIR FILTER (070069)188
FUEL SUPPLY – AIR FILTER (070070)189
SEAT FOR 2ND OPERATOR (070071)190
PASSENGER SEAT WITH PROTECTIONS (070072)191
DRIVER’S SEAT GRAMMER MSG85/721 (070073)192
DRIVER’S SEAT GRAMMER MSG95A/721 (070074)193
DRIVER’S SEAT GRAMMER MSG95G/721 (070075)194
DRIVER’S SEAT GRAMMER MSG95G/721 (070076)195
DRIVER’S SEAT GRAMMER MSG95A/721 (070077)196
HEAD REST (070078)197
SAFETY BELT (070079)198
Cab199
Index199
IRON 140 S201
CAB201
GENERAL201
CAB (0B001)201
CAB INSTALLATION COMPLETION (0B002)202
END PLATE (0B003)203
REAR PANEL FLAP (0B004)204
SIDE PANEL FIXED dx/rh/re (0B005)205
SIDE PANEL FIXED sx/lh/li (0B006)206
LOWER/UPPER FRONT GLASS LH/RH (0B007)207
LOWER REAR WINDOW GLASS (0B008)208
CAB DOOR dx/rh/re (0B009)209
CAB DOOR dx/rh/re (0B0010)210
CAB DOOR sx/lh/li (0B0011)211
CAB DOOR sx/lh/li (0B0012)212
“HIGH VISIBILITY” OPENABLE WINDSCREEN (0B0013)213
REAR PANEL FLAP (0B0014)215
REAR HATCH WITH WIPER (0B0015)217
REAR HATCH WITH WIPER (0B0016)218
REAR HATCH WITH WIPER (0B0017)219
WATER TANK (0B0018)220
WATER TANK EXPORT USA (0B0019)221
REARVIEW MIRROR dx/rh/re (0B0020)222
REARVIEW MIRROR sx/lh/li (0B0021)223
PLUG (0B0022)224
SUN BLIND FRONT WINDSCREEN (0B0023)225
SUN BLIND REAR WINDOW (0B0024)226
CAB INTERIOR TRIM (0B0025)227
CAB INTERIOR TRIM (0B0026)229
INTERIOR TRIM (0B0027)230
INTERIOR TRIM (0B0028)231
INTERIOR TRIM (0B0029)232
CONTROL CONSOLE RIGHT (0B0030)233
CONTROL CONSOLE RIGHT (0B0031)234
CONTROL CONSOLE RIGHT (0B0032)235
CONTROL CONSOLE LEFT (0B0033)236
CONTROL CONSOLE RIGHT (0B0034)237
OUTLET VENT (0B0035)238
CONTROL CONSOLE RIGHT (0B0036)239
CONTROL CONSOLE RIGHT (0B0037)240
CONTROL CONSOLE LEFT (0B0038)241
CONTROL CONSOLE LEFT (0B0039)242
CAB SOUNDPROOF PANELS (0B0040)243
ROOF COVERING WITHOUT SKYLIGHT (0B0041)244
ROOF “HIGHT VISIBILITY” (0B0042)245
ROOF “HIGHT VISIBILITY” (0B0043)246
ROOF “HIGHT VISIBILITY” (0B0044)247
INTERIOR TRIM “HIGHT VISIBILITY” (0B0045)248
INTERIOR TRIM “HIGHT VISIBILITY” (0B0046)249
KIT RADIO (0B0047)250
CLIMATE CONTROL SYSTEM (0B0048)251
AIR CONDITIONING UNIT – LINES (0B0049)252
AIR CONDITIONING UNIT – COMPRESSOR (0B0050)253
Electrical_system254
Index254
IRON 140 S256
ELECTRIC AL SYSTEM256
GENERAL256
FLASHING POS LIGHT (08001)256
REAR FENDER ANCILLARY PARTS KIT (08002)257
ELECTRIC LIGHTING SYSTEM (08003)258
ELECTRICAL SYSTEM (08004)259
ELECTRIC LIGHTING SYSTEM EXPORT USA (08005)260
ELECTRICAL SYSTEM EXPORT USA (08006)261
REAR LIGHTING SYSTEM WITH LARGE FENDER (08007)262
WORKING SPOTLIGHT (08008)263
LOWER WORKLIGHTS ON CAB (08009)264
WORKING SPOTLIGHT FRONT (080010)265
REAR LIGHTING SYSTEM WITH SMALL FENDER EXPORT USA (080011)266
REAR LIGHTING SYSTEM WITH LARGE FENDER (080012)267
WARNING BEACON (080013)268
RETROREFLECTOR (080014)269
CONTROL UNIT – WITH HYDRAULIC SHUTTLE (080015)270
CONTROL UNIT – WITH HYDRAULIC SHUTTLE EXPORT USA (080016)271
ELECTRICAL SYSTEM – STEERING COLUMN SWITCH UNIT – WITH HYDRAULIC SHUTTLE (080017)272
ELECTRICAL SYSTEM – STEERING COLUMN SWITCH UNIT – WITH HYDRAULIC SHUTTLE EXPORT USA (080018)273
SENSOR PTO SHAFT EXPORT USA (080019)274
ELECTRICAL EQUIPMENT FRONT (080020)275
GEARBOX ELECTRICAL SYSTEM EXPORT USA (080021)276
GEARBOX ELECTRICAL SYSTEM (080022)277
ELECTRICAL SYSTEM – ROOF (080023)278
CABLE SET – MULTIFUNCTION ARMREST (080024)279
MULTIFUNCTION CONTROL UNIT (080025)280
REAR LIFT CONTROL (080026)281
DIRECTION INDICATOR AUTOMATIC RETURN (080027)282
BATTERY SUPPORT AND LEADS (080028)283
BATTERY 12V 143Ah (080029)284
BATTERY 12V 170/180Ah (080030)285
DASHBOARD BOX (080031)286
DASHBOARD BOX EXPORT USA (080032)287
ELECTRONICS BOX (080033)288
ELECTRONICS BOX EXPORT USA (080034)289
ELECTR EQUIPMENT – SPRUNG FRONT AXLE (080035)290
ELECTRONICS BOX EHR-D+ECU (080036)291
SWITCH TOP (080037)292
ASM SWITCH (080038)293
SWITCH – FOR PTO FRONT (080039)294
PTO SWITCH EXPORT USA (080040)295
PTO SWITCH (080041)296
PTO SHAFT DRIVE (080042)297
GROUND-OPERATED CONTROL FOR REAR LIFT (080043)298
REAR LIFT CONTROL (080044)299
SAC GROUND CONTROL (080045)300
RADAR (080046)301
RADAR EXPORT UK (080047)302
TRAILER SOCKET-OUTLET EXPORT USA (080048)303
CABLE FOR FRONT AXLE WITHOUT ASM (080049)304
Engine305
Index305
IRON 140 S310
ENGINE310
GENERAL310
EXHAUST SILENCER (01001)310
Crankcase311
PLUG (01011)311
FASTENINGS (01012)312
OIL PRESSURSWITCH (01013)313
FILLER CAP (01014)315
OIL FILLER NECK (01015)316
CRANKCASE BREATHER (01016)317
BLEEDING TUBE (01017)319
PISTON COOLNOZZLE (01018)320
FRONT COVER (01019)321
CRANKCASE (010110)322
PISTON COOLNOZZLE (010111)324
BLEEDING TUBE (010112)325
BLEEDING TUBE (010113)326
Oil pan327
OIL PAN (01021)327
Crankshaft329
FASTENINGS (01051)329
FLYWHEEL (01052)330
ACCESSORIES (01053)331
V-GROOVED PULLEY (01054)332
CRANKSHAFT (01055)333
VIBRATION DAMPER (01056)336
V-GROOVED PULLEY (01057)337
PLUG (01058)338
Connecting rod339
CONNECTING ROD (01061)339
Piston341
PISTON (01071)341
Cylinder head342
FASTENINGS (01081)342
CYLINDER HEAD (01081)344
ROCKER ARMS COVER (01082)347
ENGINE MOUNTING (01082)348
ENGINE MOUNTING (01083)349
ENGINE MOUNTING (01083)350
Timing chest351
GEARCASE (01091)351
Camshaft353
CAMSHAFT (01101)353
Timing gears354
ROCKER ARM BRACKET (01111)354
ROCKER ARM BRACKET (01112)356
ROCKER ARM BRACKET (01113)357
VALVE DRIVE (01114)358
FASTENINGS (01115)359
Oil cooler, Lube oil filter360
FILTER CARTRIDGE (01151)360
CLOSING COMPONENTS (01152)361
FASTENINGS (01153)362
ADAPTER (01154)363
OIL COOLER BOX (01155)365
CLOSING COMPONENTS (01156)367
Oil pipes368
OIL SUCTION PIPE (01161)368
Injection pump369
ROLLER TAPPET (01171)369
FASTENINGS (01172)370
FUEL INJECT PUMP (01173)375
ROLLER TAPPET (01174)376
FUEL INJECT PUMP (01175)377
FASTENINGS (01176)378
Injector384
FASTENINGS (01191)384
FUEL INJECTOR (01192)385
Fuel filter386
FASTENINGS (01201)386
FUEL SUPPLY PUMP (01202)388
SPIN-ON FILTER (01203)389
Fuel pipes390
HIGH PRESSURE PIPE (01211)390
HOLDING DEVICE FOR LEADS (01212)391
FUEL LINE (01213)392
ACCESSORIES (01214)394
FUEL LINE (01215)395
CONNECTION (01216)396
Air intake, Air cleaner397
TUNNEL COVER (01221)397
TUNNEL COVER (01222)398
MANIFOLD (01223)399
TUNNEL COVER (01224)400
FASTENINGS (01225)401
CHARGE AIR PIPE (01226)403
CHARGE AIR PIPE (01227)404
TUNNEL COVER (01228)405
CHARGE AIR PIPE (01229)406
CHARGE AIR PIPE (012210)407
CLOSING COMPONENTS (012211)408
CHARGE AIR PIPE (012212)409
Controller410
CLOSING COMPONENTS (01271)410
FASTENINGS (01272)411
CONTROL ROD (01273)413
INLET MANIFOLD (01274)414
ACTUATOR (01275)415
ADJUSTER INSTRUMENT (01276)416
CLOSING COMPONENTS (01277)417
ADJUSTER INSTRUMENT (01278)418
Cooling water pump419
V-GROOVED PULLEY (01371)419
COOLING WATER PUMP (01371)420
DRIVING PARTS (01372)421
COOLING WATER PUMP (01373)422
Water pipes423
CLOSING COMPONENTS (01381)423
FASTENINGS (01381)424
VENT PLUG (01381)426
CONNECTION (01382)427
COOLANT PIPE (01383)428
THERMOSTAT (01384)429
Cooling air blower430
NARROW V-BELT (01391)430
ADAPTER (01392)431
FAN SUPPORT (01393)432
Exhaust manifold434
EXHAUST PIPE (01411)434
Turbocharger436
FASTENINGS (01431)436
ACCESSORIES (01431)438
TURBOCHARGER (01432)439
RETURN LINE (01433)440
OIL LUBRICATION PIPE (01434)442
CLOSING COMPONENTS (01435)443
CLOSING COMPONENTS (01436)444
OIL LUBRICATION PIPE (01437)445
TURBOCHARGER (01438)446
Generator, Startet motor447
GENERATOR (01441)447
PARTS OF ALTERNAT (01442)448
FASTENINGS (01443)450
DRIVING PARTS (01444)451
ACCESSORIES (01445)452
STARTER (01446)453
V-GROOVED PULLEY (01447)455
ACCESSORIES (01448)456
GENERATOR (01449)457
Engine mounting458
ACCESSORIES (01471)458
ACCESSORIES (01472)459
ACCESSORIES (01473)460
ACCESSORIES (01474)462
Electrical accessories463
COVER PLATE (01481)463
FASTENINGS (01482)464
OIL PRESSURSWITCH (01483)465
PLUG-IN CONNECTOR (01484)466
OIL PRESSURSWITCH (01485)467
ACCESSORIES (01486)468
TEMPERTRANSMITTER (01487)469
IMPULSETRANSMITTER (01488)470
ENGINE ELECTRICAL SYSTEM (01489)471
FASTENINGS (014810)472
OIL PRESSURSWITCH (014811)473
ACCESSORIES (014812)474
GUARD PLATE (014813)475
FASTENINGS (014814)476
ENGINE ELECTRICAL SYSTEM (014815)477
IMPULSETRANSMITTER (014817)479
FASTENINGS (014818)480
Measuring instruments481
TEMPERTRANSMITTER (01511)481
Clutch482
BUSH (01521)482
Engine shutdown483
CLOSING COMPONENTS (01561)483
CLOSING COMPONENTS (01562)484
Starting aid485
SWITCHING DEVICE (01631)485
GLOW PLUG (01632)486
GUARD (01633)487
Heating system488
HEATER CONNECTION (01751)488
Hydraulic pump489
CLOSING COMPONENTS (01831)489
CLOSING COMPONENTS (01832)490
Sealing set492
COOLSYSTPROTECT (01901)492
GASKET SET (01902)493
Front_and_rear_pto494
Index494
IRON 140 S495
FRONT AND REAR PTO495
GENERAL495
FRONT COVER WITHOUT FRONT HOOK (05001)495
PTO SHAFT DRIVE (05002)496
PTO SHAFT DRIVE EXPORT USA (05003)497
PTO SHAFT DRIVE (05004)498
PTO SHAFT PROTECTOR REAR (05005)499
PTO SHAFT PROTECTOR REAR (05006)500
OPERATION – PTO SHAFT REAR (05007)501
Front_axle502
Index502
IRON 140 S503
FRONT AXEL503
GENERAL503
FRONT SUPPORT (04001)503
FRONT CARRIER WITH SUSPENSION (04002)504
ELECTR EQUIPMENT – SPRUNG FRONT AXLE (04003)505
FRONT CARRIER SUSPENSION SYSTEM (04004)506
FRONT CARRIER SUSPENSION SYSTEM (04005)507
FRONT CARRIER SUSPENSION SYSTEM (04006)508
FRONT CARRIER SUSPENSION SYSTEM (04007)509
DIFFERENTIAL BEVEL GEAR PAIR ZF (04008)510
DIFFERENTIAL BEVEL GEAR PAIR ZF (04009)512
DIFFERENTIAL BEVEL GEAR PAIR – FOR TYPES WITH “SBA SYSTEM” ZF (040010)513
DIFFERENTIAL BEVEL GEAR PAIR – FOR TYPES WITH “SBA SYSTEM” ZF (040011)515
DIFFERENTIAL LOCK CONTROL ZF (040012)516
DIFFERENTIAL LOCK CONTROL – FOR TYPES WITH “SBA SYSTEM” ZF (040013)517
DRIVEN FRONT AXLE ZF (040014)520
DRIVEN FRONT AXLE – FOR TYPES WITH “SBA SYSTEM” ZF (040015)522
DRIVEN STEERING AXLE – SPRUNG FRONT AXLE – FOR TYPES WITH “SBA SYSTEM” ZF (040016)523
DRIVEN FRONT AXLE ZF (040017)525
DRIVEN FRONT AXLE – FOR TYPES WITH “SBA SYSTEM” ZF (040018)526
DRIVEN STEERING AXLE – SPRUNG FRONT AXLE – FOR TYPES WITH “SBA SYSTEM” ZF (040019)527
HALF-SHAFTS AND STUB AXLE HOUSING ZF (040020)528
HALF-SHAFTS AND STUB AXLE HOUSING – FOR TYPES WITH “SBA SYSTEM” ZF (040021)530
HALF-SHAFTS AND STUB AXLE HOUSING ZF (040022)532
HALF-SHAFTS AND STUB AXLE HOUSING – FOR TYPES WITH “SBA SYSTEM” ZF (040023)533
PLANETARY GEAR ZF (040024)534
STEERING CYLINDER ZF (040025)535
PROPELLER SHAFT – WITHOUT FRONT SUSPENSION (040026)536
PROPELLER SHAFT – WITH FRONT SUSPENSION (040027)537
DIFFERENTIAL LOCK (040028)538
Front_power-lift539
Index539
IRON 140 S540
FRONT HYDRAULIC POWER-LIFT540
GENERAL540
FRONT HYDRAULIC POWER-LIFT (0C001)540
Gear541
Index541
IRON 140 S543
GEAR543
GENERAL543
FILEX COUPLING (02001)543
CLUTCH CONTROL WITH HYDRAULIC SHUTTLE (02002)544
GEARBOX FASTENERS (02003)545
SUPER-REDUCTION CONTROL (02004)546
GEAR SHIFTING (02005)547
GEAR SHIFT – CREEP SPEED (02006)548
DRIVE SHAFT (02007)549
POWERSHIFT (02008)550
POWERSHIFT (020011)552
POWERSHIFT (020014)555
GEARBOX WITH HYDRAULIC SHUTTLE (020016)557
GEARBOX WITH HYDRAULIC SHUTTLE (020017)558
PTO SHAFT (020018)559
PTO SHAFT (020019)560
COMPLETION – WITHOUT CREEP SPEED (020020)561
SUPER REDUCTION GEAR UNIT (020021)562
LAYSHAFT (020022)563
MAIN SHAFT (020023)565
MAIN SHAFT (020025)567
FRONT TRANSMISSION (020027)568
FRONT TRANSMISSION (020029)570
GEARSHIFT CONTROL WITH HYDRAULIC SHUTTLE (020031)571
GEARSHIFT LEVER – WITH HYDRAULIC SHUTTLE – AT CREEP SPEED (020032)572
GEARSHIFT LEVER – WITH HYDRAULIC SHUTTLE – WITHOUT CREEP SPEED (020033)574
CONTROL UNIT – WITH HYDRAULIC SHUTTLE (020034)576
CONTROL UNIT – WITH HYDRAULIC SHUTTLE (020035)578
HYDRAULIC CONTROL (020036)579
OIL SUPPLY (020037)581
OIL SUPPLY – WITH HYDRAULIC SHUTTLE (020038)582
OIL SUPPLY – WITH HYDRAULIC SHUTTLE (020039)583
OIL SUPPLY – WITH HYDRAULIC SHUTTLE (020040)584
PUMP DRIVE (020041)585
PUMP DRIVE (020042)588
CLUTCH (020043)589
ACCESSORIES (020047)591
DIFFERENTIAL (020049)592
4 SPEED PTO (020053)593
REAR AXLE (020056)596
SERVICE BRAKE (020060)598
BRAKE CONTROLS (020061)599
LIFTING (020062)600
CONTROL UNIT – GEARS (020064)601
Rear_axle602
Index602
IRON 140 S603
REAR AXLE603
GENERAL603
BRAKE CONTROLS (03001)603
BRAKE CONTROLS (03002)604
HAND BRAKE (03003)605
HAND BRAKE (03004)606
SAC607
Index607
IRON 140 S608
SAC608
GENERAL608
LIFTING CYLINDER Ø MM 100 (0D001)608
AGROTRONIC (0D002)609
Steering_Hydraulics610
Index610
IRON 140 S611
POWER STEERING – HYDRAULIC SYSTEM611
GENERAL611
STEERING COLUMN (06001)611
PLUG (06002)613
POWER STEERING (06003)614
GEAR BOX OIL RADIATOR TUBES (06004)615
POWER STEERING (06005)616
HYDROSTATIC STEERING WITHOUT FRONT SUSPENSION (06006)617
HYDROSTATIC STEERING WITH FRONT SUSPENSION (06007)618
OIL SUPPLY – HYDRAULIC PUMP (06008)619
OIL SUPPLY – LOAD SENSING (06009)620
COMPLETION – FOR TRACTORS WITHOUT HYDRAULIK BREAKING FOR TRAILER (060010)622
HYDR BRAKING WITH LOAD SENSING PUMP (060011)623
HYDR BRAKING WITH LOAD SENSING PUMP (060012)625
HYDR BRAKING WITH LOAD SENSING PUMP – WITHOUT AIR BRAKING (060013)627
HYDR BRAKING WITH LOAD SENSING PUMP – WITHOUT AIR BRAKING (060014)628
HYDR BRAKING WITHOUT LOAD SENSING PUMP (060015)630
HYDR BRAKING WITHOUT LOAD SENSING PUMP (060016)632
HYDR BRAKING WITHOUT LOAD SENSING PUMP – WITHOUT AIR BRAKING (060017)634
HYDR BRAKING WITHOUT LOAD SENSING PUMP – WITHOUT AIR BRAKING (060018)635
Wheels637
Index637
IRON 140 S638
WHEELS638
GENERAL638
FIXING WHEELS m 20 p15 (09001)638
TWING WHEEL FIXINGS m 20 p15 (09002)639
TYRE VALVE (09006)640
WHEELS 169R-28″ a8 (09007)641
WHEELS 169R-28″ a8 (09008)642
WHEELS 480/70 R28″ 140 A8 CF (09009)643
WHEELS 480/70 R28″ 140 A8 CF (090010)644
WHEELS 540/65R28″ A8 (090011)645
WHEELS 169R-28″ a8 (090018)646
WHEELS 420/70 R28″ A8 (090019)647
WHEELS 420/70 R28″ A8 (090020)648
WHEELS 420/70 R28″ A8 (090021)649
WHEELS 480/70 R28″ 140 A8 CF (090022)650
WHEELS 540/65R28″ (090023)651
WHEELS 540/65R28″ (090024)652
WHEELS 184R-38″ a8 (090025)653
WHEELS 184R-38″ a8 (090026)654
WHEELS 184R-38″ a8 (090027)655
WHEELS 208R38″ a8 (090028)656
WHEELS 208R38″ a8 (090029)657
WHEELS 208R38″ a8 (090030)658
WHEELS 580/70R-38″ a8 (090031)659
WHEELS 580/70R-38″ a8 (090032)660
WHEELS 650/65R38″ (090033)661
WHEELS 580/70R-38″ a8 (090034)662
WHEELS 650/65R38″ (090035)663
WHEELS 650/65R38″ (090036)664

Customer Support: [email protected]

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer


S.M
