Same Tractor Krypton 80 Parts Catalog Manual – PDF DOWNLOAD

Description

Same Tractor Krypton 80 Parts Catalog Manual – PDF DOWNLOAD

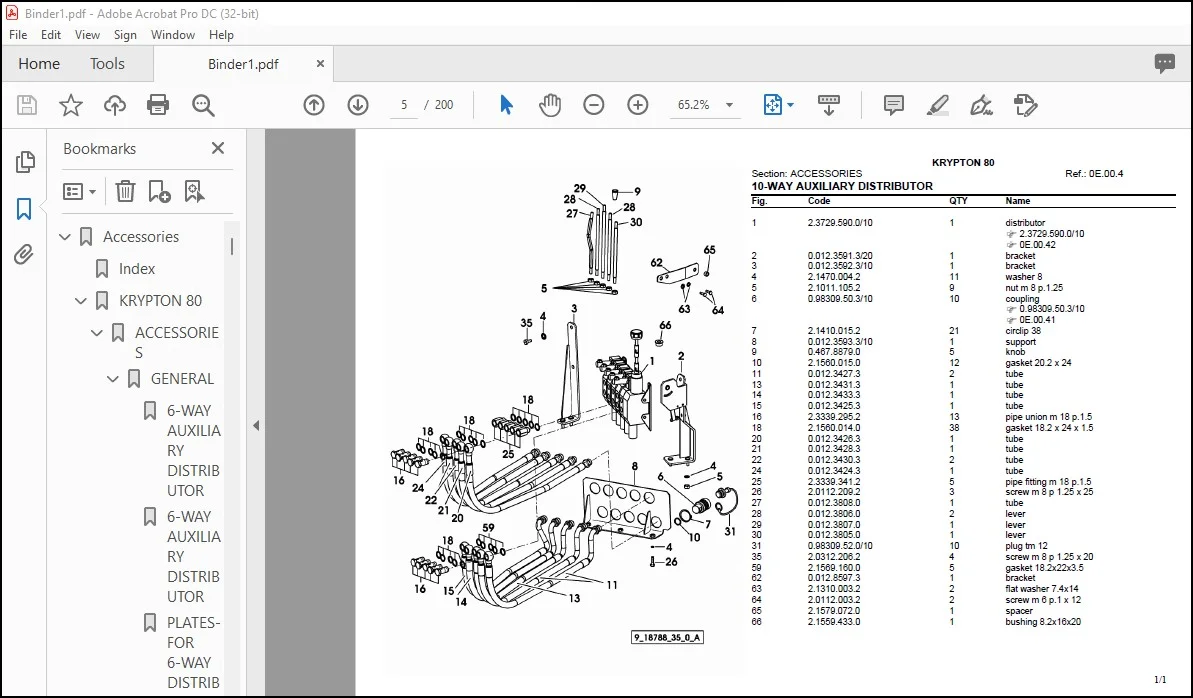

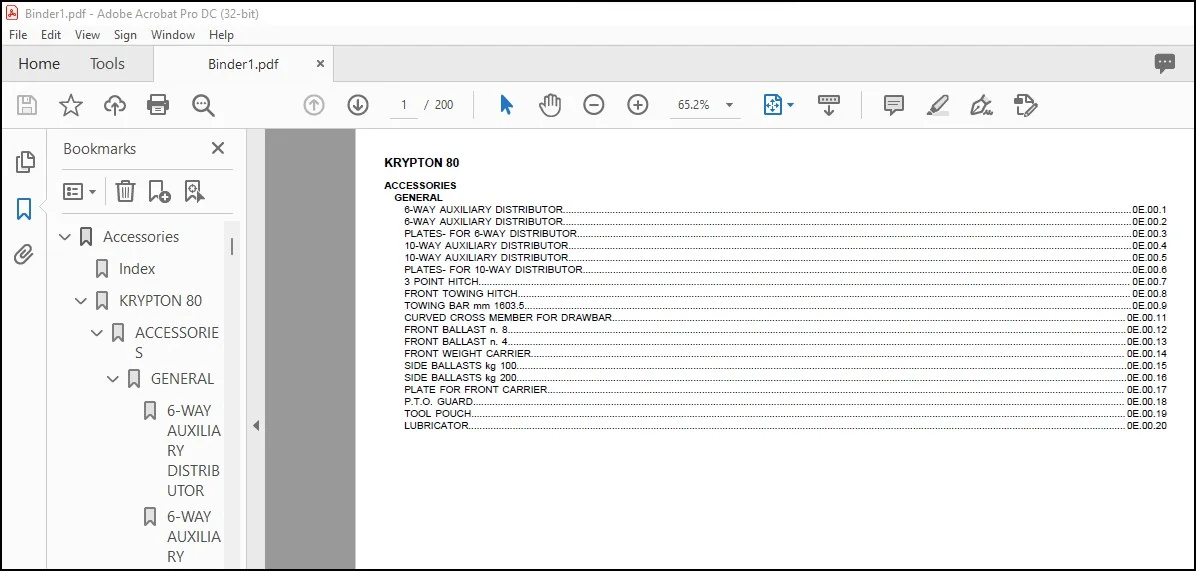

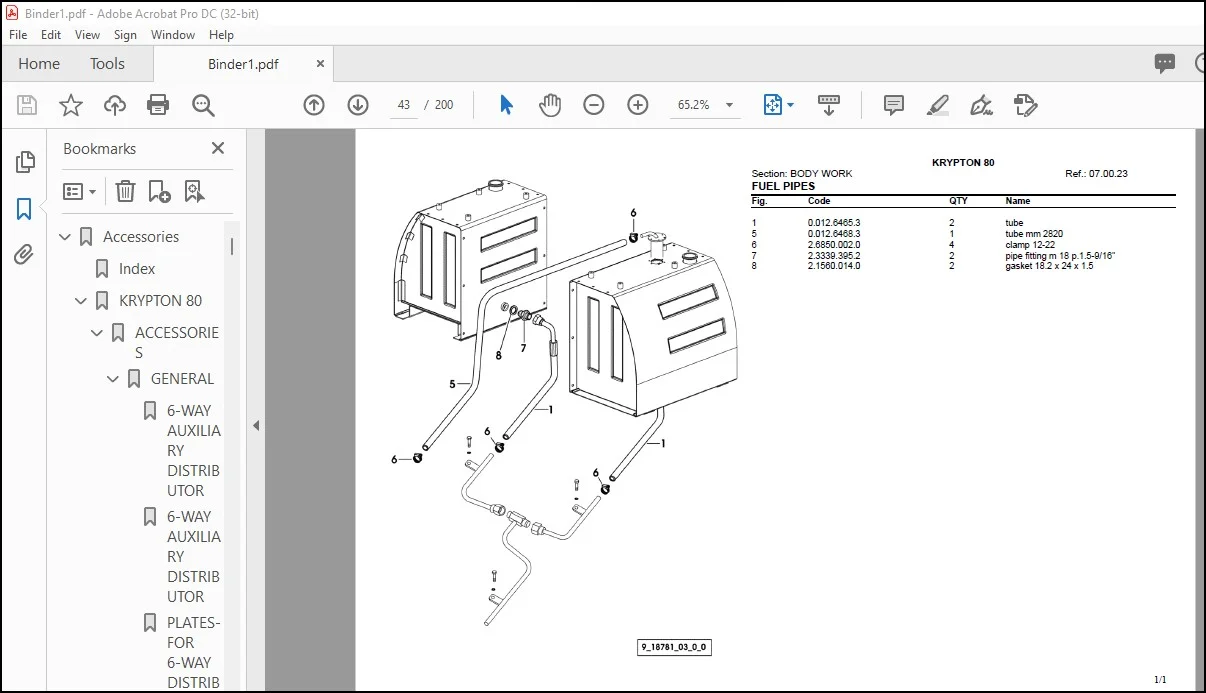

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Same Tractor Krypton 80 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 200
Downloadable : Yes
File Type : PDF
Size: 9.43 MB

TABLE OF CONTENTS:

Same Tractor Krypton 80 Parts Catalog Manual – PDF DOWNLOAD

Accessories 1
Index 1
KRYPTON 80 2
ACCESSORIES 2
GENERAL 2
6-WAY AUXILIARY DISTRIBUTOR (0E001) 2
6-WAY AUXILIARY DISTRIBUTOR (0E002) 3
PLATES- FOR 6-WAY DISTRIBUTOR (0E003) 4
10-WAY AUXILIARY DISTRIBUTOR (0E004) 5
10-WAY AUXILIARY DISTRIBUTOR (0E005) 6
PLATES- FOR 10-WAY DISTRIBUTOR (0E006) 7
3 POINT HITCH (0E007) 8
FRONT TOWING HITCH (0E008) 9
TOWING BAR mm 16035 (0E009) 10
CURVED CROSS MEMBER FOR DRAWBAR (0E0011) 11
FRONT BALLAST n 8 (0E0012) 12
FRONT BALLAST n 4 (0E0013) 13
FRONT WEIGHT CARRIER (0E0014) 14
SIDE BALLASTS kg 100 (0E0015) 15
SIDE BALLASTS kg 200 (0E0016) 16
PLATE FOR FRONT CARRIER (0E0017) 17
PTO GUARD (0E0018) 18
TOOL POUCH (0E0019) 19
LUBRICATOR (0E0020) 20
Bodywork 21
Index 21
KRYPTON 80 22
BODY WORK 22
GENERAL 22
HOOD (07001) 22
PLUG (07002) 23
PRODUCT PLATE (07003) 24
HOOD SUPPORT (07006) 25
DEFLECTORS AND SUPPORTS (07007) 27
BATTERY HOUSING AND TOOL KIT (070010) 28
DASHBOARD (070011) 29
MECHANICAL ACCELERATOR CONTROL WITH DECELERATOR (070012) 30
MECHANICAL ACCELERATOR CONTROL WITHOUT DECELERATOR (070013) 31
FRONT GRIP (070014) 32
PEDALS ASSEMBLY AND STEERING LEVERS (070015) 33
FENDERS AND PLATFORM (070016) 35
SAFETY ARCH (070017) 37
SPEED LABEL – 15 KM/H – REFLEX (070018) 38
FUEL TANK (070019) 39
TANK FLOAT (070020) 40
PLUG (070021) 41
FUEL TANKS – ARMRESTS AND COVERS (070022) 42
FUEL PIPES (070023) 43
FUEL PIPES (070024) 44
AIR FILTER 8″ (070025) 45
AIR CLEANER HOSE (070027) 46
CYCLONE AIR CLEANER EXTENSION (070029) 47
AIR CLEANER EXTENSION (070030) 48
SEAT (070031) 49
SAFETY BELT (070032) 50
SEAT WITH MECHANICAL SPRINGING AND SEATBELTS (070033) 51
DRIVER’S SEAT – PNEUMATIC SPRINGING (070034) 52
PLATES OCDE (070035) 53
PLATES (070036) 54
INFORMATION PLATE (070037) 55
PLATES (070038) 56
PLATES (070039) 57
PLATES (070040) 58
Electrical_system 59
Index 59
KRYPTON 80 60
ELECTRIC AL SYSTEM 60
GENERAL 60
HEADLAMP FOR RIGHT-HAND DRIVE (08001) 60
MECHANIC HEY-HOUR RECORDER TACHOMETER (08002) 61
ELECTRIC LIGHTING SYSTEM (08003) 62
ELECTRICAL SYSTEM (08004) 63
ELECTRICAL SYSTEM (08005) 64
BATTERY 12V 120Ah 520A (08006) 65
PREHEATING CONTROL UNIT (08007) 66
STARTER BOSCH 3 KW (08008) 67
COVER PLATE (08009) 68
ALTERNATOR 65 A (080010) 69
ALTERNATOR SUPPORT (080011) 70
Engine 71
Index 71
KRYPTON 80 73
ENGINE 73
GENERAL 73
CRANKCASE (01001) 73
SIDE PLUG FOR CYLINDER BLOCK (01002) 74
FLANGE (01003) 75
GUARD PLATE (01004) 76
TIMING CASE (01005) 77
CRANKSHAFT (01006) 78
CRANKSHAFT PULLEY (01007) 79
PULSE WHEEL (01008) 80
CYLINDER – PISTON – CONNECTING ROD (01009) 81
FLYWHEEL (010011) 82
COUNTERWEIGHTS (010013) 83
CAMSHAFT (010014) 84
CYLINDER HEAD (010016) 85
INLET AND EXHAUST VALVES (010018) 86
INLET AND EXHAUST VALVE SPRINGS (010020) 87
OIL PAN (010021) 88
LUBRICATION (010022) 89
OIL PUMP (010023) 90
LUBRICATION (010024) 91
LUBRICATION (010025) 92
LUBRIC OIL FILTER (010026) 93
FITTING FOR ENGINE OIL PRESSURE SWITCH (010028) 94
LUBRICATION (010029) 95
FITTING FOR ENGINE OIL PRESSURE SWITCH (010030) 96
LUBRIC OIL COOLER (010031) 97
LUBRICANT OIL SUCTION PIPE (010032) 98
LUBRICATION – EXPORT USA (010035) 99
FUEL FEED PUMP (010038)100
INJECTION PUMP – INJECTOR (010039)101
INJECTION LINES (010040)102
INJECTION LINES (010041)103
MECHANICAL ENGINE GOVERNOR 2500 g/1′ (010042)104
PLUG FOR MECHANICAL REGULATOR (010044)105
ELECTRONIC MOTOR CONTROLLER (010045)106
FUEL SUPPLY SYSTEM (010046)107
THERMO STARTER (010047)108
COOLING (010049)109
COOLING (010050)110
COOLING (010052)111
AIR INTAKE MANIFOLD – EXHAUST MANIFOLD (010054)112
INTAKE AND EXHAUST (010055)113
HYDRAULIC PUMP POWER TAKEOFF (010062)114
EXHAUST SILENCER (010064)115
GASKET SET FOR ENGINE ASSEMBLY (010067)116
GASKET SET FOR 1 CYLINDER VALVE GRINDING AND PISTON RING RENEWAL (010068)117
INJECTOR NOZZLE HOLDER COMPONENTS (247191900A)118
Front_and_rear_pto119
Index119
KRYPTON 80120
FRONT AND REAR PTO120
GENERAL120
PTO SHAFT REAR (05001)120
PTO – WITH INSERTED END SHAFTS (05002)121
PTO – WITH N’ 540 – 750 (05003)122
PTO – WITH N’ 540 – 1000 (05004)123
PTO – HYDRAULIC CLUTCH (05005)124
PTO – HYDRAULIC CLUTCH (05006)125
PTO ENGAGEMENT CONTROL (05007)126
Front_axle127
Index127
KRYPTON 80128
FRONT AXEL128
GENERAL128
FRONT SUPPORT (04001)128
JUNCTION CASE (04002)129
JUNCTION CASE (04003)130
GEARBOX – WEARING PARTS (04004)131
FRONT SUSPENSION (04005)132
Gear133
Index133
KRYPTON 80134
GEAR134
GENERAL134
CLUTCH 12″ (02001)134
CLUTCH CONTROL (02003)135
CLUTCH CONTROL (02005)136
GEARBOX (02006)137
GEARBOX TO CLUTCH SHAFT (02007)139
GEARBOX TO CLUTCH SHAFT (02008)140
MAIN SHAFT (02009)141
TRANSMISSION SHAFT (020010)142
REDUCTION GEAR UNIT (020011)143
UNDERDRIVE (020012)144
SUPER REDUCTION GEAR UNIT (020013)145
GEARSHIFT AND REVERSING GEAR UNIT CONTROL (020014)146
GEARSHIFT LEVER (020015)147
REVERSE GEAR CONTROL (020016)148
EXTERNAL CONTROLS FOR SUPER- AND MINI-REDUCTION (020017)149
DRIVE – INTERMEDIATE GEARS (020018)150
CONTROLS-SUPER REDUCTION (020019)151
INTERNAL CONTROLS FOR SUPER- AND MINI-REDUCTION (020020)152
DIFFERENTIAL BEVEL GEAR PAIR (020021)153
Rear_axle154
Index154
KRYPTON 80155
REAR AXLE155
GENERAL155
REAR AXLE (03001)155
HANDBRAKE BRACKET FOR TRAILER ITALY (03002)156
REAR REDUCTION GEARS AND AXLE SHAFTS (03003)157
REAR REDUCTION GEARS AND AXLE SHAFTS (03004)158
REAR BRAKES (03005)159
BRAKE CONTROLS (03006)160
BRAKE CONTROLS (03007)161
BRAKE CONTROLS (03008)162
SAC163
Index163
KRYPTON 80164
SAC164
GENERAL164
SAC CASE (0D001)164
SAC CASE (0D002)165
LIFTING (0D003)166
REGULATING DISTRIBUTOR (0D004)167
INTERNAL CONTROLS (0D005)168
INTERNAL AND EXTERNAL CONTROLS (0D006)169
CONTROL KNOBS FOR EXTERNAL POWER LIFT CONTROLS (0D007)170
SENSITIVE ELEMENTS (0D008)171
Steering_Hydraulics172
Index172
KRYPTON 80173
POWER STEERING – HYDRAULIC SYSTEM173
GENERAL173
STEERING CLUTCH (06001)173
STEERING CONTROL (06002)174
STEERING CONTROL (06003)175
LATERAL CLUTCH CONTROL (06004)176
HYDRAULIC PUMP PUMP 8 cc (06005)177
HYDRAULIC PUMP 8 cc (06006)178
HYDRAULIC PUMP 16 cc (06007)179
Track180
Index180
KRYPTON 80181
TRACK181
GENERAL181
TRACK FRAME BODY (0A001)181
TRACK FRAME BODY (0A003)182
UNDERCARRIAGE STEEL COVER PANEL (0A005)183
CAST-IRON TRACK FRAME COVER (0A006)184
CROSS BAR (0A007)185
DRIVING SPROCKET (0A008)186
TRACK HOLDER ROLLER (0A009)187
TRACK HOLDER ROLLER (0A0010)188
IDLER WHEEL (0A0011)189
IDLER (0A0012)191
TRACK mm 360 (0A0013)192
TRACK L = mm 400 (0A0014)193
TRACK mm 450 (0A0015)194
TRACK (0A0016)195
TRACK (0A0017)196
TRACK (0A0018)197
SELF-LUBRICATING TRACK AND LINKS mm 360 (0A0019)198
SELF-LUBRICATING TRACK AND LINKS L = mm 400 (0A0020)199
TRACK mm 450 (0A0021)200
