Same Solaris 40 (after 6001) Tractor Parts Catalog PDF

Description

Same Tractor Solaris 40 after 6001 Parts Catalog Manual – PDF DOWNLOAD

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Same Tractor Solaris 40 after 6001 Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :399
Downloadable : Yes
File Type : PDF
Size:17.6 MB
TABLE OF CONTENTS:

Same Tractor Solaris 40 after 6001 Parts Catalog Manual – PDF DOWNLOAD

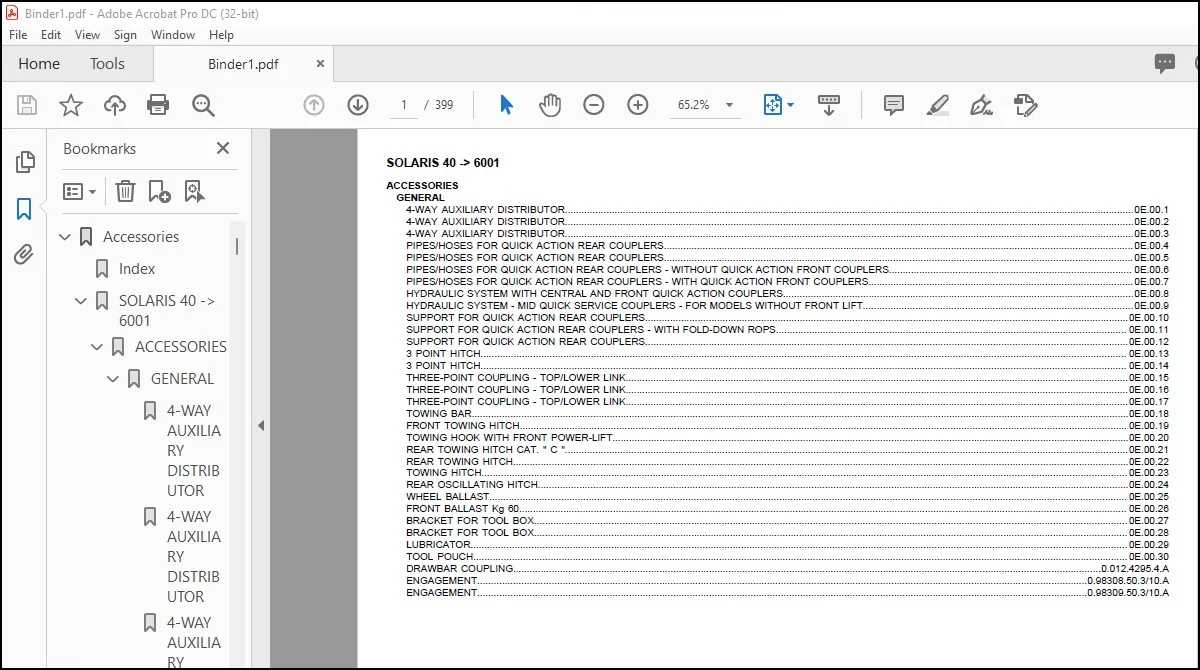

Accessories 1
Index 1
SOLARIS 40 -> 6001 2
ACCESSORIES 2
GENERAL 2

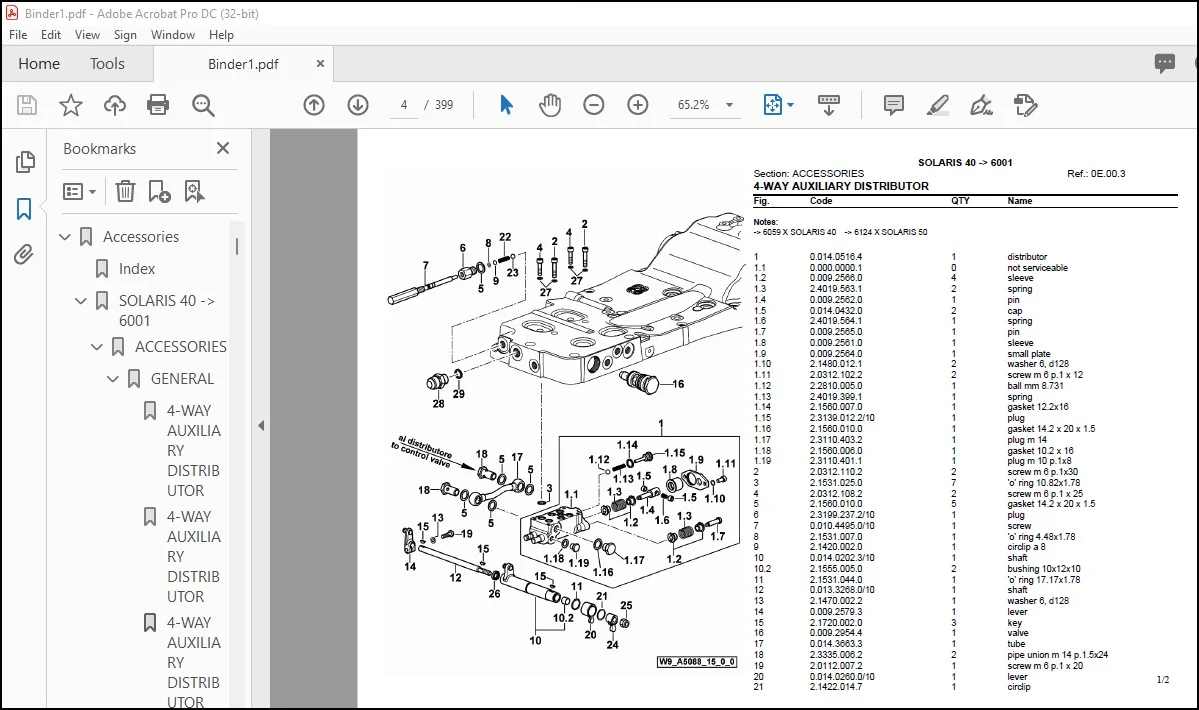

4-WAY AUXILIARY DISTRIBUTOR (0E001) 2
4-WAY AUXILIARY DISTRIBUTOR (0E002) 3
4-WAY AUXILIARY DISTRIBUTOR (0E003) 4
PIPES/HOSES FOR QUICK ACTION REAR COUPLERS (0E004) 6
PIPES/HOSES FOR QUICK ACTION REAR COUPLERS (0E005) 7
PIPES/HOSES FOR QUICK ACTION REAR COUPLERS – WITHOUT QUICK ACTION FRONT COUPLERS (0E006) 8
PIPES/HOSES FOR QUICK ACTION REAR COUPLERS – WITH QUICK ACTION FRONT COUPLERS (0E007) 9
HYDRAULIC SYSTEM WITH CENTRAL AND FRONT QUICK ACTION COUPLERS (0E008) 10
HYDRAULIC SYSTEM – MID QUICK SERVICE COUPLERS – FOR MODELS WITHOUT FRONT LIFT (0E009) 11
SUPPORT FOR QUICK ACTION REAR COUPLERS (0E0010) 12
SUPPORT FOR QUICK ACTION REAR COUPLERS – WITH FOLD-DOWN ROPS (0E0011) 13
SUPPORT FOR QUICK ACTION REAR COUPLERS (0E0012) 14

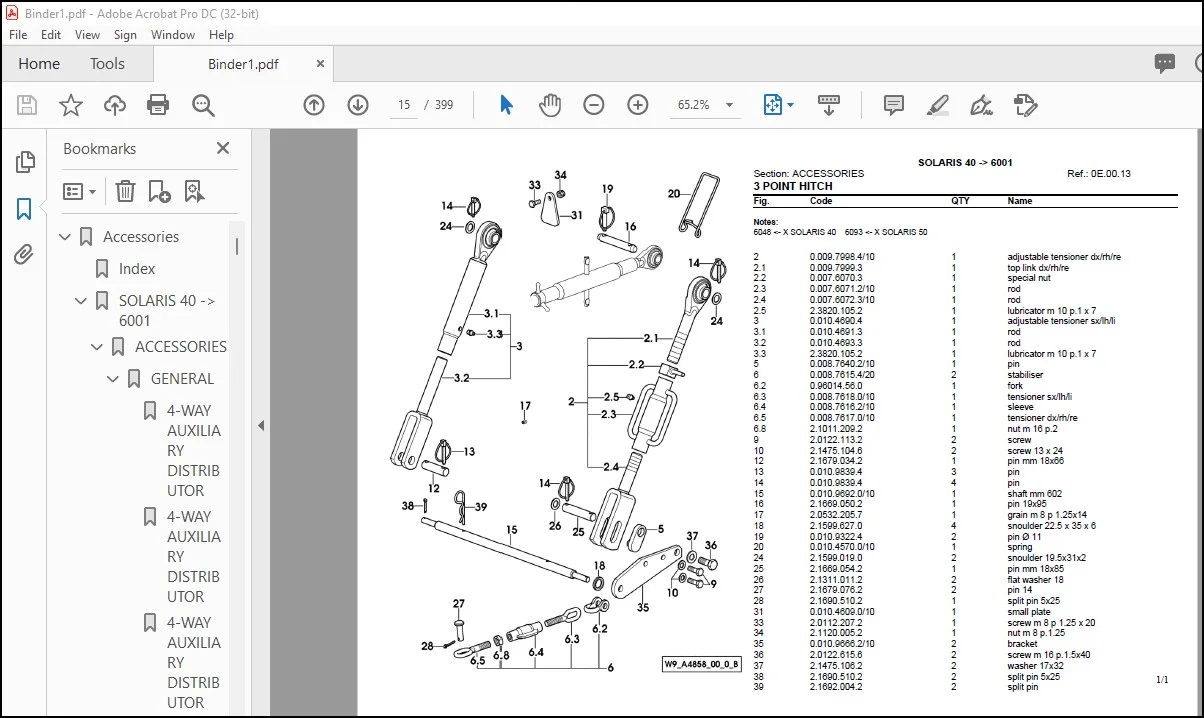

3 POINT HITCH (0E0013) 15
3 POINT HITCH (0E0014) 16
THREE-POINT COUPLING – TOP/LOWER LINK (0E0015) 17
THREE-POINT COUPLING – TOP/LOWER LINK (0E0016) 18
THREE-POINT COUPLING – TOP/LOWER LINK (0E0017) 19
TOWING BAR (0E0018) 20
FRONT TOWING HITCH (0E0019) 21
TOWING HOOK WITH FRONT POWER-LIFT (0E0020) 22
REAR TOWING HITCH CAT ” C ” (0E0021) 23
REAR TOWING HITCH (0E0022) 24
TOWING HITCH (0E0023) 25
REAR OSCILLATING HITCH (0E0024) 26
WHEEL BALLAST (0E0025) 27
FRONT BALLAST Kg 60 (0E0026) 28
BRACKET FOR TOOL BOX (0E0027) 29
BRACKET FOR TOOL BOX (0E0028) 30
LUBRICATOR (0E0029) 31
TOOL POUCH (0E0030) 32
DRAWBAR COUPLING (001242954A) 33
ENGAGEMENT (098308503/10A) 34
ENGAGEMENT (098309503/10A) 35
Body_work 36
Index 36
SOLARIS 40 -> 6001 39
BODY WORK 39
GENERAL 39
HOOD (07001) 39
HOOD – SUPPORTS (07002) 40
UNDER HOOD WIRING FIXING (07003) 41
ENGINE HOOD GASKETS (07004) 42
HOOD SOUNDPROOFING (07005) 43
SOUND/THERMAL INSULATION PANELS (07006) 44
PRODUCT PLATE (07007) 45
PRODUCT PLATE (07008) 46
PRODUCT PLATE – REAR (070011) 47
HOOD HINGES (070012) 48
HOOD – SUPPORTS – FOR MODELS WITHOUT FRONT PTO (070013) 49
HOOD – SUPPORTS – FOR MODELS EQUIPPED WITH FRONT PTO (070014) 50
HOOD CATCH (070015) 51
HOOD – SUPPORTS (070016) 52
HOOD GAS SPRING (070017) 53
BATTERY SUPPORT – FOR MODELS WITHOUT FRONT PTO (070018) 54
BATTERY SUPPORT – FOR MODELS EQUIPPED WITH FRONT PTO (070019) 55
BATTERY SUPPORT FIXING – FOR MODELS WITHOUT FRONT PTO (070020) 56
PEDAL SUPPORT (070021) 57
WATER COOLER – FOR MODELS WITHOUT FRONT PTO (070022) 58
WATER COOLER – FOR MODELS EQUIPPED WITH FRONT PTO (070024) 59
COOLING – COOLANT RADIATOR (070025) 60
COLLECTION TANK (070026) 61
AIR DUCTING HOOD (070027) 62
BELTS GUARD (070028) 63
DASHBOARD (070029) 64
PLATES (070030) 65
INFORMATION PLATE (070031) 66
INFORMATION PLATE (070032) 67
INFORMATION PLATE EXPORT PT (070033) 68
INFORMATION PLATE EXPORT PT (070034) 69
INFORMATION PLATE (070035) 70
INFORMATION PLATE (070036) 71
INFORMATION PLATE (070037) 72
PTO DATA PLATE 540 (070038) 73
PTO DATA PLATE 540 – 750 (070039) 74
PTO DATA PLATE 540 – 750 + SINCRO (070040) 75
PTO DATA PLATE 540 – 1000 (070041) 76
PTO DATA PLATE 540 – 1000 + SYNCRO (070042) 77
INFORMATION PLATE – FOR MODELS WITHOUT FRONT LIFT (070043) 78
INFORMATION PLATE – FOR MODELS WITH FRONT LIFT (070044) 79
PTO DATA PLATE – FRONT (070045) 80
THROTTLE (070046) 81
THROTTLE (070047) 82
THROTTLE (070048) 83
FOOTPLATE COVER (070049) 84
FOOTPLATE COVER dx/rh/re (070050) 85
FOOTPLATE COVER – WITHOUT SUPPLEMENTARY FUEL TANK sx/lh/li (070051) 86
FOOTPLATE COVER dx/rh/re (070052) 87
FOOTPLATE COVER sx/lh/li (070053) 88
FOOTPLATE COVER – WITH RESERVE TANK sx/lh/li (070054) 89
FRONT MUDGUARDS mm 225 (070055) 90
FRONT MUDGUARDS mm 225 (070056) 91
FRONT MUDGUARDS – FOR TYRE EQUIPMENT 650-16″ mm 225 (070057) 92
FRONT MUDGUARDS mm 310 (070058) 93
FRONT MUDGUARDS mm 310 (070059) 94
PLATTFORM: SUPPORTS (070060) 95
PLATFORM (070061) 96
LADDER (070062) 97
REAR BEACON MOUNTING (070063) 98
LH LIGHT HOLDER FOR EXTINGUISHER AND WARNING TRIANGLE SUPPORT (070064) 99
WARNING TRIANGLES AND EXTINGUISHER (070065)100
COVER PLATE (070066)101
MUDGUARDS EXTENSIONS mm 85 (070067)102
MUDGUARDS EXTENSIONS mm 145 (070068)103
FENDERS (070069)104
SAFETY ARCH – FRONT (070070)105
SAFETY ROLL BAR SUPPORTS (070071)106
SAFETY ARCH – REAR (070072)107
SAFETY ARCH – REAR (070073)108
GUARD (070074)109
SAFETY ROLL BAR SUPPORTS (070075)110
SAFETY ARCH (070076)111
REARVIEW MIRROR (070077)113
REARVIEW MIRROR (070078)114
LICENCE PLATE HOLDER (070079)115
EXTENSION FOR WING (070080)116
SPEED LABEL – 40 KM/H (070081)117
SPECIAL VERSION FOR EXPORT D (070082)118
SPECIAL VERSION FOR EXPORT D (070083)119
TRIANGLE SUPPORT (070084)120
TRIANGLE SUPPORT (070085)121
FUEL SYSTEM – TANK (070086)122
TANK FLOAT (070087)123
FUEL TANK FIXING PARTS (070088)124
TANK SEALS (070089)125
AUXILIARY TANK (070090)126
FUEL SUPPLY – AIR FILTER 7″ (070091)127
AIR CLEANER HOSE (070092)128
DRIVER’S SEAT (070094)129
DRIVER’S SEAT (070095)130
SEAT SPRINGING (001053564A)131
SEAT-COMPONENTS (001247824/10A)132
SEAT-COMPONENTS (001247824/20A)133
SEAT-COMPONENTS (001356624A)134
WATER COOLER (001368284/40A)135
WATER COOLER (001404164A)136
REARVIEW MIRROR (092341474/10A)137
AIR FILTER PARTS (242496100A)138
Electrical_system139
Index139
SOLARIS 40 -> 6001140
ELECTRIC AL SYSTEM140
GENERAL140
HEADLAMP FOR RIGHT-HAND DRIVE (08001)140
HEADLAMP FOR LEFT-HAND DRIVE (08002)141
LIGHT FIXINGS (08003)142
SIDE LIGHTS ON ROLL BAR (08004)143
SIDE LIGHTS (08005)144
FRONT/REAR LIGHTS (08006)145
REAR LIGHTS (08007)146
FRONT/REAR LIGHTS (08008)147
WORKING SPOTLIGHT (08009)148
WORKING SPOTLIGHT (080010)149
LICENCE PLATE LIGHT (080011)150
WARNING BEACON (080012)151
PREARRANGEMENT FOR WARNING BEACON (080013)152
PREARRANGEMENT FOR WARNING BEACON (080014)153
INSTRUMENTATION (080015)154
ELECTRICAL SYSTEM – STEERING COLUMN SWITCH UNIT (080016)155
PTO CLUTCH ENGAGED INDICATOR FIXING (080017)157
ELECTRICAL EQUIPMENT REAR (080018)158
BATTERY (080021)159
ELECTRICAL EQUIPMENT FRONT – BATTERY LEADS (080022)160
ELECTRICAL SYSTEM PTO (080023)161
HEADLAMP COMPONENTS (000967584/10A)162
ELECTRICAL SYSTEM (001269484/70A)163
ELECTRICAL SYSTEM (001269484/90A)164
ELECTRICAL SYSTEM (001269514/60A)165
ELECTRICAL SYSTEM (001314524A)166
FLASHING LIGHT SUPPORT (001326054A)167
POWER OUTLET SOCKET (260320110A)168
HEADLAMP COMPONENTS (280292400/10A)169
HEADLAMP COMPONENTS (280293000A)170
REAR LIGHT (280390900A)171
REAR LIGHT (280391000A)172
HEADLAMP FOR RIGHT-HAND DRIVE (280392300A)173
HEADLAMP FOR LEFT-HAND DRIVE (280392900A)174
FRONT LIGHTS dx/rh/re (280392930/10A)175
FRONT LIGHTS sx/lh/li (280392940/10A)176
HEADLAMP COMPONENTS (280592200/20A)177
HEADLAMP COMPONENTS (280592300A)178
HEADLAMP COMPONENTS (280592400A)179
ELECTRIC REV-HOUR RECORDER TACHOMETER (283392300/60A)180
Engine181
Index181
SOLARIS 40 -> 6001183
ENGINE183
GENERAL183
CYLINDER HEAD (01001)183
CYLINDER HEAD (01003)184
CYLINDER HEAD COVER (01004)185
CAMSHAFT (01005)186
CRANKCASE (01006)187
MAIN BEARINGS (01008)188
TIMING CASE (01009)189
FLYWHEEL HOUSING (010010)190
OIL PAN (010011)191
PISTON – CONNECTING ROD (010012)192
CRANKSHAFT – FLYWHEEL (010014)193
CAMSHAFT (010016)194
INTAKE AND EXHAUST (010017)195
OIL PUMP (010019)196
LUBRICATION (010020)197
OIL PIPES FOR TURBOCHARGER (010021)198
LUBRIC OIL COOLER (010023)199
LUBRIC OIL FILTER (010025)200
COOLING (010026)201
FUEL SUPPLY SYSTEM (010027)202
INJECTOR NOZZLE HOLDER COMPONENTS (010028)203
INJECTION PUMP PARTS (010029)204
FUEL FILTER (010031)205
CONTROLLER (010032)206
ELECTRICAL SYSTEM (010034)207
STARTER PARTS (010035)208
ALTERNATOR PARTS (010036)209
SOLENOID VALVE (010037)210
THERMOSTAT (010038)211
ACCESSORIES (010039)212
GASKET SET FOR ENGINE ASSEMBLY (010041)213
HYDRAULIC PUMP POWER TAKEOFF (010043)214
OIL FILLER NECK (010044)215
SCREENING (010045)216
BLOWER (010046)217
COOLING (010049)218
PARTS SET – ENGINE MOUNTING (010050)219
EXHAUST SILENCER (010051)220
FLANGE FOR EXHAUST SILENCER (010052)221
FUEL SUPPLY SYSTEM (010054)222
ENGINE MOUNTING (010055)223
FUEL FEED PUMP (000869574A)224
Front_and_rear_pto225
Index225
SOLARIS 40 -> 6001226
FRONT AND REAR PTO226
GENERAL226
PTO FRONT (05001)226
PTO FRONT (05002)227
PTO FRONT – GUARD (05003)228
PTO FRONT (05004)229
PTO FRONT (05005)230
CENTRAL PTO (05006)231
CENTRAL PTO (05007)232
PLUG FOR TYPES WITHOUT MID PTO (05008)233
MID PTO – STANDARD OIL SEAL (05009)234
MID PTO – WATERPROOF OIL SEAL (050010)235
PTO – CLUTCH TRANSMISSION SHAFT (050011)236
PTO – CLUTCH TRANSMISSION SHAFT (050012)237
PTO SHAFT REAR 540 – 1000 (050013)238
PTO SHAFT REAR (050014)239
PTO – WITH N’ 540 (050015)240
PTO – WITH N’ 540 – 750 (050016)241
PTO – WITH N’ 540 – 1000 (050017)242
PTO PACKAGE WITHOUT GROUNDSPEED (050018)243
PTO – PARTS SET WITH STANDARD SEALS (050019)244
PTO – PARTS SET WITH WATER PROOF SEALS (050020)245
PTO – PARTS SET WITH STANDARD SEALS (050021)246
PTO – PARTS SET WITH WATER PROOF SEALS (050022)247
PTO – SYNCHRONIZED (050023)248
PTO – SYNCHRONIZED (050024)249
PTO – SYNCHRONIZED 540 – 750 (050025)250
PTO – SYNCHRONIZED 540 – 1000 (050026)251
PTO ENGAGEMENT CONTROL (050027)252
PTO SHAFT PROTECTOR REAR – WITH FOLD-DOWN ROPS (050028)254
PTO SHAFT PROTECTOR REAR (050029)255
Front_axle256
Index256
SOLARIS 40 -> 6001257
FRONT AXEL257
GENERAL257
FRONT SUPPORT – FOR NARROW TYPES (04001)257
FRONT SUPPORT (04002)258
FRONT SUPPORT – FOR MODELS EQUIPPED WITH FRONT PTO (04003)259
AIR DUCT WALL (04004)260
FRONT SUPPORT (04005)261
BRACKET – FOR MODELS WITHOUT FRONT PTO (04006)262
BRACKET – FOR MODELS EQUIPPED WITH FRONT PTO (04007)263
JUNCTION CASE (04008)264
CLUTCH HOUSING FIXINGS (04009)265
4WD – NARROW FRONT DRIVE AXLE (040010)266
4WD – AXLESHAFTS WITH DIFFERENTIAL LOCK – FOR NARROW TYPES (040011)267
4WD – FRONT DRIVE AXLE (040012)268
4WD – AXLESHAFTS WITH DIFFERENTIAL LOCK (040013)269
4WD – FRONT DRIVE AXLE (040014)270
DIFFERENTIAL – WITH DIFFERENTIAL LOCK (040015)271
4WD – POWER STEERING CYLINDER – FOR NARROW TYPES (040016)272
4WD – POWER STEERING CYLINDER (040017)273
DIFFERENTIAL BEVEL GEAR PAIR (040018)274
4WD – DIFFERENTIAL (040019)275
4WD – FRONT REDUCTION GEARBOX – FOR NARROW TYPES (040020)276
4WD – FRONT REDUCTION GEARBOX (040021)277
4WD – STANDARD SEALING (040022)278
4WD – WATER PROOF SEALING (040023)279
4WD – TRANSMISSION SHAFT (040024)280
4WD – TRANSMISSION SHAFT (040025)281
4WD – ENGAGEMENT CONTROL (040026)282
4WD – ENGAGEMENT CONTROL (040027)283
4WD PACKAGE WITHOUT GROUNDPSEED PTO (040028)284
4WD – ENGAGEMENT CONTROL – STANDARD SEALS (040029)285
4WD – ENGAGEMENT CONTROL – WATERPROOF SEALS (040030)286
4WD – ENGAGEMENT CONTROL (040031)287
CYLINDER PARTS (000876794/20A)288
ADJUSTABLE LIFT ROD PARTS (000877344/30A)289
CYLINDER PARTS (001288784/10A)290
LINKAGE (001289574/10A)291
LINKAGE (001289584/10A)292
Front_power-lift293
Index293
SOLARIS 40 -> 6001294
FRONT HYDRAULIC POWER-LIFT294
GENERAL294
FRONT HYDRAULIC POWER-LIFT (0C001)294
FRONT LIFT – HYDRAULIC SYSTEM (0C002)295
CYLINDER PARTS (000877414A)296
Gear297
Index297
SOLARIS 40 -> 6001298
GEAR298
GENERAL298
DOUBLE COUPLING – LUK (02001)298
CLUTCH CONTROL (02002)299
CLUTCH CONTROL (02003)300
INDEPENDENT CLUTCH CONTROL FOR PTO (02004)301
GEARBOX (02005)302
GEARBOX (02006)303
REAR GEARBOX BRACKETS – WITH FOLD-DOWN ROPS (02007)304
REAR GEARBOX BRACKETS (02008)305
MAIN GEARBOX AND REVERSE SHUTTLE GEARS (02009)306
MAIN GEARBOX (020010)307
REDUCTION GEAR UNIT (020011)308
GEAR SHIFTING (020012)309
REVERSE GEAR CONTROL (020013)310
REVERSE GEAR CONTROL (020014)311
REDUCTION GEAR CONTROL (020015)312
DIFFERENTIAL BEVEL GEAR PAIR (020016)313
DIFFERENTIAL LOCK CONTROL (020017)314
DIFFERENTIAL LOCK CONTROL (020018)315
SYNCHRONIZER PARTS (000849514A)316
DOUBLE COUPLING – LUK (001258514/20A)317
Rear_axle318
Index318
SOLARIS 40 -> 6001319
REAR AXLE319
GENERAL319
REAR AXLE (03001)319
REAR AXLE – STANDARD SEALS (03002)320
REAR AXLE – WATER PROOF SEALS (03003)321
HALF AXLES (03004)322
HALF AXLES (03005)323
REDUCTION GEAR UNIT (03006)324
HANDBRAKE BRACKET FOR TRAILER (03007)325
HANDBRAKE BRACKET FOR TRAILER (03008)326
REAR BRAKES (03009)327
BRAKE CONTROLS (030010)328
HAND BRAKE (030011)329
BRAKES TITAN ITALIA (001131694A)330
BRAKES URSUS (001249304A)331
SAC332
Index332
SOLARIS 40 -> 6001333
SAC333
GENERAL333
SAC CASE (0D001)333
SAC CASE (0D002)334
SAC CASE (0D003)335
FASTENINGS (0D004)336
FASTENINGS (0D005)337
OIL FILLER NECK – AIR BREATHER (0D006)338
LIFTING (0D007)339
LIFTING (0D008)340
LIFTING (0D009)341
REGULATING DISTRIBUTOR (0D0010)342
INTERNAL AND EXTERNAL CONTROLS (0D0011)344
INTERNAL AND EXTERNAL CONTROLS (0D0012)346
CONTROL TIE RODS AND LEVERS (0D0013)348
CONTROL TIE RODS AND LEVERS (0D0014)350
CONTROL TIE RODS AND LEVERS (0D0015)352
SENSITIVE ELEMENTS (0D0016)353
SENSITIVE ELEMENTS (0D0017)354
Steering_Hydraulics355
Index355
SOLARIS 40 -> 6001356
POWER STEERING – HYDRAULIC SYSTEM356
GENERAL356
STEERING WHEEL (06001)356
STEERING WHEEL CAP (06002)357
STEERING WHEEL CAP (06003)358
HYDRAULIC STEERING GEAR STEERING COLUMN (06004)359
HYDRAULIC STEERING GEAR (06005)360
PIPES FOR HYDROSTATIC STEERING (06006)361
POWER STEERING (06007)362
HYDRAULIC PUMP 11+55 sx/lh/li bosch (06008)363
PUMP FILTER SUCTION (06009)364
SAC AND POWER STEERING HYDRAULIC SYSTEM (060010)365
HYDRAULIC SYSTEM – FOR MODELS WITHOUT FRONT PTO (060011)366
HYDRAULIC SYSTEM – FOR MODELS EQUIPPED WITH FRONT PTO (060012)367
FRONT PTO HYDRAULIC SYSTEM (060013)368
FRONT PTO HYDRAULIC SYSTEM (060014)369
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (060015)370
DIFFERENTIAL LOCK (060016)371
SAC HYDRAULIC SYSTEM (060017)372
HYDR STEERING DISTRIBUTOR PARTS (000931414/10A)373
SOLENOID VALVE 13V – 20W (237292400/30A)374
SOLENOID VALVE (237294100/20A)375
SOLENOID VALVE (237296970A)376
HYDRAULIC PUMP 11+55 sx/lh/li bosch (245398840A)377
POWER STEERING (245690010A)378
Wheels379
Index379
SOLARIS 40 -> 6001380
WHEELS380
GENERAL380
FRONT WHEEL MOUNTING (09001)380
REAR WHEEL BOLTS (09002)381
WHEELS 650/80 R12″ PR 4 (09003)382
WHEELS 700×12″ pr 4 (09004)383
WHEELS 27-850-15″ pr 4 (09005)384
WHEELS 650 R16″ PR 8 (09006)385
WHEELS 650 R16″ PR 8 (09007)386
WHEELS 136-16″ pr4 (09008)387
WHEELS 136-16″ pr4 (09009)388
WHEELS 200/70R-16″ (090010)389
WHEELS 240/70 R16″ (090011)390
WHEELS 260/70 R16″ (090012)391
WHEELS 280/70 R18″ (090013)392
WHEELS 112R20″ (090014)393
WHEELS 38-1400-20″ pr 4 (090015)394
WHEELS 320/70 R20″ A8 (090016)395
WHEELS 360/70R-20″ (090017)396
WHEELS 112 R24″ A8 (090018)397
WHEELS 112 R24″ A8 (090019)398
WHEELS 320/70R-24″ (090020)399

Need help? Contact: [email protected]

PLEASE NOTE:

• This is the SAME MANUAL used by the dealerships to diagnose your vehicle
• No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
• Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
• So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com

S.M
