Same Tractor SOLARIS 45 after 5001 Parts Catalog Manual – PDF DOWNLOAD

Description

Same Tractor SOLARIS 45 after 5001 Parts Catalog Manual – PDF DOWNLOAD

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Same Tractor SOLARIS 45 after 5001 Parts Catalog Manual – PDF DOWNLOAD

Language : English
Pages : 229
Downloadable : Yes
File Type : PDF
Size : 10.0 MB

TABLE OF CONTENTS:

Same Tractor SOLARIS 45 after 5001 Parts Catalog Manual – PDF DOWNLOAD

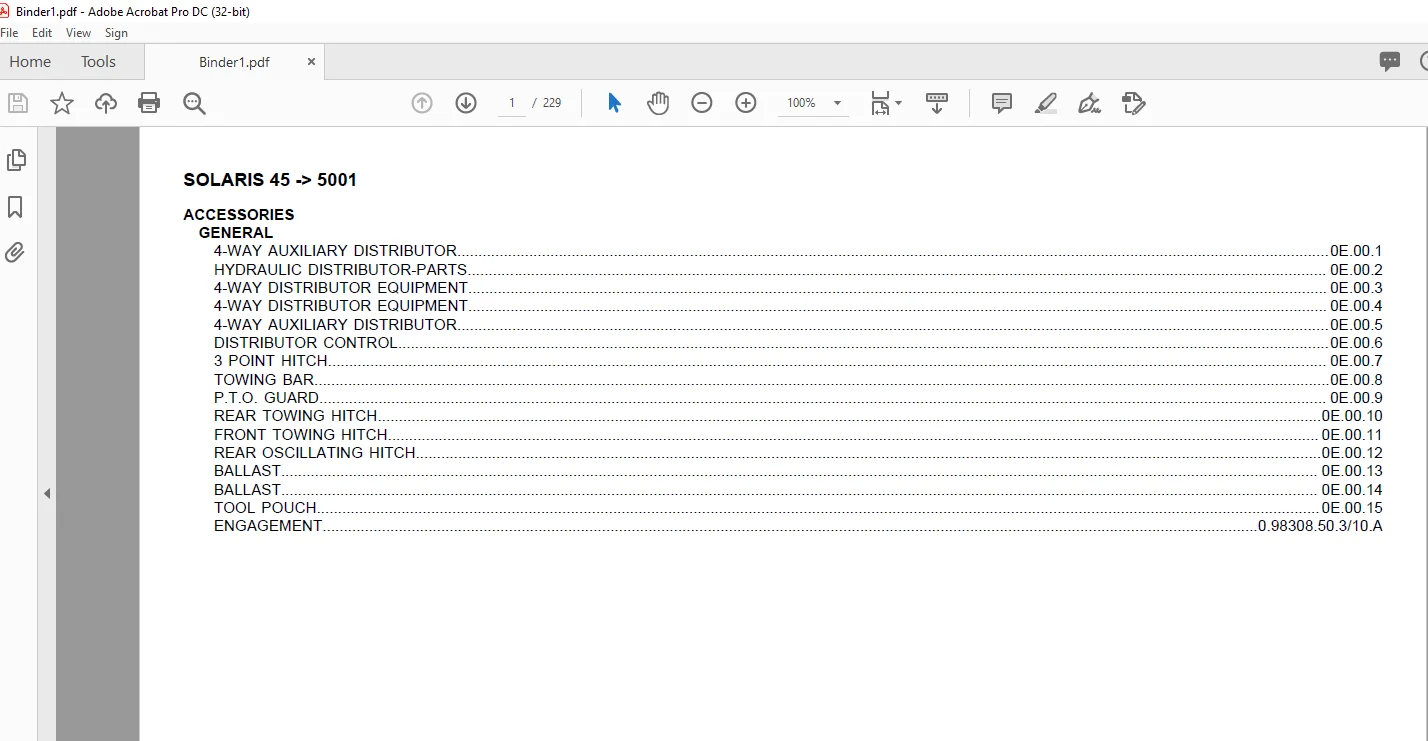

Accessories 1
Index 1
SOLARIS 45 -> 5001 2
ACCESSORIES 2
GENERAL 2

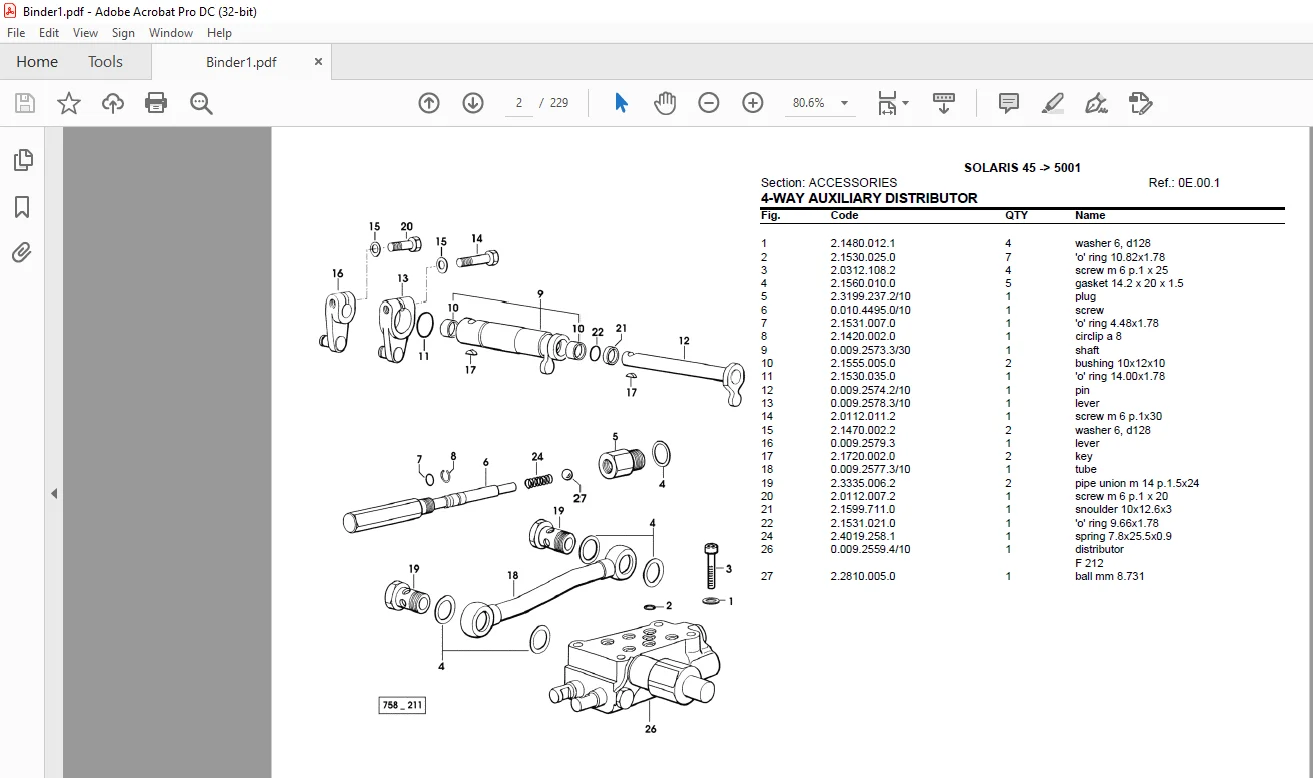

4-WAY AUXILIARY DISTRIBUTOR (0E 00 1) 2

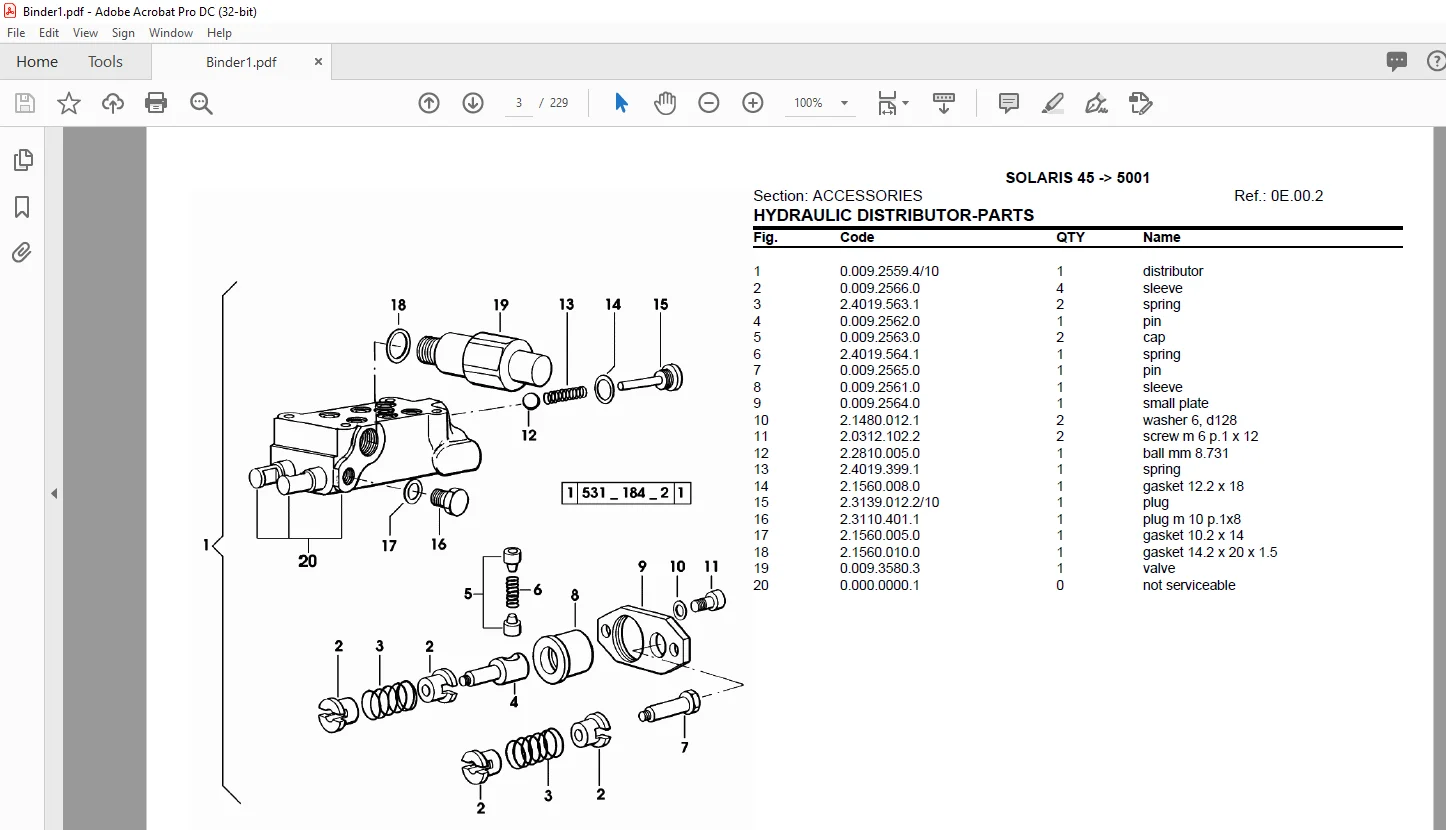

HYDRAULIC DISTRIBUTOR-PARTS (0E 00 2) 3
4-WAY DISTRIBUTOR EQUIPMENT (0E 00 3) 4
4-WAY DISTRIBUTOR EQUIPMENT (0E 00 4) 6
4-WAY AUXILIARY DISTRIBUTOR (0E 00 5) 8
DISTRIBUTOR CONTROL (0E 00 6) 9
3 POINT HITCH (0E 00 7) 10
TOWING BAR (0E 00 8) 12
P T O GUARD (0E 00 9) 13
REAR TOWING HITCH (0E 00 10) 14
FRONT TOWING HITCH (0E 00 11) 15
REAR OSCILLATING HITCH (0E 00 12) 16
BALLAST (0E 00 13) 17
BALLAST (0E 00 14) 18
TOOL POUCH (0E 00 15) 19
ENGAGEMENT (0 98308 50 3/10 A) 20
Bodywork 21
Index 21
SOLARIS 45 -> 5001 23
BODY WORK 23
GENERAL 23
HOOD (07 00 1) 23
HOOD (07 00 2) 24
HOOD (07 00 3) 25
HOOD (07 00 4) 26
PEDAL SUPPORT (07 00 5) 28
WATER COOLING (07 00 6) 29
WATER COOLING (07 00 8) 31
FAN BELT GUARD (07 00 10) 32
DASHBOARD (07 00 12) 33
DASHBOARD (07 00 13) 34
PLATES (07 00 14) 35
THROTTLE (07 00 15) 36
THROTTLE (07 00 17) 37
FRONT MUDGUARDS (07 00 18) 38
FOOT BOARD AND COVER (07 00 19) 40
FOOT BOARD AND COVER (07 00 21) 42
PLATFORM (07 00 22) 43
MUDGUARDS EXTENSIONS (07 00 23) 44
FENDERS (07 00 24) 45
SAFETY ARCH (07 00 25) 46
SAFETY ARCH (07 00 26) 47
SAFETY ARCH (07 00 28) 49
SUNROOF FRAME (07 00 29) 51
SUNROOF (07 00 30) 52
WINDSCREEN (07 00 31) 53
FRONT WINDSHIELD WIPER SYSTEM (07 00 32) 54
REARVIEW MIRROR (07 00 33) 55
LICENSE PLATE FRAME AND SUPPORT (07 00 34) 56
SPECIAL VERSION FOR EXPORT D (07 00 35) 57
SPECIAL VERSION FOR EXPORT CH (07 00 36) 58
SPECIAL VERSION FOR EXPORT I (07 00 37) 59
FUEL SUPPLY SYSTEM (07 00 38) 60
FUEL SUPPLY SYSTEM (07 00 39) 61
AIR FILTER PARTS (07 00 40) 62
SEAT (07 00 41) 63
SEAT (07 00 42) 64
SEAT (07 00 43) 65
SEAT SPRINGING (07 00 44) 66
SEAT SPRINGING (07 00 45) 67
SEAT SPRINGING (07 00 46) 68
SEAT SPRINGING (0 010 5356 4 A) 69
SEAT SPRINGING (0 010 5357 4 A) 70
SEAT (0 010 5362 4 A) 71
SEAT SPRINGING (0 010 6032 4 A) 72
WATER COOLER (0 011 5413 4/10 A) 73
AIR FILTER PARTS (2 4249 160 0 A) 74
Cab 75
Index 75
SOLARIS 45 -> 5001 76
CAB 76
GENERAL 76
METALLIC STRUCTURES (0B 00 1) 76
CAB – SUPPORTS (0B 00 2) 77
GLASSES AND SEALS (0B 00 4) 78
GLASSES AND SEALS (0B 00 5) 79
GLASSES AND SEALS (0B 00 6) 80
INTERIOR TRIM (0B 00 7) 81
INTERIOR TRIM (0B 00 8) 82
WINDSHIELD WIPER SYSTEM (0B 00 10) 83
ELECTRICAL SYSTEM (0B 00 11) 84
VENTILATION-HEATING (0B 00 12) 85
FAN PARTS (0B 00 13) 86
HEADLAMP COMPONENTS (0 009 6758 4/10 A) 87
FAN PARTS (0 010 9560 4 A) 88
Electrical_system 89
Index 89
SOLARIS 45 -> 5001 90
ELECTRIC AL SYSTEM 90
GENERAL 90
ELECTRIC LIGHTING SYSTEM (08 00 1) 90
HEADLAMP COMPONENTS (08 00 2) 92
ELECTRICAL SYSTEM (08 00 3) 93
STARTER PARTS (08 00 5) 94
ALTERNATOR PARTS (08 00 6) 95
ELECTRIC STARTING SYSTEM (08 00 7) 96
ELECTRIC STARTING SYSTEM (08 00 8) 98
ELECTRICAL SYSTEM (0 008 1939 4/10 A) 99
ELECTRICAL SYSTEM (0 008 1940 4/80 A) 100
ELECTRICAL SYSTEM (0 010 7554 4/30 A) 101
POWER OUTLET SOCKET (2 6032 011 0 A) 102
HEADLAMP COMPONENTS (2 8019 800 0 A) 103
HEADLAMP COMPONENTS (2 8029 240 0/10 A) 104
HEADLAMP COMPONENTS (2 8029 300 0 A) 105
HEADLAMP COMPONENTS (2 8029 740 0/20 A) 106
HEADLAMP COMPONENTS (2 8039 010 0 A) 107
REAR LIGHT (2 8039 090 0 A) 108
REAR LIGHT (2 8039 100 0 A) 109
HEADLAMP COMPONENTS (2 8059 220 0/10 A) 110
HEADLAMP COMPONENTS (2 8059 230 0 A) 111
HEADLAMP COMPONENTS (2 8059 240 0 A) 112
Engine 113
Index 113
SOLARIS 45 -> 5001 114
ENGINE 114
GENERAL 114
CRANKCASE (01 00 2) 114
CRANKCASE (01 00 4) 115
TIMING CASE (01 00 5) 116
CRANKSHAFT (01 00 7) 117
CAMSHAFT (01 00 8) 118
CAMSHAFT (01 00 9) 119
CYLINDER HEAD (01 00 12) 120
CYLINDER HEAD (01 00 14) 121
OIL PAN (01 00 17) 122
LUBRICATION (01 00 18) 123
LUBRICATION (01 00 19) 124
LUBRICATION (01 00 20) 125
FUEL SUPPLY SYSTEM (01 00 21) 126
INJECTOR NOZZLE HOLDER COMPONENTS (01 00 24) 128
INJECTION PUMP PARTS (01 00 27) 129
CONTROLLER (01 00 28) 130
CONTROLLER (01 00 29) 132
SOLENOID VALVE (01 00 31) 134
ACCESSORIES (01 00 33) 135
THERMOSTAT (01 00 34) 136
COOLING (01 00 36) 137
INTAKE AND EXHAUST (01 00 39) 138
INTAKE AND EXHAUST (01 00 40) 139
GASKET SET FOR ENGINE ASSEMBLY (01 00 42) 140
INTAKE AND EXHAUST (01 00 43) 141
HYDRAULIC PUMP POWER TAKEOFF (01 00 44) 142
EXHAUST SILENCER (01 00 46) 143
EXHAUST SILENCER (01 00 47) 144
FUEL FEED PUMP (0 008 6957 4 A) 145
Front_and_rear_pto 146
Index 146
SOLARIS 45 -> 5001 147
FRONT AND REAR P T O 147
GENERAL 147
P T O FRONT (05 00 1) 147
CENTRAL P T O (05 00 2) 148
P T O – CLUTCH TRANSMISSION SHAFT (05 00 5) 149
P T O – WITH N’ 540 – 1000 (05 00 6) 150
P T O – SYNCHRONIZED (05 00 7) 151
P T O SELECTION CONTROL (05 00 9) 152
DRIVE SHAFT – FRONT P T O SHAFT (0 007 7094 4 A) 153
DRIVE SHAFT – FRONT P T O SHAFT (0 007 7095 4 A) 154
DRIVE SHAFT – FRONT P T O SHAFT (0 007 7096 4 A) 155
Front_axle 156
Index 156
SOLARIS 45 -> 5001 157
FRONT AXEL 157
GENERAL 157
FRONT SUPPORT (04 00 1) 157
JUNCTION CASE (04 00 3) 159
4WD – STANDARD FRONT DRIVE AXLE (04 00 5) 160
4WD – FRONT DRIVE AXLE (04 00 7) 161
4WD – POWER STEERING CYLINDER (04 00 8) 162
4WD – DIFFERENTIAL (04 00 9) 163
4WD – FRONT REDUCTION GEARBOX (04 00 10) 164
4WD – FRONT DIFFERENTIAL LOCK (04 00 11) 165
4WD – DIFFERENTIAL LOCK CONTROL-FRONT (04 00 12) 166
4WD – TRANSMISSION SHAFT (04 00 13) 167
4WD – ENGAGEMENT CONTROL (04 00 15) 168
4WD – ENGAGEMENT CONTROL (04 00 16) 169
CYLINDER PARTS (0 008 7679 4/20 A) 170
ADJUSTABLE LIFT ROD PARTS (0 008 7720 4/20 A) 171
SOLENOID VALVE (2 3729 400 0 A) 172
Front_power-lift 173
Index 173
SOLARIS 45 -> 5001 174
FRONT HYDRAULIC POWER-LIFT 174
GENERAL 174
FRONT HYDRAULIC POWER-LIFT (0C 00 1) 174
CYLINDER PARTS (0 008 7741 4 A) 175
Gear 176
Index 176
SOLARIS 45 -> 5001 177
GEAR 177
GENERAL 177
CLUTCH (02 00 1) 177
CLUTCH CONTROL (02 00 3) 178
CLUTCH CONTROL (02 00 5) 179
CLUTCH CONTROL (02 00 6) 180
INDEPENDENT CLUTCH CONTROL FOR P T O (02 00 7) 181
GEARBOX (02 00 8) 182
GEARBOX (02 00 9) 183
MAIN GEARBOX AND REVERSE SHUTTLE GEARS (02 00 15) 184
MAIN GEARBOX (02 00 17) 185
REDUCTION GEAR UNIT (02 00 19) 186
GEARSHIFT LEVER (02 00 20) 187
REVERSING GEAR UNIT CONTROLS (02 00 22) 188
REDUCTION GEAR CONTROL (02 00 23) 189
DIFFERENTIAL (02 00 28) 190
DIFFERENTIAL LOCK CONTROL (02 00 30) 191
SYNCHRONIZER PARTS (0 008 4951 4 A) 192
Rear_axle 193
Index 193
SOLARIS 45 -> 5001 194
REAR AXLE 194
GENERAL 194
REAR AXLE (03 00 1) 194
REAR REDUCTION GEARS AND AXLE SHAFTS (03 00 2) 196
REAR BRAKES (03 00 3) 197
BRAKE CONTROLS (03 00 4) 198
BRAKE CONTROLS (03 00 5) 199
HAND BRAKE (03 00 7) 200
BRAKES TITAN ITALIA (0 011 3169 4 A) 201
SAC 202
Index 202
SOLARIS 45 -> 5001 203
S A C 203
GENERAL 203
POWER-LIFT CASE (0D 00 1) 203
HYDRAULIC PUMP (0D 00 2) 204
HYDRAULIC PUMP PARTS (0D 00 3) 206
LIFTING (0D 00 4) 207
REGULATING DISTRIBUTOR (0D 00 5) 208
INTERNAL CONTROLS (0D 00 6) 209
CONTROL TIE RODS AND LEVERS (0D 00 7) 210
CONTROL TIE RODS AND LEVERS (0D 00 8) 211
SENSITIVE ELEMENTS (0D 00 9) 212
HYDRAULIC PUMP PARTS (2 4529 950 0 A) 213
HYDRAULIC PUMP PARTS (2 4529 960 0 A) 214
HYDRAULIC PUMP PARTS (2 4539 510 0 A) 215
HYDRAULIC PUMP (2 4539 520 0 A) 216
Steering_Hydraulics 217
Index 217
SOLARIS 45 -> 5001 218
POWER STEERING – HYDRAULIC SYSTEM 218
GENERAL 218
STEERING CONTROL (06 00 1) 218
POWER STEERING (06 00 3) 219
HYDR STEERING DISTRIBUTOR PARTS (06 00 5) 221
POWER STEERING (06 00 6) 222
HYDR STEERING DISTRIBUTOR PARTS (0 008 7155 4/10 A) 223
VALVE PARTS (2 3719 430 0 A) 224
Wheels 225
Index 225
SOLARIS 45 -> 5001 226
WHEELS 226
GENERAL 226
FRONT WHEELS (09 00 1) 226
REAR WHEELS (09 00 2) 228
