Same Tractor Solaris 55 after ZKDS2402V0MS20001 Parts Catalog Manual – PDF DOWNLOAD

Description

Same Tractor Solaris 55 after ZKDS2402V0MS20001 Parts Catalog Manual – PDF DOWNLOAD

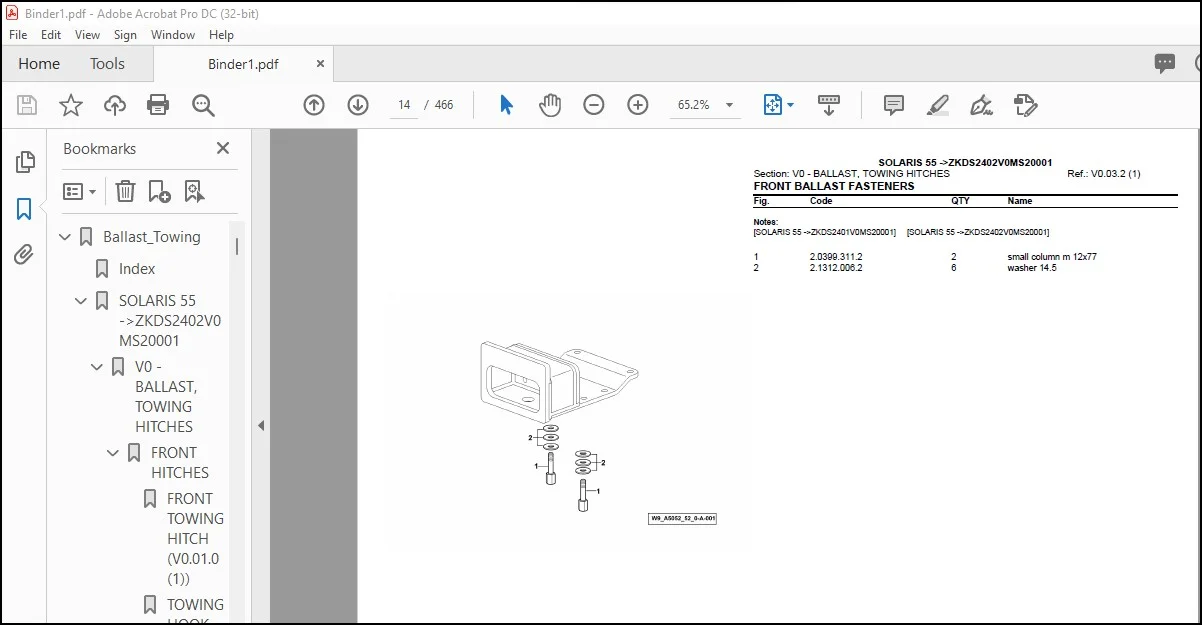

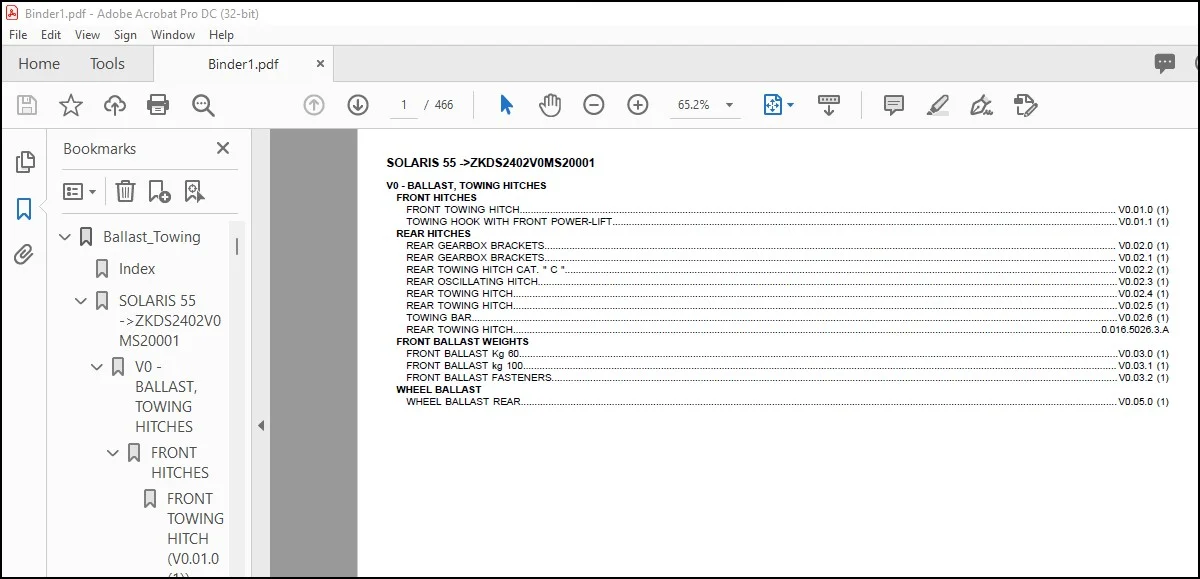

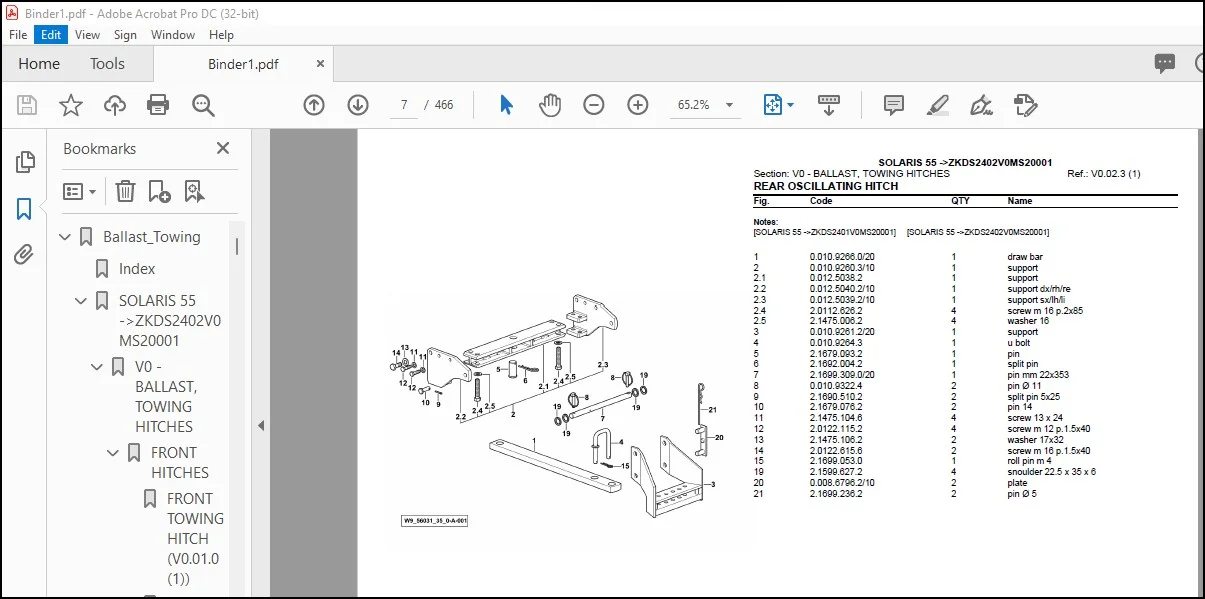

IMAGES PREVIEW OF THE MANUAL:

FILE DETAILS:

Same Tractor Solaris 55 after ZKDS2402V0MS20001 Parts Catalog Manual – PDF DOWNLOAD
Language : English
Pages :466
Downloadable : Yes
File Type : PDF
Size:14.9 MB
TABLE OF CONTENTS:

Same Tractor Solaris 55 after ZKDS2402V0MS20001 Parts Catalog Manual – PDF DOWNLOAD

Ballast_Towing 1
Index 1
SOLARIS 55 ->ZKDS2402V0MS20001 2
V0 – BALLAST, TOWING HITCHES 2
FRONT HITCHES 2
FRONT TOWING HITCH (V0010 (1)) 2
TOWING HOOK WITH FRONT POWER-LIFT (V0011 (1)) 3
REAR HITCHES 4
REAR GEARBOX BRACKETS (V0020 (1)) 4
REAR GEARBOX BRACKETS (V0021 (1)) 5
REAR TOWING HITCH CAT ” C ” (V0022 (1)) 6
REAR OSCILLATING HITCH (V0023 (1)) 7
REAR TOWING HITCH (V0024 (1)) 8
REAR TOWING HITCH (V0025 (1)) 9
TOWING BAR (V0026 (1)) 10
REAR TOWING HITCH (001650263A) 11
FRONT BALLAST WEIGHTS 12
FRONT BALLAST Kg 60 (V0030 (1)) 12
FRONT BALLAST kg 100 (V0031 (1)) 13
FRONT BALLAST FASTENERS (V0032 (1)) 14
WHEEL BALLAST 15
WHEEL BALLAST REAR (V0050 (1)) 15
Bodywork_Cab 16
Index 16
SOLARIS 55 ->ZKDS2402V0MS20001 20
G0 – BODYWORK – CAB 20
HOOD – SIDE PANELS – SUPPORTS 20
HOOD (G0010 (1)) 20
HOOD – SUPPORTS (G0014 (1)) 21
HOOD – SUPPORTS (G0015 (1)) 22
HOOD GAS SPRING (G0016 (1)) 23
HOOD HINGES (G0017 (1)) 24
SAFETY ROLL BAR SUPPORTS (G0018 (1)) 25
SUPPORT FOR SUPPLEMENTARY TANK (G0019 (1)) 26
ENGINE MOUNTING (G00110 (1)) 27
HOOD CATCH (G00111 (1)) 28
PLATE (G00112 (1)) 29
HOOD – SUPPORTS (G00113 (1)) 30
HOOD – SUPPORTS (G00114 (1)) 31
SOUND/THERMAL INSULATION PANELS (G00115 (1)) 32
HOOD SOUNDPROOFING (G00116 (1)) 33
ENGINE HOOD GASKETS (G00117 (1)) 34
GUARD (G00118 (1)) 35
BATTERY SUPPORT (G00122 (1)) 36
BATTERY SUPPORT (G00123 (1)) 37
PEDAL SUPPORT (G00124 (1)) 38
BELTS GUARD (G00125 (1)) 39
WING HOLDER (G00128 (1)) 40
SAFETY ROLL BAR SUPPORTS (G00129 (1)) 41
LETTERING 42
TOWING HITCH IDENTIFICATION PLATE (G0020 (1)) 42
IDENTIFICATION PLATE (G0021 (1)) 43
INFORMATION PLATE (G0023 (1)) 44
PRODUCT PLATE (G0027 (1)) 45
PRODUCT PLATE (G00213 (2)) 46
IDENTIFICATION PLATE (G00224 (1)) 47
IDENTIFICATION PLATE (G00225 (1)) 48
WARNING PLATES (G00227 (1)) 49
WARNING PLATES (G00227 (2)) 50
PTO WARNING PLATE FRONT (G00228 (1)) 51
MECHANICAL ACCELERATOR CONTROL IDENTIFICATION PLATE (G00229 (1)) 52
PTO DATA PLATE (G00231 (1)) 53
PTO DATA PLATE (G00232 (1)) 54
PTO DATA PLATE (G00233 (1)) 55
PTO DATA PLATE 540 (G00234 (1)) 56
PTO DATA PLATE (G00235 (1)) 57
PTO DATA PLATE (G00236 (1)) 58
PLATES (G00237 (1)) 59
PLATES (G00240 (1)) 60
SPEED LABEL (G00241 (1)) 61
PLATES (G00245 (2)) 62
PLATES (G00250 (1)) 63
INFORMATION PLATE (G00251 (1)) 64
INFORMATION PLATE (G00252 (1)) 65
RH CONSOLE IDENTIFICATION PLATES (G00253 (2)) 66
PLATES- FOR 6-WAY DISTRIBUTOR (G00259 (1)) 67
CONTROLS PLATE /LIFT MOTION WARNING PLATE (G00261 (1)) 68
WARNING PLATES (G00262 (1)) 69
WARNING SIGNS ON WATER RADIATOR (G00265 (1)) 70
WARNING SIGNS ON WATER RADIATOR (G00266 (1)) 71
WATER COOLER IDENTIFICATION PLATE (G00267 (1)) 72
CAB STRUCTURE – PLATFORM -SUSPENSION 73
SUPPORTS (G0032 (1)) 73
PLATFORM (G0034 (1)) 74
FOOTPLATE COVER dx/rh/re (G0037 (1)) 75
FOOTPLATE COVER sx/lh/li (G0038 (1)) 76
FOOTPLATE COVER dx/rh/re (G0039 (1)) 77
FOOTPLATE COVER sx/lh/li (G00310 (1)) 78
LH FOOTPLATE WITH AUXILIARY TANK (G00313 (1)) 79
FENDERS – FOOTSTEPS – EXTENSIONS 80
FRONT MUDGUARDS (G0040 (1)) 80
FRONT MUDGUARDS (G0042 (1)) 81
FRONT MUDGUARDS (G0043 (1)) 82
FRONT MUDGUARDS (G0044 (1)) 83
FRONT MUDGUARDS (G0046 (1)) 84
FRONT MUDGUARDS (G0048 (1)) 85
FENDERS (G00410 (1)) 86
MUDGUARDS EXTENSIONS (G00412 (1)) 87
MUDGUARDS EXTENSIONS (G00413 (1)) 88
BRACKET – SPEED LABEL (G00416 (1)) 89
EXTENSION FOR WING (G00417 (1)) 90
INTERIOR TRIM 91
DASHBOARD (G0060 (1)) 91
TUNNEL COVER (G0066 (1)) 92
BRUSHES FOR TUNNEL COVER (G0068 (1)) 93
TUNNEL CAP (G0069 (1)) 94
REAR BEACON MOUNTING (G00610 (1)) 95
LH LIGHT HOLDER FOR EXTINGUISHER AND WARNING TRIANGLE SUPPORT (G00611 (2)) 96
TRIANGLE SUPPORT (G00612 (1)) 97
REAR BEACON MOUNTING (G00613 (1)) 98
REAR BEACON MOUNTING (G00617 (1)) 99
CONTROL CONSOLE RIGHT (G00620 (2))100
EXTERIOR TRIM – ROOF101
PREARRANGEMENT FOR WARNING BEACON (G0074 (1))101
REARVIEW MIRROR dx/rh/re (G0075 (1))102
FLASHING LIGHT SUPPORT (001326054A)103
REARVIEW MIRROR (092341474/10A)104
SEATS105
DRIVER’S SEAT (G0080 (1))105
SEAT SPRINGING (001053564A)106
SEAT-COMPONENTS (001247824/20A)107
MECHANICAL CLUTCH CONTROLS108
CLUTCH CONTROL (G0100 (1))108
MECHANICAL BRAKE CONTROLS109
HANDBRAKE BRACKET FOR TRAILER (G0110 (1))109
BRAKE CONTROLS (G0112 (1))110
HAND BRAKE (G0113 (1))111
MECHANICAL – ELECTRONIC THROTTLE CONTROLS112
THROTTLE (G0120 (1))112
HAND CONTROL FOR MECHANICAL THROTTLE (G0122 (1))113
HAND THROTTLE AND CONTROL LEVER LINKAGES (G0123 (1))114
STEERING CONTROLS115
STEERING COLUMN (G0130 (1))115
STEERING WHEEL (G0132 (1))116
STEERING WHEEL CAP (G0137 (1))117
MECHANICAL GEARSHIFT CONTROLS118
REDUCTION GEAR CONTROL (G0140 (1))118
REVERSE GEAR CONTROL (G0141 (1))119
GEAR SHIFTING (G0142 (1))120
GEAR SHIFTING (G0143 (1))121
GEAR SHIFT – CREEP SPEED (G0144 (1))122
4WD – DIFFERENTIAL LOCK CONTROLS123
DIFFERENTIAL LOCK CONTROL (G0150 (1))123
4WD – ENGAGEMENT CONTROL (G0151 (1))124
PTO CONTROLS125
INDEPENDENT CLUTCH CONTROL FOR PTO (G0160 (1))125
PTO SELECTION CONTROL (G0161 (1))126
LIFT CONTROLS127
CONTROL TIE RODS AND LEVERS (G0170 (1))127
REAR LIFT CONTROL (G0171 (2))128
REMOTE VALVE CONTROLS129
DISTRIBUTOR CONTROL (G0180 (1))129
ACCESSORIES130
TRIANGLE SUPPORT (G0191 (1))130
BRACKETS FOR WARNING TRIANGLE AND NUMBER PLATE HOLDER (G0192 (1))131
LICENCE PLATE HOLDER (G0193 (1))132
WARNING TRIANGLES AND EXTINGUISHER (G0197 (1))133
WARNING TRIANGLE (G0198 (1))134
BRACKET FOR TOOL BOX (G0199 (1))135
LUBRICATOR (G01910 (1))136
SAFETY ROLL BAR137
SAFETY ARCH (G0200 (1))137
SAFETY ARCH (G0201 (1))138
SAFETY ARCH (G0201 (2))139
SAFETY ARCH FOLDING (G0202 (1))140
SAFETY ARCH (G0206 (1))141
Electrical_system142
Index142
SOLARIS 55 ->ZKDS2402V0MS20001144
L0 – ELECTRIC AL SYSTEM144
BATTERY – ALTERNATOR144
BATTERY (L0011 (1))144
WIRING LOOMS145
ELECTRICAL SYSTEM FOR FAN (L0020 (2))145
UNDER HOOD WIRING FIXING (L0024 (1))146
CABLE HARNESS LICENCE PLATE LIGHT (L0025 (1))147
ELECTRICAL SYSTEM FOR SUPPLEMENTARY TANK (L0028 (1))148
TRAILER SOCKET-OUTLET (L0029 (1))149
CENTRAL WIRING LOOM (L00210 (1))150
CENTRAL WIRING LOOM (L00211 (1))151
ELECTRICAL EQUIPMENT FRONT – BATTERY LEADS (L00212 (1))152
ELECTRCIAL SYSTEM FOR FRONT PTO (L00214 (1))153
ELECTRICAL EQUIPMENT REAR (L00215 (1))154
ELECTRICAL EQUIPMENT REAR (L00216 (1))155
ELECTRICAL EQUIPMENT REAR (L00216 (2))156
ELECTRICAL WIRING (L00218 (1))157
WIRING FOR REAR LIGHTS (L00219 (1))158
ELECTRIC CABLE FOR WORK LIGHT (L00221 (1))159
ELECTRICAL SYSTEM – FOR 6-WAY DISTRIBUTOR (L00224 (1))160
2-POLE SOCKET – LIGHTS FLASHER RELAY (L00225 (1))161
2-POLE SOCKET – LIGHTS FLASHER RELAY (L00226 (1))162
FIXING OF PTO CLUTCH INDICATOR RELAY warning light (L00227 (1))163
ELECTRICAL SYSTEM (001269494/10A)164
ELECTRICAL SYSTEM (001269514/60A)165
ELECTRICAL SYSTEM (001314524/10A)166
POWER OUTLET SOCKET (260320110A)167
ECUs168
ENGINE STOP CONTROL UNIT (L0030 (1))168
FAN CONTROL UNIT SUPPORT (L0031 (2))169
FAN CONTROL UNIT (L0032 (2))170
SENSORS – POTENTIOMETERS – ENABLING SWITCHES171
COOLANT PUMP TEMPERATURE SENSOR (L0040 (1))171
PTO CLUTCH CONTROL SWITCH (L0041 (1))172
PTO CLUTCH CONTROL SWITCH (L0042 (1))173
PTO SELECTOR SWITCH (L0043 (1))174
PTO SELECTOR SWITCH (L0044 (1))175
CLUTCH PEDAL SWITCH (L0045 (1))176
CLUTCH PEDAL SWITCH (L0046 (1))177
SEALED SWITCHES (L0047 (1))178
SEALED SWITCHES (L0048 (1))179
TEMPERATURE AND OIL FILTER CLOGGING SENSOR (L00410 (1))180
PTO SWITCH (L00412 (1))181
INSTRUMENT PANEL182
CHRONO-TACHOMETER (L0050 (1))182
ELECTRIC REV-HOUR RECORDER TACHOMETER (283392300/70A)183
ELECTRICAL CONTROLS – PUSHBUTTONS184
KEYSWITCH BLOCK – STEERING COLUMN SWITCH UNIT – INSTRUMENT PANEL BUTTONS (L0073 (1))184
KEYSWITCH BLOCK – STEERING COLUMN SWITCH UNIT – INSTRUMENT PANEL BUTTONS (L0074 (1))185
SWITCH – FOR PTO FRONT (L0075 (1))186
SWITCH FOR AUXILIARY CONTROL VALVE (L0076 (1))187
LIGHTING AND SIGNALLING188
LICENCE PLATE LIGHT (L0080 (1))188
WARNING BEACON (L0081 (1))189
HORN AND REFLECTOR (L0082 (1))190
HORN AND REFLECTOR (L0083 (1))191
REAR LIGHTS (L0084 (1))192
REAR LIGHTS (L0085 (1))193
SIDE LIGHTS (L0087 (1))194
SIDE AND REAR LIGHTS (L0088 (1))195
FRONT LIGHTS – FOR RIGHT-HAND DRIVE (L0089 (1))196
FRONT LIGHTS – FOR LEFT-HAND DRIVE (L00810 (1))197
LIGHT FIXINGS (L00811 (1))198
REAR WORKLIGHT (L00812 (1))199
WARNING BEACON (001308684A)200
HEADLAMP COMPONENTS (280292400/10A)201
HEADLAMP COMPONENTS (280293000A)202
REAR LIGHT (280390900A)203
REAR LIGHT (280391000A)204
HEADLAMP FOR RIGHT-HAND DRIVE (280392300A)205
HEADLAMP FOR LEFT-HAND DRIVE (280392900A)206
FRONT LIGHTS dx/rh/re (280392930/10A)207
FRONT LIGHTS sx/lh/li (280392940/10A)208
HEADLAMP COMPONENTS (280592300A)209
HEADLAMP COMPONENTS (280592400A)210
HEADLAMP COMPONENTS (280594400/10A)211
HEADLAMP COMPONENTS (280594500A)212
HEADLAMP COMPONENTS (280594900A)213
Engine214
Index214
SOLARIS 55 ->ZKDS2402V0MS20001215
B0 – ENGINE215
GENERAL215
ENGINE (B0002 (1))215
CYLINDER HEAD (6N880001001)216
CYLINDER HEAD (6N880001002)217
CYLINDER HEAD (6N880001003)218
CAMSHAFT (6N880001004)219
CRANKCASE (6N880001005)220
MAIN BEARINGS (6N880001006)221
TIMING CASE (6N880001007)222
FLYWHEEL HOUSING (6N880001008)223
OIL PAN (6N880001009)224
PISTON – CONNECTING ROD (6N880001010)225
CRANKSHAFT – FLYWHEEL (6N880001011)226
CAMSHAFT (6N880001012)227
INTAKE AND EXHAUST (6N880001013)228
OIL PUMP (6N880001014)229
LUBRICATION (6N880001015)230
OIL PIPES FOR TURBOCHARGER (6N880001016)231
LUBRIC OIL COOLER (6N880001017)232
LUBRIC OIL FILTER (6N880001018)233
FUEL SUPPLY SYSTEM (6N880001019)234
INJECTOR NOZZLE HOLDER COMPONENTS (6N880001020)235
INJECTION PUMP PARTS (6N880001021)236
FUEL FILTER (6N880001022)237
CONTROLLER (6N880001023)238
ELECTRICAL SYSTEM (6N880001024)239
STARTER PARTS (6N880001025)240
ALTERNATOR PARTS (6N880001026)241
SOLENOID VALVE (6N880001027)242
THERMOSTAT (6N880001028)243
ACCESSORIES (6N880001029)244
GASKET SET FOR ENGINE ASSEMBLY (6N880001030)245
COOLING (6N880001031)246
LUBRICATION247
OIL FILLER NECK (B0060 (1))247
COOLING248
COOLING (B0090 (2))248
WATER PUMP – ELECTROMAGNETIC DRIVE COUPLING (B0091 (1))249
INTAKE – EXHAUST MANIFOLDS250
COOLING AIR BAFFLE (B0100 (1))250
Engine_accessories251
Index251
SOLARIS 55 ->ZKDS2402V0MS20001252
C0 – ENGINE ACCESSORIES252
RADIATORS – FANS252
WATER COOLER (C0010 (1))252
WATER COOLER (C0011 (1))253
RADIATOR HOSES (C0012 (2))254
COLLECTION TANK (C0013 (1))255
AIR DUCTING HOOD (C0014 (1))256
ENGINE AIR BLOWER (C0016 (1))257
WATER COOLER (001387364/20A)258
WATER COOLER (001404164/10A)259
INTERCOOLER – AIR CLEANER260
AIR CLEANER (C0020 (1))260
AIR CLEANER HOSE (C0023 (1))261
AIR FILTER PARTS (242496100A)262
FUEL SYSTEM263
FUEL TANK (C0030 (1))263
FUEL SUPPLY SYSTEM (C0031 (2))264
FUEL PUMP (C0032 (1))265
FUEL SYSTEM – TANK (C0033 (2))266
TANK FLOAT (C0034 (1))267
FUEL TANK FIXING PARTS (C0035 (1))268
TANK SEALS (C0036 (1))269
AUXILIARY TANK (C0037 (2))270
FUEL FEED PUMP (000869574A)271
STARTER MOTOR272
STARTER MOTOR COVER (C0050 (1))272
STARTER MOTOR COVER (C0051 (1))273
EXHAUST SILENCER274
EXHAUST SILENCER (C0061 (1))274
FLANGE FOR EXHAUST SILENCER (C0063 (1))275
Front_axle276
Index276
SOLARIS 55 ->ZKDS2402V0MS20001278
F0 – FRONT AXLE278
FRONT SUPPORT278
FRONT SUPPORT (F0010 (1))278
FRONT SUPPORT (F0011 (1))279
FRONT SUPPORT – FIXINGS (F0012 (1))280
BRACKET (F0013 (1))281
BRACKET (F0014 (1))282
2WD FRONT AXLE283
2WD – EXTENDIBLE AXLE (F0020 (1))283
2WD – GUARDS (F0021 (1))284
LINKAGE (001289574/10A)285
LINKAGE (001289584/10A)286
2WD – EXTENDIBLE AXLE (001477104/10A)287
4WD FRONT AXLE288
4WD – FRONT DRIVE AXLE (F0031 (1))288
4WD – NARROW FRONT DRIVE AXLE (F0032 (1))289
4WD – FRONT AXLE FASTENERS (F0033 (1))290
4WD – FRONT AXLE YOKES (F0034 (1))291
4WD – FRONT AXLE YOKES (F0035 (1))292
ADJUSTABLE LIFT ROD PARTS (000877344/30A)293
LINKAGE (001289574/10A)294
LINKAGE (001289584/10A)295
FRONT DIFFERENTIAL296
4WD – TRANSMISSION SHAFT (F0040 (1))296
4WD – TRANSMISSION SHAFT (F0041 (1))297
4WD – FLANGE (F0042 (1))298
DIFFERENTIAL (F0043 (1))299
DIFFERENTIAL BEVEL GEAR PAIR (F0044 (1))300
4WD – DIFFERENTIAL (F0045 (1))301
GASKETS (F0046 (1))302
GASKETS (F0047 (1))303
STEERING CYLINDER304
4WD – POWER STEERING CYLINDER (F0050 (1))304
4WD – POWER STEERING CYLINDER (F0051 (1))305
2WD – POWER STEERING CYLINDER (F0052 (1))306
CYLINDER PARTS (000876794/20A)307
CYLINDER PARTS (001288784/10A)308
FINAL DRIVE REDUCTION UNITS AND HALF-SHAFTS309
4WD – FRONT REDUCTION GEARBOX (F0060 (1))309
4WD – FRONT REDUCTION GEARBOX (F0061 (1))310
4WD – AXLESHAFTS WITH DIFFERENTIAL LOCK (F0062 (1))311
4WD – AXLESHAFTS WITH DIFFERENTIAL LOCK (F0063 (1))312
4WD – AXLESHAFTS WITH DIFFERENTIAL LOCK (F0065 (1))313
4WD – HALF-SHAFTS WITH DIFFERENTIAL LOCK (F0066 (1))314
WHEEL HUB (F0067 (1))315
WHEEL HUB (F0068 (1))316
Front_lift317
Index317
SOLARIS 55 ->ZKDS2402V0MS20001318
N0 – FRONT LIFT318
LIFT ASSEMBLY318
FRONT HYDRAULIC POWER-LIFT (N0010 (1))318
CYLINDER PARTS (000877414/10A)319
Front_pto320
Index320
SOLARIS 55 ->ZKDS2402V0MS20001321
M0 – FRONT PTO321
PTO INPUT SHAFT321
DRIVE SHAFT – FRONT PTO SHAFT (M0010 (1))321
DRIVE SHAFT – FRONT PTO SHAFT (M0011 (1))322
CONNECTING FLANGE (M0012 (1))323
FRONT PTO COVER – PROTECTIONS324
PTO SHAFT PROTECTOR FRONT (M0020 (1))324
PTO FRONT – GUARD (M0021 (1))325
PTO FRONT – GUARD (M0022 (1))326
GEARS AND CLUTCH327
PTO FRONT (M0030 (1))327
PTO FRONT (M0031 (1))328
PTO FRONT (M0032 (1))329
PTO FRONT (M0033 (1))330
HYDRAULIC SYSTEM331
FRONT PTO HYDRAULIC SYSTEM (M0040 (1))331
FRONT PTO HYDRAULIC SYSTEM (M0041 (1))332
Hydraulic_and_pneumatic_system333
Index333
SOLARIS 55 ->ZKDS2402V0MS20001334
H0 – HYDRAULIC AND PNEUMATIC SYSTEM|334
HYDRAULIC SYSTEM334
PUMP FILTER SUCTION (H0010 (2))334
HYDRAULIC PUMP 11+55 sx/lh/li bosch (H0012 (1))335
SAC AND POWER STEERING HYDRAULIC SYSTEM (H0013 (1))336
SAC HYDRAULIC SYSTEM (H0014 (1))337
4WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (H0015 (1))338
2WD – DIFFERENTIAL LOCK CONTROL-ELECTROHYDRAULIC (H0016 (1))339
HYDRAULIC SYSTEM (H0017 (1))340
HYDRAULIC SYSTEM (H0018 (1))341
HYDRAULIC SYSTEM (H0019 (1))342
HYDRAULIC SYSTEM (H00110 (1))343
HYDRAULIC PUMP 11+55 sx/lh/li bosch (245398840A)344
STEERING SYSTEM345
HYDRAULIC STEERING GEAR (H0020 (1))345
PIPES FOR HYDROSTATIC STEERING (H0021 (1))346
4WD – POWER STEERING (H0022 (1))347
2WD – POWER STEERING (H0023 (1))348
POWER STEERING (245690010A)349
FRONT LIFT350
FRONT LIFT – HYDRAULIC SYSTEM (H0050 (1))350
FRONT REMOTE CONTROL VALVES351
HYDRAULIC SYSTEM WITH CENTRAL AND FRONT QUICK ACTION COUPLERS (H0060 (1))351
HYDRAULIC SYSTEM – MID QUICK SERVICE COUPLERS (H0061 (1))352
ENGAGEMENT (098308503/10A)353
REAR REMOTE CONTROL VALVES354
4-WAY AUXILIARY DISTRIBUTOR (H0070 (1))354
6-WAY HIDRAULIC SYSTEM (H0071 (1))355
SUPPORT FOR QUICK ACTION REAR COUPLERS (H0072 (1))356
SUPPORT FOR QUICK ACTION REAR COUPLERS (H0072 (2))357
REAR QUICK ACTION COUPLERS (H0073 (1))358
4-WAY DISTRIBUTOR EQUIPMENT (H0074 (1))359
PIPES/HOSES FOR QUICK ACTION REAR COUPLERS (H0075 (1))360
PIPES/HOSES FOR QUICK ACTION REAR COUPLERS (H0076 (1))361
ENGAGEMENT (098309503/10A)362
ELECTROHYDRAULICS363
PRESSURE CONTROL VALVE (H0100 (1))363
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/10A)364
SOLENOID VALVE 13 V – 20 W, ON/OFF 3/2 (237296970/20A)365
Rear_axle366
Index366
SOLARIS 55 ->ZKDS2402V0MS20001367
E0 – REAR AXLE367
REAR AXLE367
REAR AXLE (E0010 (1))367
REAR AXLE – STANDARD SEALS (E0011 (1))368
REAR AXLE – WATER PROOF SEALS (E0012 (1))369
REAR DIFFERENTIAL / HALF-SHAFTS370
DIFFERENTIAL (E0020 (1))370
REDUCTION GEAR UNIT (E0021 (1))371
HALF AXLES A = mm 217 (E0022 (1))372
HALF AXLES A = mm 277 (E0023 (1))373
REAR BRAKES374
REAR BRAKES (E0030 (1))374
BRAKES TITAN ITALIA (001131694A)375
BRAKES URSUS (001249304A)376
Rear_lift377
Index377
SOLARIS 55 ->ZKDS2402V0MS20001378
R0 – REAR LIFT378
LIFT COVER378
SAC CASE (R0010 (1))378
OIL FILLER NECK – AIR BREATHER (R0011 (1))379
OIL FILLER NECK – AIR BREATHER (R0011 (2))380
LIFT FIXING COMPONENTS (R0012 (1))381
LIFT ASSEMBLY382
LIFTING (R0020 (1))382
LIFT CONTROL VALVE383
REGULATING DISTRIBUTOR (R0030 (1))383
DISTRIBUTOR PARTS (R0031 (1))385
IN-CAB CONTROLS387
INTERNAL AND EXTERNAL CONTROLS (R0040 (1))387
CONTROLS FOR 4-WAY AUXILIARY SERVICES CONTROL VALVE (R0041 (1))389
SENSOR390
SENSITIVE ELEMENTS (R0050 (1))390
THREE-POINT LINKAGE – LINK ARMS391
3 POINT HITCH (R0060 (2))391
THREE-POINT COUPLING – TOP/LOWER LINK (R0061 (1))392
THREE-POINT COUPLING – TOP/LOWER LINK (R0063 (2))393
THREE-POINT COUPLING – TOP/LOWER LINK – AUTOM (R0064 (1))394
LINKAGE (001250354A)395
LINKAGE (001250364A)396
Transmission397
Index397
SOLARIS 55 ->ZKDS2402V0MS20001399
D0 – TRANSMISSION399
MAIN CLUTCH399
DOUBLE COUPLING – LUK (D0010 (1))399
CLUTCH CONTROL (D0011 (1))400
DOUBLE COUPLING – LUK (001258514/20A)401
CLUTCH HOUSING402
JUNCTION CASE (D0020 (1))402
JUNCTION CASE (D0021 (1))403
CLUTCH HOUSING FIXINGS (D0022 (1))404
GEARBOX INPUT SHAFT405
GEARBOX INPUT SHAFT (D0050 (1))405
GEARBOX INPUT SHAFT (D0051 (1))406
SYNCHRONIZER PARTS (000849514A)407
PTO INPUT SHAFT408
PTO – CLUTCH TRANSMISSION SHAFT (D0060 (1))408
MAIN SHAFT409
MAIN SHAFT (D0070 (1))409
MAIN SHAFT (D0071 (1))410
SECONDARY SHAFT411
TRANSMISSION SHAFT (D0080 (1))411
TRANSMISSION SHAFT (D0081 (1))412
SYNCHRONIZER PARTS (000849514A)413
GEARBOX414
REAR GEARBOX CASE (D0090 (2))414
REAR GEARBOX CASE (D0091 (1))415
PLUG FOR TYPES WITHOUT MID PTO (D0092 (1))416
PLUG FOR 2WD VERSION (D0093 (1))417
INTERNAL AND EXTERNAL GEARBOX CONTROLS418
INTERNAL CONTROLS (D0100 (1))418
INTERNAL CONTROLS (D0101 (1))419
INTERNAL CONTROLS (D0102 (1))420
INTERNAL CONTROLS (D0103 (1))421
LOW SPEED RANGES422
REDUCTION GEAR UNIT (D0110 (1))422
REDUCTION GEAR UNIT (D0111 (1))423
SUPER REDUCTION GEAR UNIT (D0112 (1))424
BEVEL WHEEL GEAR (D0113 (1))425
HYDRAULIC PUMP DRIVE426
HYDRAULIC PUMP POWER TAKEOFF (D0130 (1))426
PTO/GROUNDPSPEED DRIVE427
PTO SHAFT REAR (D0140 (1))427
PTO SHAFT REAR (D0140 (2))428
PTO – WITH N’ 540 (D0141 (1))429
PTO – WITH N’ 540 (D0141 (2))430
PTO – WITH N’ 540 (D0142 (1))431
PTO – WITH N’ 540 – 750 (D0143 (1))432
PTO – WITH N’ 540 – 750 (D0143 (2))433
PTO – WITH N’ 540 – 1000 (D0144 (1))434
PTO – WITH N’ 540 – 1000 (D0144 (2))435
PTO PACKAGE WITHOUT GROUNDSPEED (D0145 (1))436
PTO – SYNCHRONIZED (D0146 (1))437
PTO – SYNCHRONIZED 540 – 750 (D0147 (1))438
PTO – SYNCHRONIZED 540 – 1000 (D0148 (1))439
PTO – PARTS SET WITH STANDARD SEALS (D0149 (1))440
PTO – PARTS SET WITH WATER PROOF SEALS (D01410 (1))441
PTO SHAFT PROTECTOR REAR (D01411 (1))442
PTO SHAFT PROTECTOR REAR (D01412 (1))443
4WD ENGAGEMENT POWER TAKE-OFF – 4WD PARKING BRAKE444
4WD – ENGAGEMENT CONTROL (D0150 (1))444
COMPLETION (D0151 (1))445
COMPLETION (D0152 (1))446
PTO PACKAGE WITHOUT GROUNDSPEED (D0153 (1))447
MID POWER TAKE-OFF448
MID PTO – STANDARD OIL SEAL (D0180 (1))448
MID PTO – WATERPROOF OIL SEAL (D0181 (1))449
CENTRAL PTO (D0182 (1))450
CENTRAL PTO + SYNCRO (D0183 (1))451
MID PTO PACKAGE (D0184 (1))452
Wheels453
Index453
SOLARIS 55 ->ZKDS2402V0MS20001454
S0 – WHEELS454
FRONT WHEEL BOLTS454
FRONT WHEEL MOUNTING (S0010 (1))454
REAR WHEEL BOLTS455
REAR WHEEL BOLTS (S0020 (1))455
2WD FRONT WHEELS456
2WD – FRONT WHEELS 700-12″ pr 6 (S0030 (1))456
WHEELS457
WHEELS 650/80 R12″ PR 4 (S0040 (1))457
WHEELS 700×12″ pr 4 (S0041 (1))458
WHEELS 27-850-15″ pr 4 (S0042 (1))459
WHEELS 136-16″ pr 4 (S0049 (2))460
WHEELS 200/70R-16″ (S00410 (1))461
WHEELS 240/70 R16″ (S00411 (1))462
WHEELS 280/70 R18″ (S00416 (1))463
WHEELS 112R20″ (S00417 (1))464
WHEELS 320/70 R20″ A8 (S00419 (1))465
WHEELS 360/70R-20″ (S00420 (1))466
Customer Support: [email protected]

PLEASE NOTE:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.M
