Sampo Rosenlew Kincaid 8-XP Combine Harvester Parts Manual PDF

Description

Sampo Rosenlew Kincaid 8-XP Combine Harvester Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Sampo Rosenlew Kincaid 8-XP Combine Harvester Parts Manual – PDF DOWNLOAD

Language : English_Finnish_Swedish
Pages : 113
Downloadable : Yes
File Type : PDF

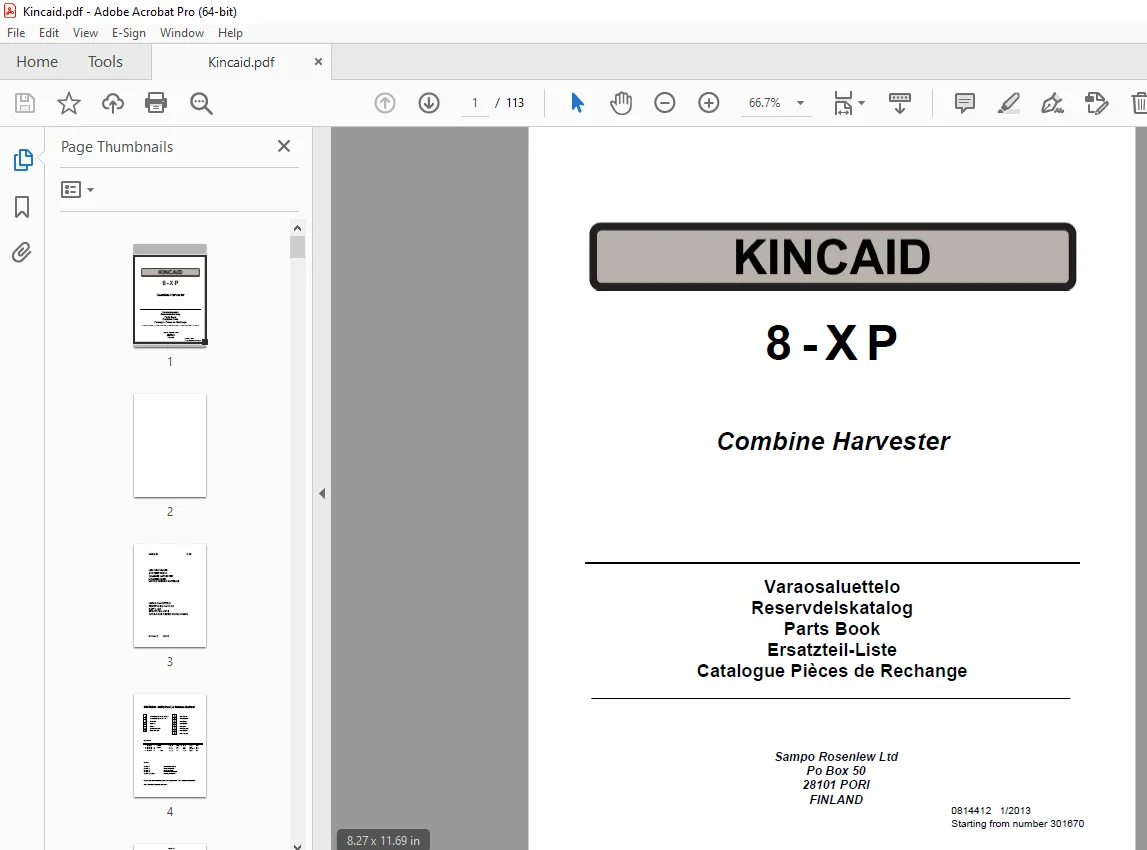

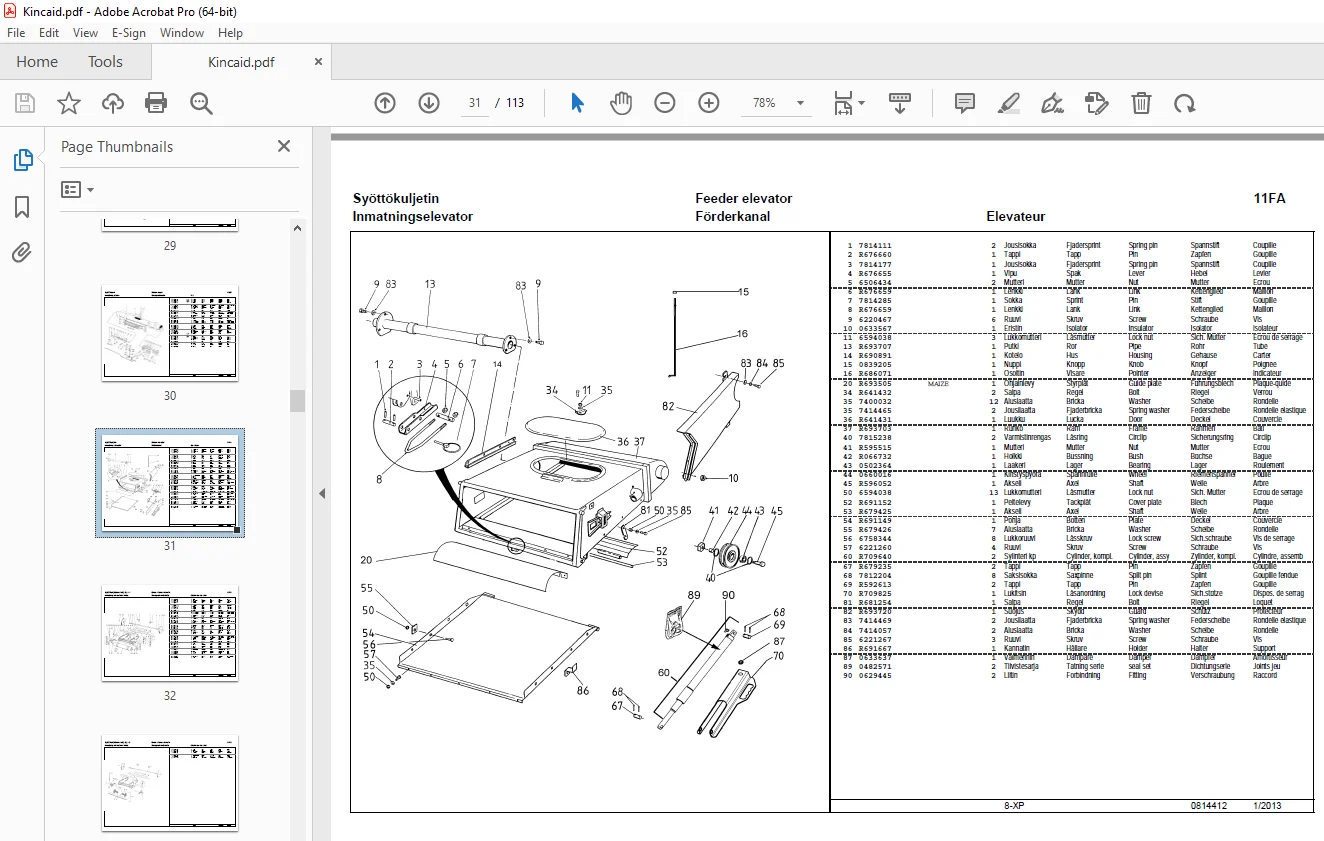

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Sampo Rosenlew Kincaid 8-XP Combine Harvester Parts Manual – PDF DOWNLOAD

11AA Straw divider 16GB 4WD motors
11AC Vertical knife RH Mörtl 16HA Tyres
11AD Vertical knife LH Mörtl 16KD Engine and cooler D754
11BB Cutting table 16KE Exhaust pipe and air filter D754
11BD Cutting table guard 16LC Engine holders
11CB Cutting knife drive 17AA Threshing hydraulics
11CD Cutting knife 17AB Threshing hydraulics
11DC Reel carrier 17BAA Oil tank and cooler
11DD Pick-up reel guards 17BAB Oil tank
11DE Left reel bar, electr. adj. 17BC Drive pump SAUER
11DF Right reel bar, elektr. adj. 18AA Electrical components
11DH Pick-up reel 18BA Cables
11DP Reel variator 19BA Belts VM
11EB Feeder auger drive 20AB Transfers, alert
11ED Feeder auger 20DA Tranfers Kincaid
11FA Feeder elevator 21AA Safety stop switch
11FC Chain of crop elevator
11FD Chain of crop elevator
11GA Fan
11HA Cutting table clutch
12AB Housing
12AD Chaff hood
12BB Fuel tank
12CB Drum and concave
12DB Concave setting
12EB Cylinder variator
12FB Stripper beater
12GA Threshing mechanism clutch
12HA Walkers
12JA Fan
12JC Fan variator
12KA Shaker shoe
12KC Shaker shoe
12LA Returnauger
12LC Bottom trough
13BA Grainelevator
13BB Grain tank
13BD Grain tank cover
13CA Grain elevator’s drive
13DA Unloading clutch
13DC Unloading auger
13EA Weighing
13EB Weighing
13EC Weighing
13EF Platform
13FB Straw cutter assembly parts
13FD Straw cutter
14BC Cabine
14BE Cab panes and noise insul.
14CB Instrument panel, meters & switches
14CD Instrument panel
14DC Steering equipment
14DF Brake lever
14DH Throttle, stop, speed lever
14EBA Fan and air heater
14EF Air conditioner D754
14FB Operator’s plarform
14FC Sun canopy
14GB Cabine stairs
14GC Cabine stairs
14GE Rear stairs
15AA Engine guards
15AB Guards, LH
15BA RH guards
16AA Front axle
16BA Brakes
16CA Hand brake
16DC Gear box
16EA Rear axle
16EB Steering cylinder
16GA 4 WD Steering hydraulics

S.V 03/12/24
