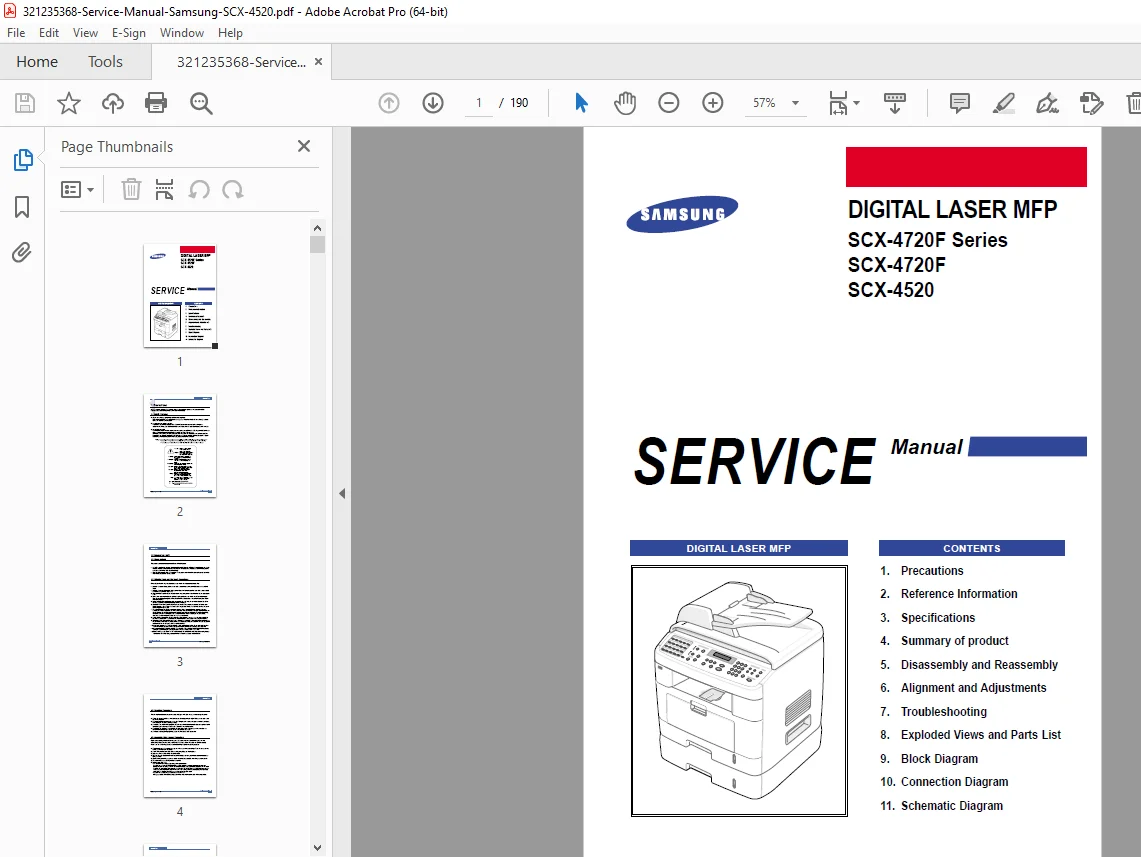

Samsung SCX-4720F / SCX-4520 Digital Laser MFP Service & Repair Manual PDF

Description

Samsung SCX-4720F / SCX-4520 Digital Laser MFP Service & Repair Manual PDF DOWNLOAD

Description

The Samsung SCX-4720F / SCX-4520 Digital Laser MFP Service Manual is the official factory service document required by qualified service engineers for safe and precise maintenance of these multi-function laser machines. It includes strict safety procedures for high voltages, laser exposure, ESD vulnerability, and hazardous materials such as toner powder and LCD liquid.

This manual provides complete system coverage—from mechanical assemblies, scanning optics, LSU (Laser Scanner Unit), ADF, Fuser Unit, SMPS/HVPS boards, and Main PBA—down to wiring, block diagrams, test patterns, system menus, alignment procedures, troubleshooting logic, and every necessary exploded view & parts list.

Table of Contents

1. Precautions

• Safety Warnings (Qualified service personnel only)

• Laser Safety Statement

• Toxic Materials Handling

• Electric Shock & Fire Safety

• General Handling Precautions

• ESD Precautions

• Lithium Battery / Super Capacitor Warnings

2. Reference Information

• Tools Required for Troubleshooting (DVM, vacuums, drivers, cleaning tools)

• Acronyms & Abbreviations (AC, ADF, LSU, CPU, OPC, SMPS, HVPS, etc.)

• Print Test Sample Patterns (A4 5%, A4 IDC 5%, ISO 19752)

• Wireless LAN: Optional module specifications

3. Specifications

General

• Key Features

• Dimensions & Weight

• Power Consumption

• Max Monthly Duty

• Periodic Replacement Items (Fuser Unit, Pickup Roller, Transfer Roller, Pad Unit)

Print Specifications

• Print Speed

• Resolution

• Emulation

• FPOT

• Halftone Characteristics

Scan Specifications

• Color CCD

• Optical & Enhanced Resolution

• Scan-to capabilities (Email, PC, Folder)

Copy Specifications

• FCOT

• Zoom Range

• Special Copy Modes

Fax Specifications

• Modem Speed

• TX Speed

• Memory

• Junk Fax Barrier

4. Summary of Product

• Printer Components (Front/Rear views with optional interfaces)

• Control Panel Functions (SCX-4720F / SCX-4520)

• System Layout

  • Feeding Section

  • Transfer Ass’y

  • Driver Ass’y

  • Fixing (Fuser) Part

  • Safety Features

• Scanner Ass’y details

• LSU components

• Toner Cartridge operation & developing method

• Main PBA / SMPS / HVPS overview

• Engine Firmware (Feeding, Jam0/1/2, Drive, Transfer, Fusing sequences, LSU error flow)

5. Disassembly & Reassembly

• General Removal Precautions

• Step-by-Step Procedures for:

  • Rear Cover

  • Left/Right Side Covers

  • Front Cover

  • Scanner Ass’y

  • ADF Motor Ass’y

  • OPE Unit

  • Middle Cover & Exit Roller

  • Controller Shield

  • SMPS & LIU

  • Fuser Assembly

  • Fans

  • LSU

  • CRUM Board

  • Drive Ass’y

  • Transfer Ass’y

  • Feed Ass’y

  • Solenoids / Pick-up Ass’y

6. Alignment & Adjustments

• Paper Path Alignment (Copy/Scan/Print)

• Clearing Paper Jams (Document, Jam0, Jam1, Jam2)

• User Mode / Tech Mode

  • FLASH Upgrade

  • Machine Test

  • Engine Test Mode

  • System Setup

• Consumables & Replacement Parts Life

• Abnormal Image Diagnostics (Roller repetition analysis)

• Error Message Table (alphabetical with solutions)

7. Troubleshooting

Paper Feed Problems

• Wrong Print Position

• Jam0 / Jam1 / Jam2

• Multi-Feeding

• Paper Wrapped in Fuser / OPC

• ADF Feed Failures

Set Malfunctions

• OPE Keypad Failure

• LCD Display Defect

• Fuser Gear Damage

• No Power

• Cover Open Detection

Image Quality Problems

• Vertical White Line

• Horizontal Bands

• Spots (Black/White)

• Ghosting

• Light / Dark Output

Fax & Phone Problems

• No Dial Tone

• MF Dial Problems

• Fax Forwarding Errors

Copy/Scan Problems

• Shading Issues

• Streaks / Lines

• Blurry images

Toner Cartridge Issues

• Cartridge Life

• Recycled Cartridge Symptoms

Software/Network Problems

• Driver Issues

• Connectivity Errors

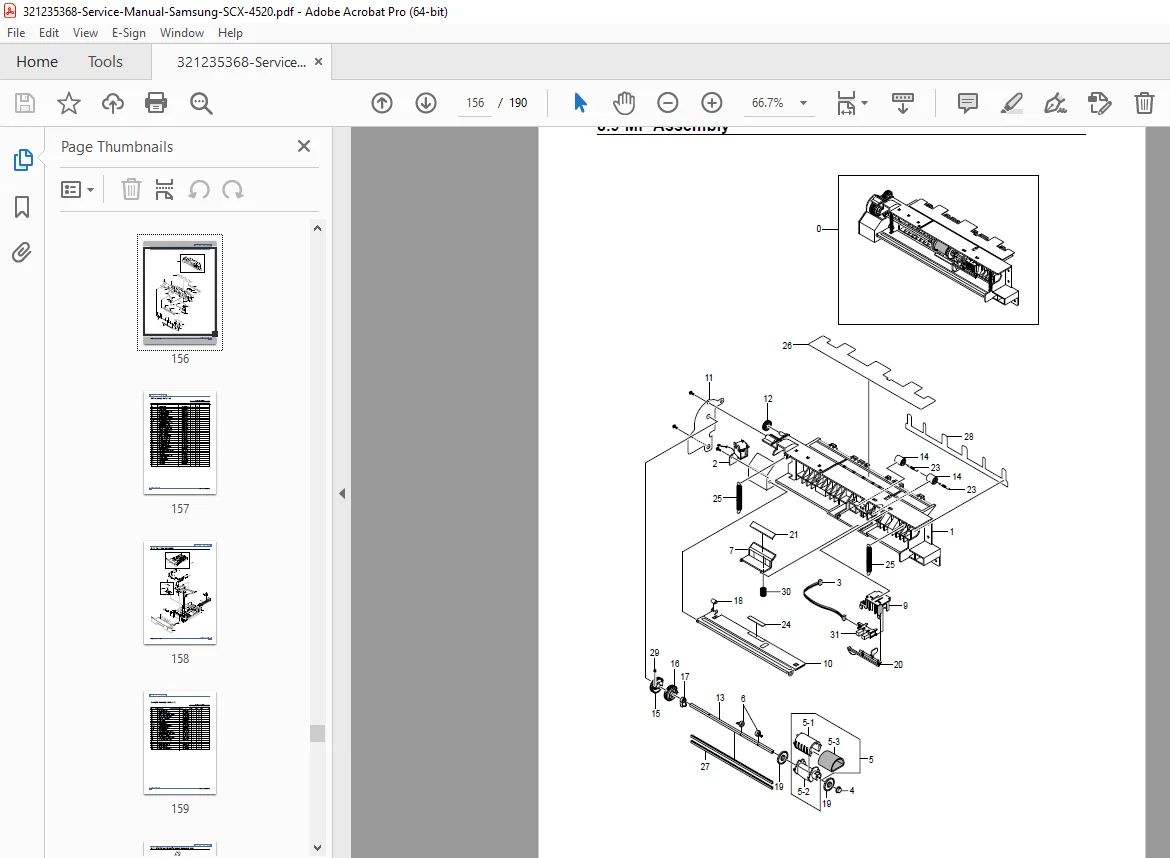

8. Exploded Views & Parts List

• Main Assembly

• Fuser Assembly

• ADF Assembly

• Scanner Assembly

• OPE Assembly

• LSU

• Paper Path Modules

• All mechanical & electrical sub-assemblies

9. Block Diagram

10. Connection Diagram

11. Schematic Diagram

File Details
