Samsung SCX-4824FN & SCX-4828FN Service Repair Manual PDF

Description

Samsung SCX-4824FN & SCX-4828FN Service Repair Manual PDF DOWNLOAD

DESCRIPTION

Extend the life of your multifunction printer with the comprehensive Samsung SCX-4824FN / SCX-4828FN Service Manual. This factory-issued document is the definitive resource for diagnosing and repairing the mechanical and electrical systems of these workhorse laser printers.

Whether you are fixing a “Paper Jam 0” error, replacing a worn-out pickup roller, or troubleshooting a network connection issue, this manual provides the step-by-step procedures you need. It includes deep technical data often unavailable to the public, such as the EDC (Engine Diagnostic Control) Mode menus and precise disassembly flows.

The manual is organized into clear, actionable chapters to help you find solutions fast:

Table of Contents & Key Repair Topics:

1. Precautions

• Safety warnings for High Voltage and Laser Safety.

• ESD (Electrostatic Discharge) protection measures.

2. Product Specifications

• Detailed specs for Print (24/28 ppm), Scan (Platen/ADF), and Fax functions.

• Engine Controller (Jupiter4e 360MHz) and Memory architecture.

• Consumable life expectancies (Toner, Fuser, Pickup Rollers).

3. Disassembly and Reassembly

• Covers: Front, Rear, Left, Right, and Top cover removal.

• Scanner Unit: ADF disassembly, OPE (Operation Panel) unit, and Platen glass.

• Drive System: Main Drive Assembly, Solenoids, and Motor replacement.

• Fuser Unit: Detailed thermistor and halogen lamp service.

• Circuit Boards: SMPS (Power Supply), HVPS (High Voltage), and Main PBA removal.

• Laser Unit: LSU (Laser Scanning Unit) cleaning and replacement.

4. Alignment & Adjustments

• Clearing Memory: System initialization and Country selection.

• Paper Path: Adjusting lead edge registration and altitude settings.

• EDC Mode: Using the Tech Mode for sensor tests and motor checks.

5. Troubleshooting

• Error Messages: Complete table of LCD messages with corrective actions.

• Image Quality: Solutions for Vertical Lines, Background Scatter, Ghosting, and Fusing issues.

• Paper Feeding: Fixing jam errors in Tray 1, Tray 2, and the Exit area.

• Network: Diagnosing connection failures.

6. Exploded Views & Parts List

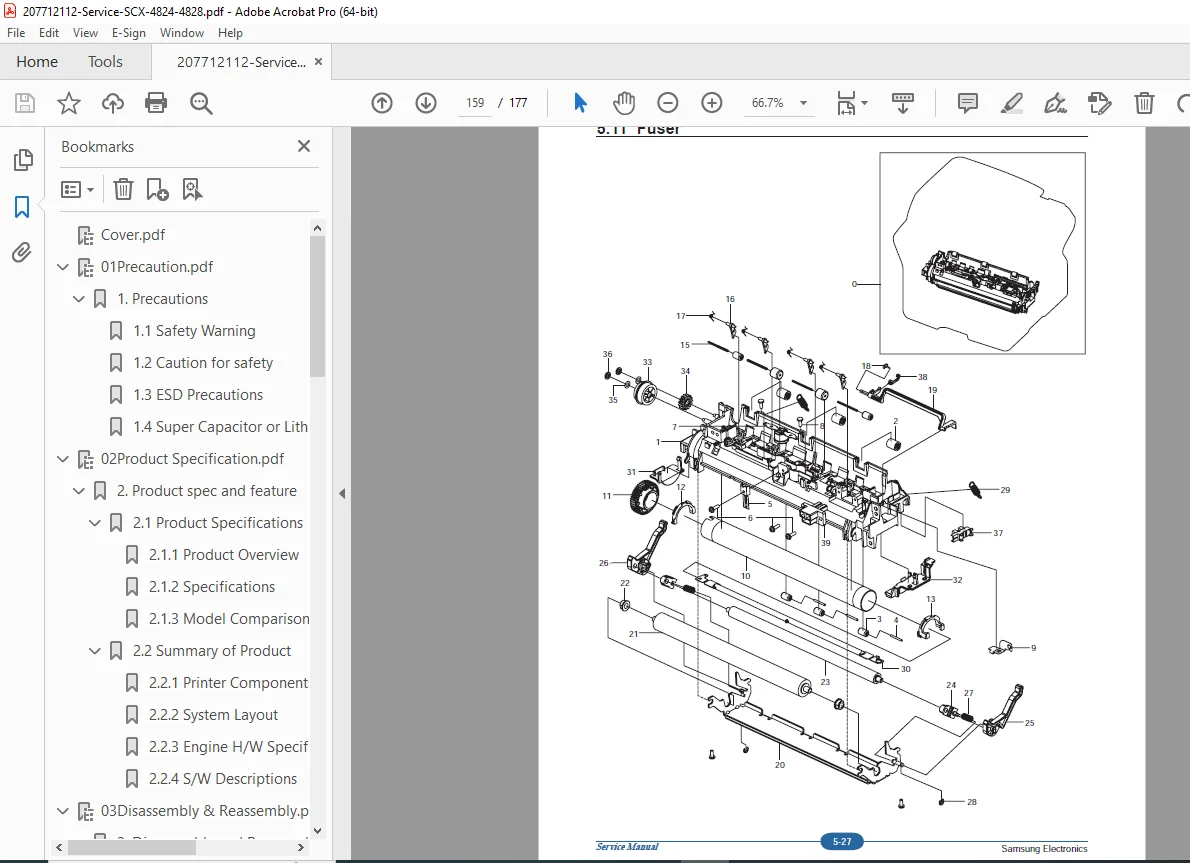

• Visual Diagrams: Full exploded diagrams for the Frame, Main Ass’y, Fuser, and Cassette.

• Part Numbers: Essential reference for ordering replacement components.

7. Block Diagrams & Connection Diagrams

• System block diagrams showing signal flow between the Main PBA, SMPS, and Sensors.

FILE DETAILS

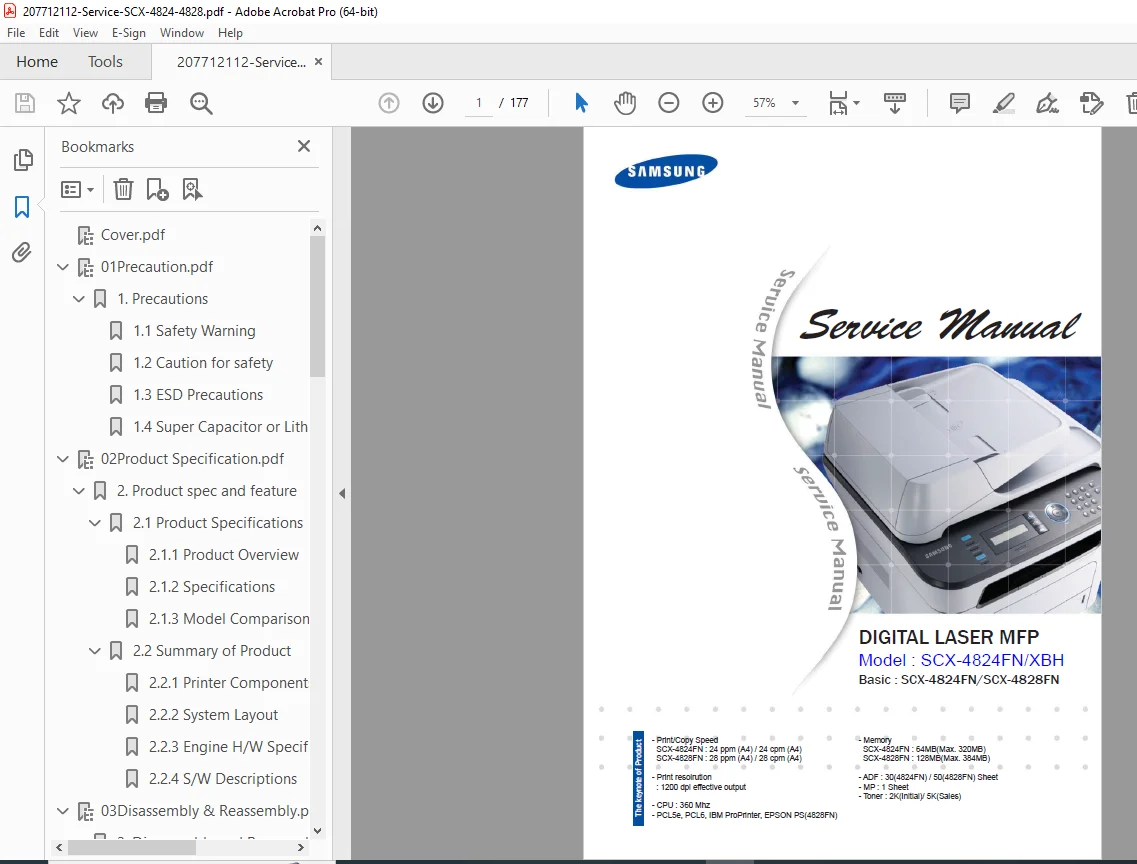

• Manual Name: Samsung SCX-4824FN / SCX-4828FN Service Manual

• Models Covered: Samsung SCX-4824FN, Samsung SCX-4828FN (Digital Laser MFP)

• Year: 2008 (September Edition)

• Manual PDF Quality: High-Quality Digital PDF (Searchable Text, Clear Diagrams)

• No. of Pages: 177

Stop wasting money on service calls for simple fixes! Download the Official Samsung Service Manual now and get the secret tech codes and diagrams you need to diagnose and repair your printer yourself in minutes.
