Sany HBT6013C-5S Concrete Pump Operation & Maintenance Manual – PDF
$24.95
OEM O&M manual for Sany HBT6013C-5S trailer pump. Covers S-valve pumping group, hydraulics, DC24V electrical/SYMC-SYCD controls, setup & outriggers, cleaning, troubleshooting. Specs, torque charts, wiring + hydraulic diagrams included.
Description
Sany HBT6013C-5S Trailer-Mounted Concrete Pump Operation & Maintenance Manual – PDF Download
Description:
Scope & Purpose
This Operation and Maintenance Manual covers the Sany HBT6013C-5S Trailer-Mounted Concrete Pump. It’s an authentic factory reference written for field operators, service engineers, and workshop technicians. The book describes how to install, start, operate, and maintain the unit safely. Sections are arranged by system—mechanical, hydraulic, and electrical—with complete troubleshooting tables and diagrams for each.
IMAGES:
Mechanical System
The pumping system uses the proven S-Valve arrangement with dual concrete cylinders and a synchronized hopper agitator. The manual details:
S-Valve assembly and wear-plate/cutting-ring service
Hopper structure, mixing blades, delivery pipe connection
Self-sealing suction device on main oil line (prevents air entry)
Step-by-step piston removal and seal replacement

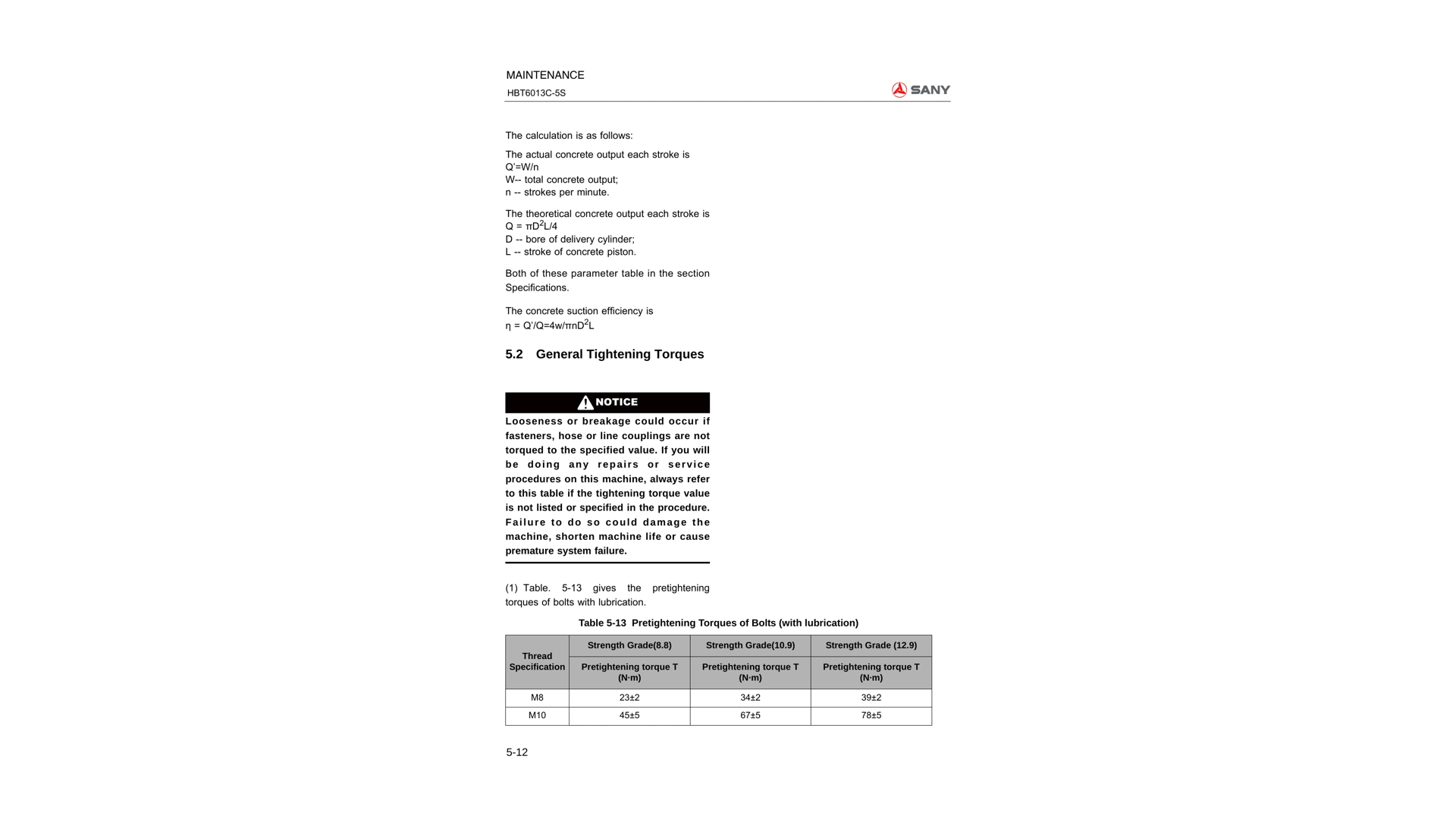

Torque specs for cylinder head bolts, flange couplings, hopper fasteners (some small bolts noted as “refer standard torque chart”)
Maintenance notes include checking for concrete leakage, piston cup wear, and oil contamination.
Hydraulic System
Comprehensive explanation of oil circuits, valves, and pressure controls. Includes:
Main & auxiliary circuits with accumulator and relief valve settings
Cooling options: air cooler standard, water cooler optional
Outrigger hydraulics—deployment and retraction
Lubrication system with grease distribution chart
Hydraulic diagram at the end of manual with tagged hose numbers
Common faults like low delivery pressure or slow cylinder response are analyzed with causes such as clogged filters or valve wear.
Electrical & Control
Operates on a 24 V DC circuit using SYMC controller and SYCD display. Topics covered:
Local/remote mode switching
E-STOP and interlock sequence
CAN-bus communication lines
Diesel engine start/stop logic
Relay board and indicator lamp wiring
All connectors are identified by pin number for quick tracing. Small mismatches in harness color codes noted (field variation).
Operation & Safety
Site setup, ground leveling, pipe layout
Outrigger positioning & locking
Pumping sequence (low/high pressure modes)
Cleaning procedure using water or compressed air
Safety cautions: residual pressure release, hopper grate lock, whip risk prevention
Maintenance & Troubleshooting
Includes lubrication schedule, fluid replacement intervals, and inspection checklist. Troubleshooting tables divide Mechanical / Hydraulic / Electrical faults with possible causes and corrections:
| Symptom | Possible Cause | Remedy |
|---|---|---|
| Low pressure | Relief valve stuck | Clean or replace |
| Cylinder slow | Air in line | Bleed circuit |
| Controller alarm | Sensor open circuit | Inspect harness |
Torque specs given for main assemblies; not all minor fasteners listed.

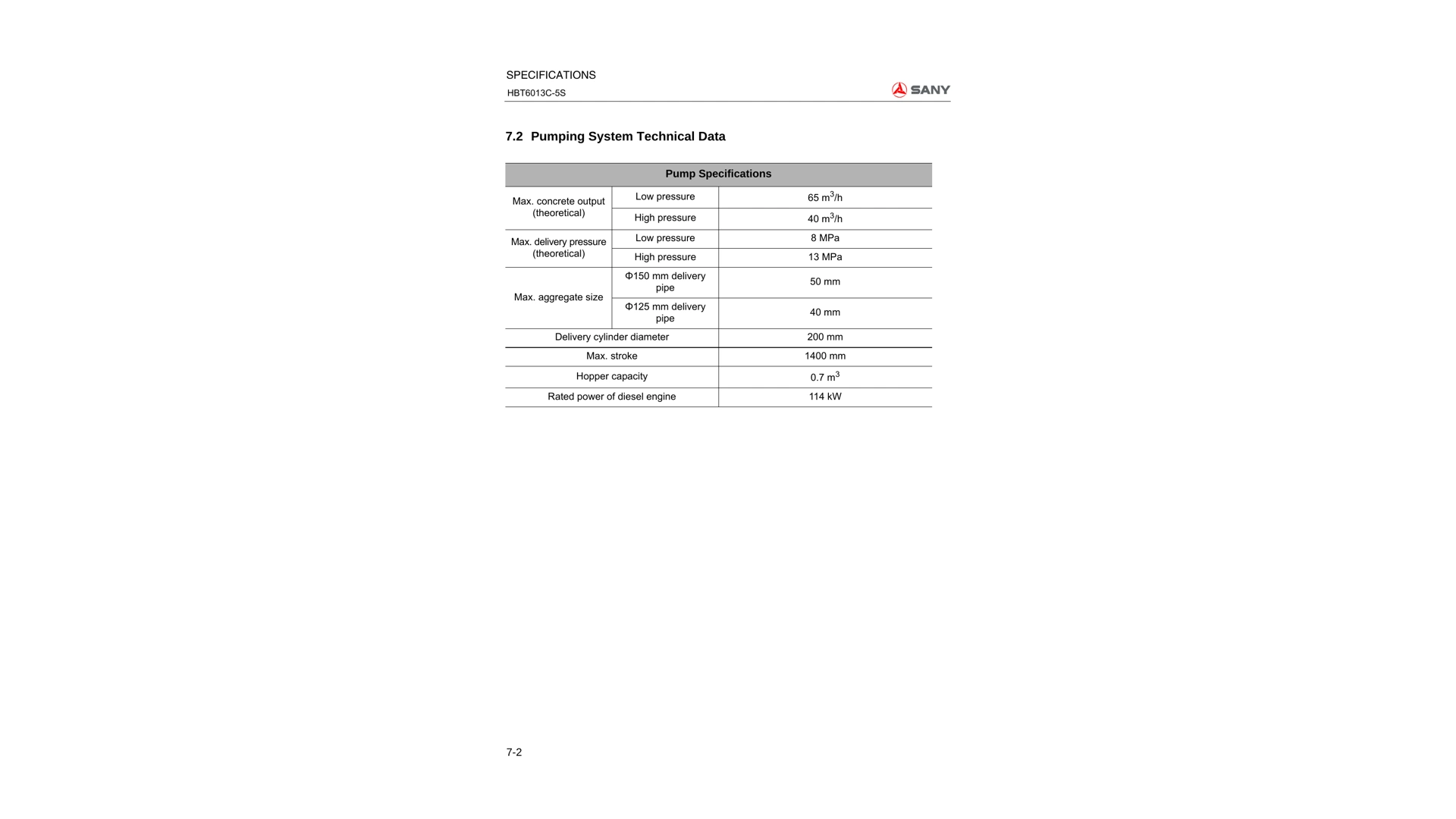

Technical Specifications
| Parameter | Value |
|---|---|
| Overall Dimensions | 6785 × 2100 × 2630 mm |
| Rated Power | 114 kW Diesel |
| Pump Output (LP/HP) | 65 m³/h @ 8 MPa / 40 m³/h @ 13 MPa |
| Delivery Cylinder | Ø 200 × 1400 mm |
| Hopper Volume | 0.7 m³ |
| Max Aggregate | 40 – 50 mm |
| Weight | ≈ 6100 kg |
