Sany SCC500D Hydraulic Crawler Crane Parts Manual – PDF

Description

Sany SCC500D Hydraulic Crawler Crane Parts Manual – PDF DOWNLOAD

FILE DETAILS:

Sany SCC500D Hydraulic Crawler Crane Parts Manual – PDF DOWNLOAD

Language : English
Pages : 86
Downloadable : Yes
File Type : PDF

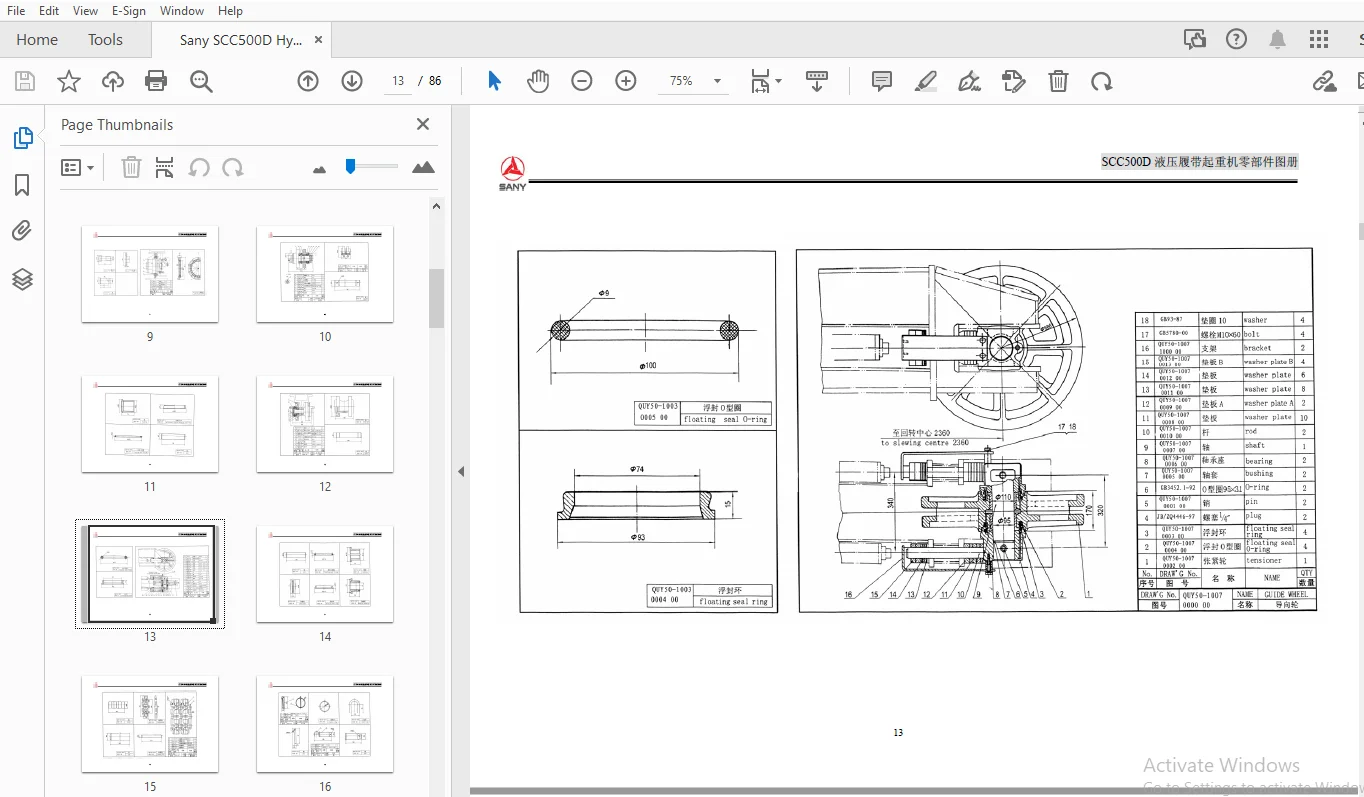

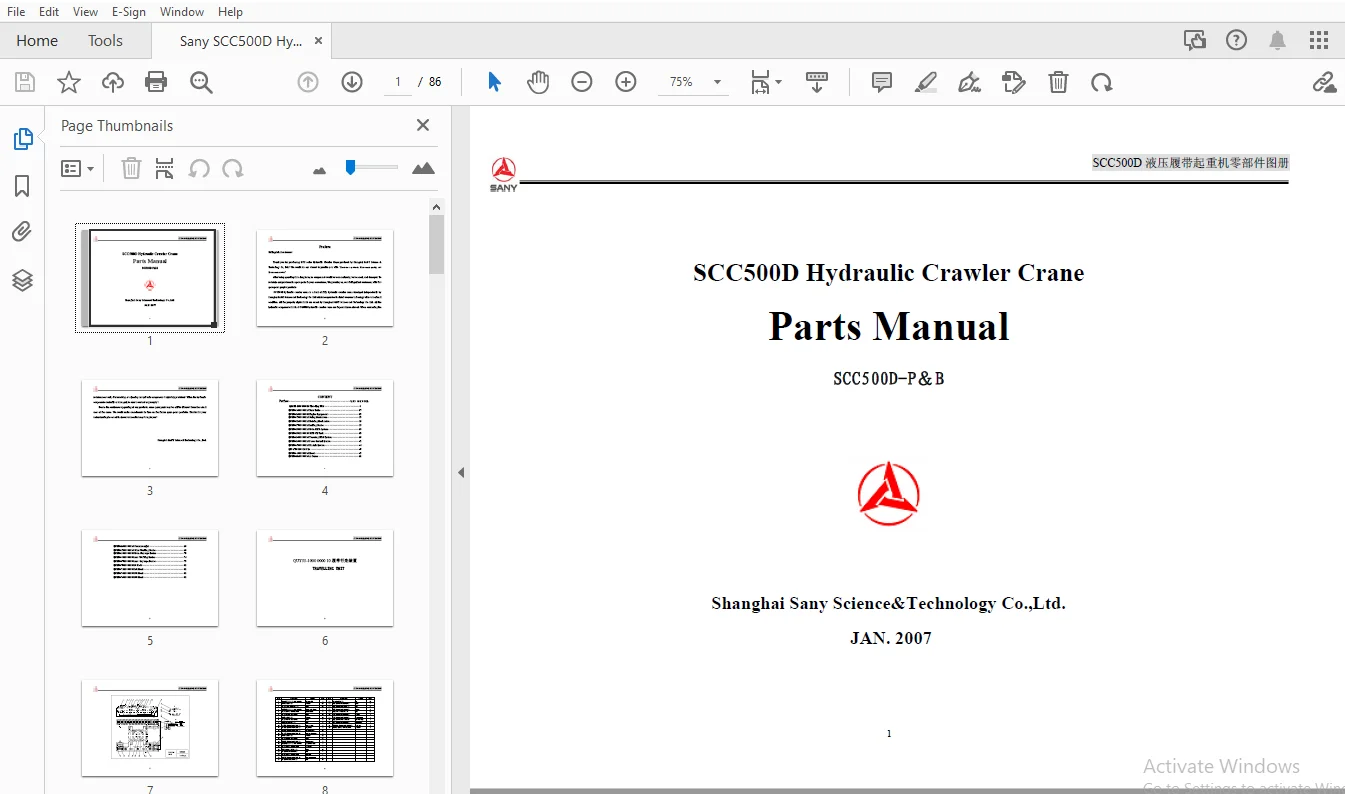

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Sany SCC500D Hydraulic Crawler Crane Parts Manual – PDF DOWNLOAD

Preface 错误！未定义书签。
QUY55-1000 0000 10 Traveling Unit 6
QUY50-1200 0000 13 Turn Table 17
QUY50-1500 0000 00 Engine Equipment 19
QUY50-1800 0000 13 Swing Mechanism 23
QUY50-2100 0000 13 Hoisting Mechanism 26
QUY50-2700 0000 13 Luffing Device 28
QUY50-3000 0000 13 Main HYD. System 30
QUY50-3002 0000 20 HYD Oil Tank 35
QUY55-3400 0000 10 Traveling HYD System 38
QUY50-3600 0000 13 Servo Control System 41
QUY50-4000 0000 13 Electric System 44
Q80-4700 0000 10 Cab 47
QUY50-4900 0000 10 Hood 49
QUY50-5100 0000 10 A -frame 51
SCC500D 液压履带起重机零部件图册
QUY50-5300 0000 10 Counterweight 58
QUY50-5500 0000 10 Main Working Device 60
QUY50-5800 0000 00 Main Guy rope Device 70
QUY50-6400 0000 00 Aux. Working Device 74
QUY50-6700 0000 00 Aux. Guy rope Device 79
QUY50-7000 0000 00 5t Hook 81
QUY50-7200 0000 00 15t Hook 81
QUY50-7400 0000 00 30t Hook 81
QUY50-7500 0000 00 50t Hook 81
