SANY SW075 Spare Parts Catalogue Manual – PDF DOWNLOAD

Description

SANY SW075 Spare Parts Catalogue Manual – PDF DOWNLOAD

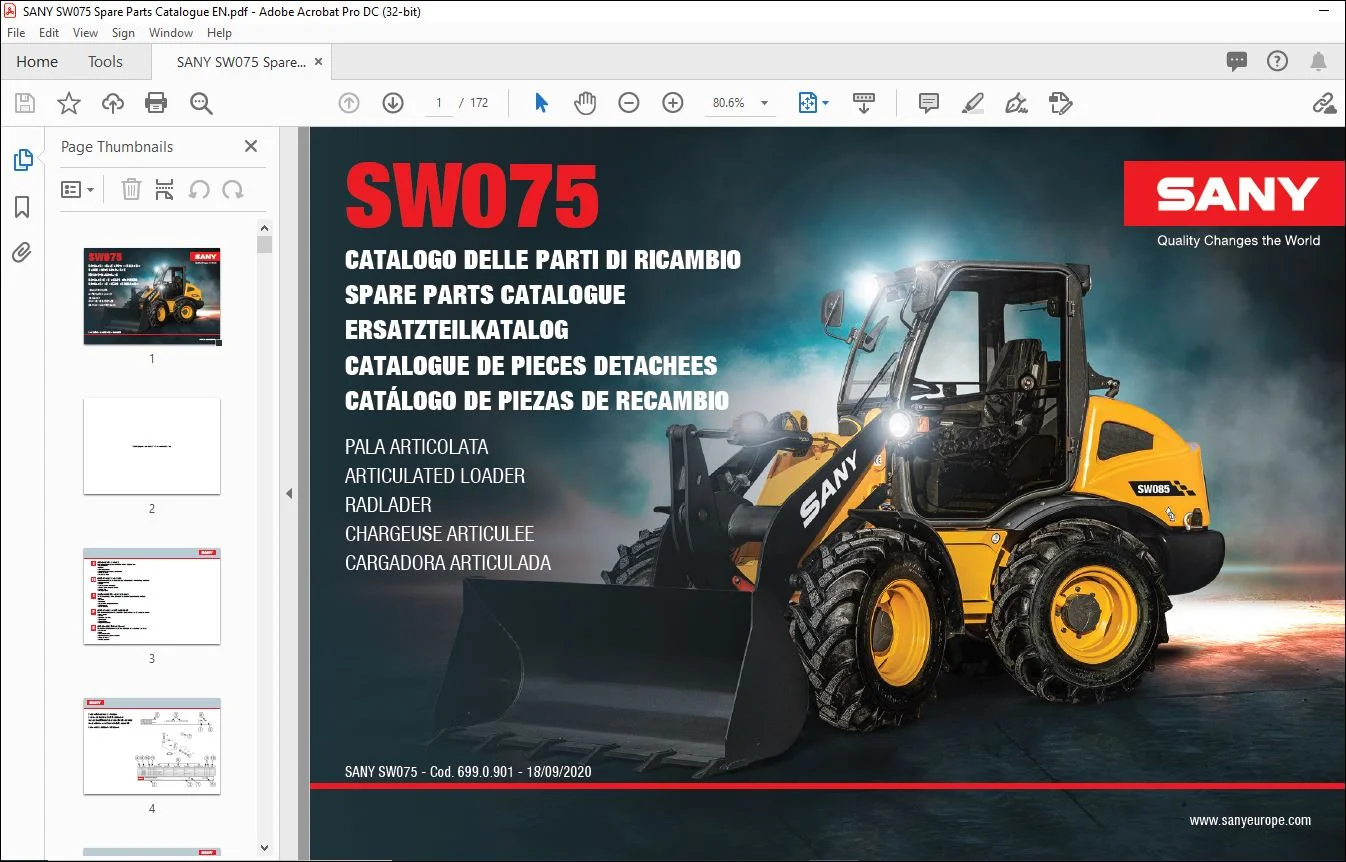

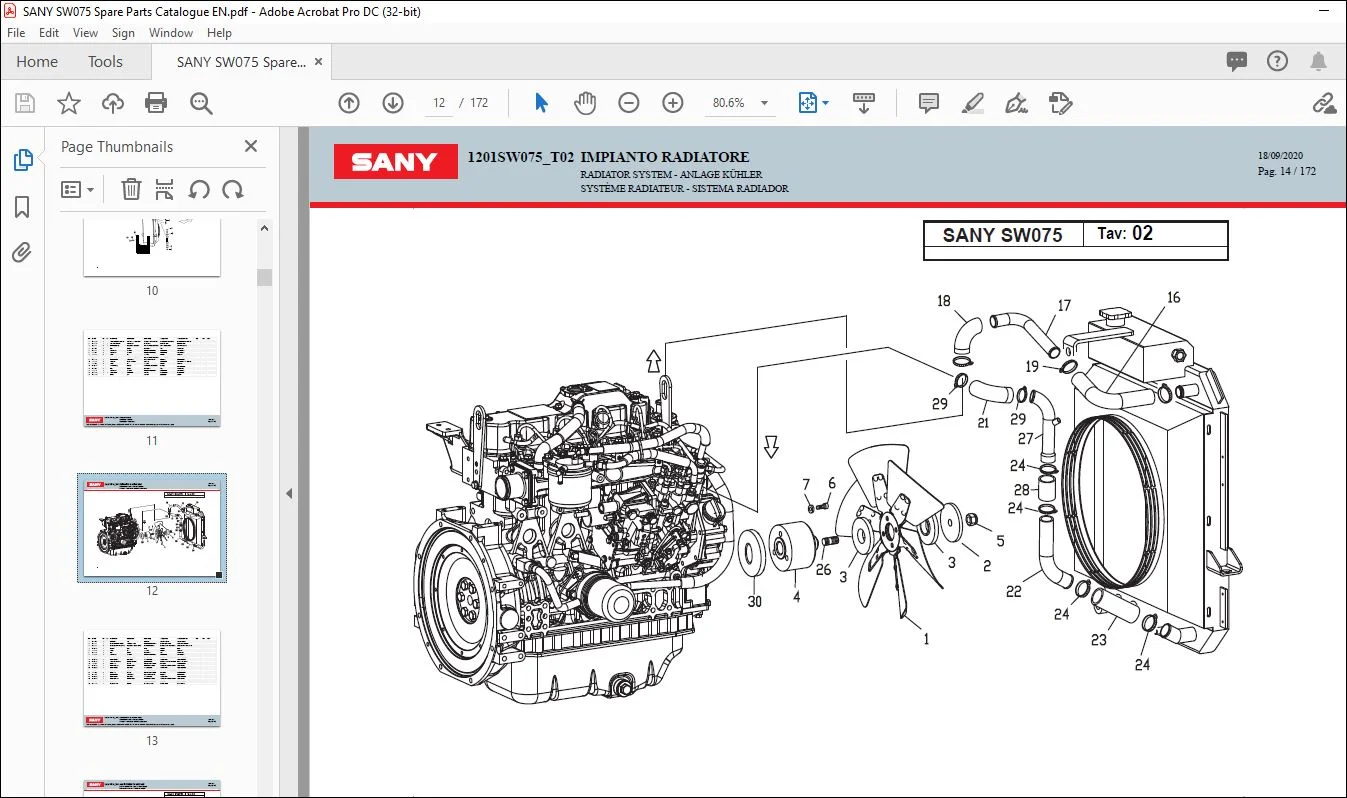

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

SANY SW075 Spare Parts Catalogue Manual – PDF DOWNLOAD

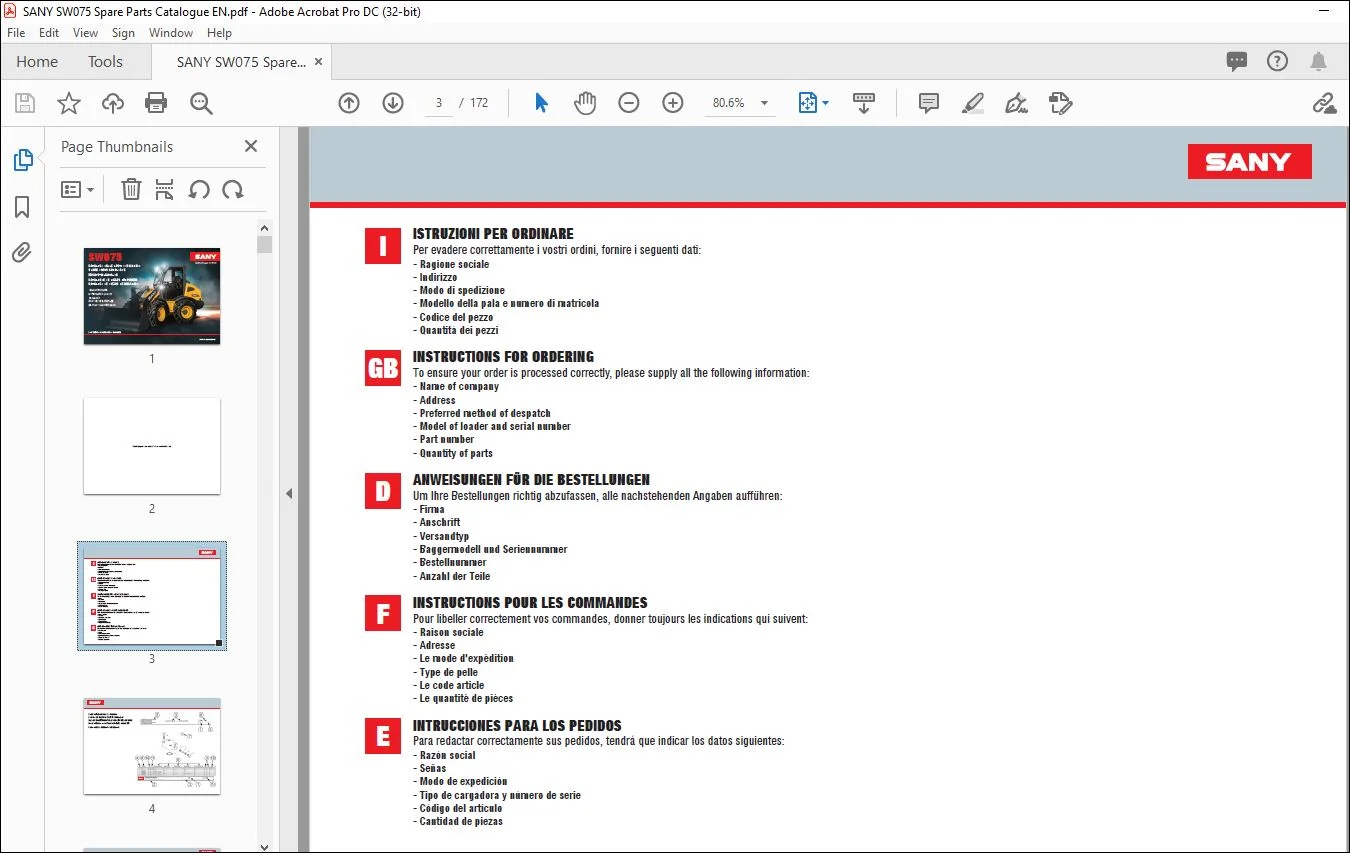

INSTRUCTIONS FOR ORDERING:
To ensure your order is processed correctly, please supply all the following information:
– Name of company
– Address
– Preferred method of despatch
– Model of loader and serial number
– Part number
– Quantity of parts

HOW TO USE THE SPARE PARTS CATALOGUE:

TABLE OF CONTENTS:

SANY SW075 Spare Parts Catalogue Manual – PDF DOWNLOAD

SANY 1201SW075_T01 RADIATORE – RADIATOR – KÜHLER – RADIATEUR – RADIADOR 12
1201SW075_T02 IMPIANTO RADIATORE – RADIATOR SYSTEM – ANLAGE KÜHLER – SYSTÈME RADIATEUR – SISTEMA RADIADOR 14
1201SW075_T03 ALLESTIMENTO MOTORE – ENGINE EQUIPMENT – AUSSTATTUNG MOTOR – ÉQUIPEMENT MOTEUR – MONTAJE MOTOR 16
1201SW075_T04 MOTORE – ENGINE – MOTOR – MOTEUR – MOTOR 20
1201SW075_T05 ASPIRAZIONE – ASPIRATION – ANSAUGUNG – ASPIRATION – ASPIRACIÓN 22
1201SW075_T06 SCARICO – DISCHARGE – AUSPUFF – ÉCHAPPEMENT – ESCAPE 24
1201SW075_T07 TRASMISSIONE – TRANSMISSION – GETRIEBE – TRANSMISSION – TRANSMISIÓN 26
1201SW075_T08 MOTORE IDROSTATICO – HYDROSTATIC MOTOR – HYDROSTAT MOTOR – MOTEUR HYDROSTATIQUE – MOTOR HIDROSTÁTICO 30
1201SW075_T09 POMPA IDROSTATICA – HYDROSTATIC PUMP – HYDROSTATISCHE PUMPE – POMPE HYDROSTATIQUE – BOMBA HIDROSTÁTICA 32
1201SW075_T10 ALBERO CARDANICO – CARDAN SHAFT – KARDANWELLE – ARBRE À CARDAN – EJE CARDÁNICO 34
1201SW075_T11 ASSALE – AXLE – ACHSE – ESSIEU – EJE 36
1201SW075_T12 ASSALE ANT /SCATOLA E COPER – FR AXLE/BOX & COVER – VORD ACHSE/GEH+ABD – ESS AV/BOÎTE+COUV – EJE DEL/CAJA Y COB 38
1201SW075_T13 ASSALE ANTERIORE/DIFFERENZIALE – FR AXLE/DIFFERENTIAL – VORD ACHSE/DIFFEREN – ESS AV/DIFFÉRENTIEL – EJE DEL /DIFERENCIAL 40
1201SW075_T14 ASSALE ANTERIORE/MOZZO RUOTA – FRONT AXLE/WHEEL HUB – VORD ACHSE/RADNABE – ESSIEU AV/MOYEU ROUE – EJE DEL /BUJE RUEDA 44
1201SW075_T15 ASSALE POST /SCATOLA E COPER – REAR AXLE/BOX &COVER – HINT ACHSE/GEH+ABD – ESS AR/BOÎTE+COUV – EJE TRAS /CAJA Y COB 46
1201SW075_T16 ASSALE POST /DIFFERENZIALE – REAR AXLE/DIFFERENT – HINT ACHS /DIFFEREN – ESS AR/DIFFÉRENTIEL – EJE TRAS/DIFERENCIAL 48
1201SW075_T17 ASSALE POST /MOZZO RUOTA – REAR AXLE/WHEEL HUB – HINT ACHSE/RADNABE – ESSIEU AR/MOYEU ROUE – EJE TRAS /BUJE RUEDA 50
1201SW075_T18 ASSALE POST /RIPARTITORE – REAR AXLE/TRANS BOX – HINT ACHSE/VERTEILER – ESSIEU AR/RÉPART – EJE TRAS/DISTRIB 52
1201SW075_T19 RUOTA COMPLETA – COMPLETE WHEEL – RAD KOMPLETT – ROUE COMPLÈTE – RUEDA COMPLETA 54
1201SW075_T20 COMANDO FRENI – BRAKE CONTROL – STEUERUNG BREMSEN – COMMANDE FREINS – MANDO FRENOS 56
1201SW075_T21 ACCELERATORE – ACCELERATOR – GASPEDAL – ACCÉLÉRATEUR – ACELERADOR 58
1201SW075_T22 FRENO STAZIONAMENTO – PARKING BRAKE – FESTSTELLBREMSE – FREIN STATIONNEMENT – FRENO ESTACIONAM 60
1201SW075_T23 COMANDO CLOCHE – JOYSTICK – STEUERUNG STEUERHORN – COMMANDE CLOCHE – MANDO PALANCA MANDO 62
1201SW075_T24 TELAIO ANTERIORE – FRONT CHASSIS – VORDERER RAHMEN – CHÂSSIS AVANT – CHASIS DELANTERO 64
1201SW075_T25 TELAIO POSTERIORE – REAR CHASSIS – HINTERER RAHMEN – CHÂSSIS ARRIÈRE – CHASIS TRASERO 68
1201SW075_T26 SERBATOIO COMBUSTIBILE – FUEL TANK – KRAFTSTOFFTANK – RÉSERVOIR CARBURANT – DEPÓSITO
1201SW075_T27 SERBATOIO OLIO – OIL TANK – ÖLTANK – RÉSERVOIR HUILE – DEPÓSITO DE ACEITE 74
1201SW075_T28 SEDILE – SEAT – SITZ – SIÈGE – ASIENTO 76
1201SW075_T29 COFANO MOTORE – ENGINE HOOD – MOTORHAUBE – CAPOT-MOTEUR – CAPÓ MOTOR 78
1201SW075_T30 BRACCIO – ARM – ARM – BRAS – BRAZO 82
1201SW075_T31 BENNA – BUCKET – SCHAUFEL – GODET – CUCHARA 86
1201SW075_T32 CABINA DI GUIDA COMPLETA – COMPL DRIVER’S CAB – KOMPL FAHRERKABINE – CAB CONDUITE COMPL – CABINA CONDUCC COMP 88
1201SW075_T33 CABINA DI GUIDA / PARTICOLARI – DRIVER’S CAB/DETAILS – FAHRERKABINE/DETAILS – CAB CONDUITE/DÉTAILS – CAB COND /DETALLES 90
1201SW075_T34 CABINA DI GUIDA / CRISTALLI – DRIVER’S CAB/WINDOWS – FAHRERKAB/FENSTER – CAB CONDUITE/VITRES – CAB COND /CRISTALES 94
1201SW075_T35 CABINA DI GUIDA / IMP RISCALD – DRIV CAB/HEAT SYS – FAHRERKABINE/HEIZUNG – CAB COND /SYST CHAUF – CAB COND /SIST CALEF 100
1201SW075_T36 CABINA DI GUIDA / RIVESTIMENTI – DRIVER’S CAB/COATING – FAHRERKAB/VERKLEID – CAB COND/REVÊTEMENTS – CAB COND /RECUBR 102
1201SW075_T37 IMPIANTO IDRAULICO – HYDRAULIC SYSTEM – HYDRAULIKANLAGE – SYSTÈME HYDRAULIQUE – SISTEMA HIDRÁULICO 104
1201SW075_T38 IMPIANTO IDRAULICO BENNA – BUCKET HYDR SYSTEM – HYDR ANL SCHAUFEL – CIRCUIT HYDR GODET – SIST HIDR CUCHARA 106
1201SW075_T39 MARTINETTO BENNA – BUCKET CYLINDER – HYDR ZYL SCHAUFEL – VÉRIN GODET – CILINDRO CUCHARA 108
1201SW075_T40 IMPIANTO IDRAUL SOLLEVAMENTO – LIFTING HYDR SYSTEM – HYDR ANL HEBEN – SYS HYDRAUL LEVAGE – SIST HIDR ELEVACIÓN 110
1201SW075_T41 MARTINETTO SOLLEVAMENTO – LIFT CYLINDER – HUBZYLINDER – VÉRIN LEVAGE – CILINDRO ELEVACIÓN 112
1201SW075_T42 IMPIANTO IDRAULICO STERZO – STEERING HYD SYSTEM – HYDR ANL LENKUNG – CIRC HYDR DIRECTION – SIST HIDR DIRECCIÓN 114
1201SW075_T43 MARTINETTO STERZO – STEERING CYLINDER – LENKZYLINDER – VÉRIN DIRECTION – CILINDRO DIRECCIÓN 118
1201SW075_T44 IMPIANTO INGRASSAGGIO – GREASING SYSTEM – SCHMIERANLAGE – SYSTÈME DE GRAISSAGE – SISTEMA ENGRASE 120
1201SW075_T45 PRESE DI PRESSIONE CENTRALIZZATE – CENTRALD PRESS TAPS – ZENTR GASMESSVENTILE – PRISES PRESS CENTRAL – TOMAS PRESIÓN CENTR 122
1201SW075_T46 DISTRIBUTORE – DISTRIBUTOR – VERTEILER – DISTRIBUTEUR – DISTRIBUIDOR 124
1201SW075_T47 IMPIANTO ELETTRICO/1 – ELECTRICAL SYSTEM/1 – ELEKTRISCHE ANL /1 – CIRCUIT ÉLECTRIQUE/1 – SISTEMA ELÉCTRICO/1 128
1201SW075_T48 IMPIANTO ELETTRICO/2 – ELECTRICAL SYSTEM/2 – ELEKTRISCHE ANL /2 – CIRCUIT ÉLECTRIQUE/2 – SISTEMA ELÉCTRICO/2 130
1201SW075_T49 PIANTONE COMPLETO – COMPL STEER COLUMN – LENKSÄULE KOMPLETT – COLONNE DIRECT COMPL – COLUMNA COMPLETA 134
1201SW075_T50 KIT DECALCOMANIE – ADHESIVE STICKER KIT – SET AUFKLEBER – KIT DÉCALCOMANIES – KIT CALCOMANÍAS 136
1201SW075_T51 DOTAZIONE – TOOL KIT – AUSSTATTUNG – ÉQUIPEMENT – DOTACIÓN 140
1201SW075_T52 FILTRI E MATERIALE DI CONSUMO – FILTER AND OTHER CONSUMABLES – FILTER UND ANDERES VERBRAUCHSMATERIAL – FILTRES ET AUTRES MATÉRIELS
CONSOMMABLES – FILTROS Y OTROS MATERIALES DE CONSUMO 142
