SATO M-8485Se Thermal Transfer Printer Service Manual – PDF Download
Original price was: $70.00.$28.95Current price is: $28.95.
Official SATO M-8485Se Standard OEM Print Engine Service Manual, covering complete specifications, DIP-switch setup, electrical and mechanical adjustments, calibration, troubleshooting, and parts replacement.
Essential for technicians maintaining industrial label-printing systems using the M-8485Se thermal printer.
Description
SATO M-8485Se Thermal Transfer Printer Service Manual – PN 9001080 Rev A OEM Print Engine Maintenance Guide PDF Download
BOOKMARKS / TABLE OF CONTENTS
IMAGES:
1️⃣ Overview and Specifications
General Description & Safety Guidelines
Dimensions / Weight / Power Requirements
Component Identification (DIP switches, motors, ribbon path)
Input/Output Connections and Sensor Locations
Print-Head and Ribbon Adjustment Points
Full Technical Specifications (Table 1.11 to 1.14)
2️⃣ Configuration
DIP Switch Settings (Communication, Protocol, Sensor, Mode Selection)
Default Factory Settings and Baud Rates
Potentiometer Adjustments (Print Pitch, Back-Feed, Offset)
LCD Panel Configuration & Diagnostic Modes
3️⃣ Interface Specifications
RS-232, IEEE 1284, Ethernet and USB Signal Pins
External Signal Interface (Type 1–4 Signals for Applicator Integration)
Timing Charts and Flow Control (RTS/CTS & X-ON/X-OFF)
4️⃣ Electrical Checks and Adjustments
Print-head Resistance Measurement
Motor Voltage Verification and Test Points
PCB Inspection and Fuse Replacement Procedures
5️⃣ Mechanical Adjustments
Label Gap Sensor Calibration
Ribbon Path and Head Pressure Adjustment
Platen Roller Replacement and Nip Roller Alignment
6️⃣ Replacement Procedures
Step-by-Step Removal of Print Head, Drive Motor, Power Supply, and Panels
Disassembly Photos and Exploded Views
7️⃣ Factory Resets and Test Print Modes
LCD Panel Key Sequences for Reset and Test Patterns
User Test Print and Maintenance Modes
8️⃣ Troubleshooting
Error LED Indications and Meaning
Common Fault Codes and Corrective Actions
Label Feed, Print Quality, and Ribbon Errors
9️⃣ Optional Accessories
PCMCIA Memory Card Installation
External Sensors and Applicator Interface
🔟 Parts List
Complete Exploded Parts Diagram with SATO P/Ns
Electrical Board and Mechanism Index
Product Description

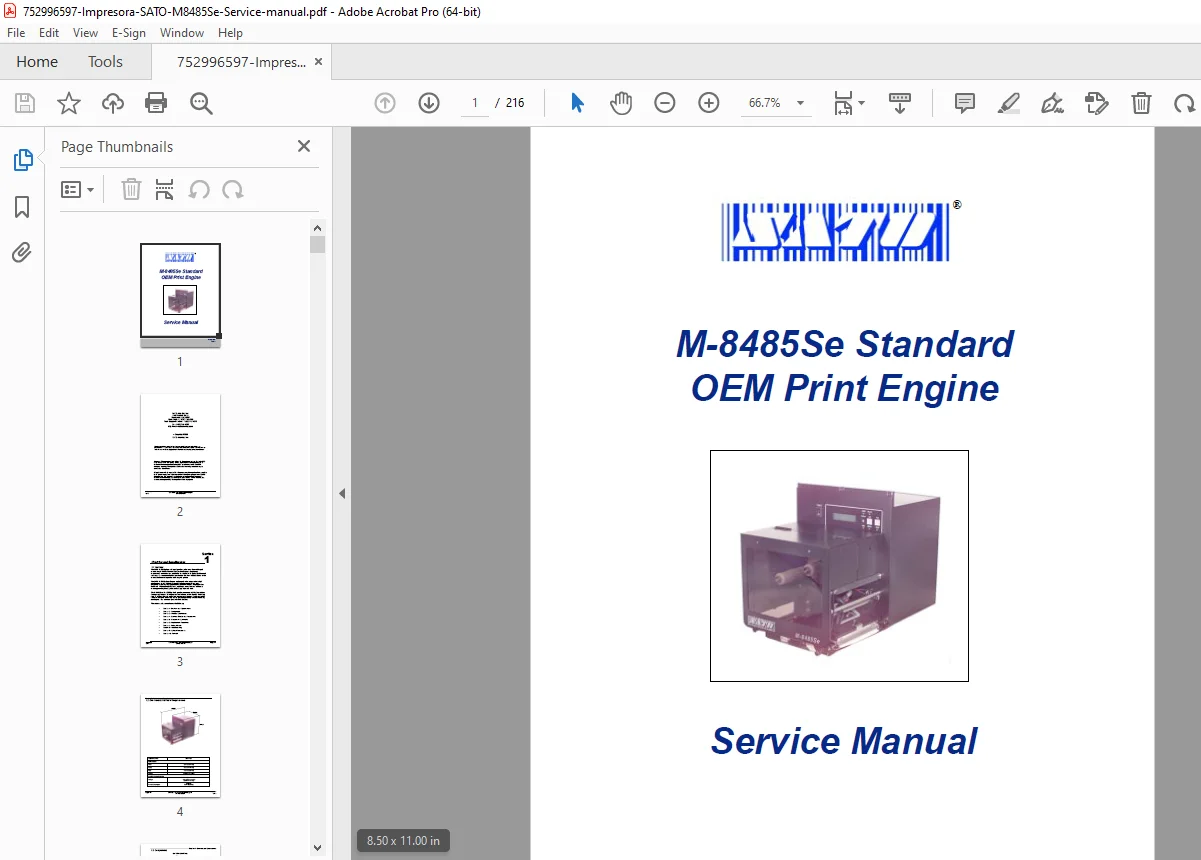

The SATO M-8485Se Service Manual (PN 9001080 Rev A) is the authoritative factory guide for maintaining and repairing M-8485Se Standard OEM Print Engines.
Designed for professional technicians, this manual provides complete procedures for calibration, electrical inspection, mechanical servicing, and troubleshooting of the printer’s core assemblies.
⚙️ Covers Every System
It details how to configure and fine-tune the print engine for direct thermal or thermal transfer printing, explains DIP switch settings, and provides calibration instructions for print darkness, pitch, back-feed offset, and sensor alignment.
Sections include electrical schematics, I/O pinouts, power supply diagnostics, and component replacement steps for the print head, motors, sensors, and circuit boards.
🧩 Built-In Diagnostics and LCD Configuration
Step-by-step LCD-panel procedures cover test print patterns, factory reset, maintenance mode, and firmware download via PCMCIA card or serial link.
🧰 Mechanical Maintenance and Alignment

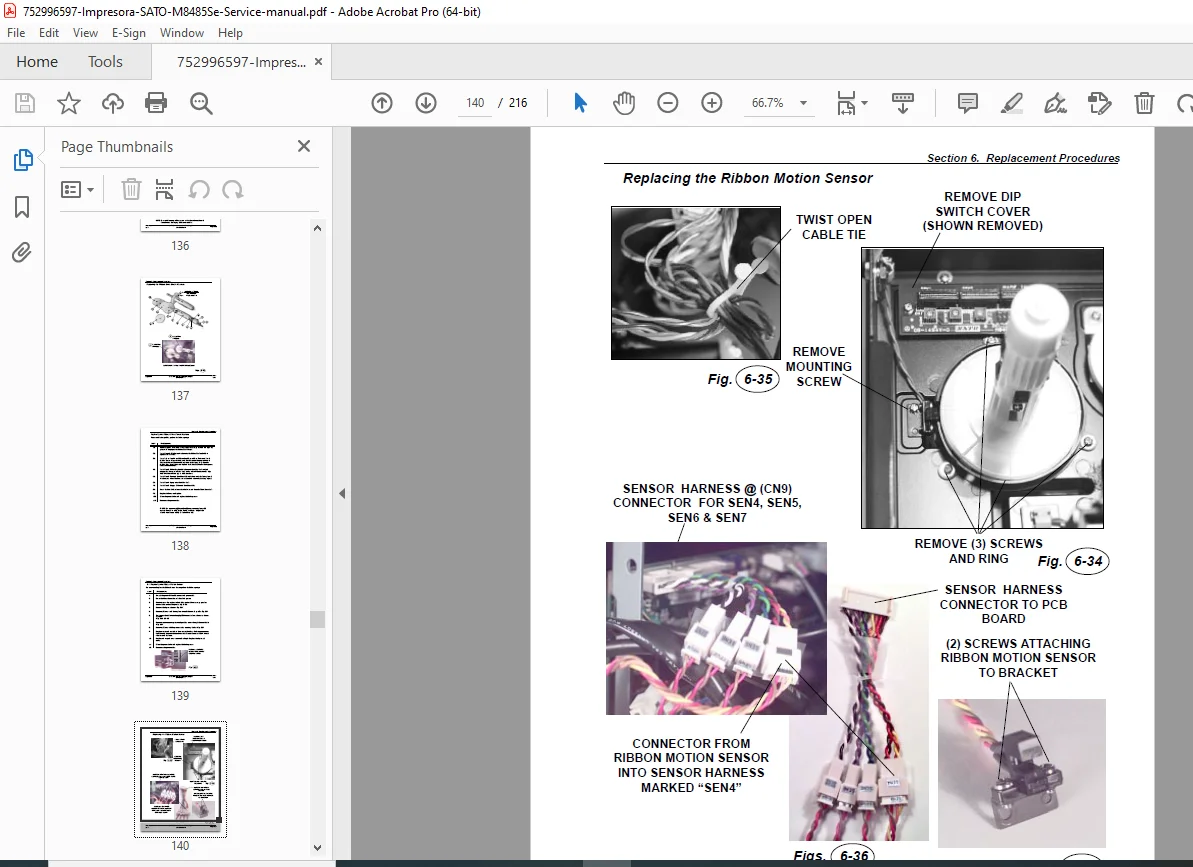

Detailed illustrations show proper label gap sensor setup, ribbon path tensioning, platen roller replacement, and head pressure adjustment—ensuring consistent print quality and reduced downtime.
🔍 Troubleshooting Support
Comprehensive charts list error LED codes, common printing faults, and solutions for ribbon, media, and communication errors.
🛠️ Ideal For
Label-printer technicians, integrators, and automation engineers servicing OEM print modules in packaging and production lines.
FILE DETAILS
| Field | Information |
|---|---|
| Manual Title | SATO M-8485Se Standard OEM Print Engine Service Manual |
| Manufacturer | SATO America Inc., Sunnyvale CA USA |
| Model Covered | M-8485Se (Standard OEM Print Engine) |
| Part Number / Revision | PN 9001080 Rev A |
| Print Method | Direct Thermal / Thermal Transfer |
| Print Resolution | 300 dpi (12 dots/mm) |
| Print Speed | 4 – 12 in/sec (100 – 300 mm/s) |
| Maximum Print Width | 5.0 in (128 mm) |
| Maximum Media Width | 5.25 in (133 mm) |
| Minimum Media Width / Length | 1.0 in (25 mm) / 0.25 in (6 mm) |
| Ribbon Width / Length | Up to 133 mm / 600 m |
| Power Requirements | 115–220 V AC ±10 %, 50/60 Hz, 700 W max load |
| Dimensions (W×D×H) | 10.4 × 16.1 × 11.8 in (264 × 410 × 300 mm) |
| Weight | 25 lb (11.3 kg) |
| CPU / Memory | 32-bit RISC CPU • 2 MB Flash ROM • 16 MB SDRAM |
| Interfaces | RS-232C, IEEE 1284 Parallel, Ethernet 10/100Base-T, USB 1.1 (optional modules supported) |
| Optional Memory | PCMCIA Flash or SRAM card (4 – 16 MB) |
| Barcode Symbologies | EAN/UPC, Code 39, Code 128, Interleaved 2 of 5, Industrial 2 of 5, PDF417, QR, DataMatrix, Maxicode, Postnet etc. |
| Fonts Included | Vector and Bitmap Fonts (Helvetica, OCR-A/B, CG Triumvirate, CG Times) |
| Environmental Range | Operating 5 – 40 °C • 15–85 % RH (non-condensing) |
| Regulatory Approvals | UL • CSA • CE • VDE • FCC Class C |
| File Format | Searchable PDF (English) |
| Pages / Size | ≈ 216 pages • ≈ 30 MB |
| Includes | Specifications • DIP switch & potentiometer tables • Sensor calibration • Electrical checks • Mechanical adjustments • Troubleshooting • Parts list • Bar-code setup |
