Schaffer Lader 3036(S) 3045 Wheeled Loader Parts Manual PDF
$27.95
Schaffer Lader 3036(S) 3045 Wheeled Loader Parts Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Schaffer Lader 3036(S) 3045 Wheeled Loader Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Schaffer Lader 3036(S) 3045 Wheeled Loader Parts Manual – PDF DOWNLOAD
Language : English_German
Pages : 189
Downloadable : Yes
File Type : PDF

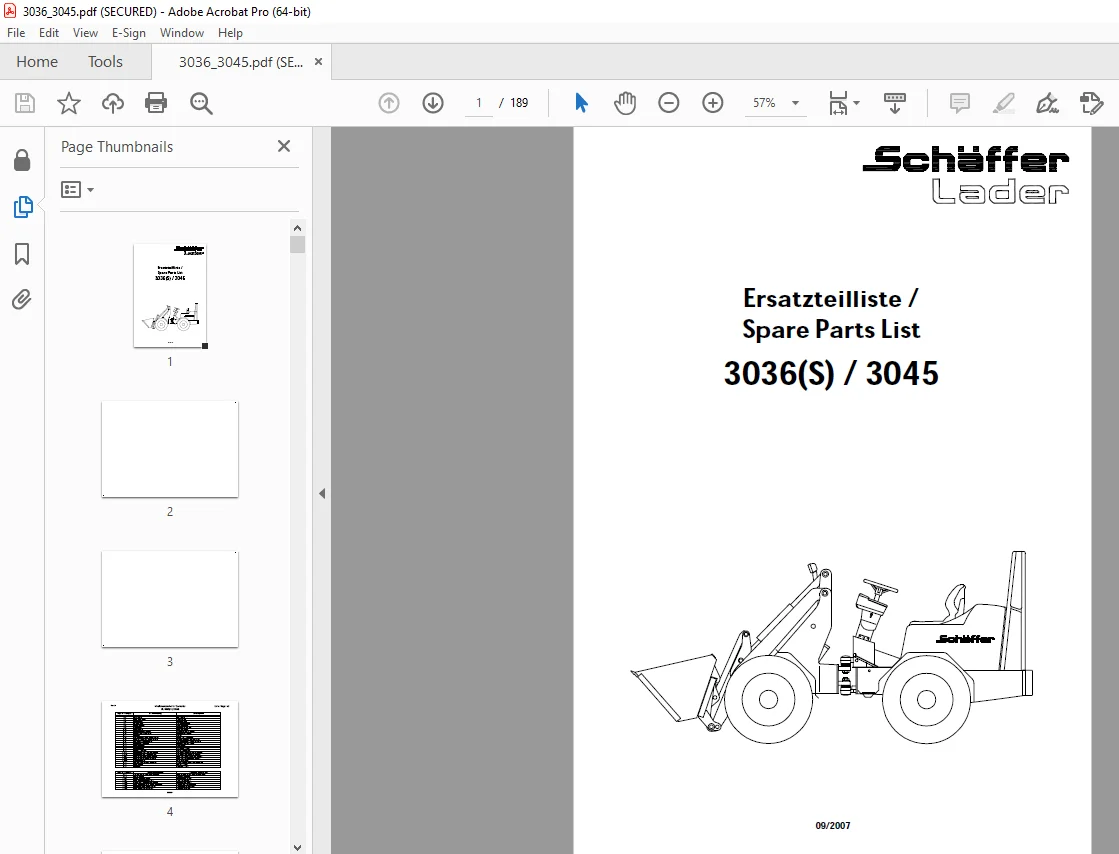

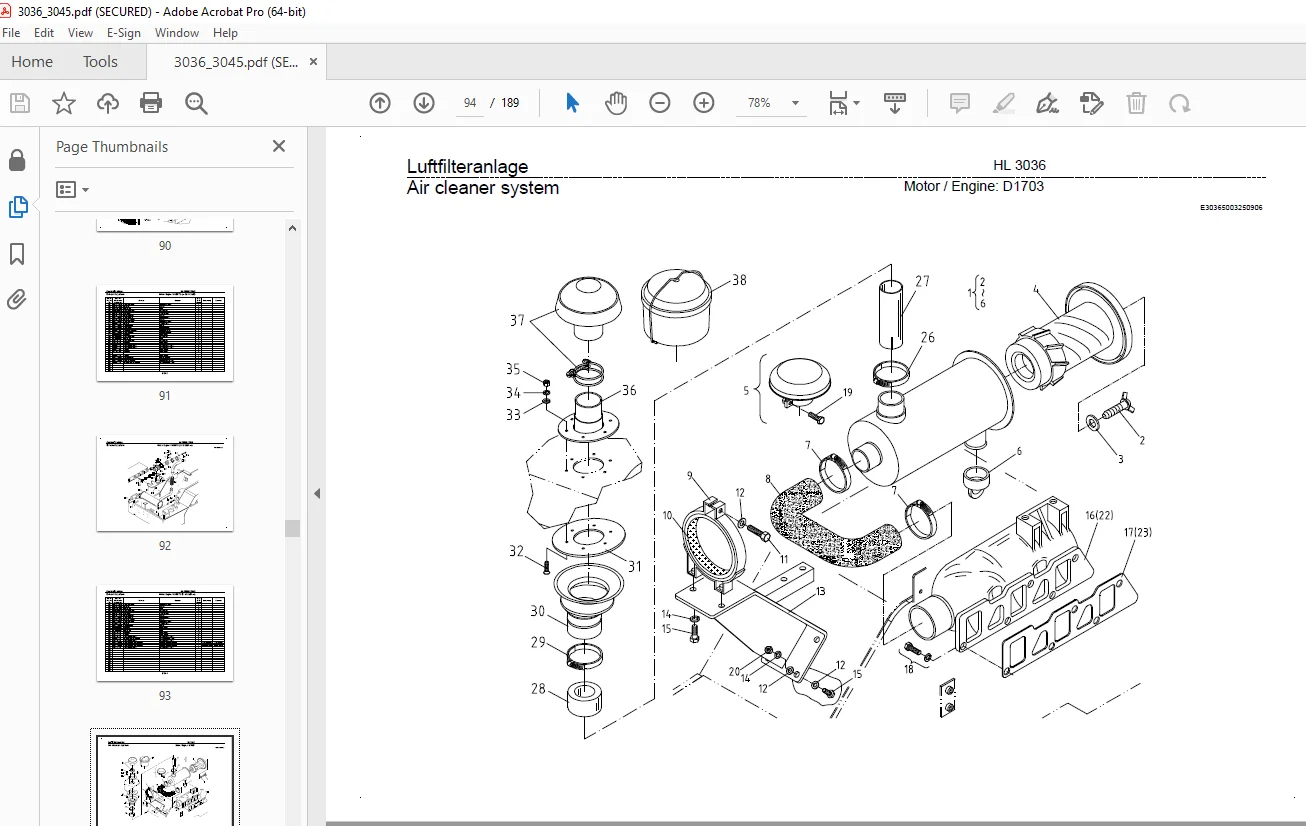

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Schaffer Lader 3036(S) 3045 Wheeled Loader Parts Manual – PDF DOWNLOAD
Steering cylinder
Lift cylinder
Tool cylinder
Hydraulic filter
Steering hydraulics
Steering hydraulics
Work hydraulics
Hydraulic control unit
Drive hydraulics
Control elements / Pedals
Engine cover / Lining Frame
Lifting arm / Tool holder
Battery / Lighting / Counterweight
Drive hydraulics
Control elements / Pedals
Engine cover / Lining Frame
Lifting arm / Tool holder
Battery / Lighting / Counterweight
Steering column / Instrument panel
Engine mounting / Clutch
Fuel system
Exhaust system
Air cleaner system
Water- / Oilradiator
Front axle without differential interlock
Fuel system
Exhaust system
Air cleaner system
Water- / Oilradiator
Front axle without differential interlock
Front axle with differential interlock
Rear axle without differential interlock
Rear axle with differential interlock
Multi-plate brake
Axles / Cardan shaft / Tyre equipment
Braking system
Adhesive Labels
Optional equipment
Hydr. tandem pump / pressure-free return
Additional oil cooler
ROPS-Safety roll bar
Tool holder EU-WS
Hydraulic tool locking
Tool locking, wire controlled
Tool holder locking device Tool holder W3002
Multi-plate brake
Axles / Cardan shaft / Tyre equipment
Braking system
Adhesive Labels
Optional equipment
Hydr. tandem pump / pressure-free return
Additional oil cooler
ROPS-Safety roll bar
Tool holder EU-WS
Hydraulic tool locking
Tool locking, wire controlled
Tool holder locking device Tool holder W3002
S.V 11/24
