Schaffer Lader 5070Z 5090Z Wheeled Loader Parts Manual PDF
$26.95
Schaffer Lader 5070Z 5090Z Wheeled Loader Parts Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Schaffer Lader 5070Z 5090Z Wheeled Loader Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Schaffer Lader 5070Z 5090Z Wheeled Loader Parts Manual – PDF DOWNLOAD
Language : English_German
Pages : 117
Downloadable : Yes
File Type : PDF

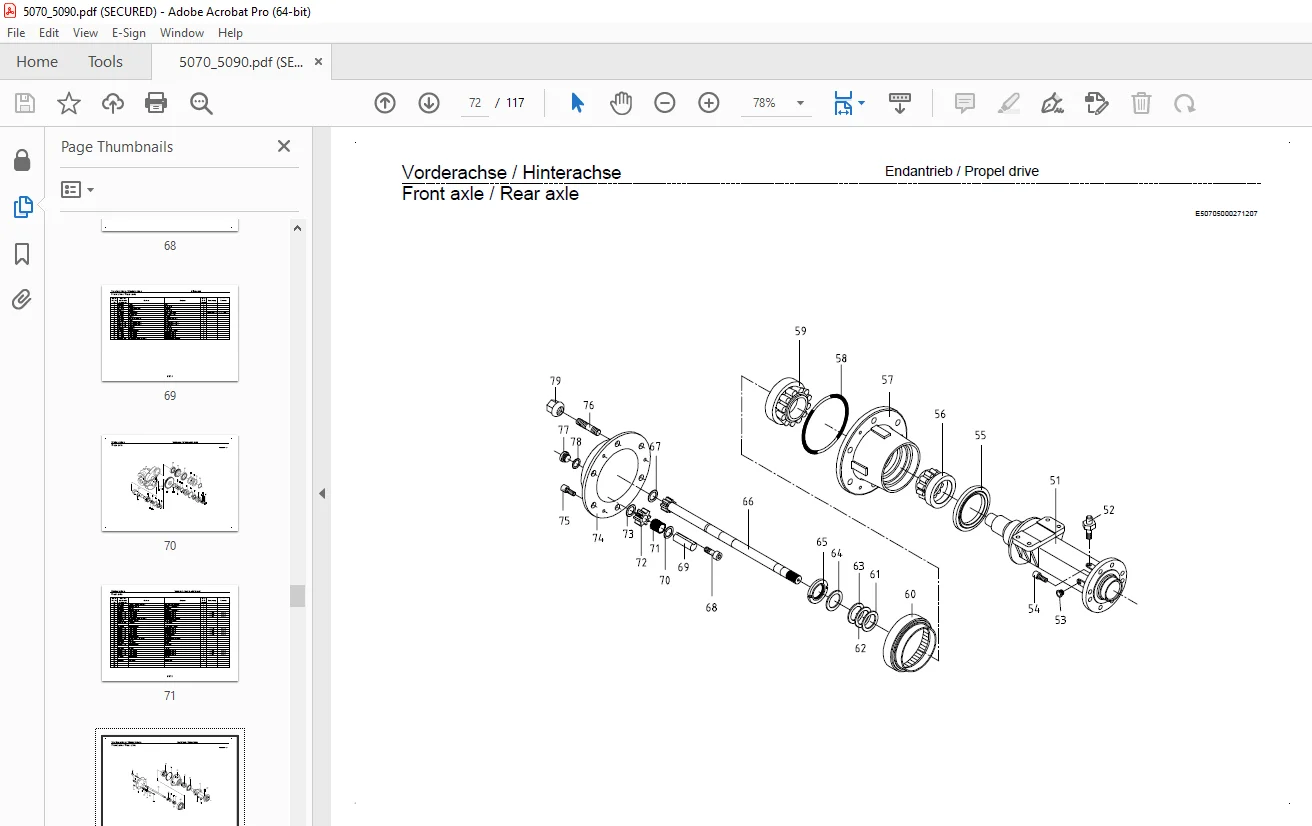

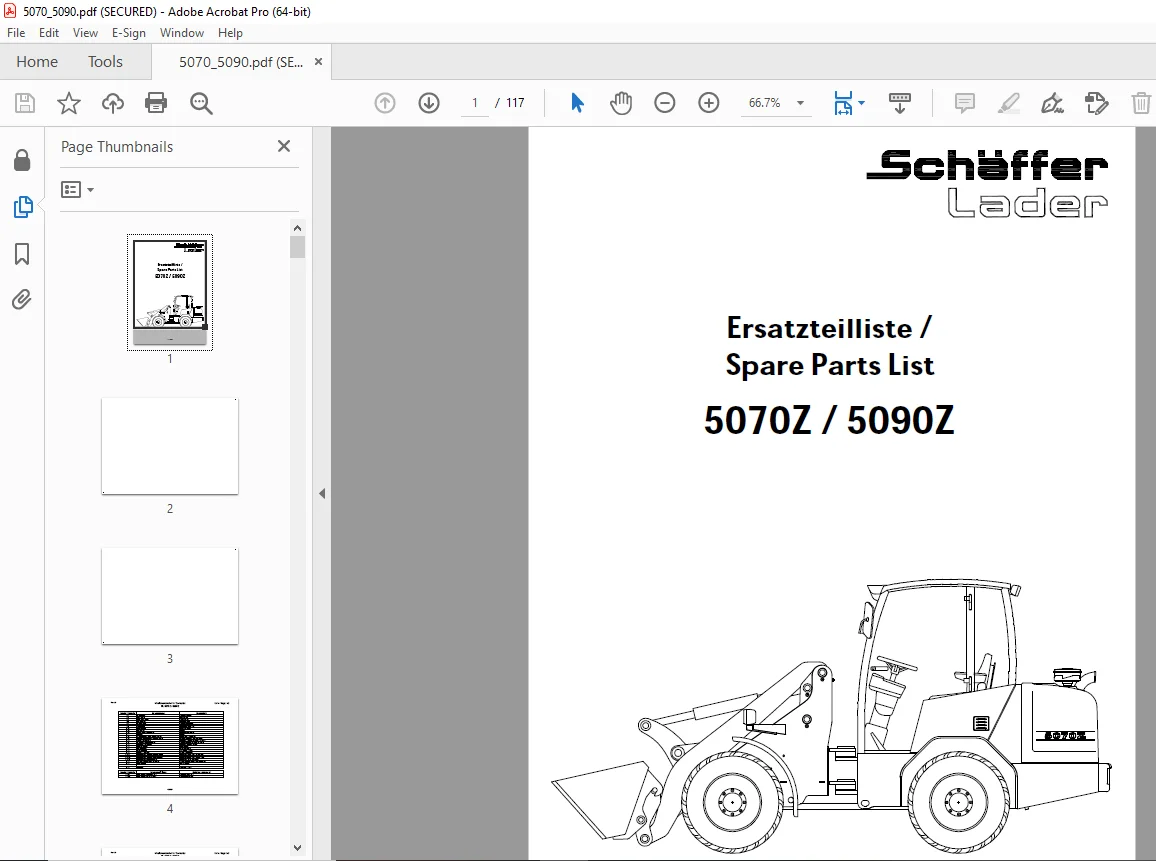

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Schaffer Lader 5070Z 5090Z Wheeled Loader Parts Manual – PDF DOWNLOAD
Steering cylinder
Lift cylinder
Tool cylinder
Hydraulic filter
Steering hydraulics
Steering hydraulics
Work hydraulics
Hydraulic control unit
Drive hydraulics Pedals
Engine cover / Lining Frame
|Lifting arm / Tool holder
Battery / Lighting / Counterweight |Electrical equipment / Wiring harness Steering column / Instrument panel Engine mounting / Clutch Fuel system
Exhaust system
Air cleaner system
Water-/ Oilradiator
Front axle / Rear axle – Differential
Rear axle – Intermediate gear
Front axle / Rear axle – Propel drive
Front axle – Multi disc brake
Axles / Cardan shaft / Tyre equipment Brake system
Adhesive Labels
Tool holder EU-WS Tool holder W3002
Optional equipment
Drive hydraulics Pedals
Engine cover / Lining Frame
|Lifting arm / Tool holder
Battery / Lighting / Counterweight |Electrical equipment / Wiring harness Steering column / Instrument panel Engine mounting / Clutch Fuel system
Exhaust system
Air cleaner system
Water-/ Oilradiator
Front axle / Rear axle – Differential
Rear axle – Intermediate gear
Front axle / Rear axle – Propel drive
Front axle – Multi disc brake
Axles / Cardan shaft / Tyre equipment Brake system
Adhesive Labels
Tool holder EU-WS Tool holder W3002
Optional equipment
S.V 11/24
