Schaffer Lader 9300 Z Wheeled Loader Parts Manual PDF
$26.95
Schaffer Lader 9300 Z Wheeled Loader Parts Manual – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Schaffer Lader 9300 Z Wheeled Loader Parts Manual – PDF DOWNLOAD
FILE DETAILS:
Schaffer Lader 9300 Z Wheeled Loader Parts Manual – PDF DOWNLOAD
Language : English_German
Pages : 157
Downloadable : Yes
File Type : PDF

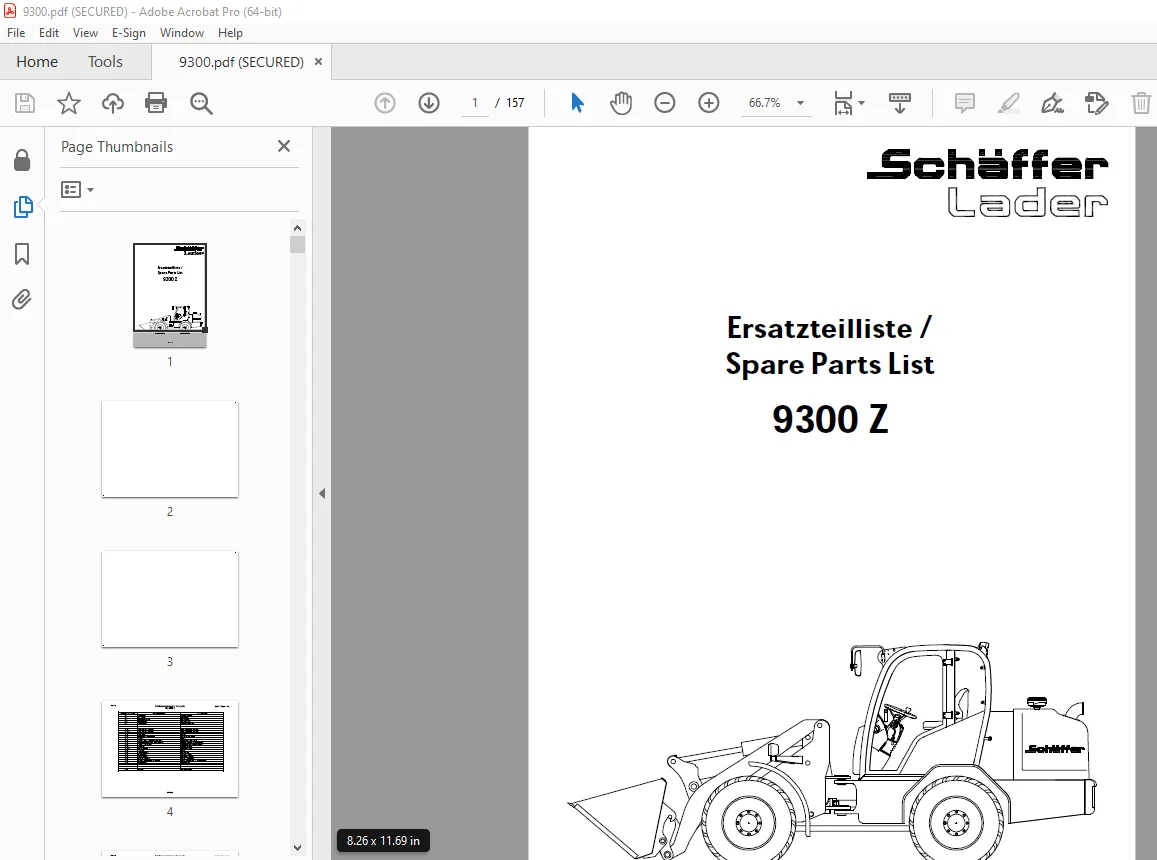

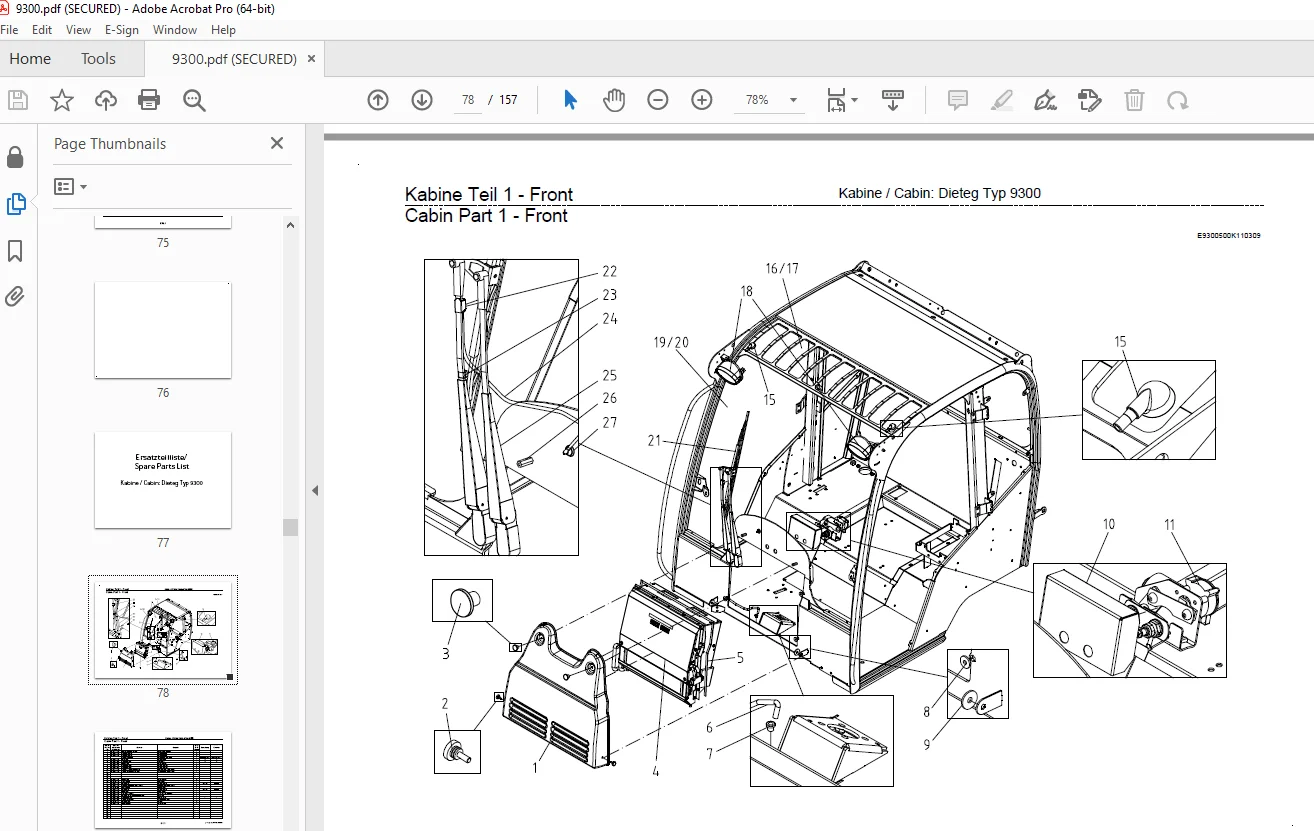

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Schaffer Lader 9300 Z Wheeled Loader Parts Manual – PDF DOWNLOAD
Steering cylinder
Lift cylinder
Tool cylinder
Hydraulic filter
Steering hydraulics
Drive hydraulics – 20 km/h
Drive hydraulics – 35 km/h
Driver’s seat
Pedals
Engine cover / Lining Frame
Lifting arm / Tool holder
Battery / Lighting / Counterweight
Drive hydraulics – 20 km/h
Drive hydraulics – 35 km/h
Driver’s seat
Pedals
Engine cover / Lining Frame
Lifting arm / Tool holder
Battery / Lighting / Counterweight
Electric system / Wiring harness
Steering column
Instrument panel
Clutch
Fuel system Exhaust system
Air cleaner system
Water- / Oilradiator
Axles / Cardan shaft / Tyre equipment Brake system
Adhesive Labels
Instrument panel
Clutch
Fuel system Exhaust system
Air cleaner system
Water- / Oilradiator
Axles / Cardan shaft / Tyre equipment Brake system
Adhesive Labels
S.V 11/24
