Screen PlateRite 8600SL Service Manual Addendum PDF

Description

Screen PlateRite 8600SL Service Manual Addendum PDF DOWNLOAD

Description

The Screen PlateRite 8600SL Service Manual Addendum PDF supplements the main service manual for the PlateRite 8600E/S-R/Z series thermal plate recorders, providing essential updates and procedures specific to the SL-type model. This document is crucial for technicians handling modifications, installations, and adjustments on the PT-R8600SL, ensuring compatibility and optimal performance in prepress operations. Key content includes PT-R8600SL specifications comparison with other models in the series, PlateRite 8600SL change parts list detailing updates to transport, drum, clamp driving, punch base, unload guide bracket, electric board, centering unit, cleaning roller, and hoisting rod. It also covers PT-R8600SL installation procedures for standalone units and options like feed tray, cleaning roller, small size plate support, autoloader (SA-L/MA-L), and registration punch unit.

Safety precautions emphasize reading the manual thoroughly before powering on to avoid accidents, with warnings on high-voltage areas, moving parts, and laser exposure. The addendum details PlateRite 8600SL drum balance adjustment to maintain stability during high-speed operations, PT-R8600SL plate length teaching guide for accurate media handling, and step-by-step sensor replacements and calibrations, such as start sensor (PH18) and plate edge detection sensors (PH25H, PH25A).

Compiled Table of Contents (from Sections A, B, and C):

• A. Outline (A-1)
  • 1-1. Specifications comparison (A-1)
  • 1-2. Change part (A-3)
    • 1-2-1. Transport (A-3)
    • 1-2-2. Drum and recording unit (A-4)
    • 1-2-3. Clamp driving (A-5)
    • 1-2-4. Punch base (A-5)
    • 1-2-5. Unload guide bracket (A-5)
    • 1-2-6. Electric board (A-6)
    • 1-2-7. Centering unit and cleaning roller (A-6)
    • 1-2-8. Hoisting rod (A-6)
  • 2. About plate length teaching (A-7)
• B. At Installation (B-1)
  • 1-1. Changed procedure for PT-R8600SL Installation (B-1)
  • 1-2. Description for the transportation hoisting rod set (B-2)
    • 1-2-1. Target product (B-2)
    • 1-2-2. About the hoisting rod (B-3)
    • 1-2-3. About cautions of the safety when using (B-3)
  • 1-3. Transportation hoisting rod set installation procedure (B-5)
  • 1-4. Checking the Packing List (B-7)
    • 1-4-1. PT-R8600SL (B-7)
    • 1-4-2. Feed Tray Option (B-8)
    • 1-4-3. Cleaning Roller Option (B-9)
    • 1-4-4. SA-L/ MA-L Option (B-10)
    • 1-4-5. Registration Punch Unit Option (B-11)
  • 2. Plate Set Guide installation Procedure (For Standalone) (B-12)
    • 2-1. At installation (B-12)
    • 2-2. Adjustment Procedure (B-12)
  • 3. Y Size Checking (B-14)
    • 3-1. Outline of the Y size checking on PT-R8600SL (B-14)
    • 3-2. Y Size Check Error Condition (B-14)
    • 3-3. CAUTION for Y Size Teaching on PT-R8600SL (B-14)
    • 3-4. Length Sensor Parameter Adjustment Procedure at Installation (B-15)
    • 3-5. Length Sensor Parameter adjustment at New Plate or New Media Addition (B-17)
  • 4. Chinese Panel Display (B-18)
    • 4-1. Regarding the Chinese Panel Display (B-18)
    • 4-2. Chinese Panel Display Change Procedure (B-18)
  • 5. Feed Tray Option Installation Procedure (B-21)
    • 5-1. Feed Tray Unit Option (B-21)
    • 5-2. Composition of the Feed Tray Unit (B-21)
    • 5-3. Installation Procedure (B-21)
    • 5-4. Feed Tray Unit Position Adjustment Procedure (B-25)
  • 6. Cleaning Roller Option Installation Procedure (B-27)
    • 6-1. Regarding the Cleaning Roller (B-27)
    • 6-2. Cleaning Roller Installation Procedure (B-27)
  • 7. Small Size Plate Support Option Setup Procedure (B-29)
    • 7-1. Regarding the Small Size Plate Sup (B-29)
    • 7-2. Regarding the Small Size Plate Support Setup Procedure (B-29)
  • 8. Autoloader option (SA-L/MA-L) Connection Procedure (B-30)
    • 8-1. Caution for the SA-L/MA-L connect (B-30)
    • 8-2. Additional procedure for the autoloader connection (B-30)
  • 9. Registration Punch Unit Option Installation Procedure (B-34)
    • 9-1. Regarding the Registration Punch Unit Option (B-34)
    • 9-2. Preparation (B-34)
    • 9-3. Registration Punch Unit Option Installation Procedure (B-34)
• C. Replacement & Adjustment (C-1)
  • Introduction of Replacement & Adjustment (C-1)
  • 1. Start sensor (PH18) replacement and adjustment (C-2)
    • 1-1. Start sensor amplifier (FS-V31) replacement (C-2)
    • 1-2. Fiber sensor, Fiber lens replacement and adjustment (C-5)
    • 1-3. Start sensor (PH18) adjustment (C-8)
      • 1-3-1. Sensor amplifier adjustment (C-8)
      • 1-3-2. Start sensor position adjustment (C-10)
      • 1-3-3. Start sensor plate edge detection position adjustment (C-11)
      • 1-3-4. Start sensor offset adjustment (Auto adjustment) (C-13)
      • 1-3-5. Start sensor drum check (C-14)
  • 2. Plate edge detection sensor (PH25H, PH25A) adjustment procedure (C-15)
    • 2-1. Preparation before adjustment (C-15)
    • 2-2. Plate edge detection sensor (PH25H, PH25A) position adjustment (C-15)
    • 2-3. Amplifier of Plate edge detection sensor (PH25H, PH25A) adjustment (C-16)

This high-quality PDF naturally integrates PT-R8600SL specifications comparison, PlateRite 8600SL change parts list, and other long-tail keywords for precise searching and application in CTP (computer-to-plate) system maintenance.

File Details:

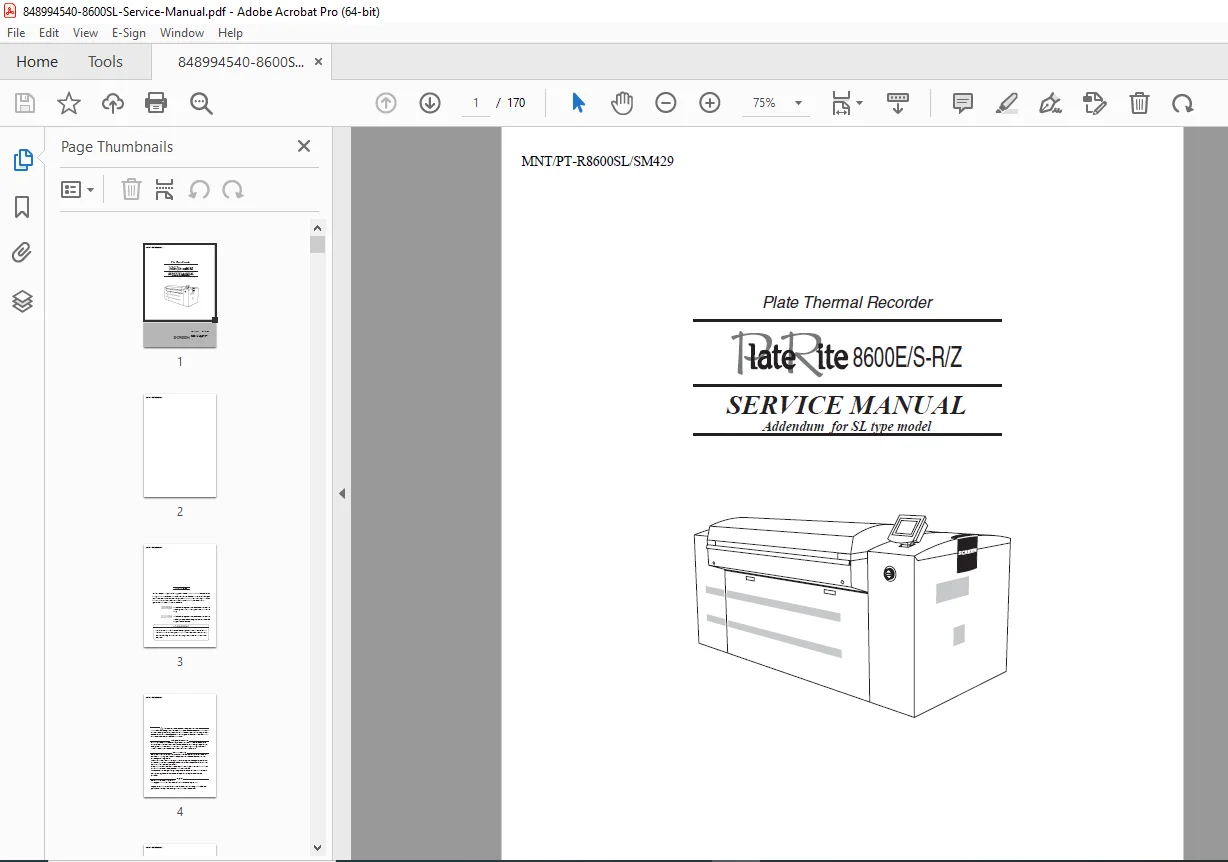

• Manual Name: PlateRite 8600E/S-R/Z Service Manual Addendum for SL-type Model
• Models Covered: PT-R8600SL (primary), with references to 8600E/S-R/Z
• Year: 2009
• Manual PDF Quality: High-quality with clear text, tables, diagrams, and illustrations
• No. of Pages: 170
