Sennebogen 513-M (SM13, ZM13) Wheel Hydraulic Manual PDF
$15.95
Sennebogen 513-M (SM13 ZM13) Wheel Excavator Hydraulic Schematic Manual – PDF DOWNLOAD
Description
Manual Overview
This is the Hydraulic Schematic Manual for the Sennebogen 513-M Wheel Excavator, which also covers the SM13 and ZM13 variants. This highly specialized 5-page document is presented in English and is an absolutely essential tool for hydraulic technicians, mechanics, and engineers working on this heavy equipment.
What This Manual Contains
Unlike a general service manual, this document focuses exclusively on the machine’s hydraulic system. It provides a detailed map of the entire hydraulic circuit. This includes:
- Hydraulic Diagrams: Clear, detailed schematics showing the flow of hydraulic fluid through the system.
- Component Identification: Shows the location and connection of pumps, valves, cylinders, motors, and hoses.
- System Logic: Helps technicians understand how the hydraulic functions are controlled and interconnected.
Why You Need This Schematic
Troubleshooting hydraulic issues without a schematic is incredibly difficult and time-consuming. This manual is critical for diagnosing problems such as pressure loss, slow operation, or leaks. It allows a technician to trace fluid paths, identify test points, and isolate faulty components efficiently, which is key to minimizing downtime and ensuring a correct and safe repair.
Gain immediate access to this vital hydraulic information with our instant PDF download. You can view it on a tablet or laptop right at the machine, making it a practical tool for any job site or workshop.
Original Product Details
Sennebogen 513-M (SM13 ZM13) Wheel Excavator Hydraulic Schematic Manual – PDF DOWNLOAD
FILE DETAILS:
Sennebogen 513-M (SM13 ZM13) Wheel Excavator Hydraulic Schematic Manual – PDF DOWNLOAD
Language : English
Pages : 5
Downloadable : Yes
File Type : PDF

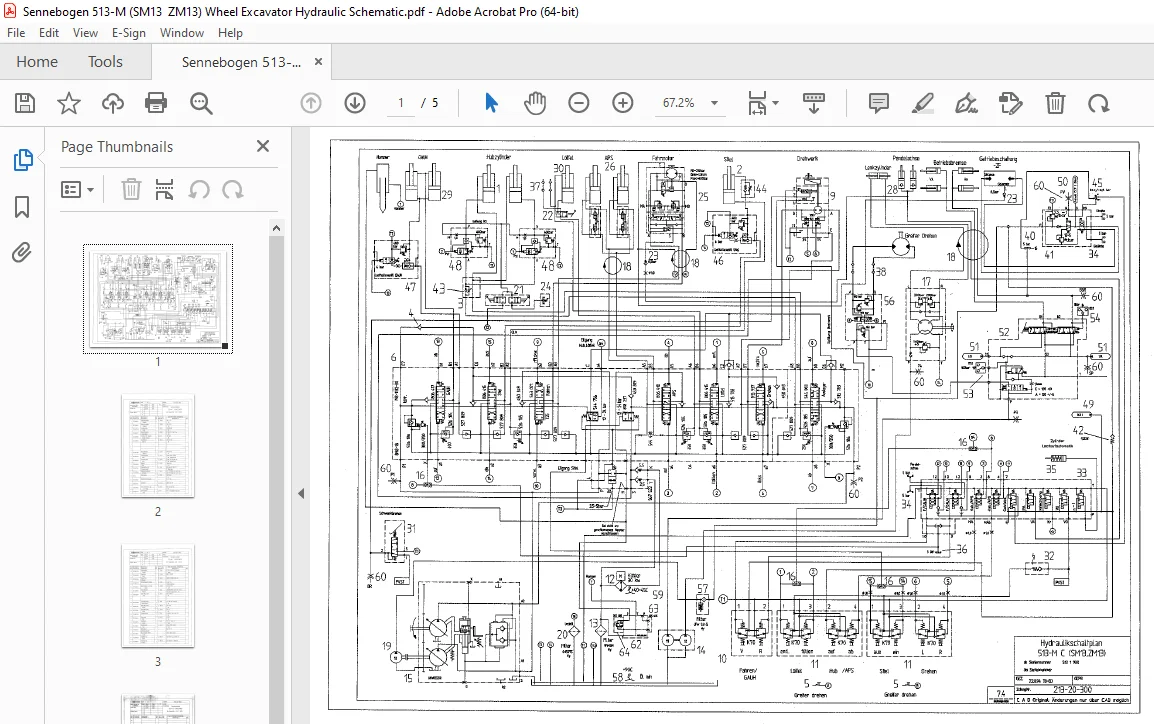

IMAGES PREVIEW OF THE MANUAL:
