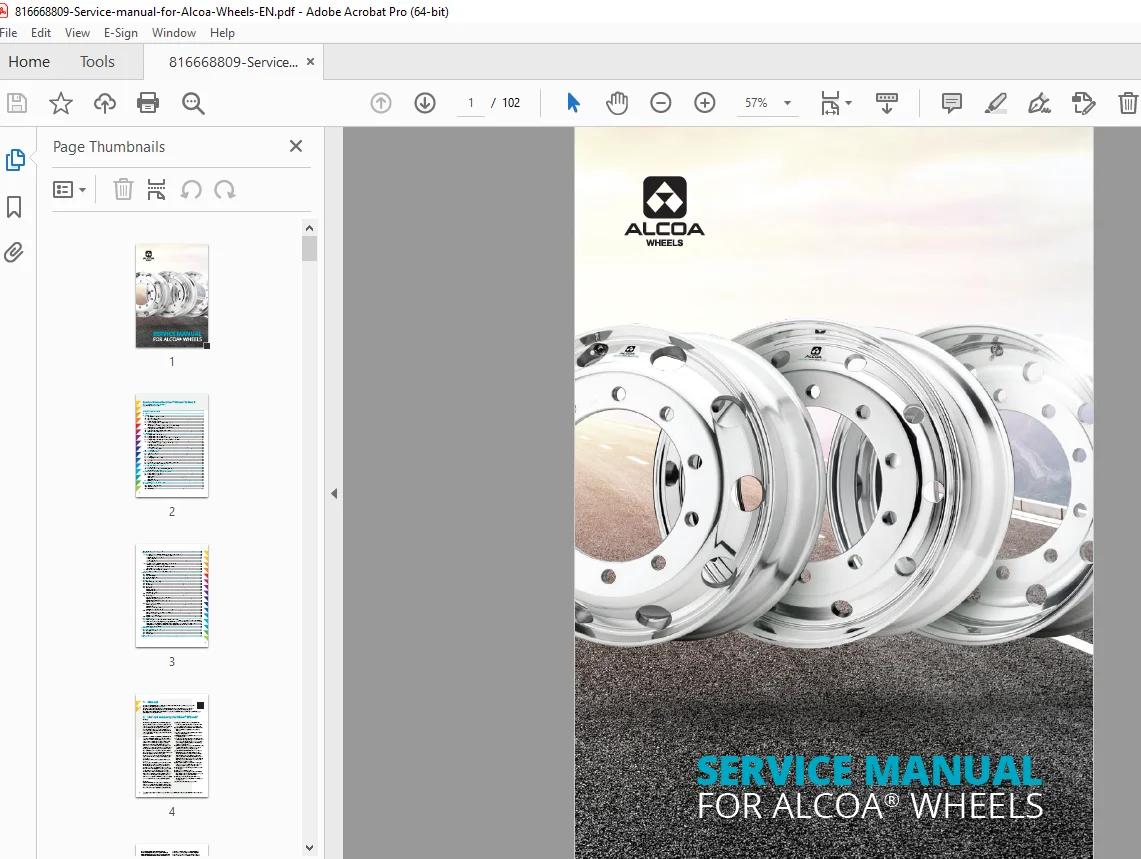

Service Manual for Alcoa Wheels (Edition 3, Jan 2022) – PDF

Description

Service Manual for Alcoa Wheels (Edition 3, Jan 2022) – PDF DOWNLOAD

Description

✅ Overview

This is the official Service Manual for Alcoa® Wheels designed for technicians, fleets, workshops, and maintenance teams working with forged aluminium wheels on trucks, trailers, buses, RV/motorhomes. It explains correct selection, installation, servicing, inspection, and maintenance practices to help prevent wheel damage, vibration issues, corrosion, and unsafe fitments.

🔧 What You’ll Learn / Use This Manual For

• Correct wheel selection (rim/tyre matching, offsets, dual spacing)

• Wheel identification (roll stamp, part numbers, load rating, pressure limits)

• Proper wheel fitment checks before tyre mounting

• Correct valves, valve torque, TPMS, and extensions guidance

• Safe mounting/demounting tubeless tyres + bead seating checks

• Balancing using adhesive weights

• Correct wheel installation (hub centring, torque practices)

• Mounting hardware: flange nuts, sleeved nuts, studs, thread engagement

• In-service inspection: rim flange wear, cracks, corrosion, heat damage

• Care/cleaning for Brushed/Mirror/LvL ONE®, Dura-Bright® XBR®/EVO, and Dura-Flange®

• Out-of-service criteria + glossary and references

📑 Table of Contents

1) Manual + Scope

2) Limited Warranty for Alcoa® Wheels

3) Safety

4) Wheel Selection

• Specification sheet overview

• Disc brake equipped axles

• General characteristics

• Identification / roll stamp markings

• Tyre-to-rim matching table (ETRTO)

• Wheel measurement

  • Minimum dual spacing (dual wheels)

  • Offset measurement (single wheels)

• Mixed applications (Alcoa wheels / steel wheels)

• Owner / in-service identification

5) Putting Wheels in Service

• Hidden damage checks

• Wheel alteration warnings

• Mounting area/support surface diameters

• Wheel fitment check before tyre mounting

• Valves, torque, recommendations, replacement

• TPMS valves/modules + valve extensions

6) Before Mounting Tubeless Tyres

• Safety + compliance

• Tools and machines

• Inspection steps

• Matching tyre/wheel/axle load

• Valve + lubricants

• Drop well wheel considerations

7) Mounting Tubeless Tyres on Alcoa® Wheels

• Mounting procedure

• Manual mounting/demounting guidance

• Inflation and bead seating checks

8) Deflating and Demounting Tubeless Tyres

• Safety steps before deflating

• Machines/tools/lubricants

• Demounting procedures

9) Balancing (Adhesive Weights)

10) Wheel Installation

• Prep steps

• Installation steps

• Hub centring

• Disc thickness and thread engagement

11) Mounting Hardware

• Standard 2-piece flange nuts + studs

• Sleeved nuts with standard studs

• Thread engagement and “bottom out” conditions

• Hardware for specific OEM fitments (example: Volvo)

12) Wheel Nuts

• Tightening nuts

• Keeping wheel nuts tight

• Dualing with steel wheels

• Incorrect assemblies

13) Wheels in Service (Inspection & Damage)

• Frequent inspection checklist

• Hidden damage / alteration / heat damage

• Dimension checks

• Vibration or tyre wear causes

• Rim flange wear + wear gauge use + edge removal maintenance

• Cracked/damaged wheel checks (mounting area, bolt holes, vent/hand holes, rim area)

• Corrosion inspection + removal guidance

14) Care & Maintenance

• Corrosion protection (Brushed/Mirror/LvL ONE®)

• Dura-Bright® XBR® / EVO cleaning (step-by-step)

• Dura-Flange® maintenance

15) Out-of-Service Wheels

16) Glossary + Conversion Factors

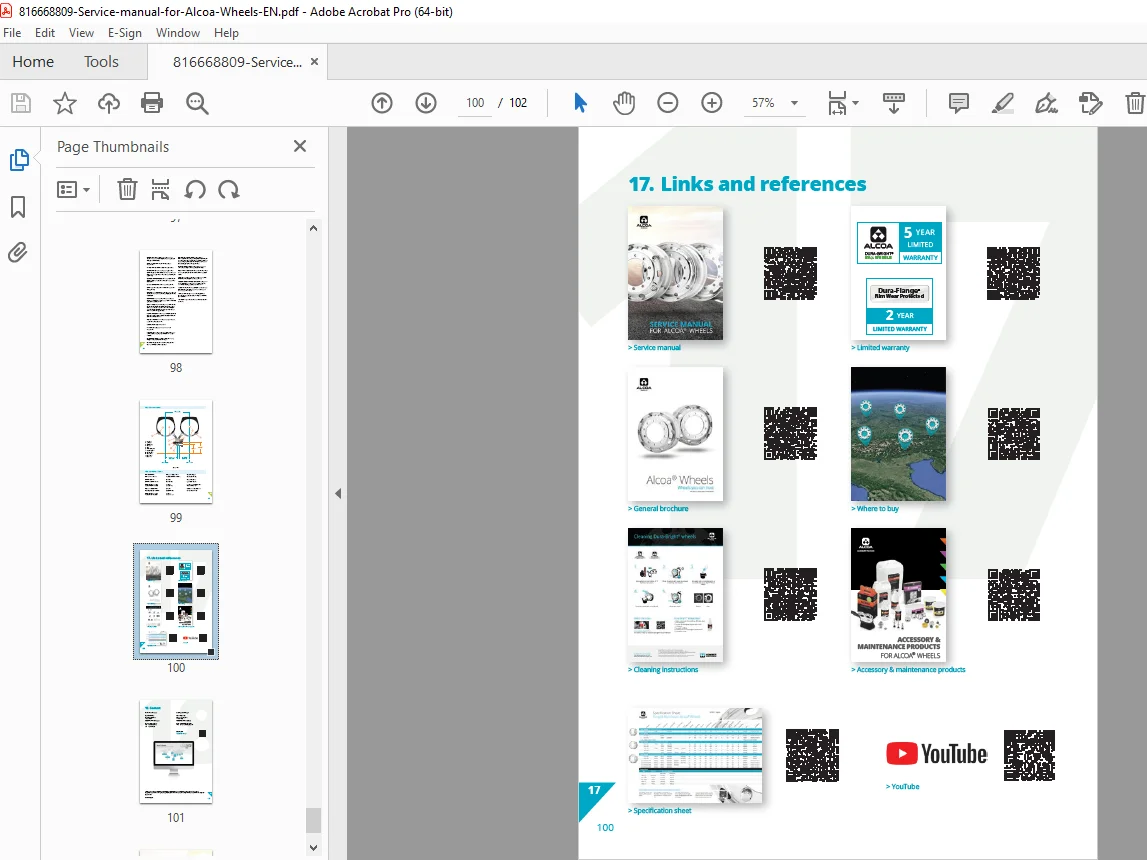

17) Links and References

18) Contact

📌 File Details

Avoid costly wheel damage and unsafe fitments—this official Alcoa® manual gives you the exact installation, torque, inspection, and cleaning procedures fleets rely on. Download instantly and service wheels the right way from day one.
