Sim.LED Surgical Light Service Manual PDF (450-7000 Series)
Original price was: $85.00.$16.95Current price is: $16.95.
Complete Sim.LED Surgical Light Service Manual covering models 450, 500, 700, 5000, and 7000. This essential guide details Sim.LED controller electronics replacement, Sim.POD reflector replacement, and cardanic cable repairs. Perfect for biomedical engineers performing Simeon Medical light repair and Sim.LED error codes troubleshooting.
Description
Sim.LED Surgical Light Service Manual PDF (450-7000 Series) DOWNLOAD
Description
Ensure the reliability and safety of your operating room illumination with this comprehensive Sim.LED surgical light service manual. This official document covers the entire range of Simeon Medical’s LED lighting systems, from the compact Sim.LED 250 to the advanced Sim.LED 7000 MC.
Designed for authorized service technicians, this manual provides step-by-step instructions for complex procedures such as Sim.LED controller electronics replacement and precise Sim.POD reflector replacement. It serves as an authoritative resource for Simeon Medical light repair, ensuring all maintenance adheres to strict manufacturer standards.
Manual Contents & Categorization:
General Information
Safety precautions & Personnel qualifications

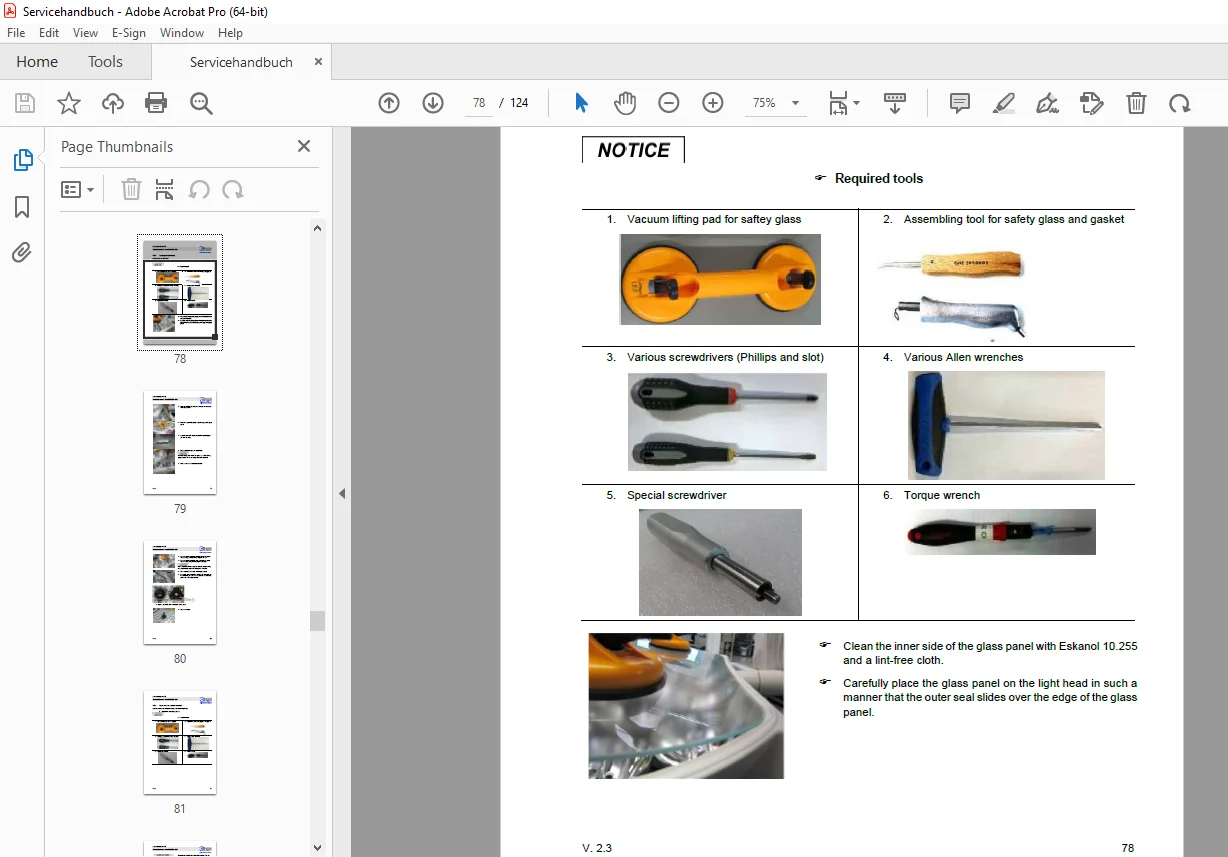

Tools and requirements (Torque wrenches, Vacuum lifting pads)
Power Supply: Switching power supply & Wall control units
Controller Electronics Overview
BusinessLine & HighLine (SC 3rd Gen + MC 1st Gen)
Cable routing and distribution board layouts
Sim.LED 450, 500, 700 Service (SC & MC)
Opening the light head: Removing glass covers and seals safely
Sim.POD & Reflector: Detailed replacement guides for Cold White (CW) and Warm White (WW) modules
Electronics: Exposing and replacing controller boards
Cardanic System: Surgical lighting cardanic cable repair, passing new cables, and adjusting spring force
Control Panels: Replacing film control panels (Double cardanic & Low-ceiling)
Sim.LED 5000 & 7000 Service
Service Menu access and navigation
Advanced Sim.LED controller electronics replacement with thermal conduction pad installation
Full disassembly: Light head, cardanic joints, and slip rings
Sim.LED 3500+, 4500, 350, 250 Service
Specific instructions for smaller procedure lights
Adjusting light braking power
Troubleshooting & Maintenance
Sim.LED error codes troubleshooting: Comprehensive table of LED binary codes and Hex errors (e.g., Over-temperature, Voltage errors)
Fault analysis: Faint LEDs, communication errors, and sensor failures
Technical safety inspections & Maintenance reports
File Details

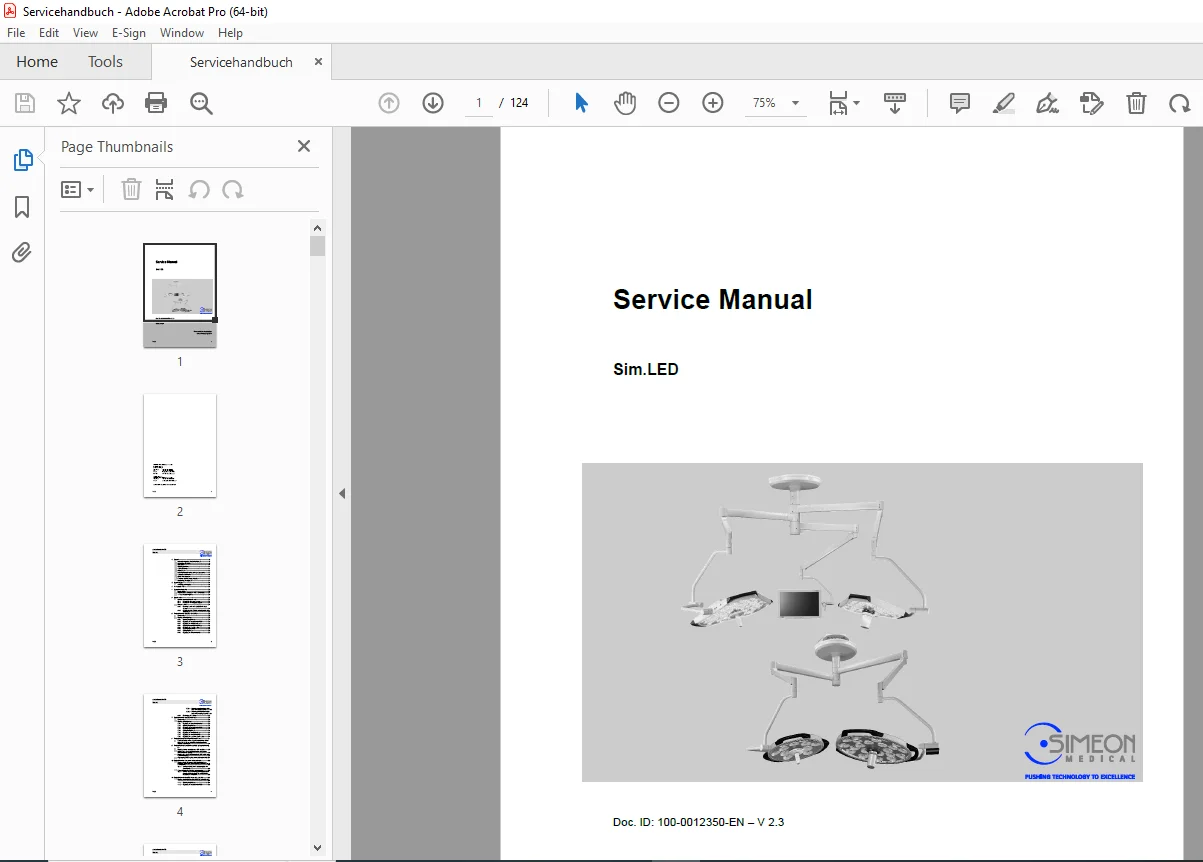

Manual Name: Service Manual Sim.LED (Doc ID: 100-0012350-EN)
Models Covered: Sim.LED 450, 500, 700, 5000, 7000, 3500+, 4500, 350, 250, Sim.CAM
Year/Version: 2023 (Version 2.3)
File Type: PDF (High-Quality, Searchable, Vector-based)
No. of Pages: 124 Page
